Ambit BuildGates Synthesis User Guide
Viewing the Schematic Design
The Schematic Tool Bar
Table 5-10 defines the functions of the schematic viewer tool bar.
Table 5-10 The Schematic Tool Bar
Function |
Description |
|
|
Normal/Gray |
Toggle between design display normal and gray modes. Gray mode |
|
is used to de-emphasise areas of the design. |
Zoom Fit |
Display the full schematic page and the border of the viewer. |
Zoom In |
Magnify the selected area of the design. |
Zoom Out |
De-magnify the selected area of the design. |
Clear Highlighting |
Unhighlight all objects and return the colors to normal. |
Highlight Select |
Select all highlighted objects. |
Unselect All |
Unselects all of the selected objects. |
Up Hierarchy |
Ascend a level in the design hierarchy. |
Down Hierarchy |
Descend a level in the design hierarchy or a level into the selected |
|
instance. |
Last View |
Return to the last view displayed in the viewer. |
Previous View |
Return to the previous view displayed in the viewer. |
Search |
Search for objects in the schematic; for instructions refer to |
|
Searching for an Object on page 125. |
Freeze |
Prevent changes to the schematic database. To unfreeze the |
|
database, click Freeze again; the setting toggles between an on |
|
and off state. Operations that are not available during the database |
|
freeze are indicated by the schematic tool bar icons; grayed-out |
|
icons indicate the operation is not available. |
Group Instances |
Group two or more instances into a new module. Hold down the |
|
Shift key and click left mouse button to select each instance. In the |
|
displayed text entry field, enter the name of the new module. |
Dissolve Instances |
Dissolve the contents of a module into the parent module. Hold |
|
down the Shift key and click left mouse button to select each |
|
instance. |
September 2000 |
122 |
Product Version 4.0 |
Ambit BuildGates Synthesis User Guide
Viewing the Schematic Design
Table 5-10 The Schematic Tool Bar, continued
Function |
Description |
|
|
Uniquify Instances |
Create a unique instance of the selected module. Hold down the |
|
Shift key and click left mouse button to select each instance. |
Save Schematic |
Print the current view or the full page (specified in View–Schematic |
|
Preferences–Printing–Scaling) to a postscript file. Specify file |
|
location and name in the displayed dialog box. |
Print Schematic |
Print the current view or the full page (specified in View–Schematic |
|
Preferences–Printing–Scaling) to the default printer. |
Close |
Close the current viewing window. |
|
|
September 2000 |
123 |
Product Version 4.0 |
Ambit BuildGates Synthesis User Guide
Viewing the Schematic Design
The Module Title Bar
The module title bar (Figure 5-5) is located between the schematic viewer tool bar and the schematic viewer display and shows the module name, the instance name, and the associated hierarchy of the current module. A history of previously selected modules is maintained and can be displayed by clicking on the scroll down arrow and selecting the module.
The columns on the far right indicate the page sequence of the schematic. If the paging is not split into multiple pages, the last column will contain the term “unspl” to indicate that a multipage schematic is compacted onto a single page. There are two ways to split a multipage schematic: View–Schematic Preferences–Paging–Page Size and Generate all Pages in the Commands Pop-Up Menu.

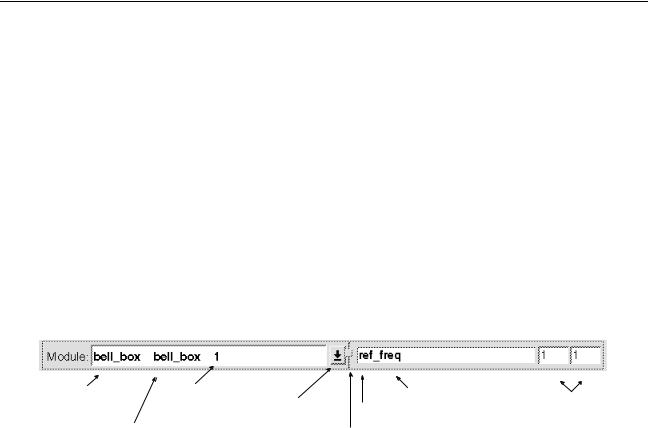

Figure 5-5 Sample Module Title Bar
Module name |
Schematic |
|
Currently selected |
|
|
object |
Page x of n |
||
|
page number |
Scroll list of |
||
|
Object type |
|
||
|
previous modules |
|
||
|
|
|
||
Instance name |
|
Horizontal slide bar |
|
|
|
|
|
|
|
September 2000 |
124 |
Product Version 4.0 |
Ambit BuildGates Synthesis User Guide
Viewing the Schematic Design
Searching for an Object
The search dialog (shown in Figure 5-6) allows you to search for a specific instance, net, port, bus, or module in the schematic or a list of all instances, nets, ports, bus, or modules in the schematic. You may have multiple search windows: one search window per schematic window.
The results of the search are displayed in the dialog box. A single left mouse click simply highlights the object. A double left mouse click displays and centers the selected object.

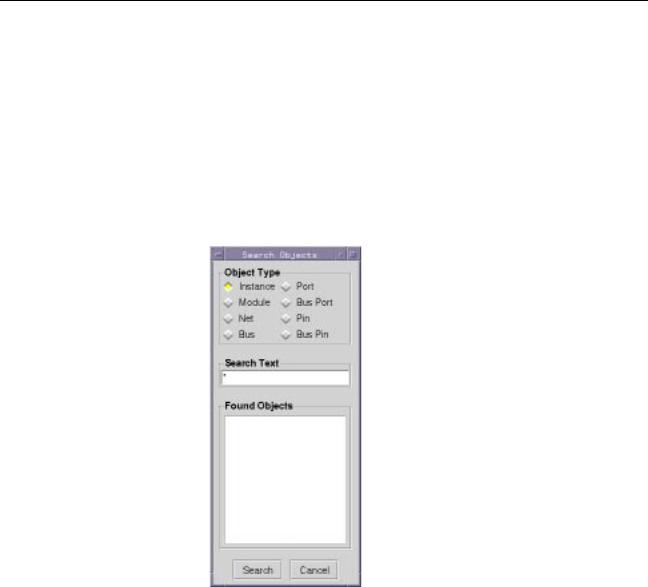

Figure 5-6 Search Objects Dialog
Search for a Specific Object:
1.Click left mouse button on Search icon on the schematic tool bar. The Search Objects Dialog is displayed.
2.Click left mouse button to select one object type.
3.Enter the name of the object for which to search. Be sure to clear any old search input or characters from the entry line. The default entry is an asterisk, which provides a list of all of the type of selected objects.
4.Left click Search. The object’s full name and location appears on the list.
5.Double click on the object on the list to display and center it on the viewer.
September 2000 |
125 |
Product Version 4.0 |
Ambit BuildGates Synthesis User Guide
Viewing the Schematic Design
Search from a List of Objects:
1.Click left mouse button on Search icon on the schematic tool bar.
The Search Objects Menu is displayed.
2.Click left mouse button to select one object type.
3.Enter an asterisk on the entry line. (Be sure to clear any old search input or characters from the entry line.)
4.Left click Search. The full names and locations of all objects of the selected type appear on the list.
5.Double click on the desired object on the list to display and center it on the viewer.
September 2000 |
126 |
Product Version 4.0 |
