Review of WAN Basics 305
Foundation Topics
Review of WAN Basics
Networking professionals need to know about many WAN options when designing networks. In this part of the book, you will read about the three main categories of WAN options:
■Leased point-to-point lines
■Dial lines (also called circuit-switched lines)
■Packet-switched networks
This chapter covers the details of leased lines. Before we get into those details, you should have a basic understanding of all three general options for WAN connectivity.
Table 9-2 gives the basic definitions for the three types of WAN services, as first covered in Chapter 4 of CCNA INTRO Exam Certification Guide.
Table 9-2 Definitions of Leased Line, Circuit Switching, and Packet Switching
Term |
Description |
|
|
Leased line |
A dedicated, always-on circuit between two endpoints. The service |
|
provider just passes a constant rate bit stream; it does not interpret |
|
or make decisions based on the bits sent over the circuit. Generally |
|
is more expensive than packet switching today. |
|
|
Circuit switching/dial |
Provides dedicated bandwidth between two points, but only for the |
|
duration of the call. Typically used as a cheaper alternative to leased |
|
lines, particularly when connectivity is not needed all the time. Also |
|
is useful for backup when a leased line or packet-switched service |
|
fails. |
|
|
Packet switching |
Provides virtual circuits between pairs of sites, with contracted |
|
traffic rates for each VC. Each site’s physical connectivity consists of |
|
a leased line from the site to a device in the provider’s network. |
|
Generally cheaper than leased lines. |
|
|
This chapter covers a few topics that relate to how routers use both leased lines and “dial” or circuit-switched lines. HDLC and PPP can be used on either type of line, because both these data-link protocols are designed for a point-to-point environment. Chapter 10 covers many of the details of circuit switching, including detailed coverage of ISDN. Chapter 11 covers Frame Relay, which can be called a packet-switching service, or sometimes a frameswitching service, because its logic relates mostly to OSI Layer 2.
306 Chapter 9: Point-to-Point Leased Line Implementation
Physical Components of Point-to-Point Leased Lines
Many options for WAN connectivity are available, including synchronous point-to-point serial links. These synchronous point-to-point links include a cable from a service provider, with the service including the capability to send and receive bits across that cable at a predetermined speed. The physical connection includes a CSU/DSU on each end of the link, as shown in Figure 9-1.

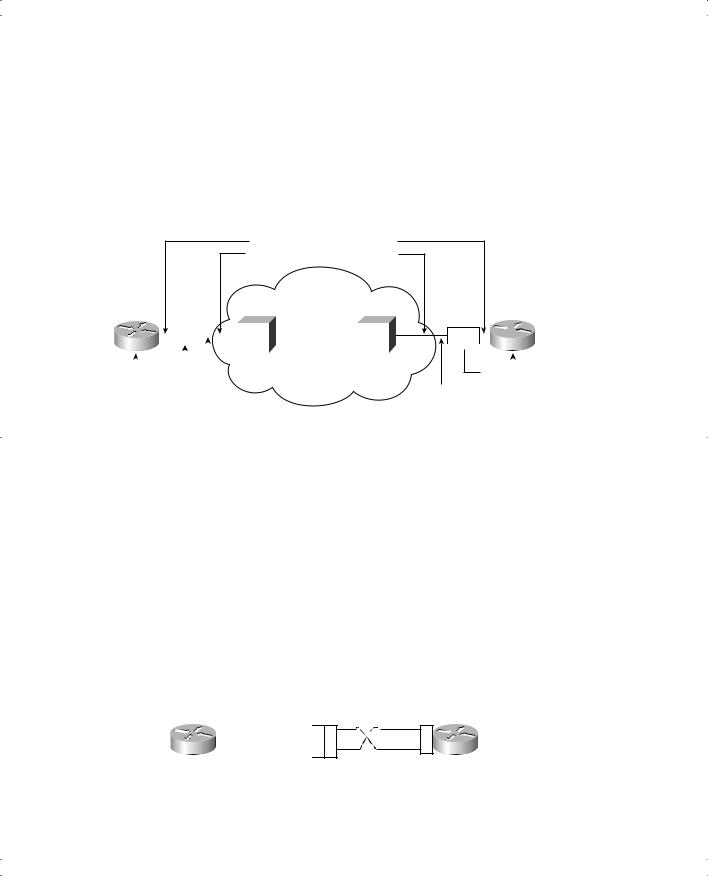

Figure 9-1 Physical Components of a Point-to-Point Serial Link
Short Cables (Usually Less than 50 Feet)
Long Cables (Can Be Several Miles Long)
|
|
|
|
|
|
|
|
|
|
|
|
TELCO |
|
|
|
|
|
|
|
|
CSU |
|
|
|
|
|
|
|
|
|
|
||
R1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
CPE |
|
|
|
|
|
|
WAN Switch |
|
|
WAN Switch |
||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
CO |
|
CO |
|||||||
|
|
|
|
|
|
|
|
|
||||||||
demarc
CSU/DSU
CSU
R2
CPE
demarc
The physical details of WAN links are covered in Chapter 4, “Fundamentals of WANs,” of CCNA INTRO Exam Certification Guide. After the CSU/DSUs are configured and the lines are installed, only a small amount of configuration is required on the routers. To get the two routers working so that they can ping each other across the link, you actually only need to configure IP addresses on each router and do a no shutdown command on each interface.
In some cases, two routers are physically close to each other, but they still need a point-to- point WAN link. For instance, if you are studying for a Cisco certification exam, and you want to have some WAN links, you do not need to lease a point-to-point circuit from the phone company. You can instead do a cabling “trick,” connecting a DCE cable to a DTE cable to create a point-to-point WAN link, as described in Chapter 4 of CCNA INTRO Exam Certification Guide. Figure 9-2 shows the basic idea behind the cabling with the DCE and
DTE cables, which allows the two routers to send and receive bits without a pair of CSU/ DSUs and a leased line.
Figure 9-2 Back-to-Back Serial Cabling
|
|
Tx |
Rx |
|
R1 |
|
Rx |
Tx |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tx |
Tx |
|
Rx |
Rx |
R2 |
|
|
DTE Cable |
DCE Cable |
