292 Chapter 8: Advanced TCP/IP Topics
Foundation Summary
The “Foundation Summary” section lists the most important facts from the chapter. Although this section does not list everything that will be on the exam, a well-prepared CCNA candidate should at a minimum know all the details in each Foundation Summary before taking the exam.
Table 8-11 shows the private address space defined by RFC 1918.
Table 8-11 RFC 1918 Private Address Space
Range of IP Addresses |
Class of Networks |
Number of Networks |
|
|
|
10.0.0.0 to 10.255.255.255 |
A |
1 |
|
|
|
172.16.0.0 to 172.31.255.255 |
B |
16 |
|
|
|
192.168.0.0 to 192.168.255.255 |
C |
256 |
|
|
|

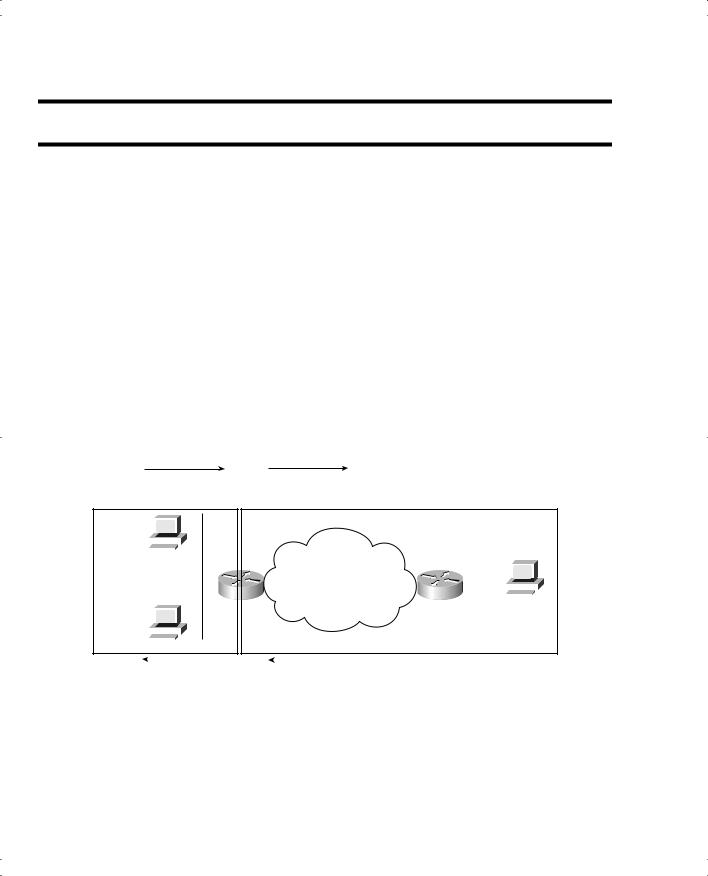

Figure 8-20 and Table 8-12 outline some of the terminology used with NAT.
Figure 8-20 Static NAT Terminology
|
|
SA 10.1.1.1 |
|
|
|
SA 200.1.1.1 |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Server |
|||||
10.1.1.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Internet |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NAT |
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
170.1.1.1 |
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10.1.1.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
Inside |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Outside |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
DA 10.1.1.1 |
|
|
|
|
|
|
DA 200.1.1.1 |
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Inside Local |
|
|
|
|
Inside Global |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
10.1.1.1 |
|
|
200.1.1.1 |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
10.1.1.2 |
|
|
200.1.1.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Foundation Summary 293 |
Table 8-12 NAT Addressing Terms |
||
|
|
|
|
Term |
Description |
|
|
|
|
Inside local |
In a typical NAT design, the term “inside” refers to an address used for a |
|
|
host inside an enterprise. An inside local is the actual IP address assigned to |
|
|
a host in the private enterprise network. A more descriptive term might be |
|
|
“inside private,” because when using RFC 1918 addresses in an enterprise, |
|
|
the inside local represents the host inside the enterprise, and it is a private |
|
|
RFC 1918 address. |
|
|
|
|
Inside global |
In a typical NAT design, the term “inside” refers to an address used for a |
|
|
host inside an enterprise. NAT uses an inside global address to represent the |
|
|
inside host as the packet is sent through the outside network, typically the |
|
|
Internet. A NAT router changes the source IP address of a packet sent by an |
|
|
inside host from an inside local address to an inside global address as the |
|
|
packet goes from the inside to the outside network. |
|
|
A more descriptive term might be “inside public,” because when using RFC |
|
|
1918 addresses in an enterprise, the inside global represents the inside host |
|
|
with a public IP address that can be used for routing in the public Internet. |
|
|
|
|
Outside global |
In a typical NAT design, the term “outside” refers to an address used for a |
|
|
host outside an enterprise—in other words, in the Internet. An outside |
|
|
global is the actual IP address assigned to a host that resides in the outside |
|
|
network, typically the Internet. A more descriptive term might be “outside |
|
|
public,” because the outside global represents the outside host with a public |
|
|
IP address that can be used for routing in the public Internet. |
|
|
|
|
Outside local |
In a typical NAT design, the term “outside” refers to an address used for a |
|
|
host outside an enterprise—in other words, in the Internet. NAT uses an |
|
|
outside local address to represent the outside host as the packet is sent |
|
|
through the private enterprise network (inside network). A NAT router |
|
|
changes a packet’s destination IP address, sent from an inside host to the |
|
|
outside global address, as the packet goes from the inside to the outside |
|
|
network. A more descriptive term might be “outside private,” because when |
|
|
using RFC 1918 addresses in an enterprise, the outside local represents the |
|
|
outside host with a private IP address from RFC 1918. |
|
|
|
Example 8-8 shows a typical NAT configuration, as well as some show commands.
Example 8-8 Dynamic NAT Configuration
NAT# show running-config
!
! Lines omitted for Brevity
!
interface Ethernet0/0
ip address 10.1.1.3 255.255.255.0
ip nat inside
!
continues
294 Chapter 8: Advanced TCP/IP Topics
Example 8-8 Dynamic NAT Configuration (Continued)
interface Serial0/0
ip address 200.1.1.251 255.255.255.0 ip nat outside
!
ip nat pool fred 200.1.1.1 200.1.1.2 netmask 255.255.255.252 ip nat inside source list 1 pool fred
!
access-list 1 permit 10.1.1.2 access-list 1 permit 10.1.1.1
!
NAT# show ip nat translations
NAT# show ip nat statistics
Total active translations: 0 (0 static, 0 dynamic; 0 extended)
Outside interfaces:
Serial0/0
Inside interfaces:
Ethernet0/0
Hits: 0 Misses: 0
Expired translations: 0
Dynamic mappings:
-- Inside Source
access-list 1 pool fred refcount 0
pool fred: netmask 255.255.255.252
start 200.1.1.1 end 200.1.1.2
type generic, total addresses 2, allocated 0 (0%), misses 0
!
! Telnet from 10.1.1.1 to 170.1.1.1 happened next; not shown
!
NAT# show ip nat statistics
Total active translations: 1 (0 static, 1 dynamic; 0 extended)
Outside interfaces:
Serial0/0
Inside interfaces:
Ethernet0/0
Hits: 69 Misses: 1
Expired translations: 0
Dynamic mappings:
-- Inside Source
access-list 1 pool fred refcount 1
pool fred: netmask 255.255.255.252
|
start 200.1.1.1 end |
200.1.1.2 |
|
|
|
type generic, total |
addresses 2, allocated 1 (50%), misses 0 |
||
NAT# show ip nat translations |
|
|
||
Pro |
Inside global |
Inside local |
Outside local |
Outside global |
--- |
200.1.1.1 |
10.1.1.1 |
--- |
--- |
Foundation Summary 295
The Destination Unreachable, Time Exceeded, Redirect, and Echo messages are described in Table 8-13.
Table 8-13 |
ICMP Message Types |
|
|
|
|
|
Message |
Purpose |
|
|
|
|
Destination Unreachable |
Tells the source host that there is a problem delivering a packet. |
|
|
|
|
Time Exceeded |
The time it takes a packet to be delivered has expired, so the |
|
|
packet has been discarded. |
|
|
|
|
Redirect |
The router sending this message has received a packet for which |
|
|
another router has a better route. The message tells the sender to |
|
|
use the better route. |
|
|
|
|
Echo |
Used by the ping command to verify connectivity. |
|
|
|
Table 8-14 summarizes some features of TFTP and FTP.
Table 8-14 Comparison of FTP and TFTP
FTP |
TFTP |
|
|
Uses TCP |
Uses UDP |
|
|
Uses robust control commands |
Uses simple control commands |
|
|
Sends data over a TCP connection separate from |
Uses no connections because of UDP |
control commands |
|
|
|
Requires more memory and programming effort |
Requires less memory and programming effort |
|
|
Example 8-9 shows the router configuration required to support ISL encapsulation and forwarding between three VLANs.
Example 8-9 Router Configuration for ISL Encapsulation
interface fastethernet 0.1
ip address 10.1.1.1 255.255.255.0 encapsulation isl 1
!
interface fastethernet 0.2
ip address 10.1.2.1 255.255.255.0 encapsulation isl 2
!
interface fastethernet 0.3
ip address 10.1.3.1 255.255.255.0 encapsulation isl 3
296 Chapter 8: Advanced TCP/IP Topics
Q&A
As mentioned in the Introduction, you have two choices for review questions. The following questions give you a bigger challenge than the exam because they are open-ended. By reviewing with this more-difficult question format, you can exercise your memory better and prove your conceptual and factual knowledge of the topics covered in this chapter. The answers to these questions are found in Appendix A.
For more practice with exam-like question formats, including multiple-choice questions and those using a router simulator, use the exam engine on the CD.
1.Define private addressing as defined in RFC 1918.
2.List the range of private networks defined in RFC 1918.
3.Does CIDR affect the size of Internet routing tables? If so, what does it do to those routing tables?
4.Define NAT and explain the basics of its operation.
5.Define the term inside local address in relation to NAT. Use Figure 8-21 to describe the answer.

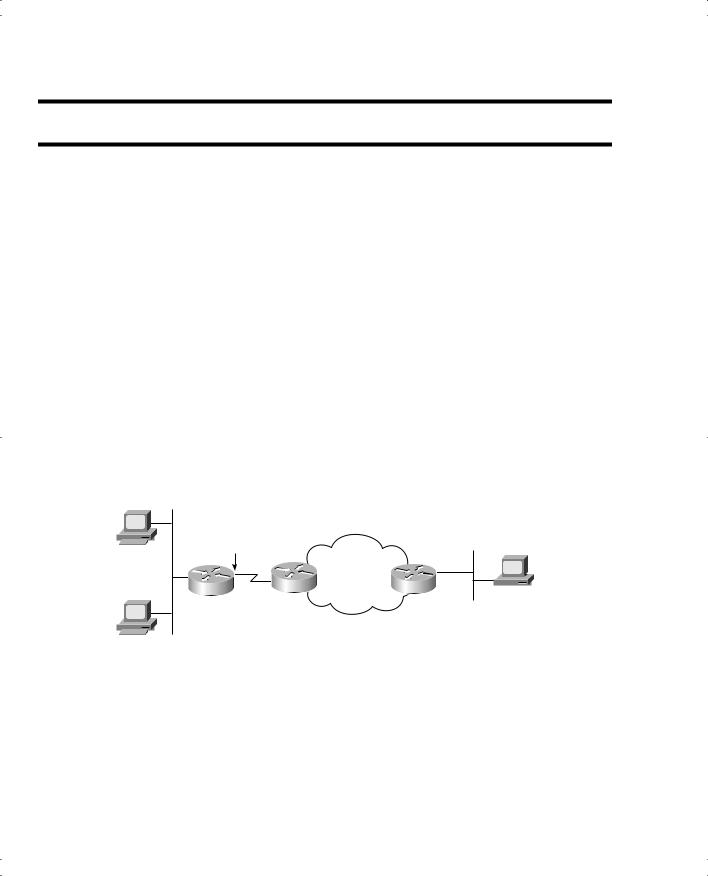

Figure 8-21 Network for Use in Answering NAT Questions
10.1.1.1 |
200.1.1.1 |
Server |
|
|
Internet
NAT 170.1.1.1
10.1.1.2
6.Define the term inside global address in relation to NAT. Use Figure 8-21 to describe the answer.
7.Create a configuration for NAT overload to a single IP address for the router shown in Figure 8-21.
8.Create a configuration for static NAT, mapping host 10.1.1.1 to 200.1.1.11, for the router shown in Figure 8-21.
Q&A 297
9.Which requires more lines of source code, FTP or TFTP? Explain your answer.
10.Does FTP or TFTP perform error recovery? If so, describe the basics of how this occurs.
11.Describe the process used by IP routers to perform fragmentation and reassembly of packets.
12.How many Class B-style networks are reserved by RFC 1918 private addressing?
13.Describe why ARP requests use an Ethernet broadcast address instead of an Ethernet unicast address.
14.Imagine that host 10.1.1.1 in Figure 8-21 sends a packet to the server at 170.1.1.1 and that the NAT router also happens to fragment the packet. Inside the context of this network, explain how reassembly of the fragments into the original packet occurs.
15.Imagine that R1 has an interface, FastEthernet 0/0, that uses ISL trunking to a switch.
R1 needs to route between VLAN 1 and VLAN 2. Create a valid router configuration.
16.Describe how NAT overload manages to support more than one inside local IP address using a single inside global address.
Cisco Published ICND Exam Topics*
Covered in This Part:
4 Design a simple internetwork using Cisco products
6 Choose WAN protocols to meet design requirements
14Implement simple WAN protocols
15Utilize the OSI model as a guide for systematic network troubleshooting
19Troubleshoot a device as part of a working network
21Perform simple WAN troubleshooting
26Evaluate key characteristics of HDLC, PPP, Frame Relay, DDR, and ISDN technologies * Always re-check www.cisco.com for the latest posted exam topics
