Aeronautical Information Service (AIS) |
|
18 |
|
||
Notices to Airmen (NOTAM) |
|||||
|
|
|
|
||
18.19 Definition: NOTAM are notices distributed by means of telecommunications containing |
|
|
|
|
|
information concerning the establishment, condition or change in any aeronautical facility, |
|
|
|
|
|
service, procedure or hazard, the timely knowledge of which is essential to personnel concerned |
|
|
|
|
|
with flight operations. |
|
|
|
|
|
18.20 Origination. NOTAMaretobeoriginatedandissuedpromptlywhenevertheinformation |
|
|
|
|
|
to be distributed is of a temporary nature and of short duration, or when operationally |
|
|
|
|
|
significant permanent changes, or temporary changes of long duration, are made at short |
|
|
|
|
|
notice (except when extensive text and/or graphics is essentially included, in which case, the |
|
|
|
|
|
information is published as an AIP supplement). NOTAM are required whenever information is |
|
|
|
|
|
of direct operational significance. |
|
|
|
|
|
18.21 AIRAC Notification. When an AIP amendment or an AIP Supplement is published in |
|
|
|
|
|
accordance with AIRAC procedures, NOTAM are to be originated giving a brief description of |
|
|
|
|
|
the contents, the effective date and the reference number to the amendment or supplement. |
|
|
|
|
|
This NOTAM shall come into force on the same effective date as the amendment or supplement. |
|
|
|
|
|
18.22 Notice and Validity. NOTAM should remain in force as a reminder in the pre-flight |
|
|
|
|
|
information bulletin until the next checklist/summary is issued. Whenever possible, at least 24 |
|
|
|
|
|
hours’ advance notice is desirable, to permit timely completion of the notification process |
|
|
|
|
|
and to facilitate airspace utilization planning. NOTAM notifying the unserviceability of aids to |
|
|
|
|
|
air navigation, facilities or communication services should give an estimate of the period of |
|
|
|
|
|
unserviceability or the time at which restoration of service is expected. |
|
|
|
|
|
18.23 Excluded Matter. NOTAM should not include information of non-operational |
|
|
|
|
|
importance including partial failures of lighting or ground systems, routine maintenance, any |
|
|
|
|
|
work in progress on runways not in use or if the equipment can be rapidly removed from the |
|
|
|
|
|
duty runway, temporary obstructions, local area parachuting, and the lack of apron marshalling |
|
|
|
|
|
|
|
18 |
|
||
services and road traffic control. |
|
|
|||
|
|
|
|
||
18.24 Distribution. NOTAM are to be distributed to addressees to whom the information |
|
|
(AIS) |
||
|
|
|
|
||
is of direct operational significance, and who would not otherwise have at least seven days |
|
|
Service |
||
prior notification. The aeronautical fixed telecommunication network (AFTN - teleprinter) is, |
|
|
|||
|
|
|
|
||
whenever practicable, employed for NOTAM distribution. When NOTAM are sent by means |
|
|
Information |
||
other than the AFTN a six digit date-time group indicating the date and time of filing the |
|
|
|||
|
|
|
|
||
NOTAM and the identification of the originator is used, preceding the text. |
|
|
Aeronautical |
||
the internationally distributed AICs. |
|
|
|||
18.25 NOTAM Checklists. A checklist of current NOTAM is issued at intervals of not more |
|
|
|
|
|
than one month. The checklist is to refer to the latest AIP amendment, AIP supplement and |
|
|
|
|
|
18.26 Errors. When errors occur in a NOTAM, a NOTAM with a new number to replace the |
|
|
|
|
|
erroneous NOTAM will be issued or the erroneous NOTAM cancelled and a new NOTAM issued. |
|
|
|
|
|
18.27 Summary. A monthly printed plain language summary of NOTAM in force, including |
|
|
|
|
|
the indications of the latest AIP amendments, checklist of AIP supplements and AIC issued, is |
|
|
|
|
|
to be sent by the most expeditious means to recipients of the IAIP. |
|
|
|
|
355
18 Aeronautical Information Service (AIS)
SNOWTAM
18.28Description. Information concerning snow, ice and standing water on aerodrome pavement areas is to be reported by SNOWTAM. Its validity is a maximum of 24 hours.
18.29Contents of a SNOWTAM. Appendix 2 to Annex 15 details the requirements of a SNOWTAM. The information contained is as follows (If a field is not applicable then it is left blank and nothing is transmitted):
A.The ICAO aerodrome locator code e.g. EGLL (Heathrow)
B.The date/time of observation (UTC)
C.Runway designators (e.g. 27R)
D.Cleared runway length if less than published length (m)
E.Cleared runway width if less than the published width (m; if off set: L or R)
F.Deposits over total runway length:
•Nil - Clear and dry
•Damp
•Wet or water patches
•Rime or frost covered
•Dry snow
•Wet snow
•Slush
•Ice
•Compacted or rolled snow
•Frozen ruts or ridges
G.Mean depth (mm) for each third of total runway length
H.Friction measurement on each third of runway and friction measuring device
18 |
|
|
|
|
|
|
Friction Coefficient |
Estimated surface friction |
Code |
||
|
|
||||
Aeronautical |
|||||
|
|
|
|
||
|
0.4 and above |
Good |
5 |
||
|
|
||||
Information |
|
|
|
|
|
|
0.39 – 0.36 |
Medium to good |
4 |
||
|
|
||||
(AIS)Service |
|
|
|
|
|
|
0.35 – 0.3 |
Medium |
3 |
||
|
|
||||
|
|
|
|
|
|
|
|
0.29 – 0.26 |
Medium to poor |
2 |
|
|
|
|
|
|
|
|
|
0.25 and below |
Poor |
1 |
|
|
|
|
|
|
|
|
|
Reading unreliable |
Unreliable |
9 |
|
|
|
|
|
|
Figure 18.1 Surface friction reporting codes
356
Aeronautical Information Service (AIS) 18
J.Critical snow banks (m)
K.Runway lights (if obscured “yes” followed by L , R or LR)
L.Further clearance (if planned inset length/width to be cleared or if to full dimensions insert FULL)
M.Further clearance expected to be completed by (UTC)
N.Taxiway
P.Taxiway snow banks (if > 60 cm insert “Yes” followed by distance apart (m))
Q.Apron
S Next planned observation /measurement is for (month/day/hour (UTC))
T.Plain language remarks
18.30 SNOWCLO. A term used in a VOLMET broadcast to indicate that an aerodrome is closed due to snow or snow clearance in progress.
Photo: Mercedes Benz

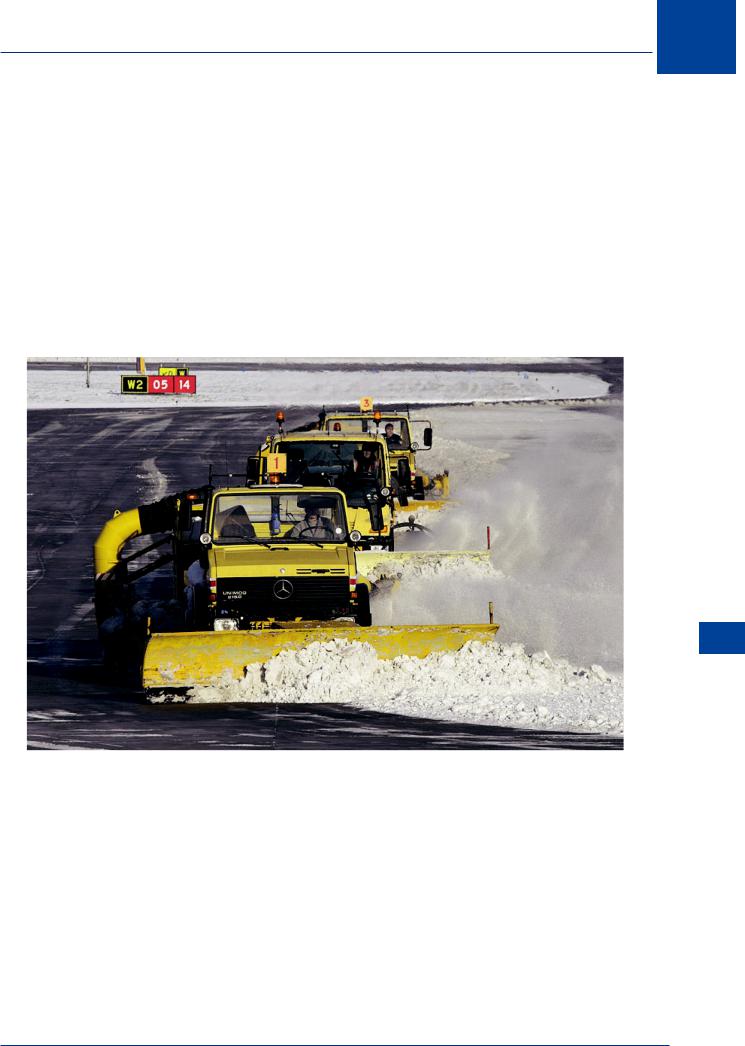

Figure 18.2 Snow clearance
18.31 Wheel Braking On Wet Runways. The inherent friction characteristics of a runway surface deteriorate only slowly over a period of time, but the friction of a runway surface and thus the braking action can vary significantly over a short period in wet conditions depending on the actual depth of water on the runway. Also, long term (six monthly) seasonal variations in friction value may exist. The consequence of combination of these factors is that no meaningful operational benefit can be derived from continually measuring the friction value of a runway in wet conditions. In the context of these paragraphs a ‘wet runway’ covers a range of conditions from ‘Damp’ to ‘Flooded’ as described below. It does not include ice or runways contaminated with snow, slush, or water associated with slush. Paved runways of 1200 m and longer at civil aerodromes licensed for public use have been calibrated, to ensure that the friction characteristics of a runway surface are of a quality to provide good braking action in wet conditions. The presence of water on a runway will be reported on R/T using the following descriptions:
Aeronautical Information Service (AIS) 18
357
18 Aeronautical Information Service (AIS)
(AIS) Service Information Aeronautical 18
Description |
Meaning |
|
|
|
|
Dry |
The surface is dry |
|
|
|
|
Damp |
The surface shows a change of colour due to moisture |
|
|
|
|
Wet |
The surface is soaked but no significant patches of |
|
standing water are visible. |
||
|
||
|
|
|
Water Patches |
Significant patches of standing water are visible |
|
|
|
|
Flooded |
Extensive standing water is visible. |
|
|
|
|
|
Figure 18.3 Runway surface description |
18.32 Interpretation. When a runway is reported as ‘DAMP’ or ‘WET’ pilots may assume that an acceptable level of runway wheel braking friction is available. When a runway is reported as having ‘WATER PATCHES’ or being ‘FLOODED’ braking may be affected by aquaplaning and appropriate operational adjustments should be considered. “Water patches” will be used if at least 25% of the runway length is covered with standing water. When a runway is notified as liable to be slippery when wet, take-offs or landings in wet conditions should only be considered when the distances available equal or exceed those required for a very slippery or icy runway as determined from information in the aeroplane’s Flight Manual. At military aerodromes in the UK, runway surface conditions will be described in plain language, and, where a braking action measuring device has been used, braking action will be described as good, medium or poor.
ASHTAM
18.33Purpose. Volcanic ash cloud presents a significant hazard to turbine engine aeroplanes. Timely warning of the presence of ash clouds or the possibility of an ash cloud existing is vital to safe operations in areas where volcanic activity is common. Information concerning an operationally significant change in volcanic activity, a volcanic eruption and/or volcanic ash cloud is reported by means of an ASHTAM.
18.34Description. The ASHTAM provides information on the status of activity of a volcano when a change in its activity is, or is expected to be of operational significance. This information is provided using the volcano level of alert colour code. In the event of a volcanic eruption producing ash cloud of operational significance, the ASHTAM also provides information on the location, extent and movement of the ash cloud and the air routes and flight levels affected. The maximum period of validity of an ASHTAM is 24 hours. A new ASHTAM must be issued whenever there is a change in the alert level.
358
