When reviewing Cisco’s exam objectives in preparation for the exam, the “and any other relevant topics” line might get you worrying.
This chapter tries to address those topics. Although there are no specific exam objectives covered in this chapter, the topics discussed here may show up on the MPLS exam.
So far, you’ve learned a lot about MPLS and MPLS VPNs. This chapter explains the steps required to set up MPLS VPNs using static routes and E-BGP to communicate with CE routers.
In addition, you’ve learned all about simple MPLS VPN topologies. This chapter introduces you to more complex MPLS VPN topologies.
Static Routing
Although the exam objectives do not require you to know about static routes, I’d like you to see a working example of how static routes can be used in a simple MPLS VPN.
Figure 8.1 illustrates the simple network we’ll use in this example.

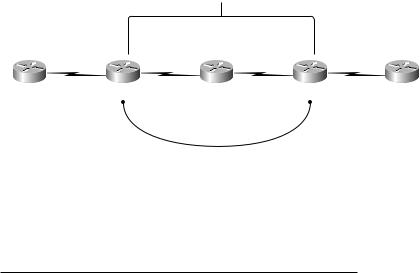

F I G U R E 8 . 1 A simple service provider network
IGP
|
Serial |
0/0 |
0/0 |
Serial |
0/1 |
0/0 |
0/1 |
0/0 |
|
Serial 0/1 |
Serial |
|
Serial |
|
Serial Serial |
|
Serial 0/1 |
||
|
|
|
|
|
|
|
|
||
PE1 |
|
P1 |
|
|
P2 |
|
PE2 |
||
Serial 0 |
|
|
|
|
|
|
|
Serial 0 |
|
CE1 |
|
|
|
|
|
|
|
CE2 |
I-BGP
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
Static Routing 319
Figure 8.2 illustrates the routing protocol utilization of the network in Figure 8.1.
F I G U R E 8 . 2 Routing protocol utilization
RIPv2
Peer 1 |
Atlanta |
Core |
Raleigh |
Peer 2 |
I-BGP
AS 65000
Table 8.1 lists the IP addresses and interfaces of the CE devices in
Figure 8.1.
T A B L E 8 . 1 Customer Addressing
Device |
Loopback 0 |
Serial 0 |
|
|
|
Peer 1 |
192.168.1.1/32 |
192.168.3.5/30 |
Peer 2 |
192.168.2.1/32 |
192.168.3.10/30 |
|
|
|
Table 8.2 lists the IP addresses and interfaces of the service provider devices in Figure 8.1.
T A B L E 8 . 2 |
Service Provider Addressing |
|
|
||
|
|
|
|
|
|
|
Device |
Loopback 0 |
Serial 0/0 |
Serial 0/1 |
Serial 0/3 |
|
|
|
|
|
|
|
Atlanta |
204.134.83.1/32 |
204.134.83.5/30 |
192.168.3.6/30 |
N/A |
|
Core |
204.134.83.2/32 |
204.134.83.9/30 |
204.134.83.6/30 |
N/A |
|
Raleigh |
204.134.83.3/32 |
N/A |
192.168.3.9/30 |
204.134.83.10/30 |
|
|
|
|
|
|
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
320 Chapter 8 Advanced MPLS Topics
Device Configuration
Presently, the network is set up with an IGP (RIPv2), tag switching, and MP-BGP between the Atlanta and Raleigh POP routers, as you can see in the running-config of the Raleigh POP router:
Raleigh#show running-config
Building configuration...
Current configuration : 1997 bytes
!
version 12.1
service timestamps debug uptime service timestamps log uptime no service password-encryption
!
hostname Raleigh
!
enable password cisco
!
!
!
!
!
memory-size iomem 25 ip subnet-zero
ip tcp synwait-time 5 no ip domain-lookup
!
!
ip cef
cns event-service server
!
!
!
!
!
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
Static Routing 321
interface Loopback0
ip address 204.134.83.3 255.255.255.255
!
interface Serial0/0 no ip address shutdown
no fair-queue clockrate 64000
!
interface Serial0/1
description *** Link to Peer2 ***
ip address 192.168.3.9 255.255.255.252 clockrate 64000
!
interface Serial0/2 no ip address shutdown
clockrate 64000
!
interface Serial0/3
description *** Link to Core Router ***
ip address 204.134.83.10 255.255.255.252 tag-switching ip
clockrate 64000
!
interface Ethernet1/0 no ip address shutdown
!
interface Ethernet1/1 no ip address shutdown
!
interface Ethernet1/2 no ip address shutdown
!
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
322 Chapter 8 Advanced MPLS Topics
interface Ethernet1/3 no ip address shutdown
!
router rip version 2
network 204.134.83.0
!
router bgp 65000
no synchronization
bgp log-neighbor-changes
neighbor 204.134.83.1 remote-as 65000 neighbor 204.134.83.1 update-source Loopback0 neighbor 204.134.83.1 next-hop-self
no auto-summary
!
!
address-family vpnv4
neighbor 204.134.83.1 activate
neighbor 204.134.83.1 send-community both no auto-summary
exit-address-family
!
ip classless
no ip http server
!
!
!
line con 0 exec-timeout 0 0 privilege level 15 logging synchronous transport input none
ip netmask-format decimal line aux 0
line vty 0 4
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
Static Routing 323
privilege level 15 password cisco logging synchronous login
ip netmask-format decimal
!
end
Notice in the running-config of the Atlanta POP router that RIPv2, tag switching, and MP-BGP are configured:
Atlanta#show running-config
Building configuration...
Current configuration : 1972 bytes
!
version 12.1
service timestamps debug uptime service timestamps log uptime no service password-encryption
!
hostname Atlanta
!
enable password cisco
!
!
!
!
!
memory-size iomem 25 ip subnet-zero
ip tcp synwait-time 5 no ip domain-lookup
!
!
ip cef
cns event-service server
!
!
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
324 Chapter 8 Advanced MPLS Topics
!
!
!
interface Loopback0
ip address 204.134.83.1 255.255.255.255
!
interface Serial0/0
description *** Link to Core Router ***
ip address 204.134.83.5 255.255.255.252 tag-switching ip
no fair-queue clockrate 64000
!
interface Serial0/1
description *** Link to Peer1 ***
ip address 192.168.3.6 255.255.255.252 clockrate 64000
!
interface Serial0/2 no ip address shutdown
clockrate 64000
!
interface Serial0/3 no ip address shutdown
clockrate 64000
!
interface Ethernet1/0 no ip address shutdown
!
interface Ethernet1/1 no ip address shutdown
!
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
Static Routing 325
interface Ethernet1/2 no ip address shutdown
!
interface Ethernet1/3 no ip address shutdown
!
router rip version 2
network 204.134.83.0
!
router bgp 65000
no synchronization
bgp log-neighbor-changes
neighbor 204.134.83.3 remote-as 65000 neighbor 204.134.83.3 update-source Loopback0 neighbor 204.134.83.3 next-hop-self
no auto-summary
!
address-family vpnv4
neighbor 204.134.83.3 activate
neighbor 204.134.83.3 send-community both no auto-summary
exit-address-family
!
ip classless
no ip http server
!
!
!
line con 0 exec-timeout 0 0 privilege level 15 logging synchronous transport input none
Copyright ©2002 SYBEX, Inc., Alameda, CA |
www.sybex.com |
