CRANKSHAFT OIL SEALS SERVICE

Fig. 2 Removing Rear Crankshaft Oil Seal

(2)Place Special Tool C-4681 on crankshaft (Fig. 3).

(3)Lightly coat seal O.D. with Loctite Stud N' Bearing Mount or equivalent.

(4)Place seal over Tool C-4681 and tap in place with a plastic hammer.

Fig. 3 Installing Rear Crankshaft Oil Seal

REAR CRANKSHAFT SEAL RETAINER AND OIL SEAL

When retainer removal is required, use Mopar Gasket Maker applied as shown in (Fig. 4) to provide retainer to block sealing during re-installation.

FRONT CRANKSHAFT SEAL RETAINER

See Timing System and Seals Section for timing belt covers, belt crankshaft sprocket and oil seals removal and installation.

(1) Remove retainer screws (Fig.5).

Fig. 4 Rear Crankshaft Seal Retainer Sealing

Fig. 5 Front Crankshaft Oil Seal Retainer

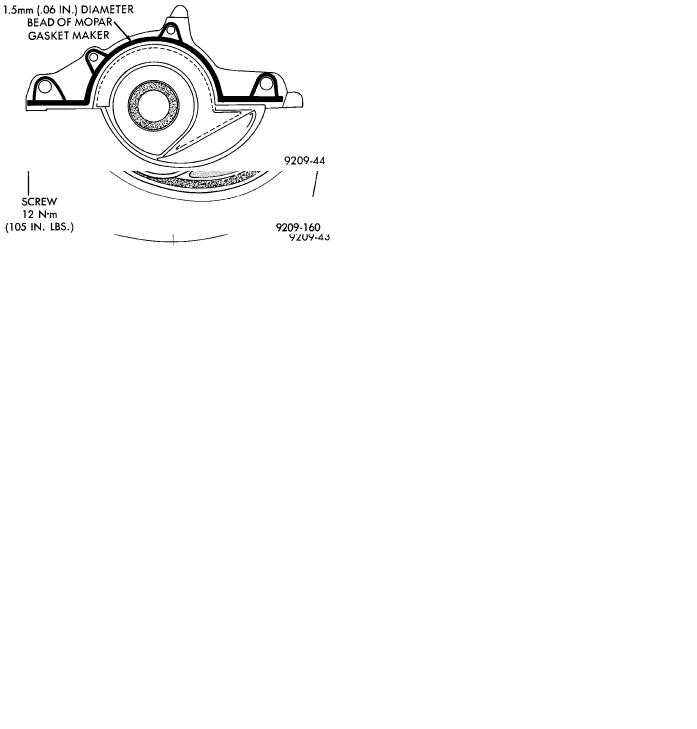

Fig. 6 Front Crankshaft Seal Retainer Sealing

For reassembly Mopar Gasket Maker is applied to the retainer as shown in (Fig. 6). This material cures in the absence of air providing retainer to block sealing.

(2) Install retainer and tighten screws to 12 Nzm (105 in. lbs.).
