&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

A list of related objects appears.

General Features Guide



8VLQJ OLVWV

8QGHUVWDQGLQJ WKH OLVW WRROV

In the upper part of PowerDesigner lists, you can use the following tools:

7RRO 'HVFULSWLRQ

Opens the property sheet of the selected item

Inserts a row before the selected row in the list *

Adds a row at the end of the list

Opens an object selection dialog box to select objects and add them to the list. When you select an item you copy it to the list.

(only for CDM) Opens an object selection dialog box to reuse objects. When you select an item you create a link to the original item, you do not copy it.

Deletes the row and stores it in the Clipboard

Copies the selected row to the Clipboard

Pastes the contents of the Clipboard

Deletes the row

Opens a Find dialog box to search an item in the list

Finds the symbol in the diagram

Opens a Filter dialog box to define a filter on the list

Enables the filter on the list

Includes sub-packages objects in the list

Includes composite objects in the list (like sub-process, sub-activity, sub state, etc.)



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

7RRO 'HVFULSWLRQ

Inserts objects shortcuts in the list

Opens a target model or a diagram**

Opens an object selection list to change the target object of a shortcut

*: Only in ordered lists

**: Only in related diagrams

$GGLQJ LWHPV DW WKH HQG RI D OLVW

You can use the list to add items to the current model. When a list is not ordered, you add items at the end of the list.

ϖ7R DGG LWHPV DW WKH HQG RI D OLVW

1Select Model,WHP. The list appears.

2Click the Add a Row tool.

A new item is added at the end of the list with a default name you can modify.

General Features Guide



8VLQJ OLVWV

3Click OK.

RU

Click another line in the list if you want to add more items to the list. You can add as many items as you need before clicking OK.

$GGLQJ LWHPV WR D OLVW

You can click other lines and add as many items as you want in the list.

For more information on list tools, see section Understanding the list tools.

,QVHUWLQJ DQ LWHP LQ DQ RUGHUHG OLVW

Some of the lists displayed from the property sheet of an object have an order you must respect when you insert items.

When you want to create a new item in an ordered list, you have to select the insertion row of this item in the list.

ϖ7R LQVHUW DQ LWHP LQ DQ RUGHUHG OLVW

1Double-click an object symbol in the diagram to display its property sheet.

2Select a tab corresponding to the item you want to add. The corresponding list appears.

3Select the item before which you want to insert a new item in the ordered list.

4Click the Insert a Row tool.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

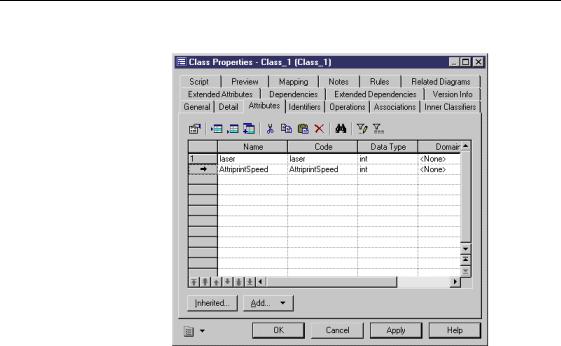

The new item is inserted before the selected item in the list. It appears with a default name you can modify.

5Click OK.

RU

Repeat steps 3 and 4 to add more items to the list. You can add as many items as you need before clicking OK.

For more information on list tools, see section Understanding the list tools.

$GGLQJ D OLQN REMHFW LQ D OLVW

When you want to create a link object in a list, you have to define its ends (source and destination).

ϖ7R DGG D OLQN REMHFW LQ D OLVW

1 Select ModelOLQN REMHFW to display the list of OLQN REMHFWV. 2 Click the Add a Row tool.

A new OLQN REMHFW is created in the list.

3 Type a name and a code for the OLQN REMHFW, if needed.

General Features Guide



8VLQJ OLVWV

4Select a source and a destination.

5Click OK.

The OLQN REMHFW appears between the two objects (source and destination) in the diagram.

In models containing different types of diagrams, the content of the list of link objects (like dependencies, generalizations, etc.) changes depending on where you select the command to add the link object.

$GG D OLQN REMHFW E\

Right-clicking the model in the

Browser and selecting List ofOLQN REMHFW

Double-clicking the diagram in the

Browser and selecting ModelOLQN REMHFW

Right-clicking the OLQN REMHFW category in the Browser and selecting New

'LVSOD\V

All link objects from the different diagrams of the model

A typed list of link objects. The title of the list indicates the diagram type

The new link object is not of a predefined type, you can choose among a mixed list of extremities from all diagrams of the model

$GGLQJ DQ LWHP IURP D VHOHFWLRQ OLVW



Selection lists are very common in the product, they let you select items in a



list of available items.

Types of selection

Most selection lists display objects contained in the current model or in

lists

individual packages contained in that model.

Other selection lists such as the following allow you to display both objects contained in the current model or its packages and objects contained in other models or in packages of these models:

Select Diagrams. From this dialog box you can select the diagram to which you want to apply pre-defined display preferences.

Add Shortcuts. From this dialog box you can select objects to include them as shortcut in your model or package.

Add Objects. From this dialog box you can select objects to which you want to attach extended dependencies.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

Objects selection

The following tools are available from the upper part of a selection list:



7RRO



$FWLRQ



'HVFULSWLRQ









Model dropdown





Lets you select a model



listbox











Package dropdown





Lets you select a package









listbox















Include Sub-



Displays objects contained in sub-















Packages/Sub-Objects



packages (Include Sub-Packages)











Displays sub-objects if any











(Include Sub-Objects) and objects











contained in sub-packages







Select All



Selects all check boxes in the



















current object type page or selects











all check boxes in all object type











pages when you click the Down











Arrowhead and select All Lists







Deselect All



Deselects all check boxes in the



















current object type page or











deselects all check boxes in all











object type pages when you click











the Down Arrowhead and select











All Lists







Use graphical selection



Uses the graphical selection















Move selected items to



Moves all selected objects to the















top



top of the list







Move selected items to



Moves all selected objects to the















bottom



bottom of the list







Customize Columns



Allows to define a filter















and Filter



expression on the columns of the











selection list







Enable/disable filter



Enables or disables the filter











CTRL + selection





Applies the action of the selection









tool







tool to all object types in the











different tabbed pages













General Features Guide



8VLQJ OLVWV

Include SubPackages/SubObjects tool

The BPM and the OOM both own sub-objects (like sub-processes or subactivities that are child objects used to describe the actions of the parent object), whereas the CDM, the FEM and the PDM do not own any:

0RGHO

7RRO QDPH

$FWLRQ

BPM, OOM

Include Sub-Objects

Displays sub-objects if any and objects





contained in sub-packages

CDM, PDM,

Include Sub-Packages

Displays objects contained in sub-

FEM



packages







The way you use the Include Sub-Packages/Sub-Objects tool allows you to display either:

All objects in the current model or package including sub-objects and objects contained in packages or sub-packages

All objects in the current model or package, except sub-objects and objects contained in packages or sub-packages

The selection options are the following:

3DUHQW

,QFOXGH 6XE 3DFNDJHV 6XE

,QFOXGH 6XE 3DFNDJHV 6XE

REMHFW

2EMHFWV VHOHFWHG

2EMHFWV QRW VHOHFWHG

Model

All objects created in model

All objects created in model except



including sub-objects and

sub-objects and objects contained



objects contained in packages

in packages, and sub-packages



and sub-packages



Package

All objects created in package

All objects created in package



including sub-objects and

except sub-objects and objects



objects contained in sub-

contained in sub-packages



packages









2EMHFWV LGHQWLILFDWLRQ

As the Include Sub-Packages tool can allow you to display all objects in the current model regardless of packages, objects in the list may have the same name and cause you problems to uniquely identify them. To do so, click the Customize Columns and Filter tool in the list toolbar to display the Customize Columns and Filter dialog box, select the Object Location check box and click OK. The Object Location column appears in the list and allows you to know where objects have been defined.

For more information on the Customize Columns and Filter dialog box, see section Defining a filter on a list.

PowerDesigner



&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH





Confirming objects

You can select objects that are not visible in the current list by clicking the

selection

Include sub-packages tool.



However, if you deselect this tool before you commit your selection, the



objects you selected are no more visible in the current list. That is why when



you want to commit your selection, a confirmation box ask you if you want to



include non visible selected objects with the current selection.



If you answer:



<HV Objects selection is composed of the objects selected in the current list



together with non visible selected objects.



1R Objects selection is only composed of the objects selected in the current



list. Other non visible selected objects are ignored and deselected.

6HOHFWLQJ DQ LWHP IURP D VHOHFWLRQ WUHH

You can select an item by expanding nodes in a selection tree.

For example, you can:

Select an implementation process in another opened diagram from the Select a Process dialog box in the BPM

Select any object attached to an object state from the Select an Object dialog box in an activity diagram in a OOM

Select a classifier as data type for a class attribute from the Select a Classifier dialog box in a class diagram in a OOM

For more information on selecting a classifier in a class diagram, see

section Attaching a classifier to a data type or a return type, in chapter Building a class diagram in the in the 2EMHFW 2ULHQWHG 0RGHO 8VHU V *XLGH.

General Features Guide



8VLQJ OLVWV

)LQGLQJ D URZ LQ D OLVW

Some lists may contain a great number of objects. You can use the Find feature to find an item in a list.

To use the Find feature, you must select a column in the list. Search occurs in the selected column, you cannot search list items if you do not select a column.

When you open a list and click the Find a Row tool, you automatically search the first column of the list because it is selected by default.

ϖ7R ILQG D URZ LQ D OLVW

1Select Model,WHP. The list appears.

2Select a column in the list.

3Click the Find a Row tool. The Find dialog box appears.

4Type a find expression in the Find What field.

5 Click Find Next to find the row in the list.

6HOHFWLQJ DOO OLVW LWHPV

You can select the entire contents of a list.

ϖ7R VHOHFW DOO OLVW LWHPV

Click the upper left hand corner box in the list.



PowerDesigner
