&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

,GHQWLI\LQJ JHQHULF WRROV LQ WKH 3DOHWWH

Selection and zoom tools

Graphic tools

The following tables indicate the names and actions of common tools in the Palette toolbar.

7RRO



1DPH



$FWLRQ





Pointer



Selects symbol





Lasso



Selects symbols in an area











Grabber



Selects, moves and resize all symbols











Zoom in



Increases view scale











Zoom out



Decreases view scale











Open diagram



Opens the diagram of the selected symbol











Delete



Deletes symbol











Properties



Opens the property sheet of an object







7RRO



1DPH





$FWLRQ

















Note





Inserts an area where you can type notes

















Link/Extended





Draws a graphical link between free symbols in the





Dependency





diagram











Draws a note link between a Note and an object











Draws an extended dependency between two objects











that support extended dependencies





File





Insert file symbol













Title

Insert title symbol

Package

Insert package symbol





General Features Guide



0DQDJLQJ WRROEDUV

7RRO

1DPH

$FWLRQ



Text

Inserts text



Line

Draws a line





Arc

Draws an arc





Rectangle

Draws a rectangle





Ellipse

Draws an ellipse





Rounded

Draws a rounded rectangle





rectangle





Polyline

Draws a jagged line





Polygon

Draws a polygon









Object creation These tools change according to the type of model.

tools

For more information on object creation tools, see the corresponding





model user’s guide.

6HOHFWLQJ DQG UHOHDVLQJ WRROV LQ WKH 3DOHWWH



ϖ 7R VHOHFW D WRRO LQ WKH 3DOHWWH



Click the tool.



ϖ 7R UHOHDVH D WRRO LQ WKH 3DOHWWH



Right-click a blank space in the diagram window.



RU



Click the Pointer tool.



The Pointer tool is selected by default.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

5HVWRULQJ D SUHYLRXVO\ VHOHFWHG WRRO

You can restore the previously selected tool by doing CTRL + right double-click.

'RXEOH FOLFNLQJ WRROV

When you double-click certain tools in the palette, you can:

7RRO

$FWLRQ



Select all symbols in diagram



Display a global view of the diagram





Delete all selected symbols in diagram



Object creation tool

Select all symbols of the selected type





General Features Guide



8VLQJ SURSHUW\ VKHHWV

8VLQJ SURSHUW\ VKHHWV

Property sheets present the properties of objects in PowerDesigner.

The title bar of the property sheet identifies the object, for example, Class

Properties or Table Properties and provides the name and code of the object.

Property sheets group properties onto tabbed pages, you access different pages by clicking their tabs.

Property sheets are customizable, you can choose the tabs you want to display. However, every object property sheets display the following standard property pages along with those specific to each object type:

6WDQGDUG SURSHUW\ SDJHV

'HVFULSWLRQ

General

Contains information that identify the object



(Name, Code)

Rules

Contains business rules applied to the object

Notes

Contains notes (Description and Annotation) for



the object

Version Info

Contains information about the origins of the



object

Dependencies

Contains depending and influencing items of the



object

Extended Dependencies*

Contains user-defined dependencies of the object





* Extended Dependencies tab only appears in property sheets of non-link objects.

'LVSOD\LQJ D SURSHUW\ VKHHW

ϖ7R GLVSOD\ D SURSHUW\ VKHHW

Double-click an object symbol in the diagram.

RU

Select an object symbol and press ALT + ENTER.

RU

Right-click the object symbol and select the Properties command from the contextual menu.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

The object property sheet appears. When you open the property sheet of a linking object, a graphical representation of the link with its end points appears in the upper part of the dialog box.

Linking objects

You can also double-click any label (name, code, role or cardinality) of the

property sheet

linking object to open its property sheet.



Property sheets of linking objects display a graphic representation of the



relations between model objects in the upper part of the property sheet dialog



box.



The graphic always shows the link together with its extremities. Some text



such as the cardinality value and the role is also displayed. The symbols and



background color together with the text format correspond to the default



display preferences saved in the registry.



Each time you want a modification of the display preferences you do in the



diagram to be taken into account when you display the linking object



property sheet, you must click the Set As Default button in the Display



Preferences dialog box for each modification.

General Features Guide



8VLQJ SURSHUW\ VKHHWV

2SHQLQJ SURSHUW\ VKHHWV DW ODVW DFFHVVHG SDJH

You can choose to open property sheets at the last accessed page by selecting ToolsGeneral OptionsDialog, and selecting the option Keep Last Tab in the Property Sheets groupbox.

&XVWRPL]LQJ D SURSHUW\ VKHHW

Objects property sheets can become very rich in PowerDesigner.

You can customize them and reduce the number of property pages by choosing to:

Hide tabs corresponding to property pages you rarely use

Enforce the display of property pages that you use most

The Customize Property Sheet dropdown menu at the bottom-left corner of objects property sheets displays the following commands and filters together with all the properties specific to them:

&RPPDQG

'HVFULSWLRQ

Display Standard Pages

Displays the property pages you defined as



standard in the Customize Standard Pages



dialog box

Display All Pages

Displays all available property pages

Customize

Allows you to define standard property pages





In the Customize Property Sheet dropdown menu, the displayed property pages are checked and the hidden property pages are unchecked.

By default, all property pages are displayed (checked) in the object property sheet.

Any changes in the display options of property pages are immediately applied to the current property sheet but not to the property sheets that are already opened. These changes also become the default settings for any property sheet of the same type you will open afterwards.

+LGLQJ SURSHUW\ SDJHV

You can hide the property pages you rarely use in the property sheet of an object.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

When you uncheck a property page in the Customize Property Sheet dropdown menu, you hide it.

However you cannot hide all property pages since the General page cannot be hidden because it contains mandatory attributes like name and code.

ϖ7R KLGH SURSHUW\ SDJHV

Uncheck a property in the Customize Property Sheet dropdown menu.

The corresponding property page is automatically hidden in the property sheet and the property is unchecked in the Customize Property Sheet dropdown menu.

'HILQLQJ VWDQGDUG SURSHUW\ SDJHV

You can define as standard property pages, the pages you often use in the property sheet of an object. The Customize Standard Pages dialog box displays all the available property pages of a given object type, you can select the pages you use most.

When you select Display Standard Pages from the Customize Standard

Pages, you hide all the property pages you defined as non-standard.

By default, whatever the object, all pages are standard, except Rules, Version

Info, Extended Dependencies and Dependencies.

ϖ7R GHILQH VWDQGDUG SURSHUW\ SDJHV

1Select Customize from the Customize Property Sheet dropdown menu. The Customize Standard Pages dialog box appears.

2Select the check box in the S column that corresponds to the property you want to define as a standard page in the object property sheet.

General Features Guide



8VLQJ SURSHUW\ VKHHWV

3Click OK.

The display options you have defined are automatically applied in the property sheet and the property pages in the Customize Property Sheet dropdown menu are updated accordingly (checked or unchecked).

You can select Display All Pages to restore the display of all available property pages.

'LVSOD\LQJ SDUHQW REMHFW SURSHUW\ VKHHW

You can access parent object properties from the property sheet of a child object.

ϖ7R GLVSOD\ WKH SDUHQW SURSHUW\ VKHHW RI DQ REMHFW

1 Double-click an object in the diagram to open the object property sheet.

2Click the Customize Property Sheet dropdown menu at the bottom-left corner of the property sheet and select Parent Properties.

The parent object property sheet automatically appears.

,QVHUWLQJ SURSHUWLHV LQ WKH *HQHUDO SDJH

The General page of a property sheet contains information that identify the object.

ϖ7R LQVHUW SURSHUWLHV LQ WKH *HQHUDO SDJH

1Type a name into the Name box, the Code box is automatically filled.

You can also use the Equals button at the end of the Code box in order to

set the code equal to the name.

RU

Type a code into the Code box, the Name box is automatically filled.

You can also use the Equals button at the end of the Name box in order to set the name equal to the code.

0D[LPXP FKDUDFWHUV DOORZHG IRU QDPH DQG FRGH

You can enter up to 254 characters in the Name and Code boxes.

2 Type a comment in the Comment box.



PowerDesigner

&KDSWHU 8VLQJ WKH 3RZHU'HVLJQHU ,QWHUIDFH

0D[LPXP FKDUDFWHUV DOORZHG IRU FRPPHQWV

There is no limitation in the Comments box, you can type as many characters as needed to specify the properties of the selected object.

$SSO\LQJ D EXVLQHVV UXOH WR DQ REMHFW

A business rule is a rule that your business follows. A business rule could be a government-imposed law, a customer requirement, or an internal guideline.

Business rules complement model graphics with information that is not easily represented graphically.

You can add business rules to the definition of the current object from its property sheet.

ϖ7R DSSO\ D EXVLQHVV UXOH WR WKH FXUUHQW REMHFW

1Open the property sheet of an object. The object property sheet appears.

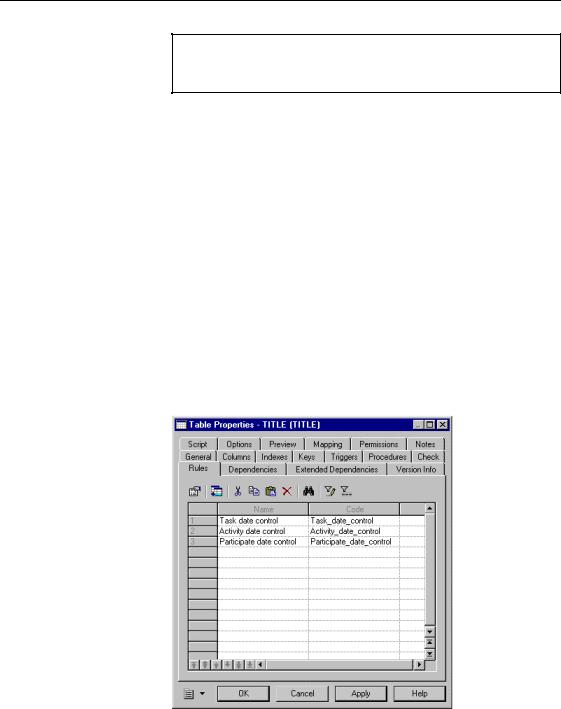

2Click the Rules tab. The Rules page appears.

General Features Guide



8VLQJ SURSHUW\ VKHHWV

3Click the Add Rules tool.

A selection window appears.

4Select one or more business rules.

5Click OK in each of the dialog boxes. You return to the model.

'LVSOD\LQJ REMHFW QRWHV

From the Notes tab, you can document objects using the Description and

Annotation pages.

Both pages open in an RTF editor.

For more information on how to use notes to document objects, see section Attaching notes to an object in chapter Managing objects.

ϖ7R GLVSOD\ REMHFW QRWHV

1Double-click an object in the diagram to display the object property sheet.

2Click the Notes tab.

The Description page is displayed by default.

3Click the Annotation tab in the lower part of the object property sheet to display the Annotation page.

4Click OK.

'LVSOD\LQJ REMHFW GHSHQGHQFLHV

When you create an external shortcut, or when you attach a business rule to an object, a dependency link is created between models or objects.

Dependencies are used to verify the use of an object or model. They can be of two types:

,QWHUQDO, when the links are within a model. These dependencies are saved in the model and appear in the Dependencies page of an object property sheet



PowerDesigner
