&KDSWHU 0DQDJLQJ 2EMHFWV

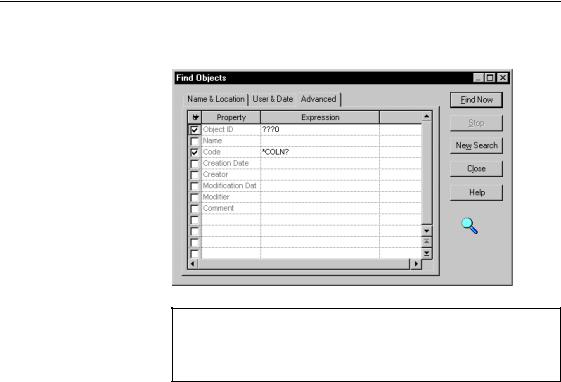

6Select the Used check box for the properties you want to take into account during the find process.

6HOHFWHG SURSHUW\ ZLWK QR H[SUHVVLRQ GHILQHG

If you select the Used check box for a property without any expression, it is equivalent to a null value, the find process will consequently look for objects which selected property is null.

'HILQLQJ GDWH DQG XVHU ILQG SDUDPHWHU

To further refine your search, you can look for:

The user who created the object and the creation date.

The user who modified the object and the modification date.

You can define date and user find parameters for a selected model and object type. You can also define date and user find parameters for all models and all object types.

General Features Guide



)LQGLQJ REMHFWV

The date and user find parameters are the following:

([SUHVVLRQ

'HVFULSWLRQ

Created check

Select this check box if you want to define creation

box

parameters

Created by

Name of the user who created the object

Date

Creation date criteria, you can search:



Before a given date



After a given date



Between two dates



During a period of time

Modified check

Select this check box if you want to define modification

box

parameters

Modified by

Name of the user who made the last modification to the object

Date

Modification date criteria, you can search:



Before a given date



After a given date



Between two dates



During a period of time





You can use the creation parameters or the modification parameters, you can also combine both criteria by selecting both Created and Modified check boxes.

ϖ7R GHILQH GDWH DQG XVHU ILQG SDUDPHWHUV

1Select EditFind Objects.

The Find Objects dialog box opens to the Name and Location page.

2Select a model and object type in the corresponding dropdown listbox.



PowerDesigner

&KDSWHU 0DQDJLQJ 2EMHFWV

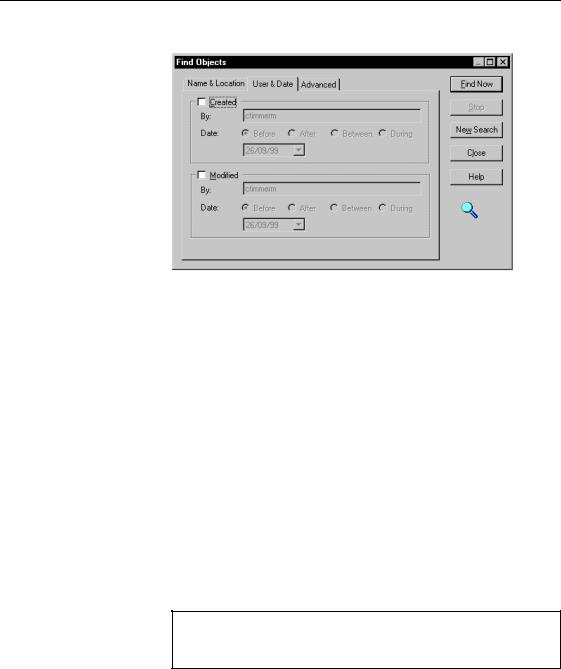

3 Click the User & Date tab to display the corresponding page.

4Select the Created check box and type creation parameters in the groupbox.

5Select the Modified check box and type modification parameters in the groupbox.

6WDUWLQJ WKH )LQG 2EMHFWV SURFHVV

When you have defined the find parameters you can start the find process.

ϖ7R VWDUW WKH )LQG 2EMHFWV SURFHVV

1Select EditFind Objects.

The Find Objects dialog box opens to the Name and Location page.

2Define find parameters in the different pages of the dialog box.

3Click the Find Now button.

The Find process messages are displayed in the Output window in the lower part of the PowerDesigner window.

6WRSSLQJ WKH )LQG 2EMHFWV SURFHVV

Once you have started the Find Objects process, you can stop it at any time by clicking the Stop button in the Find Object dialog box.

General Features Guide



)LQGLQJ REMHFWV

The Find Object dialog box remains open until the end of the process, then it is closed and the Result List displays the result.

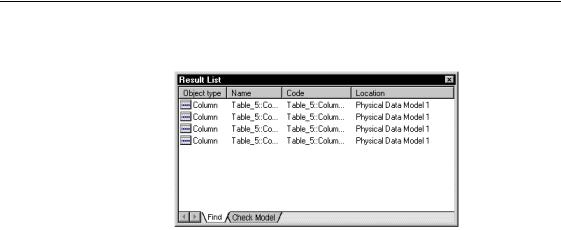

8VLQJ WKH 5HVXOW /LVW

The Find Objects process displays the result of the search in the Result List.

You can use the Result List to:

Copy object

Find the symbol of the object in the current diagram and in all the diagrams

Modify the properties of the found object

&RS\LQJ DQ REMHFW IURP WKH 5HVXOW /LVW

You can copy objects from the Result List in order to reuse them. When you copy an object to the Clipboard, you can :

Paste the object into another model and create a new object

Create a shortcut

ϖ7R FRS\ DQ REMHFW IURP WKH 5HVXOW /LVW

Right-click the object and select Copy from the object contextual menu.

)LQGLQJ REMHFW V\PEROV LQ WKH GLDJUDP IURP WKH 5HVXOW /LVW

You can use the Result List to find the symbol of an object in the diagram. This feature should be used with objects with associated symbols, objects without symbols such as business rules cannot be found in the diagram.



PowerDesigner

&KDSWHU 0DQDJLQJ 2EMHFWV

The find in diagram feature can be very useful if you are looking for the shortcut symbols of a target object.

ϖ7R ILQG REMHFW V\PEROV LQ WKH GLDJUDP IURP WKH 5HVXOW /LVW

Right-click the object and select Find In Diagram from the object contextual menu.

The Diagram window appears with the object symbol selected in its center.

When an object has several symbols within a model, a symbol selection dialog box appears that lets you select an object symbol among all instances of the object within the model diagrams. When you click OK the symbol is selected and centered in the current diagram window.

2EMHFW ZLWKRXW V\PEROV

If you select an object that does not have an associated symbol in the diagram, a warning message appears.

2EMHFWV LGHQWLILFDWLRQ

The Location column also allows you to know where objects have been defined.

0RGLI\LQJ REMHFW SURSHUWLHV IURP WKH 5HVXOW /LVW

You can also display and modify the properties of an object from the Result

List.

ϖ7R PRGLI\ REMHFW SURSHUWLHV IURP WKH 5HVXOW /LVW

1Right-click the object and select Properties from the object contextual menu to open the object property sheet.

2Modify the properties of the selected object and click OK.

General Features Guide



$QDO\]LQJ REMHFW GHSHQGHQFLHV

$QDO\]LQJ REMHFW GHSHQGHQFLHV

PowerDesigner objects collaborate with other objects in a variety of ways. The dependencies tab in the property sheets of objects show the different links that can exist between objects throughout all the models opened in the workspace and how these objects are used.

For more information on displaying object dependencies, see section Displaying object dependencies in chapter Using the PowerDesigner Interface.

For more information on how to display the uses of an object

throughout closed models, see section Auditing repository activities in chapter Managing Repository Documents in the 5HSRVLWRU\ 8VHU V *XLGH.



PowerDesigner

&KDSWHU 0DQDJLQJ 2EMHFWV

'HOHWLQJ REMHFWV

When you delete an object you remove its definition and the definition of its related objects from the model or package.

You can delete an object from the Browser tree view, the diagram window, or the object list.

'LVSOD\LQJ WKH GHOHWH FRQILUPDWLRQ GLDORJ ER[

By default, a confirmation message appears when you delete an object. Confirmation for deletion is a PowerDesigner general option, which can be modified.

ϖ7R FDQFHO WKH GLVSOD\ RI WKH GHOHWH FRQILUPDWLRQ GLDORJ ER[

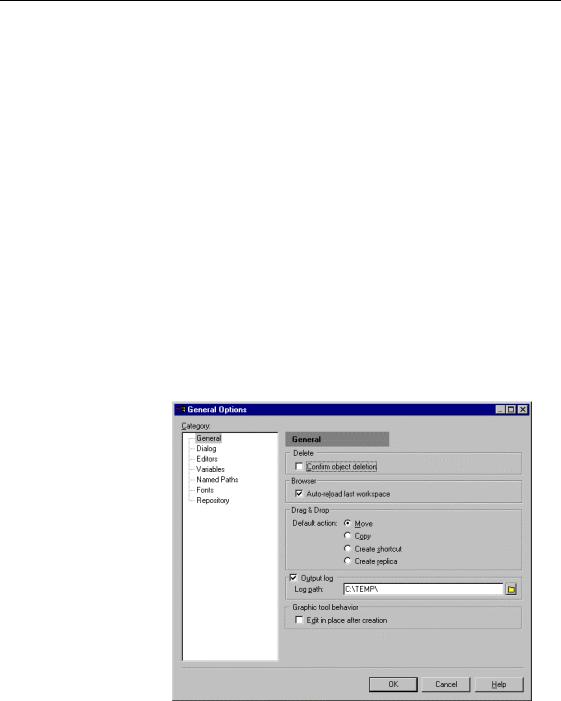

1Select ToolsGeneral Options.

The General Options dialog box opens with the General category selected in the Category tree view.

2Deselect the Confirm Object Deletion check box in the Delete Options box.

General Features Guide



'HOHWLQJ REMHFWV

3 Click OK.

6HOHFWLQJ WKH W\SH RI GHOHWLRQ

When you delete an object from the diagram window, a confirmation dialog box lets you choose between deleting the object or simply detaching the object symbol from the diagram window.

The following table describes the confirmation options available for object deletion.

&RQILUPDWLRQ RSWLRQ

5HVXOW LQ GLDJUDP

5HVXOW LQ PRGHO

Delete objects

Symbols disappear

Objects removed

Delete symbols only

Symbols disappear

Objects remain







'HOHWLQJ DQ REMHFW

When you delete an object you can choose to:

Delete the object with its associated objects from the model.

Delete the symbol from the diagram, but keep the object in the model.

'HOHWLQJ DQ REMHFW IURP WKH PRGHO

ϖ7R GHOHWH DQ REMHFW IURP WKH PRGHO

1Right-click the object symbol in the diagram.

RU

Right-click the object node in the Browser tree view.

2Select Delete from the object contextual menu.

RU

Select the Delete tool from the PowerDesigner toolbar.

RU

Press the DEL key.

The Confirm Deletion dialog box appears.



PowerDesigner

&KDSWHU 0DQDJLQJ 2EMHFWV

3 Select the Delete Objects radio button.

4 Click OK.

8QGR GHOHWLRQ

You can always select EditUndo to cancel the deletion.

'HWDFKLQJ DQ REMHFW V\PERO IURP WKH GLDJUDP ZLQGRZ

You can choose to detach the object symbol from the current diagram but keep the object in the model.

ϖ7R GHWDFK DQ REMHFW V\PERO IURP WKH GLDJUDP ZLQGRZ

1 Right-click the object symbol in the diagram. 2 Select Delete from the object contextual menu. The Confirm Deletion dialog box appears.

3 Select the Delete Symbols Only radio button.

4 Click OK.

'LVSOD\LQJ GHWDFKHG V\PERO LQ GLDJUDP

If you need to restore the symbol in the diagram, you have to select SymbolShow Symbols and select the object check box in the Show Symbols dialog box.

General Features Guide



'HOHWLQJ REMHFWV

'HOHWLQJ DQ REMHFW DQG LWV UHODWHG REMHFWV

When you delete an object you also delete the objects related to this object. For example, when you delete a table in the PDM, you delete its columns, keys, triggers and indexes.



'HOHWLQJ OLQNLQJ REMHFWV



If you want to delete a linking object, for example a relationship or a



reference, without deleting the objects to which it is connected, you must



specifically select the appropriate relationship or reference in question.



Otherwise, you can delete the linking object by deleting the objects it



connects.

Domain and data



You can define model options in the CDM and the PDM to allow the reuse of

items exception

domains and data items.



,I GRPDLQV DQG GDWD LWHPV FDQ EH UHXVHG When you delete an object



with related domains or data items, like an entity attribute in the CDM, the



domains and data items remain in the model or package.



,I GRPDLQV DQG GDWD LWHPV FDQQRW EH UHXVHG When you delete an



object with related domains or data items, like an entity attribute in the CDM,



the related domains and data items are deleted from the model or package.



For more information about model options, see related sections in the



CDM and PDM User’s Guides.

ϖ7R GHOHWH DQ REMHFW DQG LWV UHODWHG REMHFWV

1Select the Delete tool in the Palette and click the object symbol.

RU

Select the object node in the tree view and click the Delete button from

the toolbar

RU

Right-click the node in the tree view and select Delete from the node contextual menu.

The Confirm Deletion dialog box appears.
