Ответьте на вопросы к тексту

1. How many buildings does this development consist of?

2. How is vertical circulation within the building provided?

3. What system is used in the construction?

4. How are cross-beams arranged?

5. How are wind forces transmitted?

6. What was used for the structural connection of the elements?

7. What are floors made up of?

Лексические упражнения

Упражнение 1. Переведите на русский язык приведённые ниже слова и словосочетания:

cross girder, displace (v.), low-rise (adj.), mid-height (n.), portal (n.), rolled steel

Упражнение 2. Переведите на английский язык приведённые ниже слова и словосочетания:

фиксировать, подвеска, высотное здание, по отношению друг к другу, располагать, малоэтажное здание, общие размеры, концевая опора, оба, ствол здания с инженерными сетями, иметь форму, с пролётом … м, настил, поверхность, подвесной этаж, коробчатое сечение, скреплять, консольно выступать на … м, распределять, каждый, прямоугольный, болтовое соединение, сокращать, ствол из железобетона, помещение для проживания, соответственно, отделённый, равномерно, перемещение в вертикальной плоскости.

Упражнение 3. Переведите данные существительные и образуйте с их помощью группы существительных, характерные для строительной терминологии. Переведите их на русский язык.

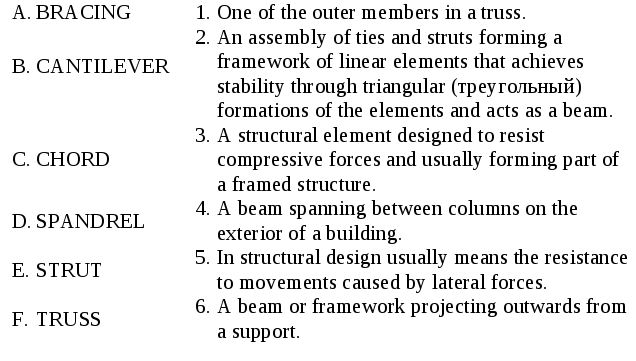

Упражнение 4. Выберите толкование, которое соответствует строительному термину в левой колонке.

Грамматические упражнения

Упражнение 1. Переведите предложения и определите функцию причастия I и II, обратите внимание на независимый причастный оборот.

1. The facades are made of continuous steel mullions of weathering steel, spaced at 1.20 m centres.

2. Vertical steel bracing is the less expensive solution, especially when arranged in large bays or panels.

3. The blended cements consist of mixtures of Portland cement and graded admixtures.

4. Shrinkage when restrained leads to cracking.

5. The structural design of the house made by A. Urech is simple.

6. The residential building has a cantilevered balcony at one end.

7. The elevated structure is supported by four external columns fixed in foundation pockets.

8. The floor panels have different spans, the different slab strengths, thus required, being provided by post-tensioning.

9. When in the required position, the gap between the floor and wall panels is filled with mortar.

10. Pin-jointed to the columns there are secondary beams.

Упражнение 2. Образуйте существительные от следующих глаголов, используя суффикс – ment и переведите их:

adjust, arrange, attach, base, develop, equip, measure, move, place, reinforce, require, settle.

Упражнение 3. Работа в парах.

Студент C: Задайте 5 вопросов различных типов к тексту А.

Студент D: Ответьте на вопросы к тексту студента C.

Студенты C и D: Поменяйтесь ролями.

Текст B

PHYSICAL EDUCATION COLLEGE, MAGGLINGEN, SWITZERLAND

The structural design of the physical education college was made by Steelwork contractors. The classrooms, lecture rooms, administrative offices and technical services are accommodated in a four-storey podium block partly recessed into the sloping ground. It is surmounted by a set-back three-storey superstructure containing the main assembly hall and library. The entrance to both buildings is at terrace level. The podium block has overall dimensions of 73.36 x 43.88m and its height is 13.20m. The superstruct­ure has overall dimensions of 30.16 x 22.96 m, the height above terrace being 10.85m. Storey height is 3.45 m, while ceiling height is 2.45 m.

The framework comprises rolled steel columns and 760 mm deep lattice girders in both directions. The 11 cm thick in-situ concrete slab is in composite construction with the girders, the shear connectors being welded studs. Main girders of the structure are in longitudinal direction of the building, spanning 7.20m. Secondary girders are in trans­verse direction, spanning 14.40m. Top chord comprises channel section, while bottom chord and diagonal members each consist of two angle sections. Imposed loads on floor are 300 and 400kg/m². Wind forces are transmitted through floor slabs to the concrete core and to concrete retaining walls set in the hillside.

The facades are made of continuous steel mullions of wea­thering steel, spaced at 1.20m centres. Between them there are storey-height window units with heat-resistant laminated glass. Spandrel panels are also of weathering steel. The foundation is of limestone at 4 m below ground level. Its bearing pressure is 7.5 kg/cm². At the back of the podium, the walls are anchored into the rock.

Notes:

administrative office административное помещение

laminated glass многослойное стекло

physical education физическое воспитание
