uncertainty of the high-level standard value and the statistical error of multiple measurement results.

The qualified standard material is a material specimen qualified by a special procedure and provided with a certificate showing the uncertainty of its parameter values. Specimens of qualified standard materials are distributed to operators for MC.

Operator metrology control includes:

∙initial qualification of equipment;

∙periodic requalification (adjustment) and recalibration;

∙regular tests using standards.

Standards are also measured because product batch control is based largely on measurements of the standard. Measurement results are expected to be within the limits of the standard data uncertainty. Control charts (statistical control charts) are used for analysis.

Quality control is also critical to error estimations. The following input sources are used to estimate errors as discussed above:

∙manufacturer specifications;

∙case study results;

∙industry-specific operating criteria;

∙calibration data;

∙metrology control data;

∙interlaboratory comparison data.

The last four of these data sources relate directly to measurement quality control programs.

We shall discuss measurement quality control procedures for some of the techniques.

Weighing

Despite the simplicity of the procedure and quite a minor error involved in a single measurement, weighing, the basic measuring procedure in NM accounting and control systems, needs to be carefully controlled. The minimum required scope of control suggests the following procedures:

∙frequent operator checks using standards;

∙periodic inspection, maintenance and recalibration of all scales and weights;

∙independent reweighing of material in process;

∙monitoring of ambient conditions.

211

Ambient conditions (air temperature, humidity and pressure in the given case) are monitored because weighing process needs the buoyancy acting on the container (depends on the above parameters) to be taken into account.

Sample taking

As mentioned, sample taking procedures can occasionally contribute greatly, if not decisively, to the cumulative error which is due to complicated control of the sample taking process. Normally, sample taking quality control includes the following procedures:

∙testing of sample mixing and taking when establishing work procedures for the sampling free of systematic error;

∙periodic replication of sample taking using independent procedures to check if sample taking involves a systematic error;

∙analysis of independent replicated samples to estimate and analyze the cumulative sample taking error.

Destructive analyses

Destructive analyses, primarily alpha spectrometry and mass spectrometry, are highly complex and time-taking procedures requiring highly skilled personnel to perform. Given that destructive analyses necessarily involve sample taking, the quality of these procedures is equally essential and hard to control. Let us describe a number of regular procedures to control destructive analyses:

∙calibration and standardization of all instruments and reagents;

∙analysis of standard specimens that simulate specimens in process to estimate systematic bias;

∙independent resampling of the material in process and analysis of the sample to estimate the cumulative random sampling and analysis error;

∙iterative sample analysis to estimate the random analysis error;

∙documentation and description of all measurement techniques;

∙training and advanced training of personnel.

Nondestructive assays (NDA)

Nondestructive measurements (NDA) are much easier to perform than destructive ones. However, it is rather hard to control quality of NDA in some cases [7]. In the first place, this stems from the requirement to use standards and standard specimens. Note that a representative NDA standard

212

cumulative charts and use them in decision-making was proposed by statistician I. Page in 1954.

A control chart normally consists of a center line (CL) representing the given value of the characteristic of interest, two control limits (the upper control limit (UCL) and the lower control limit (LCL)) and the points representing the values of the characteristic under control.

An example of a control chart is given in Fig. 4.5. The points in the diagram indicate the measurement results for the controlled parameter of the process, the mean of the characteristic, the inventory difference value, etc. If any point in the diagram is beyond the control limits, this indicates that the process “is not in control”. Besides, if e ven all results fall within the control limits but however, trends or other nonrandom data patterns are observed, this indicates that an additional study is required to avoid more serious errors.

-2σ -3σ

Fig. 4.5. Example of a control chart

That the process “is not in control” may be so sign aled by:

∙a point falling beyond the control limits;

∙a group of consecutive points positioned near rather than beyond one control limit;

∙points scattered heavily in the control chart relative to the center (indicates to an accuracy decrease).

We shall discuss just some of the most common types of control charts: the so-called Shewhart charts and cumulative sum charts.

214

Shewhart charts

The calculation and plotting of a Shewhart chart has the following pattern: let Y1,…, Yn be a set of values for the random quantity Y; μY is the mean value for this sample; and σY is the mean’s standard deviation, then

Fig. 4.6 presents an example of a control chart.

Yi

CL

Fig. 4.6. A Shewhart control chart

In a general case, the random quantity Y may have any distribution, from which the control limits should be chosen. So, the mean sample value has normal distribution with the number of defective elements in the sample having a binomial and the event count rate (events per unit of time) a Poisson distribution (Table 4.9).

215

Table 4.9

Control limits for various statistics

Cumulative sum chart (diagram)

Shewhart charts largely help control retrospectively single and rather great anomalies in a process. A process may however involve minor but permanent biases desired to be controlled on line rather than retrospectively. Cumulative sum diagrams (CUSUM) help detect such deviations rapidly (Fig. 4.7).

A'

d

A

θ О

B

B'

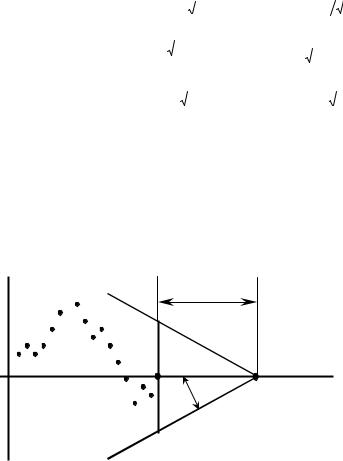

Fig. 4.7. Example of a CUSUM chart

For a CUSUM diagram, the subgroup number is plotted on the abscissa axis and the cumulative sum value for the deviations from the mean value (or a standard quantity) is plotted on the ordinate axis:

216

m

T m = ∑(Y i − μ 0) . (4.76)

i =1

If the process is in control and there are no systematic biases and/or thefts, Tm is expected to vary around zero. If any systematic factors arise in the process (in this case the points in the Shewhart chart are on the one side of the center line), the CUSUM curve will have an upward or a downward trend.

A special note should be made that scale is critically important to the CUSUM diagram plotting. To have points well discernible and make it easier to plot the so-called V-mask, the recommendation is that the distance between points on the abscissa axis should be in a range of σY ÷ 2,5 σY. Scale observation is very important since this is what the mask angle depends on. Selecting an acceptable scale helps get the mask angle θ in a range of 30–60 °, which, in turn, ensures the best outcome and helps escape errors which are inevitable if the selected angle is too small or too great.

The process control procedure is as follows. The mask (the procedure to plot the V-mask will be discussed hereinafter) is superimposed on the diagram so that the point P falls on the farthest diagram point and the line OP is parallel to the abscissa axis. If none of the diagram point falls beyond the limits of the angle A'OB', the process is assumed to be in control.

To be plotted, the V-mask requires two elements: angle, θ, and distance,

d:

where σ is the sample-mean variance; D is the bias quantity (either in one direction or in the other) to be found with the specified probability; δ is the

scaling factor that determines the control chart geometry and the mask size;

217

where E(α) is the coefficient which is the function α (the probability of a first-order error). The values of this coefficient are given in Table 4.10.

Table 4.10

Factor values E(α) depending on the probability of a first-order error

So, plotting a CUSUM diagram and estimating the process stability involves the following steps:

1)selection of a suitable axis scale, plotting of experimental points on the CUSUM diagram;

2)selection of α and δ, calculation of σ, determination of the V–mask parameters (θ and d), mask plotting;

3)the mask is placed on the control chart as described hereinabove and all points are checked left of the mask’s point P, the upper mask ray being the lower control limit and the lower mask ray being the upper control limit.

Therefore, control charts are a powerful tool of finding out and analyzing a certain (other than random!) cause of a deviation, a bias or a process instability, say, an organized NM theft.

There are currently rather many computer programs enabling automated data analysis based on control charts.

References

1.Гераскин Н.И., Петрова Е.В. Теория вероятностей и прикладная математическая статистика в задачах физической защиты ядерно– опасных объектов, учета и контроля ядерных материалов. М.: МИФИ, 2001.

2.Колмогоров А.Н. Основные понятия теории вероятностей. М.:

Наука, 1974.

3.Вентцель Е.С. Теория вероятностей. М.: Высшая школа, 1998.

4.Основные правила по учету и контролю ядерных материалов (ОПУК). НП–030–05. Утверждены Постановлением Федеральной службы по экологическому, технологическому и атомному надзору N 19 от 26 декабря 2005 года. М., 2005.

218

5.Кассандрова О.Н., Лебедев В.В. Обработка результатов наблюдений. М.: Наука, 1970.

6.Deming W.E. Some Theory of Sampling. Dover Publications Inc. New York, 1998.

7.Reilly D., Ensslin N., Smith H., Jr., Kreiner S. Passive Non– Destructive Assay of Nuclear Materials. NUREG/CR–55 50, LA–UR–732.

8.Худсон Д. Статистика для физиков. М.: Мир, 1970.

9.Ильенкова С.Д., Ильенкова Н.Д. и др. Управление качеством. М.:

ЮНИТИ, 1998.

219

CHAPTER 5

MEASUREMENTS OF NUCLEAR MATERIAL FOR ACCOUNTING AND CONTROL THEREOF

This Chapter reviews and looks into the techniques and equipment used to account for and control nuclear material (NM). The nuclear material subject to control is listed, and the properties thereof and the conditions of test measurements are discussed.

The most common destructive and nondestructive test techniques, as well as passive and active analyses are described. Most of the test techniques are based on recording of gamma and neutron radiation. Data on detectors and equipment employed, as well as on calibration procedures and standards is provided. Sources of measurement errors and measures to reduce these are discussed. In conclusion, examples of combined NM measurement methods used in production are given.

5.1. Basic concepts of NM measurements

Prior to the 1990s, onsite NM measurements were conducted in Russia largely for control of processes. Nondestructive assays (except weighing) had minor roles.

In the 1990s, comprehensive measures began to be undertaken in Russia to have nondestructive assay (NDA) techniques more rapidly introduced into the Russian NM accounting and control system, including by way of providing enterprises and organizations with up-to-date devices, developing and qualifying state standard samples for NDA, creating respective regulatory documentation and training personnel through a variety of educational forms. Major emphasis in this has been also placed on international cooperation.

Russian requirements with respect to state accounting and control of nuclear material in production, utilization, processing, storage and transportation are set forth in the General Rules for Accounting and Control of Nuclear Materials, NP-030-05 (OPUK-2005).

As weapon grade nuclear material, uranium and plutonium prevail. Weapon Grade Uranium (WGU) contains 93% or more of 235U.

Weapon Grade Plutonium (WGPu) is a pure plutonium metal that contains not more than 7% of the 240Pu isotope.

Reactor Grade Plutonium (RGPu) accumulates in fuel of power reactors and contains 19% of 240Pu isotope or more. The approximate isotopic
