Scenario 2-1: Routing IP on Cisco Routers

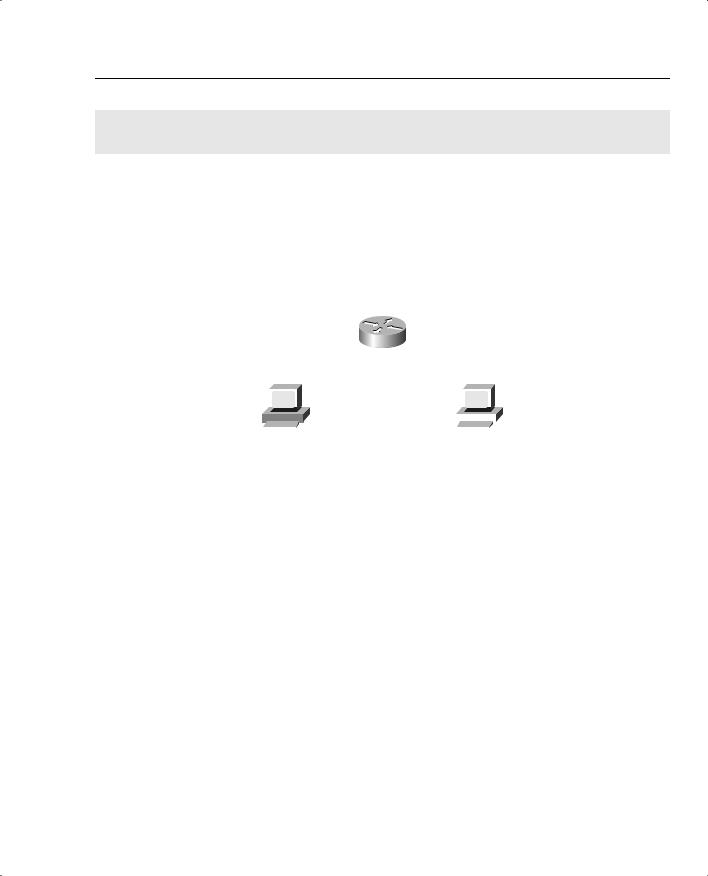

Figure 2-21 displays a network with one Cisco router and two directly attached Ethernet interfaces. Use Figure 2-21 to answer the following questions.
Figure 2-21 Scenario Diagram
E0 IP address 1.1.1.100 |
|
|
E1 IP address 2.1.1.100 |
|||||||||||||||
MAC address 3333.3333.3333 |
|
|
MAC address 4444.4444.4444 |
|||||||||||||||
|
|
|
|
|
|
|
|
|
R1 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ethernet 0 |
|
|
|
Ethernet 1 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
PC1 |
|
|
|
|
|
|
|
|
|
|
PC2 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IP address 1.1.1.1 |
|
|
IP address 2.1.1.1 |
|||||||||||||||
MAC address 1111.1111.1111 |
|
|
MAC address 2222.2222.2222 |
|||||||||||||||
1In Figure 2-21, PC1 cannot communicate with PC2. What is the likely cause of the problem assuming that the router is configured correctly?
a.Router R1 requires a routing protocol to route packets from Ethernet0 to Ethernet1.
b.There is a problem with the IP address configuration on Router R1.
c.The gateway address on PC1 is wrong.
d.The gateway address on the router is wrong.
2In Figure 2-21, what will be the ping response display when an exec user on Router R1 pings PC1’s IP address for the first time? Assume that all configurations are correct.
a.!!!!!
b.!!!!.
c. .....
d. .!!!!
e. .!!!!!
100 Chapter 2: General Networking Topics
3 What IOS command was used to display the following output taken from Router R1?
Protocol |
Address |
Age (min) |
Hardware Addr |
Type |
Interface |
Internet |
1.1.1.100 |
- |
333.3333.3333 |
ARPA |
Ethernet0 |
Internet |
2.1.1.100 |
- |
4444.4444.4444 |
ARPA |
Ethernet1 |
Internet |
1.1.1.1 |
10 |
1111.1111.1111 |
ARPA |
Ethernet0 |
Internet |
2.1.1.1 |
10 |
2222.2222.2222 |
ARPA |
Ethernet1 |
a.show ip arpa
b.show ip arp
c.show interface ethernet0
d.show interface ethernet1
Scenario 2-1 Answers: Routing IP on Cisco Routers 101
Scenario Answers
Scenario 2-1 Answers: Routing IP on Cisco Routers
1Answer: c. Cisco IOS routers will route between directly connected interfaces and, because PC1 cannot ping PC2 on another subnet, the PC1 gateway address must not be configured correctly.
2Answer: d. The first request will fail because of the ARP broadcast. The subsequent pings (five in total: one for an ARP request and four successful replies) will reply successfully.
3Answer: b. show ip arp displays the correct ARP address table for the devices in Figure 2-21.
