10.6.4 INJECTABLE AFFINITY-BINDING ALGINATE BIOMATERIAL

10.6. AFFINITY-BINDING ALGINATE BIOMATERIAL 163

$OJLQDWH &DOFLXP *URZWK IDFWRU $OJLQDWH VXOIDWH

62 62

622 62

$IILQLW\ ELQGLQJ DOJLQDWH K\GURJHO

Figure 10.8: Schematic representation of the preparation methodology of injectable affinity-binding alginate system.

for this unique alginate biomaterial; 2) it should control the release and presentation of multiple growth factors. In the next section, we present several animal studies, using different disease models and different combination of growth factors, which provide proof-of-concept for the efficacy of the injectable affinity-binding alginate system.

Dual Growth Factor Release and Tissue Retention at the Infarct

Among the known available bioactive molecules, insulin-like growth factor-1 (IGF-1) and hepatocyte growth factor (HGF) are well known as potent cardiovascular-protective proteins, affecting several major aspects of myocardial regeneration. IGF-1 is a strong antiapoptotic factor in different cell types, including cardiomyocytes [10, 57, 58, 59]. Due to its marked cardioprotection effect, IGF-1 administration can improve cardiac function after MI [6]. HGF is a strong proangiogenic and antifibrotic factor [30, 60, 61, 62, 63]. In addition, HGF, together with IGF-1, induced resident cardiac stem cell migration and activation, that led to new myocardium formation in dogs [64, 65]. Due to their established and complimentary beneficial effects on infarcted myocardium, these proteins were chosen as bioactive components of the injectable delivery system. Strong affinity binding of both proteins to alginate-sulfate has been previously confirmed (Table 10.2) [48].

The release profile of the proteins from affinity-binding alginate hydrogel revealed a sequential factor delivery pattern with a greater amount of IGF-1 initially being released to the external medium until cessation on day 3, while HGF continued to be released and accumulated in the medium (Fig. 10.9) [51].

164 10. BIOMATERIAL-BASED CONTROLLED DELIVERY OF BIOACTIVE MOLECULES

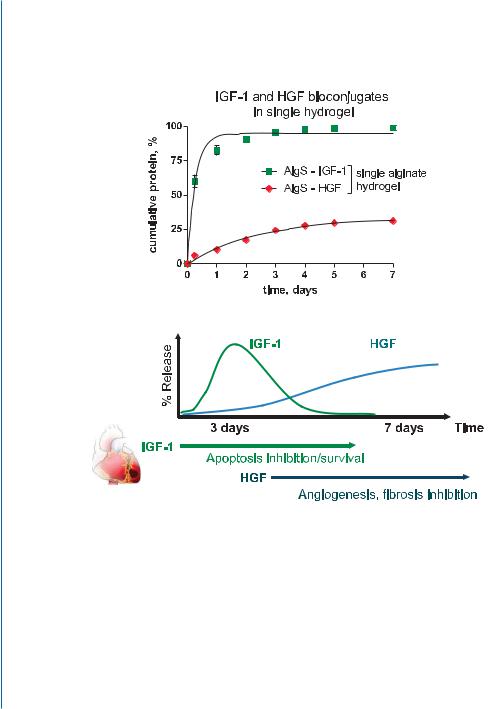

Figure 10.9: Dual IGF-1/HGF release pattern from affinity-binding alginate hydrogel. A. In vitro release from the dual factor-loaded system. B. The dual factor release profile coincides with the sequence of reparative processes after MI. Faster released IGF-1 could provide a strong pro-survival signal at early stages, while slower released HGF could reduce fibrosis and induce angiogenesis at later stages. Reprinted with permission from [51].

10.6. AFFINITY-BINDING ALGINATE BIOMATERIAL 165

The sequential delivery of IGF-1 and HGF is suited for the proper execution of the reparative processes in the infarcted myocardium, to achieve a more favorable course of repair (Fig. 10.9). The faster released IGF-1 could provide an immediate strong pro-survival signal to rescue the functional myocardium and reduce cell apoptosis and loss after the initial ischemic event [59, 66, 67]. Processes required at later phases of repair, such as angiogenesis induction, more favorable ECM remodeling, and fibrosis reduction, can be mediated by the slower, yet continuous, release of HGF [68, 69, 70].

The released IGF-1 and HGF maintained their biological activities. Both proteins were shown to activate their respective intracellular signaling pathways (phosphorylation of AKT and ERK1/2 protein kinases for IGF-1 and HGF, respectively) and prevent cardiac cell death in an oxidative stress model [50, 51].

Increased retention of therapeutic proteins over time is one of the main attributes of a successful therapy. As mentioned, the infarct after the initial ischemic event represents a very hostile environment, where extensive protein degradation takes place as part of inflammation and ECM remodeling-induced enzymatic responses [71, 72]. Thus, we chose an acute MI and immediate post-MI injection as a model for testing the efficacy and impact of our delivery system on protein retention. HGF delivery from the affinity-binding alginate solution resulted in much greater retention and bioavailability of the factor in myocardial tissue after acute MI, as measured using anti-human HGF-specific ELISA. In contrast, soluble HGF administered by bolus injection was rapidly eliminated from the infarct [50] (Fig. 10.10).

The greater retention of HGF when delivered from the affinity-binding system is attributed to the strong, yet reversible, binding of the factor to alginate-sulfate. The in situ gelation of alginate forms a reservoir for the HGF/alginate-sulfate bioconjugates, thus providing an additional barrier for HGF diffusion and release.

Based on the collected data (bioconjugation and growth factor protection, sustained release and increased protein retention in vivo), the activity of the growth factors delivered by the in situ formed hydrogel with the affinity module could be the manifestation of three main processes and their combinations (Fig. 10.11): 1) the proteins are released at a rate determined by their equilibrium binding constants to alginate-sulfate and the initial loaded concentration of the individual components (affinity-binding mechanism); 2) the bioconjugates of alginate-sulfate and the factors are presented in a natural way to their respective cellular receptors, thus improving their activation and signaling, similar to their native interaction with heparan-sulfate [73]; and 3) the bioconjugates are released with time due to hydrogel dissolution, due to a decrease in calcium concentration (Fig. 10.11).

10.6. AFFINITY-BINDING ALGINATE BIOMATERIAL 167

Growth factors Alginate-sulfate

Bioconjugate nanoparticles with various proteins

Release based on

binding constant and factor concentration

Partially cross-linked hydrogel

Presentation

Hydrogel dissolution

In situ gelation

Different factor bioconjugates entrapped within cross-linked alginate chains – a single device

Figure 10.11: The concept of injectable affinity-binding alginate biomaterial, and the proposed modes for protein release and action.

Therapeutic Efficacy of the Combination Platform of Biomaterial and Sustained Factor Delivery

The therapeutic outcome of a single or multiple growth factor delivery by injectable affinity-binding alginate was evaluated in two ischemic disease models: 1) severe hindlimb ischemia in mice; and 2) rat model of acute MI.

Therapeutic angiogenesis in hindlimb ischemia model

Therapeutic angiogenesis is one of the key constituents for successful therapy of ischemic heart disease, peripheral artery disease, and other disorders. Induction of re-vascularization can salvage damaged ischemic tissues and facilitate self-repair [74]. As HGF is a potent angiogenic factor, we tested whether its controlled delivery by an affinity-binding alginate system would prolong and maximize its therapeutic action in a murine disease model of hindlimb ischemia [5, 70]. This strategy resulted in improved tissue perfusion, as judged by laser Doppler analysis nine days after the operation, compared to other treatment groups (Fig. 10.12).

Moreover, the treatment with HGF delivered by the affinity-binding alginate system resulted in a greater density of mature blood vessel network [50]. More recently, improved tissue blood perfusion and marked angiogenesis in the same model were observed using an injectable affinity-

168 10. BIOMATERIAL-BASED CONTROLLED DELIVERY OF BIOACTIVE MOLECULES

$

Figure 10.12: Prolonged delivery of HGF from affinity-binding alginate improves limb perfusion. A. Representative laser Doppler scans, 9 days after ischemia induction. B. Calculated perfusion percentage in different treatment groups at baseline and 9 days after operation. Green bars – saline; blue bars- affinity-binding alginate; red bars – saline-soluble HGF; brown bars – HGF-affinity-binding alginate. P (interaction, two-way repeated measures ANOVA) < 0.0001. − p < 0.05 (Bonferroni’s post-hoc test), n=10/group. C. Quantitative analysis of α-SMA-positive blood vessel density. P (one-way ANOVA) < 0.0001. Pairs indicated have significant differences (p < 0.05) (Bonferroni’s posthoc test). n=10/group. Reprinted with permission from [50].

binding alginate biomaterial loaded with three angiogenic factors, VEGF, TGF-β1, and PDGF-BB (unpublished results).

The affinity-binding alginate was able to translate the known angiogenic effect of HGF into an improved therapeutic outcome, due to creation of a temporary favorable microenvironment for self-repair on one hand, and successful controlled delivery of the protein together with protection from enzymatic degradation and fast elimination in ischemic tissue on the other hand.

Acute MI model

Short (one week) and long (four and eight weeks) - term effects of dual (IGF-1 and HGF) factor delivery from the injectable affinity-binding alginate were tested in a rat model of acute MI. We focused on various parameters and aspects in myocardial tissue regeneration and repair, in order to

10.6. AFFINITY-BINDING ALGINATE BIOMATERIAL 169

examine the efficacy of the delivery system to translate known effects of the growth factors into a significant therapeutic outcome.

The sequential delivery of IGF-1 and HGF from this system reduced scar fibrosis, increased scar thickness and prevented infarct expansion, one and four weeks after injection. It also induced angiogenesis and mature blood vessel network formation, and reduced cell apoptosis at the infarct. These therapeutic effects were preserved for eight weeks after injection (unpublished data) (Fig. 10.13A).

We then evaluated the contribution of endogenous regeneration to increased tissue salvage.We focused on two processes that can be responsible for endogenous regeneration of cardiac muscle: adult cardiomyocyte proliferation (shown by staining for mitotic marker Ki-67) and the existence of cardiac stem/progenitor cells (identified by staining for transcription factor GATA-4, generally associated with cardiomyogenic differentiation) (Fig. 10.13B-D). Of note, these results were deduced based on simple morphological discrimination and single marker staining. Thus, more extensive analyzes (e.g., genetic mapping, simultaneous staining) are required to confirm the effects of sequential IGF- 1/HGF delivery on endogenous myocardial regeneration.

Based on staining pattern and morphological discrimination, we identified Ki-67-positive cardiomyocytes at the infarct border of all animal groups, one week after treatment. Due to the high ultrastructural fiber organization of Ki-67-positve cells, the possible explanation for this phenomenon is cell cycle re-entry that can occur at higher incidence after MI [75]. Strikingly, the sequential delivery of IGF-1/HGF from the affinity-binding alginate biomaterial in the infarct increased the incidence of Ki-67-positive cardiomyocytes (Fig. 10.13B, D) [51]. Cell cycle re-entry could point to actual cell proliferation, an important constituent of myocardial regeneration, especially in light of recent data suggesting that endogenous myocardial regeneration could be driven by the induction of cell cycle re-entry and proliferation of existing cardiomyocytes rather than by stem or progenitor cells [76].

As an additional aspect of possible myocardial regeneration, we examined GATA-4 expression in the infarcts (Fig. 10.13C, D). Recent data show that along with its established critical role in early and late heart development and morphogenesis, GATA-4 also acts as a pro-angiogenic, antiapoptotic, and stem cell-recruiting factor post-MI [77, 78]. The GATA-4-positive cell clusters were found only in the peri-infarct areas of animals treated with the factors, with the highest incidence detected four weeks post-MI in the animals treated with the sequentially delivered factors (Fig. 10.13D) [51]. From the cell cluster organization, we propose that these cells could be stem or progenitor cells of unknown origin. IGF-1 and HGF were previously shown to activate distinct subsets of cardiac stem cells [79]. The long-term delivery of both factors could induce the migration of these cells to the infarct region and their subsequent activation, which in turn, can partially contribute to myocardial tissue salvage. Increased GATA-4 expression could by itself contribute to pro-angiogenic and anti-apoptotic properties of the delivered proteins [77].

The extent of possible endogenous regeneration (based on Ki-67 and GATA-4 staining) after the treatment with sequentially delivered proteins in affinity-binding alginate hydrogel was

170 10. BIOMATERIAL-BASED CONTROLLED DELIVERY OF BIOACTIVE MOLECULES

%ORRG YHVVHO GHQVLW\ Į 60$ $SRSWRVLV DFWLYH FDVSDVH

Figure 10.13: Therapeutic efficacy and cardiac tissue regeneration induced by the dual factor delivery from the injectable affinity-binding alginate system in acute MI model. A. The effects of a sequential delivery of IGF-1/HGF by injectable affinity-binding alginate biomaterial on various aspects of tissue regeneration. Infarct expansion index was evaluated by Masson’s trichrome staining. Blood vessels were identified by α-SMA staining. Apoptotic cells were identified by active caspase-3 staining. − p < 0.05. Reprinted with permission from [51] and unpublished data.

significantly reduced after a longer period of time (four weeks) [51]. This can be explained by the suboptimal concentration of the growth factors due to cessation of growth factor release and action, and also by the lack of additional endogenous signals, that could act synergistically with the delivered proteins, and are present only for a limited period of time after initial infarct. This can be overcome in future studies by administering several injections of the growth factor/biomaterial combinations.

&

Figure 10.13: Therapeutic efficacy and cardiac tissue regeneration induced by the dual factor delivery from the injectable affinity-binding alginate system in acute MI model. B. Mitotic marker Ki-67 staining (brown) in healthy/infarct border region, one week after injection. Arrows show nuclear localization or unstained nuclei. Bar = 50 μm. CM-cardiomyocytes. Reprinted with permission from [51] and unpublished data. C. Cardiac progenitor cell marker GATA-4 staining (brown) in infarcted hearts (periinfarct region), four weeks after injection. Arrows show nuclear localization. Bar = 50 μm. Reprinted with permission from [51] and unpublished data.
