A P P E N D I X B

IBM Serial Link Implementation Notes

The following discussions clarify some common misconceptions and points of confusion associated with half-duplex, full-duplex, and multipoint connections.

Comparing Half Duplex and Full Duplex

Half-duplex and full-duplex serial links can often be confusing. One reason for the confusion is that there are several different contexts in which these two terms are used. These contexts include asynchronous line implementations, IBM Systems Network Architecture (SNA)-specific implementations, and data communications equipment (DCE) implementations. Each is addressed in the discussions that follow.

Asynchronous Line Definitions

Duplex, as seen on asynchronous communication lines (and in terminal emulation software parameters), implies full duplex as it applies to the echoing of transmitted characters by a host back to a terminal. This is also referred to as echoplex mode. In this context, half-duplex mode involves no character echo. Some common misconfigurations of terminals and hosts follow:

•Full duplex specified on a terminal when the host is set for half duplex results in typing blind at the terminal.

•Half duplex specified on a terminal when the host is set for full duplex results in double characters on the terminal. This is because the terminal displays entered characters if the terminal’s configuration indicates that the host will not echo characters.

Note This interpretation of duplex does not apply in a router context.

IBM SNA-Specific Definitions

IBM’s master glossary for VTAM, NCP, and NetView terms defines duplex, full duplex, and half duplex as follows:

•Duplex—In data communications, pertaining to a simultaneous two-way independent transmission in both directions; synonymous with full duplex; contrast with half duplex.

•Half duplex—In data communications, pertaining to an alternate, one-way-at-a-time, independent transmission; contrast with duplex.

These definitions can be applied in two contexts that are the main source of duplex definition confusion:

IBM Serial Link Implementation Notes B-1

Understanding Multipoint Connections

•First, there is full-duplex and half-duplex data transfer. This typically applies to the capability or inability of data terminal equipment (DTE) to support simultaneous, two-way data flow. SNA PU 4 devices (front-end processors such as 3705, 3720, 3725, and 3745 devices) are capable of full-duplex data transfer. Each such device employs a separate data and control path into the control program’s transmit and receive buffers.

•Some PU 2.1 devices are also capable of full duplex data mode, which is negotiable in the XID-3 format frame—unless the NCP PU definition statement DATMODE=FULL is specified. If FULL is specified, full-duplex mode is forced. PU 2s and PU 1s operate in half-duplex data mode.

DCE Definitions

Finally, there is full duplex and half duplex as it applies to the communication facility, or DCE. This is where most of the technological advancement has been achieved with respect to half and full duplex. DCE installations primarily consist of channel service units (CSUs), data service units (DSUs), or modem devices, and a communications line. The modem can be synchronous or asynchronous and can be analog or digital. The communications line can be two-wire or four-wire and can be leased or switched (that is, dial-up).

Older modems are capable of transmitting or receiving only at a given time. When a DTE wants to transmit data using an older modem, the DTE asserts the Request To Send (RTS) signal to the modem. If the modem is not in receive mode, the modem enables its carrier signal in preparation for transmitting data and asserts Clear To Send (CTS). If the modem is in receive mode, its Data Carrier Detect (DCD) signal (that is, the carrier signal from the remote modem) is in the active state. The modem does not activate the CTS signal, and the DTE does not transmit, because DCD is in the active state.

Contemporary modems are capable of transmitting and receiving simultaneously over two-wire or four-wire and leased or switched lines. One method uses multiple carrier signals at different frequencies, so that the local modem’s transmit and receive signals, as well as the remote modem’s transmit and receive signals, each have their own carrier frequency.

DTE equipment in an SDLC environment have configuration options that specify which mode of operation is supported by DCE equipment. The default parameters for most PU 2 devices are set for half duplex, although they can also support full-duplex operation. If the facility is capable of full duplex, RTS can be asserted at all times. If the facility supports half duplex or is operating in a multipoint environment using modem-sharing devices (as opposed to multipoint provided by a Postal Telephone and Telegraph [PTT] or by a telephone company), RTS must only be asserted when transmitting. A full-duplex-capable communication facility that connects a PU 4 to a PU 2 device or to a PU 1 device (with each PU device specifying full-duplex DCE capability) experiences improved response time because of reduced turnaround delays.

Older PU 2 and PU 1 devices cannot be configured for full-duplex DCE mode. Also, because older PU 2 and PU 1 devices can only support half-duplex data transfer, transmit and receive data cannot be on the line at the same time (in contrast to a PU 4-to-PU 4 full-duplex exchange).

Understanding Multipoint Connections

Multipoint operation is a method of sharing a communication facility with multiple locations. The telephone company or PTT communications authorities offer two-wire and four-wire multipoint configurations for analog service (modem attachment) or four-wire for digital service (CSU/DSU attachment). Most implementations are master-polling, multiple-slave drop implementations. The master only connects to one drop at a time. The switching takes place at a designated local exchange

B-2 Cisco CCIE Fundamentals: Network Design

Understanding Multipoint Connections

in proximity to the master DTE site. Some service providers offer analog multipoint services that support two-way simultaneous communication, which allows DTEs to be configured for permanent RTS.

Modem-sharing devices and line-sharing devices also provide multipoint capability. These implementations allow a single point-to-point link to be shared by multiple devices. Some of these devices have configurable ports for DTE or DCE operation, which allow for configurations that can accommodate multiple sites (called cascaded configurations ). The main restriction of these devices is that when RTS is active, other users are locked out. You cannot configure DTEs for permanent RTS and you must accept the turnaround delays associated with this mode of operation.

IBM Serial Link Implementation Notes B-3

Understanding Multipoint Connections

B-4 Cisco CCIE Fundamentals: Network Design

A P P E N D I X C

SNA Host Configuration for SRB Networks

When designing source-route bridging (SRB) internetworks featuring routers and IBM Systems Network Architecture (SNA) entities, you must carefully consider the configuration of SNA nodes as well as routing nodes. This appendix provides examples that focus on three specific SNA devices:

Figure C-1 illustrates a typical environment. Table C-1 through Table C-6 present the definition parameters for the devices shown in Figure C-1.

Note This material provides host-related configuration information pertinent to design material provided in Chapter 4, “Designing SRB Internetworks.”

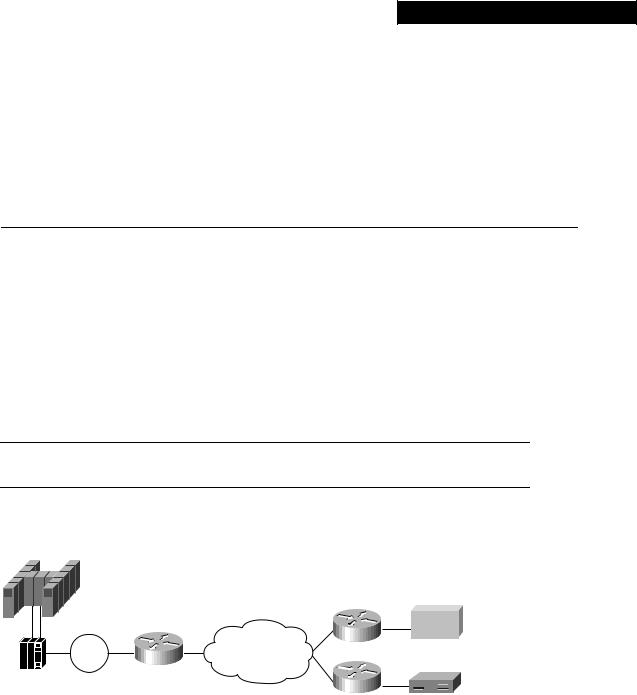

Figure C-1 Typical SNA host environment.

IBM mainframe

FEP Configuration

The parameters listed in Table C-1 through Table C-6 illustrate input to the Network Control Program (NCP) system generation process that runs in the host processor using the Network Definition Facility (NDF). The NDF is part of the ACF/NCP/System Support Program utility. The output produced by the generation process is a load module that runs in an FEP. Its typical size can be slightly under one MB to more than three MB. The ACF/NCP/System Support Program utility is also used for loading and dumping an FEP.

The following tables outline relevant parameters for generating Token Ring resources.

SNA Host Configuration for SRB Networks C-1

FEP Configuration

from peripheral or subarea nodes. Acceptable values: localt2 range is 0 to 2.0 seconds; remott2 range is 0 to 2.0 seconds; N3 range is 1 to 127 (default is 2). The values for localt2 and remott2 should be 10.0 percent of the value of the adjacent stations’s T1 timer. N3 specifies the maximum number of I-frames received without sending an acknowledgment for subarea connections.

The LUDRPOOL definition shown in Table C-2 specifies the number of peripheral resources required for the correct amount of control block storage to be reserved for new connections.

The GROUP definition shown in Table C-3 specifies group definition parameters.

C-2 Cisco CCIE Fundamentals: Network Design

FEP Configuration

The LINE definition shown in Table C-4 specifies line definition parameters.

SNA Host Configuration for SRB Networks C-3

VTAM-Switched Major Node Definitions

Table C-5 specifies physical unit (PU) definition parameters.

Table C-6 specifies logical unit (LU) definition parameters.

VTAM-Switched Major Node Definitions

Devices that are attached to Token Ring and communicate with an IBM host application must be defined via the VTAM access method associated with the host. These devices are seen as dial-in resources from the host side and are defined in a configuration component named Switched Major Node. Some common definitions used in network configurations are outlined in Table C-7 through Table C-9.

C-4 Cisco CCIE Fundamentals: Network Design

3174 Cluster Controller Configuration Example

The following configuration was taken from 3174-13R cluster controller serial number 45362 connected to a Token Ring. These entries were used with a specific 3174 running on a 4-Mbps Token Ring. The configuration of this 3174-13R involved three specific configuration screens. Table C-10 through Table C-12 list the configuration line numbers, entries used, and descriptions of the configuration line. When applicable, extended descriptions are included for configuration entries that are relevant to the requirements of the routed internetwork.

Note Of particular interest when configuring 3174 devices for a router-based SRB environment are configuration line items 106, 107, and 384 in configuration screen 2 (refer to Table C-9). These specify the required addresses and relevant Token Ring type for the cluster controller.

SNA Host Configuration for SRB Networks C-5

3174 Cluster Controller Configuration Example

C-6 Cisco CCIE Fundamentals: Network Design
