&KDSWHU 0RGHO *UDSKLFV

ϖ7R VHOHFW JHQHUDO GLVSOD\ SUHIHUHQFHV

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.

2Select or clear display preferences.

3Click OK.

The diagram graphically reflects your choice.

For more information on setting snap to grid display preferences, see the section Moving symbols.

6HOHFWLQJ REMHFW YLHZ GLVSOD\ SUHIHUHQFHV

You can modify the default display of objects symbol, and the following object view display preferences for object name and code.

For more information on how to display the name or the code of objects, see section Displaying the name or the code of objects in chapter Managing Models.



3UHIHUHQFH



'HVFULSWLRQ





None



Truncates name, or code, to the width of the symbol



Truncation



Truncates name, or code, at the indicated length





General Features Guide







0RGHO GLVSOD\ SUHIHUHQFHV

3UHIHUHQFH

'HVFULSWLRQ

Word wrapping

Wraps name and code text onto additional lines after wrap



character (up to the indicated length)

Wrap characters

Set of characters after which the word wrapping is possible





For more information on setting display preferences for a type of object, see the section corresponding to the object in the model User’s Guide.

ϖ7R VHOHFW REMHFW YLHZ GLVSOD\ SUHIHUHQFHV

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.

2Select the Object View node to display the corresponding page.

3Select a display preference from the Name splitting groupbox.

4Click OK.

The diagram graphically reflects your selection.

For more information on a given object display preferences, see the corresponding section in the module user’s guide.



PowerDesigner

&KDSWHU 0RGHO *UDSKLFV

6HOHFWLQJ IRUPDW GLVSOD\ SUHIHUHQFHV

Format display preferences apply to all objects in a model including symbols, graphic shapes, and relationships.

A preference for symbol size applies to all new symbols. If you change this preference, it does not automatically modify existing symbols.

You can set the following format display preferences:

3UHIHUHQFH

'HVFULSWLRQ

Default Size

Horizontal and vertical size of a symbol containing text (measured



in units of 1/7200 of an inch)

Size

Position symbols to auto-adjust to text, to keep aspect ratio, to



keep size and to keep center

Line Style

Color, size, and style of a line

Fill

Color, bitmap or gradient that fills a symbol

Shadow

Color that fills the standard shadow, the 3D effect, or the gradient



of a symbol

Font

Font, size, and style of text associated with a symbol

Text

Position text in rectangles, ellipses, rounded rectangles and

Alignment

polygons

Custom

Customized shape for most non-link symbols. You generally apply

Shape

that display preference to one symbol type at a time





)RUPDW DQG SUHYLHZ

The Preview box displays the format of the new objects you are going to create, not the format of existing objets.

In the case of existing objects, only the attributes modified in the display preferences are modified in the diagram

6HOHFWLQJ GHIDXOW VL]H GLVSOD\ SUHIHUHQFHV

You can modify the width or height of symbols in the model.

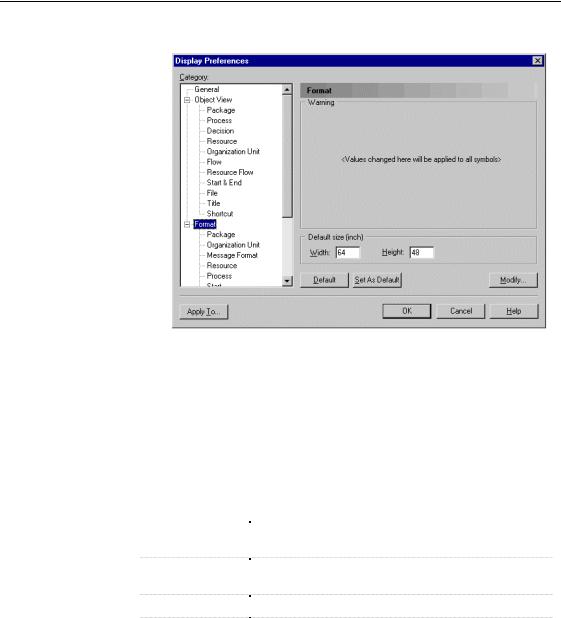

ϖ7R VHOHFW D GHIDXOW VL]H GLVSOD\ SUHIHUHQFH

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.

General Features Guide



0RGHO GLVSOD\ SUHIHUHQFHV

2 Select the Format node to display the corresponding page.

3Type changes in the Default Size groupbox in the Width and Height boxes.

4Click OK.

All symbols in the model have the newly indicated width and height.

6HOHFWLQJ VL]H GLVSOD\ SUHIHUHQFHV

You can set the following size display preferences for symbols in the model:

3UHIHUHQFH

'HVFULSWLRQ

Auto-adjust to text

Resizes symbols so that they display all the text they



contain (mutually exclusive with the Keep Size preference)

Keep aspect ratio

Keeps the ratio of the height and width of symbols when



resizing them

Keep center

Keeps the center of symbols when resizing them

Keep size

Keeps the size of symbols, even if they do not display all



the text they contain (mutually exclusive with the Auto-



Adjust to Text preference)







PowerDesigner

&KDSWHU 0RGHO *UDSKLFV

ϖ7R VHOHFW D VL]H GLVSOD\ SUHIHUHQFH

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.

2Select the Format node to display the corresponding page.

3Click the Modify button to display the Symbol Format dialog box.

4Click the Size tab to display the corresponding page.

General Features Guide



0RGHO GLVSOD\ SUHIHUHQFHV

5Select the size preferences you want from the appropriate check boxes.

6Click OK.

You return to the Display Preferences dialog box.

7Click OK.

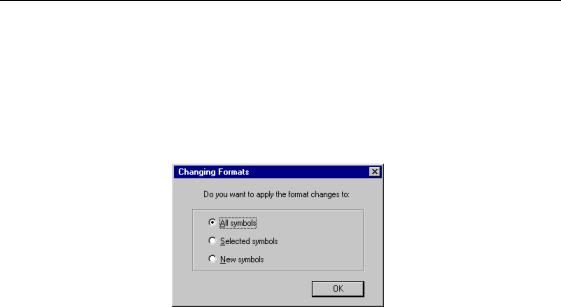

The Changing Formats window appears. It indicates symbols to which the change applies.

8Select a radio button.

9Click OK.

6HOHFWLQJ OLQH VW\OH GLVSOD\ SUHIHUHQFHV

You can set the following line style display preferences for symbols in the model:

3UHIHUHQFH

$SSOLHV VW\OH WR

'HVFULSWLRQ

Color

All lines, relationships, and outlines of

Sets the color of the line



shapes and symbols containing text



Style

Lines drawn with Line or Freeform

Applies invisible, solid,



tools, and the outlines of shapes and

dashed or dotted lines



symbols containing text



Width

All lines, relationships, and outlines of

Sets the thickness of a



shapes and symbols containing text

line

Corners

Lines drawn with Line or Freeform

Makes angles jagged,



tools, and relationships

right sharp, right





rounded, or waved

Arrow

Lines drawn with Line or Polyline

Changes the direction of



tools

the relationship









PowerDesigner

&KDSWHU 0RGHO *UDSKLFV

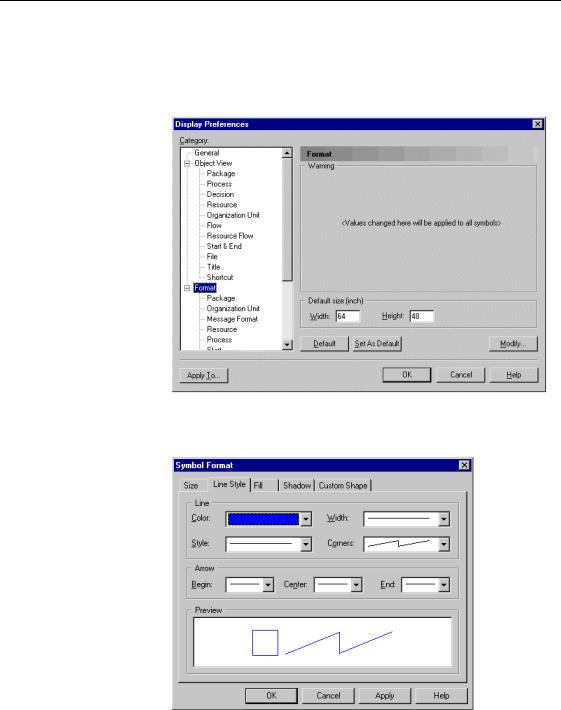

ϖ7R VHOHFW D OLQH VW\OH GLVSOD\ SUHIHUHQFH

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.

2Select the Format node to display the corresponding page.

3Click the Modify button to display the Symbol Format dialog box.

4Click the Line Style tab to display the corresponding page.

General Features Guide



0RGHO GLVSOD\ SUHIHUHQFHV

5Select the line styles you want from the appropriate dropdown listboxes.

6Click OK.

You return to the Display Preferences dialog box.

7Click OK.

The Changing Formats window appears. It indicates symbols to which the change applies.

8Select a radio button.

9Click OK.

6HOHFWLQJ ILOO GLVSOD\ SUHIHUHQFHV

You can fill model symbols with color using the color palette or with effects by selecting a bitmap and its display location or defining a gradient.

ϖ7R VHOHFW D ILOO GLVSOD\ SUHIHUHQFH

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.



PowerDesigner

&KDSWHU 0RGHO *UDSKLFV

2 Select the Format node to display the corresponding page.

3Click the Modify button to display the Symbol Format dialog box.

4Click the Fill tab to display the corresponding page.

5Select the fill options you want from the Fill Color and Fill Effects groupboxes.

General Features Guide



0RGHO GLVSOD\ SUHIHUHQFHV

6Click OK.

You return to the Display Preferences dialog box.

7Click OK.

The Changing Formats window appears. It indicates symbols to which the change applies.

8Select a radio button.

9Click OK.

6HOHFWLQJ VKDGRZ GLVSOD\ SUHIHUHQFHV

You can add a standard shadow, a 3D effect shadow or a gradient shadow to objects in a diagram.

ϖ7R VHOHFW VKDGRZ GLVSOD\ SUHIHUHQFHV

1Select ToolsDisplay Preferences to display the Display Preferences dialog box.



PowerDesigner
