Exercises

I. Give the Ukrainian equivalents.

1.	metal joints
2.	soldering
3.	welding
4.	rivets
5.	a permanent joint
6.	a stress
7.	sheet meta
8.	'sweat' soldering
9.	hard solder
10.	brazing
11.	flux
12.	electric arc welding
13.	a filler rod

II. Insert the missing words.

solder wire heated surfaces

powder metal dipped coated

In order to apply the …………………. you use a soldering bit, which is ……………………. by either a flame or an electric soldering iron. First you need to ensure that the ……………………… are thoroughly clean. This can be done with steel ……………….. wool or emery cloth. Flux is required. This can be liquid, …………………….. or paste and it is applied to the joint to keep the …………………….. clean whilst it is being soldered. When soldering, the iron should be regularly ……………………….. into the flux whilst it is hot then ………………………. with solder.

III. From what part of speech were these words converted?

• a shake-up

• to register

• to slow (down)

• to quiet

• to soldier

• a make-up

• point

• to pump

• to face

Text 8 computer-aided design (cad) drawing

In order to be successful in your specialty you should demonstrate good use of Information and Communi­cations Technology (ICT) for planning and data handling.

The aim of using ICT is to enhance your design and technology capability. You will not be penalised for non-use of ICT, although you should use it where appropriate and available.

When planning and data handling, good use of ICT may include using word-processing, databases, spreadsheets or CAD software for a range of activities that may include:

• organising and managing data

• production planning using colour-coded Gantt charts, diagrams or flowcharts

• producing manufacturing specifications

• producing accurate technical drawings

• working out quantities and costs of resources and products.

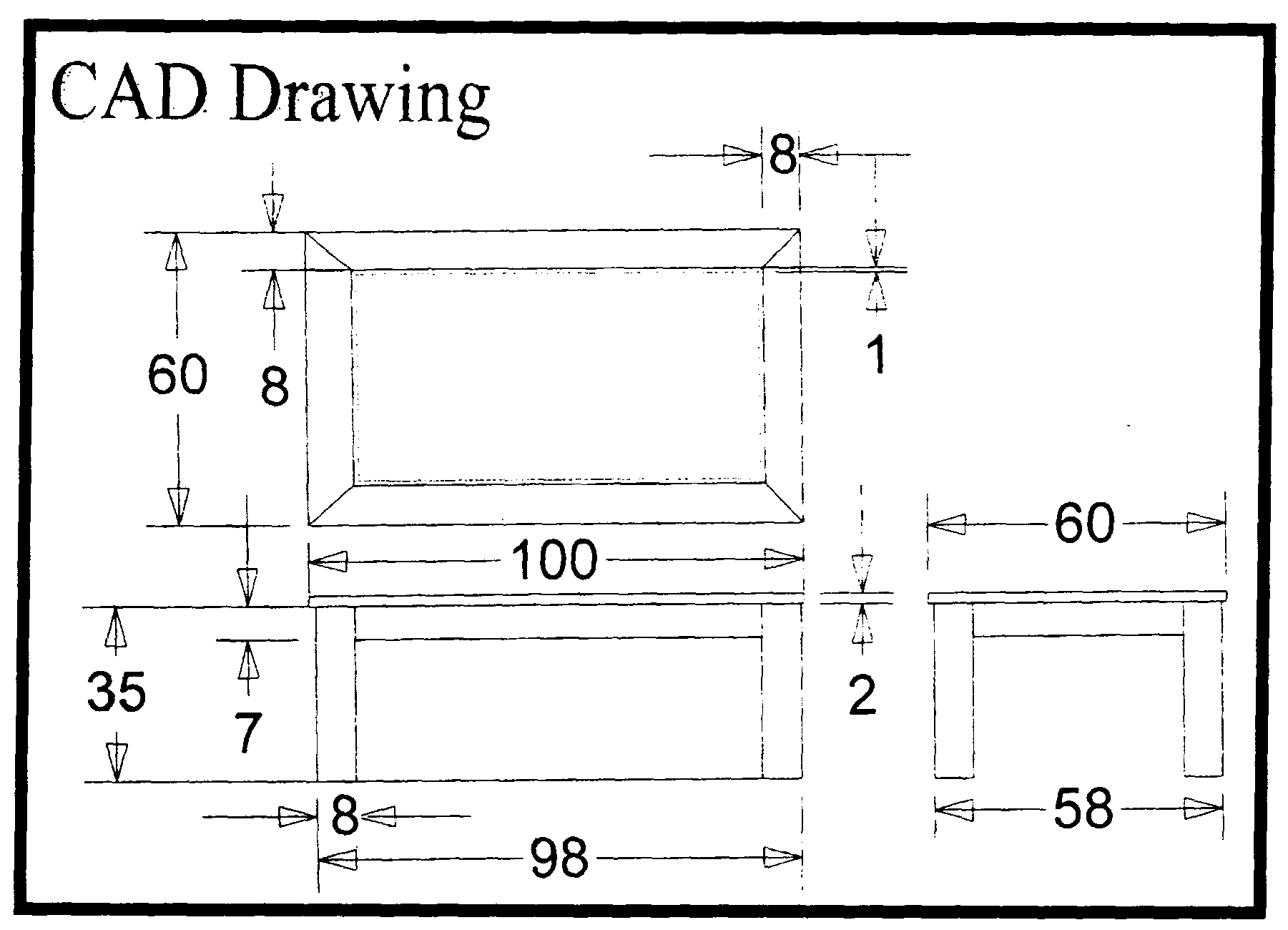

An example of working drawings produced using CAD software is illustrated below.

Words and word combinations

computer-aided design – автоматизоване проектування, комп’ютерна графіка

handling – обробка

to be penalized – бути покараним

word-processing – текстові редактори

databases – бази даних

spreadsheets – табличні процесори

Gantt charts – графік Ганта (планово-контрольний)
