associated with pulmonary hypertension are seen including severe right ventricular hypertrophy and a very prominent pulmonary artery. Chapters 4 and 6 describe the findings of pulmonary hypertension. Doppler flow will be negative when the shunt is interrogated on right parasternal four-chamber views. Aortic flow velocities will be elevated since the shunt now involves that vessel.

Endocardial Cushion Defects

When both a very large ostium primum atrial septal defect and a large ventricular septal defect are present, the abnormality is called an endocardial cushion defect. It may also be called complete atrioventricular canal or atrioventricular septal defect (62,100,101). Endocardial cushion defects fall into two categories: incomplete (or partial) and complete. Complete defects include an ostium primum atrial septal defect and a ventricular septal defect where a large portion of the inferior atrial septum and a large portion of the superior portion of the ventricular septum are missing. These two septal defects connect and the entire central portion of the heart is missing. There is typically one large atrioventricular valve since the septal portion of the endocardial cushion did not develop sufficiently to form the septal portions of the AV annuluses. Incomplete endocardial cushion defects involve a very large ostium primum atrial septal defect resulting in an almost common atrium and abnormalities of the atrioventricular valves (1,100) (Figure 9.29). The mitral valve is often cleft (1,100).

Two-dimensional echocardiographic images are very dramatic. The right parasternal four-chamber view shows a large atrial septal defect as well as the ventricular septal defect (Figure 9.34). The mitral and tricuspid valves originate from the endocardial cushion and are usually dysplastic. There often appears to be just one large atrioventricular valve with only the parietal leaflets of the tricuspid and mitral valves present. When septal mitral and tricuspid leaflets are present, they are usually continuous through the endocardial cushion defect. The right atrium, right ventricle, and left atrium are always dilated. The left ventricle may be dilated. The valves are usually insufficient, and the defects are so large that both color-flow and spectral Doppler are of no help in determining the direction of flow.

Figure 9.34 Endocardial cushion defects have a large ostium primum atrial septal defect and a ventricular septal defect. (A) Long-axis four-chamber images show large portions of both the atrial and ventricular septums missing. Only the parietal leaflets of the mitral and tricuspid valves are present. (B) Transverse views of the heart base show the large ostium primum defect of this endocardial cushion defect (arrow). (C) Transverse images at the level of the left ventricle show the large ventricular septal defect associated with the endocardial cushion defect (arrow). AO = aorta, RA = right atrium, LA = left atrium, RV = right ventricle, LV = left ventricle, IAS = interatrial septum.

Bubble Studies

Bubble studies help confirm the existence of right to left shunting. Normal saline is drawn into a syringe, shaken vigorously, all large bubbles of air are pushed from the syringe leaving only microbubbles within the solution. Several milliliters of saline are used in larger dogs, but about 1 milliliter is used in cats and other small animals. The saline is injected into a peripheral vein while the heart is being imaged. A right parasternal four-chamber view is used for the detection of atrial septal defects, and a right parasternal long-axis left ventricular outflow view should be used for ventricular septal defects. Dense echoes associated with the air-filled fluid can be seen crossing the atrial or ventricular septums into the left-sided chambers (62,102,103).

Bubble studies

help identify R → L shunts

use the abdominal aorta for PDA

Because the shunt in patent ductus arteriosus is extracardiac and blood flows from the pulmonary artery into the descending aorta, a bubble study using cardiac images will not help define the existence of a reverse PDA. The abdominal aorta should be used instead (Figure 9.35). The dense echoes associated with the microbubbles will show up in the abdominal aorta if a reverse PDA exists (92). It is important to rule out VSD and ASD since these reverse flows will also be seen in the abdominal aorta (103).

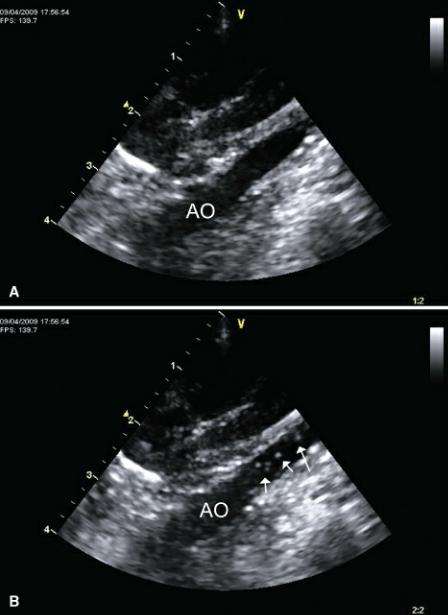

Figure 9.35 (A) The abdominal aorta is examined when performing a bubble study to confirm the presence of reverse patent ductus arteriosus. (B) Dense echoes associated with reverse flow (arrows) fill the aorta if a reverse shunt of any kind is present. A bubble study within the heart rules out reversed atrial or ventricular septal defects. These will also cause bubbles to appear in the abdominal aorta. AO = aorta.

Atrioventricular Valve Dysplasia

Congenital dysplasia of the atrioventricular valves usually causes valvular insufficiency. The degree of dysplasia and regurgitation is very variable. The cardiac changes associated with these defects are similar to those seen when the valvular insufficiencies are secondary to acquired valvular lesions. Cardiac changes associated with mitral dysplasia include and eccentric left ventricular hypertrophy, elevated parameters of left ventricular function, left atrial dilation, and excessive wall and septal motion (62). Right-sided changes associated with tricuspid dysplasia include right ventricular volume overload, possible paradoxical septal motion, and right atrial dilation (62). For details and further description of these changes, refer to Chapter 5 and the discussions on acquired mitral and tricuspid valve disease. Descriptions of the two-dimensional appearance of the dysplastic atrioventricular valves follow.

The appearance of the valvular apparatus is extremely variable, and any combination of abnormally shaped leaflets, abnormal chordal attachments, and abnormal papillary muscles may be seen. The leaflets may be thick, long, short, contain clefts, or have some degree of commissural fusion. The papillary muscles may be abnormally shaped or elongated or large (54,57,60).

Tricuspid Dysplasia

This defect of the tricuspid valve is particularly common in Labrador retrievers, but other large breed dogs are also predisposed to the defect (54). The septal leaflet is typically tethered to the right side of the septum. Short chordae may be visible as the leaflet tries to move toward its normal closed position during systole (Figure 9.36). The middle of the leaflet often buckles away from the septum while the tips remain closely apposed to the septum. The anterior leaflet is typically elongated and may come close to achieving closure of the tricuspid valves during systole. It is sometimes difficult to define where the anterior leaflet of the tricuspid valve ends and where the chordae tendinae start (21).

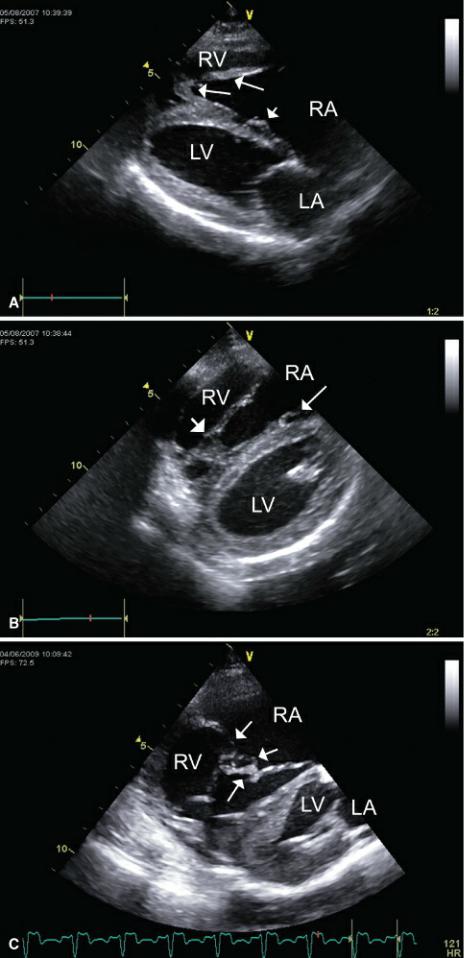

Figure 9.36 Tricuspid dysplasia may involve any aspect of the tricuspid apparatus. Typically, the septal leaflet of the valve is tethered to the interventricular septum by short chordae. Often the parietal tricuspid valve leaflet is elongated with abnormal attachment to a web of papillary muscles. (A) The septal leaflet is seen tethered to the septum (small arrow). Notice that the mitral leaflets are closed while the tricuspid leaflets are wide open. There is abnormal papillary muscle architecture (long arrows) at the apex of the right ventricle. (B) The web of papillary muscles at the apex of the right ventricle is seen here (short arrow), and there is a glimpse of the septal leaflet as it remains tethered to the septum (long arrow). (C) The tricuspid valve leaflets in this dog have chordae that attach abnormally to the leaflets (arrows). Planes = right parasternal four-chamber views, RV = right ventricle, RA = right atrium, LV = left ventricle, LA = left atrium.

An unusual variation of tricuspid dysplasia is Ebstein’s Anomaly. The tricuspid annulus is actually displaced toward the apex of the right ventricle (104). The right atrial chamber is very large in this

echocardiographic images are only mild to moderately incompetent.

Mitral Dysplasia

Mitral dysplasia is particularly common in cats (60). As with tricuspid dysplasia, the leaflets may be short and thick or elongated. They may be associated with abnormally shaped, elongated or large papillary muscles, and aberrant chordae tendinae with abnormal attachments to the ventricular wall or septum (Figure 9.38). Although it does occur, the septal leaflet is not usually tethered to the septum as in tricuspid dysplasia. The valves may display increased echogenicity and abnormal motion secondary to malformation of the mitral apparatus. There may be prolapse and some degree of restricted motion secondary to commissural fusion or abnormal chordae tendinae (54,57).

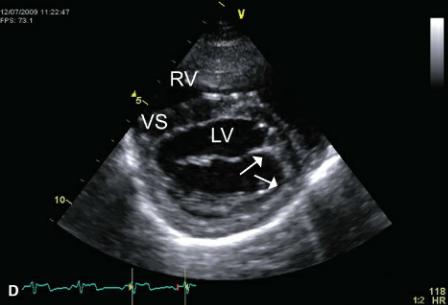

Figure 9.38 Mitral dysplasia is associated with abnormally shaped, elongated, or large papillary muscles and aberrant chordae tendinae with abnormal attachments to the ventricular wall or septum. (A) Aberrant chordae tendinae (arrows) with abnormal attachments to the ventricular wall are present in this cat. Plane = right parasternal transverse mitral valve. (B) Chordae tendinae extend from the papillary muscles to the septum and lateral wall (arrows) of the left ventricular chamber in this cat. Plane = right parasternal transverse left ventricle. (C) Abnormal muscular protrusions from the septum and aberrant chordae tendinae with attachments to the ventricular wall are present in this cat. Plane = right parasternal left ventricular outflow view. (D) This dog has abnormal points of mitral chordal attachment (arrows) to the lateral wall of the ventricular chamber. Plane = right parasternal transverse mitral valve, VS = ventricular septum, LV = left ventricle, AO = aorta, LA = left atrium, RV = right ventricle.
