Displaying Traffic on the Navigation Map
1)Ensure the KTA 870 system is operating. With the Navigation Map displayed, press the MAP Softkey.
2)Press the TRAFFIC Softkey. Traffic will now be displayed on the map.
Traffic Advisory
SECTION 10 – HAZARD
AVOIDANCE
2)Turn the small FMS Knob to select the last rectangular page icon.
3)If desired, press the VIEW Softkey to access the ARC and 360 Softkeys. When the ARC Softkey is pressed,a radar-like 120° view is displayed. Press the 360 Softkey to return to the 360° default display.
4)Rotate the Joystick clockwise to display a larger area or rotate counter-clockwise to display a smaller area.
|
|
|
|
|
Non-Threat |
|
|
|
|
||
Non-Bearing |
Traffic |
Off Scale |
|||
Traffic Advisories |
Banner |
Traffic |
|||
|
|||||

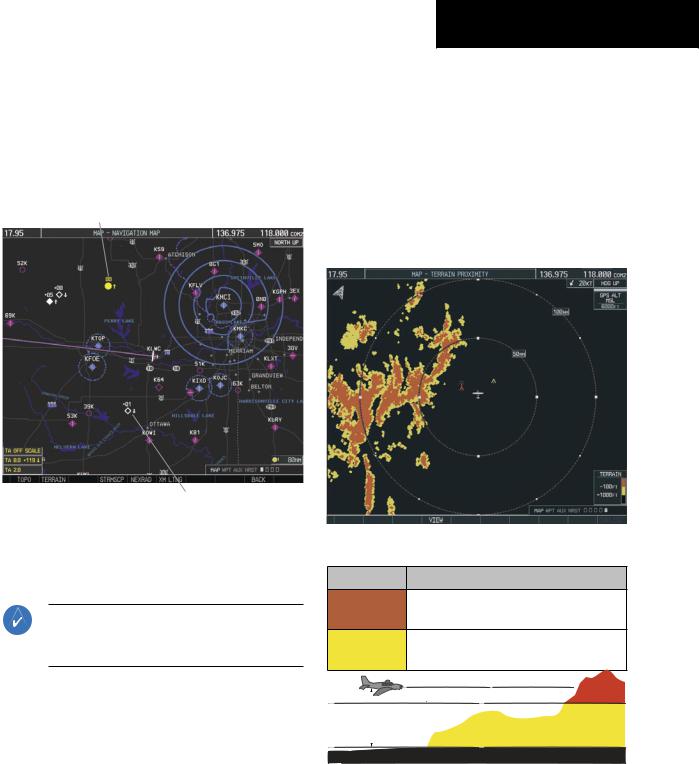

Figure 10-14 TAS Traffic on Navigation Map
10.6 TERRAIN AND OBSTACLE PROXIMITY
NOTE: Terrain data is not displayed when the aircraft latitude is greater than 75 degrees north or 60 degrees south.
Displaying Terrain and Obstacles on the Terrain Proximity Page
1)Turn the large FMS Knob to select the Map Page Group.
|
Figure 10-15 Terrain Proximity Page |
|
Color |
Indication |
|
RED |
Terrain/Obstacle at or within 100’ below or |
|
above aircraft altitude. |
||
|
||
YELLOW |
Terrain/Obstacle between 100’ and 1000’ |
|
below current aircraft altitude. |
||
|
||
|
Aircraft Altitude |
|
|
100' Threshold |
|
1000' |
|
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III |
10-9 |
