SECTION 7 – NAVIGATION
21) Aholdingpattern will beestablishedatthe MAHP 7.4 AIRPORT INFORMATION
(BACKS).

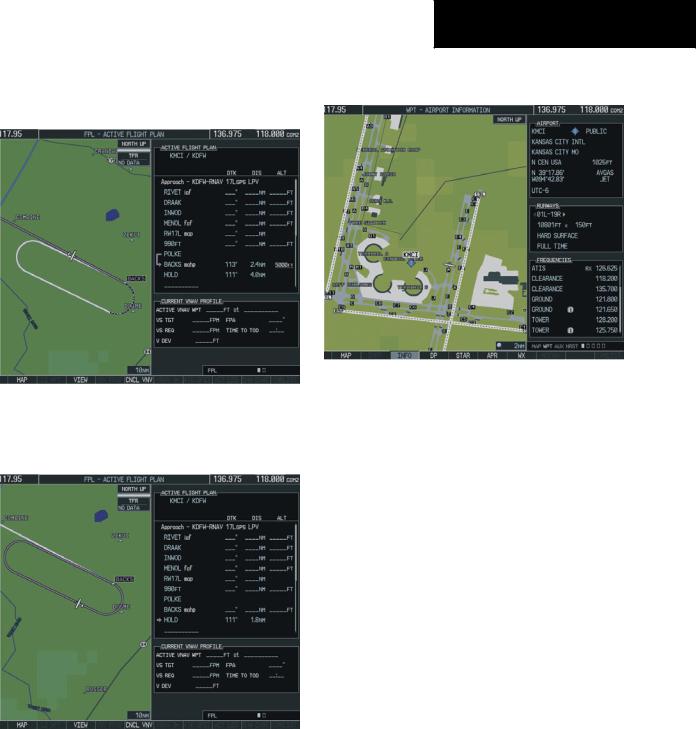

Figure 7-40 Reaching the Missed Approach Hold Point
22)Maintain 5,000 feet and follow the magenta line through the hold.
Figure 7-41 Hold Established
Figure 7-42 Airport Information Page
Select the Airport Information Page
1)Turn the largeFMS Knob to select the‘WPT’ page group.
2)Turn the small FMS Knob to select the first rectangular page icon. Initially, information for the airport closest to the aircraft’s present position is displayed.
Select an Airport from the Database
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Enter the desired airport identifier.
Select an Airport from the Active Flight Plan
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Turn the small FMS Knob to the left to display a list of flight plan airports as shown in Figure 7-43.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III |
7-15 |
SECTION 7 – NAVIGATION

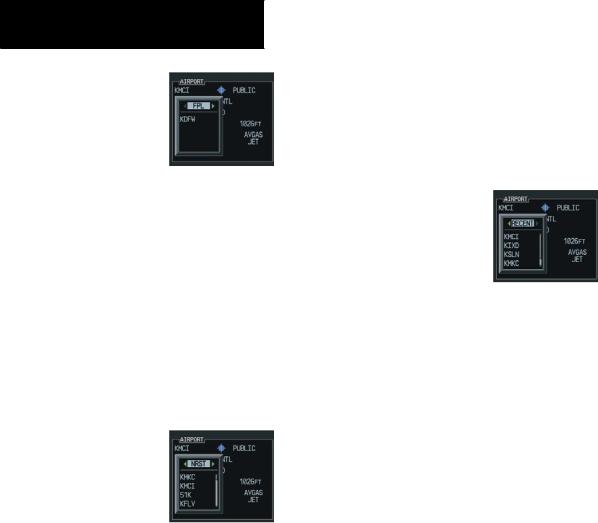

Figure 7-43 Flight Plan Airport List
3)Turn the large FMS Knob to select the desired airport.
4)Press the ENT Key.
Select a Nearest Airport
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Turn the small FMS Knob to the left. Initially, a flight plan airport list is displayed as in Figure 7- 43. The list is populated only when navigating a flight plan.
Figure 7-44 Nearest Airport List
3)Turn the small FMS Knob to the right to display the ‘NRST’ airports to the aircraft’s current position as shown in Figure 7-44.
4)Turn the large FMS Knob to select the desired airport.
5)Press the ENT Key.
Select a Recently Entered Airport Identifier
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Turn the small FMS Knob to the left. Initially, a flight plan waypoint list is displayed as in Figure 7-43. The list is populated only when navigating a flight plan.
3)Turn the small FMS Knob to the right to display the ‘RECENT’ airports as shown in Figure 7-45.
Figure 7-45 Recently Entered Airports List
4)Turn the large FMS Knob to select the desired airport.
5)Press the ENT Key.
Select an Airport by Facility Name or City Location
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Turn the large FMS Knob to the right to select the facility name or location (city) field.
3)Enter the desired facility name or city.
5)Press the ENT Key. If there are duplicate names in the database, a list is displayed from which to choose the desired location.
6)To remove the flashing cursor, press the FMS Knob.
Access Runway Information
1)With the Airport Information Page displayed, press the FMS Knob to activate the cursor.
2)Turn the large FMS Knob to place the cursor on the ‘RUNWAYS’ identifier field.
7-16 |
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III |
