Chapter 116: BackgroundWorker

Section 116.1: Using a BackgroundWorker to complete a task

The following example demonstrates the use of a BackgroundWorker to update a WinForms ProgressBar. The backgroundWorker will update the value of the progress bar without blocking the UI thread, thus showing a reactive UI while work is done in the background.

namespace BgWorkerExample

{

public partial class Form1 : Form

{

//a new instance of a backgroundWorker is created.

BackgroundWorker bgWorker = new BackgroundWorker();

public Form1()

{

InitializeComponent();

prgProgressBar.Step = 1;

//this assigns event handlers for the backgroundWorker bgWorker.DoWork += bgWorker_DoWork; bgWorker.RunWorkerCompleted += bgWorker_WorkComplete;

//tell the backgroundWorker to raise the "DoWork" event, thus starting it. //Check to make sure the background worker is not already running. if(!bgWorker.IsBusy)

bgWorker.RunWorkerAsync();

}

private void bgWorker_DoWork(object sender, DoWorkEventArgs e)

{

//this is the method that the backgroundworker will perform on in the background thread. /* One thing to note! A try catch is not necessary as any exceptions will terminate the

backgroundWorker and report

the error to the "RunWorkerCompleted" event */

CountToY();

}

private void bgWorker_WorkComplete(object sender, RunWorkerCompletedEventArgs e)

{

//e.Error will contain any exceptions caught by the backgroundWorker if (e.Error != null)

{

MessageBox.Show(e.Error.Message);

}

else

{

MessageBox.Show("Task Complete!"); prgProgressBar.Value = 0;

}

}

// example method to perform a "long" running task. private void CountToY()

{

int x = 0;

int maxProgress = 100; prgProgressBar.Maximum = maxProgress;

while (x < maxProgress)

{

System.Threading.Thread.Sleep(50);

Invoke(new Action(() => { prgProgressBar.PerformStep(); })); x += 1;

}

}

}

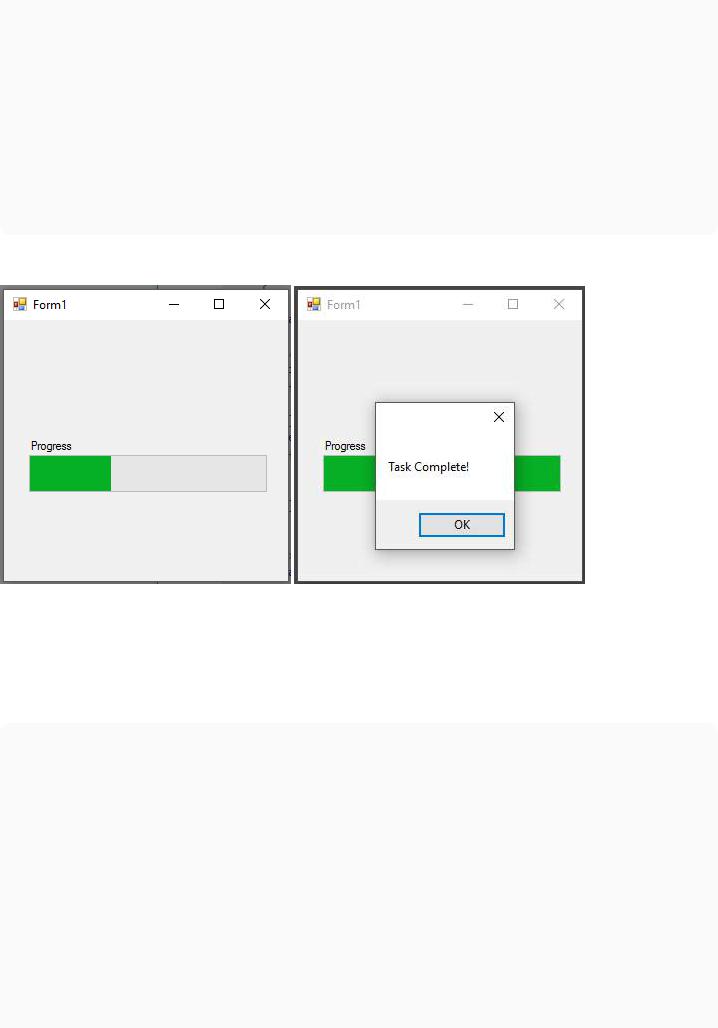

The result is the following...

Section 116.2: Assigning Event Handlers to a

BackgroundWorker

Once the instance of the BackgroundWorker has been declared, it must be given properties and event handlers for the tasks it performs.

/* This is the backgroundworker's "DoWork" event handler. This method is what will contain all the work you

wish to have your program perform without blocking the UI. */

bgWorker.DoWork += bgWorker_DoWork;

/*This is how the DoWork event method signature looks like:*/ private void bgWorker_DoWork(object sender, DoWorkEventArgs e)

{

//Work to be done here

//...

//To get a reference to the current Backgroundworker:

BackgroundWorker worker = sender as BackgroundWorker;

//The reference to the BackgroundWorker is often used to report progress worker.ReportProgress(...);

}

/*This is the method that will be run once the BackgroundWorker has completed its tasks */

bgWorker.RunWorkerCompleted += bgWorker_CompletedWork;

/*This is how the RunWorkerCompletedEvent event method signature looks like:*/ private void bgWorker_CompletedWork(object sender, RunWorkerCompletedEventArgs e)

{

// Things to be done after the backgroundworker has finished

}

/* When you wish to have something occur when a change in progress occurs, (like the completion of a specific task) the "ProgressChanged" event handler is used. Note that ProgressChanged events may be invoked

by calls to bgWorker.ReportProgress(...) only if bgWorker.WorkerReportsProgress is set to true. */

bgWorker.ProgressChanged += bgWorker_ProgressChanged;

/*This is how the ProgressChanged event method signature looks like:*/

private void bgWorker_ProgressChanged(object sender, ProgressChangedEventArgs e)

{

// Things to be done when a progress change has been reported

/* The ProgressChangedEventArgs gives access to a percentage, allowing for easy reporting of how far along a process is*/ int progress = e.ProgressPercentage;

}

Section 116.3: Creating a new BackgroundWorker instance

A BackgroundWorker is commonly used to perform tasks, sometimes time consuming, without blocking the UI thread.

// BackgroundWorker is part of the ComponentModel namespace. using System.ComponentModel;

namespace BGWorkerExample

{

public partial class ExampleForm : Form

{

// the following creates an instance of the BackgroundWorker named "bgWorker"

BackgroundWorker bgWorker = new BackgroundWorker();

public ExampleForm() { ...

Section 116.4: Assigning Properties to a BackgroundWorker

This allows the BackgroundWorker to be cancelled in between tasks

bgWorker.WorkerSupportsCancellation = true;

This allows the worker to report progress between completion of tasks...

bgWorker.WorkerReportsProgress = true;

//this must also be used in conjunction with the ProgressChanged event
