Fig. 2. Function scheme of terminal building designed with columns

The airport terminal building that is designed with this function scheme and the solution of which is produced with columns is given in Fig. 3.

Fig. 3. Plan of terminal building designed with columns

This design is problematic for airport terminal buildings because columns create problems in spaces where circulation is dense. The entrance control hall is designed as 60 m². It features 6

11

Russian Journal of Building Construction and Architecture

X-ray systems and 26 ticket control counters. As indicated in the plan, the columns will not only affect general passenger movement, but also the passengers that will line up in the ticket control area. At the entrance of the departure hall, there are 4 X-ray systems. In order to indicate the hall entrances, this area has been tried to be divided with screens. As in the ticket control area, the problems that the columns create for the lining up passengers can be observed in the plan. In the designed terminal building, passengers who leave the entrance area encounter the departure hall security control area. The ticket control points are situated parallel to the entrance axis. Although ample space has been left between the entrance-ticket control and departure hall, the column solution limits mobility. Moreover, the axis movements of passengers who head towards the rest area and passengers who come from the rest area can result in clashes in case of passenger density. The terminal building was analyzed with ATArch-A. Numbers at peak hours, passenger characteristics and other input components are presented in Table 1.

Table 1

Input components of design with columns

The meanings/definitions of the abbreviations in the table are given below.

12

The distances between spaces (entrance control hall-ticket control, ticket control-departure hall) were determined, and when the data were separately fed to the ATArch-A environment, Fig. 4 emerged.

Fig. 4. ATArch-A analysis of terminal building designed with columns

When the data were fed to ATArch-A, the program indicated the time to cover the distances between the spaces as process time. However, when the passenger arrival times were analyzed with data of previous observations that were stored in the database of ATArch-A, the graphical distribution given in Figure 4 was obtained. In addition, the user can enter passenger arrival distributions. As seen in Fig. 5, hourly passenger data can be entered.

13

Russian Journal of Building Construction and Architecture

Fig. 5. ATArch-A entrance of passenger numbers for terminal building designed with columns

Instead of manual feeding of hourly passenger distributions, the percentage of passengers using online check-in can be entered as well. While performing analyses with ATArch-A, many algorithms overlap with each other. One of the most important design problems in terminal buildings is function complexity. Therefore, it is important to know how different functions will operate with respect to their practical value. While designing airport terminal buildings, especially the characteristics of passengers need to be considered. The ATArch-A software includes a passenger characteristics menu which displays the effects of passengers’ physical conditions on the space. In addition, the passengers’ family rate option was developed for manual feeding of passenger arrival distribution. This option was developed as a result of observations conducted at airports. It was seen that passengers line up at the entrance control hall, ticket control counters, or departure hall entrances. Especially at the ticket control counters, passengers’ line up one after another. However, observation revealed that some passenger groups did not line up behind another but next to another, which is related to the family or group phenomenon. This queuing form is presented in Fig. 6.

Fig. 6. Passenger queuing form at the ticket control counters

14

When passengers line up in groups or as a family, they prefer to wait next to rather than behind each other. This changes the line length and waiting time because while one family member has their ticket checked at the counter and is waiting for it to finish, the other members wait right by their side at the counter as well. This is also often the case when tour operators come with large groups of passengers. Only one person or the tour leader deals with the procedures of passengers from the same country while the others stand around and wait in scattered fashion instead of a straight line, which can affect the line length in front of the counter. To address this situation, the “Family Rate” variable of the ATArch-A was developed to ask for the group percentage of the group in the number of passengers. For example, if this is entered as 20 %, 1 in 5 passengers will be counted as family. The family rate analysis is the calculation of process time of the group procedures, which is different than the process time calculation of separate passengers. As it will change the length of the line formed behind the counter, it is an important input variable. On the second page of ATArch-A, where the user can enter the passenger distribution, the percentage of passengers using online check-in, and the family rate, it is also possible to determine the percentage of passengers that will head to spaces. In the “Areas” module, the ratio of passengers that will also use the 3 different spaces (entrance control hall, ticket control area, and departure hall entrance) they are moving toward can be indicated. After the data are entered, ATArch-A can produce the graph for the passenger distribution as the user wishes, as in Fig. 7.

Fig. 7. Revised ATArch-A analysis of passenger arrival distribution for terminal building with columns

The determined values were fed to the ATArch-A analysis resulting in Fig. 8.

In the ATArch-A screen view presented in Fig. 8, it is observed that the size of the area in m2 allocated to the different spaces is sufficient, and that the entrance control hall and the ticket control areas are sufficient when the algorithm between the number of passengers and the space, and the IATA data are considered. The departure hall entrance is of B Level of Service,

15

Russian Journal of Building Construction and Architecture

which is adequate by IATA standards. If the user wishes to change the space inputs, ATArch-A defines the necessary area as shown in Fig. 9 to increase its level to A.

Fig. 8. ATArch-A analysis for terminal building with columns

Fig. 9. Service level analysis for terminal building designed with columns

Furthermore, ATArch-A analyzes passengers’ queuing conditions. It uses Fruin (1971) analysis for passengers that line up one behind another (Fig. 10). When ATArch-A forms this algorithm, it calculates the sizes of the passenger according to the accepted values of Fruin (1971).

Based on this, ATArch-A can calculate the length of passenger lines with the assumption that passengers line up one behind another in a single line without distorting it. By this way it is possible to calculate the maximum possible length of the line and to design the spaces accord-

16

ingly. As Figure 11 shows that when the number of entrance X-ray systems is reduced to 2, the level of service instantly drops to “C” level.

Fig. 10. Fruin human movement and ATArch-A accepted values

Fig. 11. ATArch-A line length analysis

In addition to the decrease in level of service, the maximum waiting times also change. The same algorithm operates in the same manner for the other spaces. Moreover, by changing the operating counters or X-ray systems in the ATArch-A capacity interface, the level of service can be immediately analyzed (Fig. 12).

In the capacity interface, ATArch-A analyzes passenger flow conditions and performs graphical analyses (Fig. 13) by using speed, average density, and space width. This analysis of ATArch-A is usually employed in the design of circulation spaces.

17

Russian Journal of Building Construction and Architecture

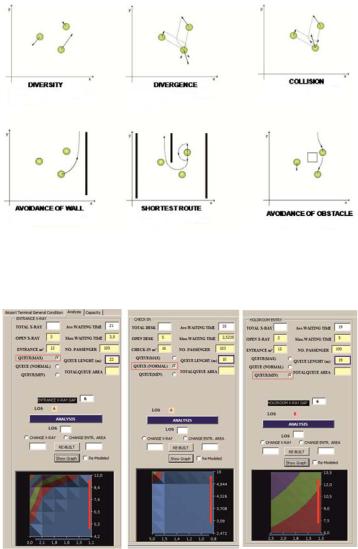

Fig. 12. ATArch-A analysis of momentary change in level of service

Fig. 13. ATArch-A passenger flow analysis interface

ATArch-A analyzes the terminal building system solved with columns with the interface it develops. The analyzed circulation space is shown in Fig. 14.

Fig. 14. The circulation area of the space

In this space, the circulation areas are assumed to be the area between the columns because especially passengers walking in groups (crowds) tend to identify an axis for themselves and to proceed along that axis (Teknomo, 2008). As observed, in circulation systems designed with columns, flow and level of service are lower due to square meter area limitations because columns are situated within the circulation area, take up space, and reduce the circulation area in square meter.

18

Terminal Building Designed without Columns

In another terminal building design, where the linear design logic and function scheme were kept identical, especially the circulation spaces and the spaces with high passenger density were totally designed without columns (Fig. 15). This design is the main concept of especially recently designed airports (such as Beijing Airport, China).

Fig. 15. Plan of terminal building designed without columns

In the circulation system solved without columns, the seating areas were assumed to be located in the farthest point. The other spaces remain in the same place, and only the circulation area expanded. The relationship between the circulation spaces with and without columns is as in Fig. 16.

The solution with columns here is not like a real solution; instead of columns, barriers or seats could stand as well. What follows from this is similar to the result in Figure 4.90 revealed with ATArch-A analysis. In the comparison presented in Figure 16, the width of the first circulation space was assumed to be 7.5 meters. ATArch-A assumed the number of passengers to use this space as the 150 passengers that ATArch-A assumed to go to ticket control at peak hour, and the 142 passengers before peak hour. This assumption is based on the theory in the work of Hsu and Chao (2005) that states that the passengers using the circulation space consist for the most part of those that spread from the ticket control area.

19

Russian Journal of Building Construction and Architecture

Fig. 16. The relationship between circulation spaces with and without columns

On the other hand, speed is taken as the average speed that ATArch-A determines according to passenger characteristics. In the circulation space without columns presented in Fig. 16, the width of the space is taken as 30 meters, though with the same number of passengers. The graphic analysis and interface screen of ATArch-A for these conditions are shown in Fig. 17.

Fig. 17. ATArch-A passenger flow analysis for circulation spaces with and without columns

The first blue line on the ATArch-A capacity screen shows the passenger flow and arrival distribution graph to occur in the circulation space with columns. In the red graph, the same pas-
