3.3.3 Other Responses

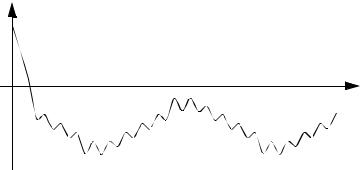

First-order systems have e-to-the-t type responses. Second-order systems add another e-to-the-t response or a sinusoidal excitation. As we move to higher order linear systems we typically add more e-to-the-t terms, and/or more sinusoidal terms. A possible higher order system response is seen in Figure 3.26. The underlying function is a firstorder response that drops at the beginning, but levels out. There are two sinusoidal functions superimposed, one with about one period showing, the other with a much higher frequency.

Figure 3.26 An example of a higher order system response

The basic techniques used for solving first and second-order differential equations can be applied to higher order differential equations, although the solutions will start to become complicated for systems with much higher orders. The example in Figure 3.27 shows a fourth order differential equation. In this case the resulting homogeneous solution yields four roots. The result in this case are two real roots, and a complex pair. The two real roots result in e-to-the-t terms, while the complex pair results in a damped sinusoid. The particular solution is relatively simple to find in this example because the non-homo- geneous term is a constant.
