QUESTION NO: 4

You need to perform some initial configuration tasks on a new TestKing switch. What is the purpose of assigning an IP address to a switch?

A.To provide local hosts with a default gateway address

B.To allow remote management of the switch.

C.To allow the switch to respond to ARP requests between two hosts

D.To ensure that hosts on the same LAN can communicate with each other.

E.None of the above

Answer: B Explanation:

Switch is a layer 2 device and doesn't use network layer for packet forwarding. The IP address may be used only for administrative purposes such as Telnet access or for network management purposes.

QUESTION NO: 5

You need to perform some initial configuration tasks on a new TestKing switch. What are the possible trunking modes for this switch port? (Choose three)

A.Transparent

B.Auto

C.On

D.Desirable

E.Client

F.Forwarding

G.Learning

Answer: B, C, D Explanation:

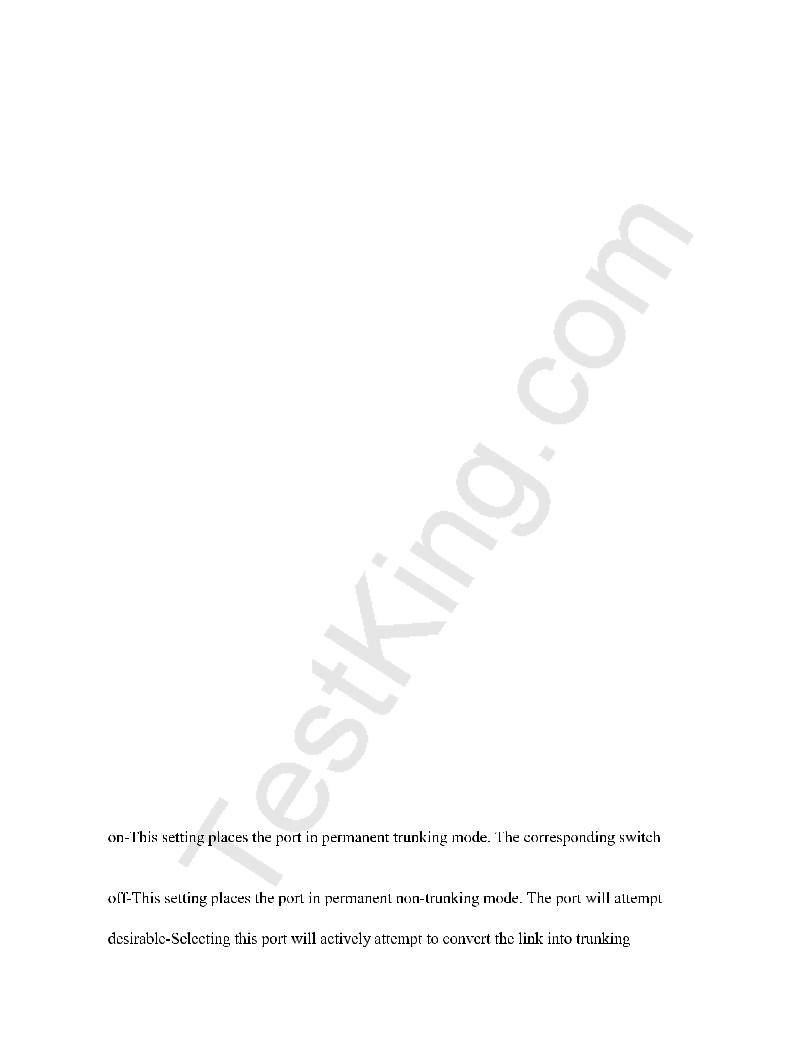

Here, the trunk link is identified by its physical location as the switch module number and port number. The trunking mode can be set to any of the following:

port at the other end of the trunk should be similarly configured because negotiation is not allowed. The encapsulation or identification mode should also be manually configured.

to convert the link to non-trunking mode.

Leading the way in IT testing and certification tools, www.testking.com

- 131 -

mode. If the far end switch port is configured to on, desirable, or auto mode, trunking will be successfully negotiated.

switch

port is configured to on or desirable, trunking will be negotiated. By default, all Fast Ethernet and Gigabit Ethernet links that are capable of negotiating using DTP are configured to this mode. Because of the passive negotiation behavior, the link will never become a trunk, if both ends of the link are left to the auto default.

generated for negotiation. The far end switch port must be manually configured for trunking mode.

QUESTION NO: 6

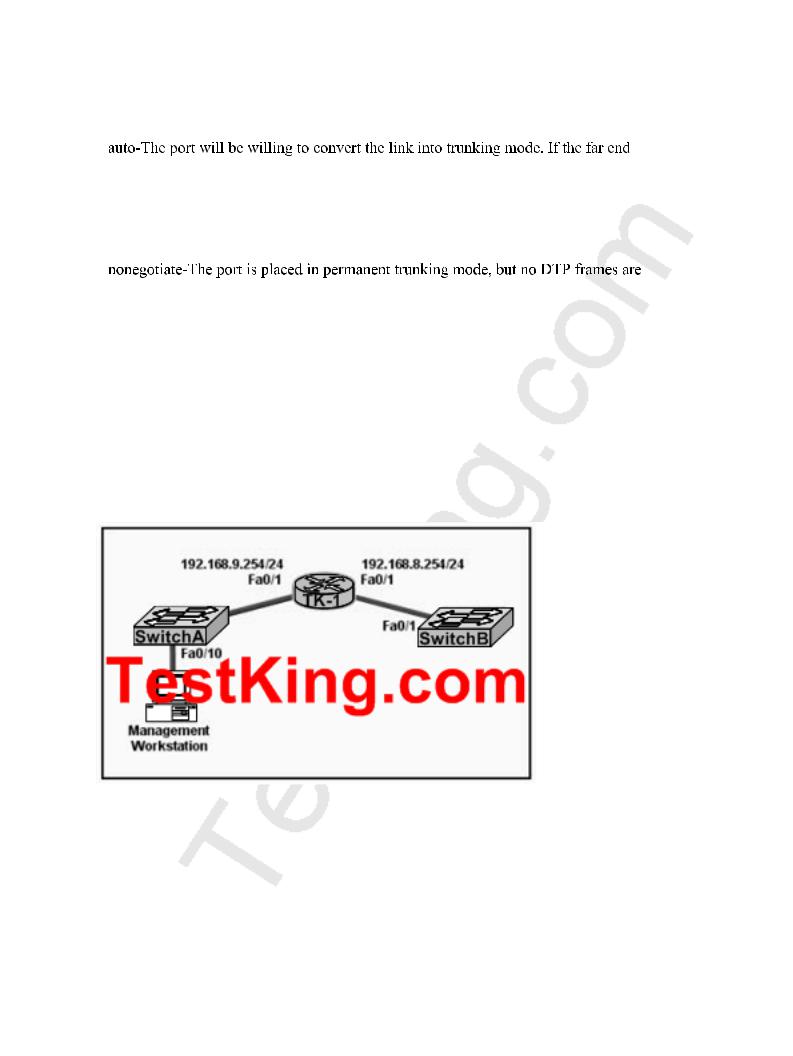

Please study the exhibit carefully. A TestKing technician has installed SwitchB and needs to configure it for remote access from the management workstation connected to SwitchA. Which set of commands is required to accomplish this task?

Exhibit:

A.SwitchB(config)# interface FastEthernet 0/1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown

B.SwitchB(config)# ip default-network 192.168.8.254 SwitchB(config)# interface vlan 1

SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0

Leading the way in IT testing and certification tools, www.testking.com

- 132 -

SwitchB(config-if)# no shutdown

C.SwitchB(config)# ip route 192.168.8.254 255.255.255.0 SwitchB(config)# interface FastEthernet 0/1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown

D.SwitchB(config)# ip default-gateway 192.168.8.254 SwitchB(config)# interface vlan 1

SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown

E.SwitchB(config)# interface vlan 1

SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# ip default-gateway 192.168.8.254 255.255.255.0 SwitchB(config-if)# no shutdown

F. None of the above

Answer: D Explanation:

IP default-gateway address is a global command that sets the default gateway so that the management interface can be reached from a remote network. This is the correct command used on Cisco switches. In this example, the interface also needs to be enable using the "no shut" command.

Incorrect Answers:

A:The default gateway of the switch needs to be specified.

B:The correct command for a switch is "ip default-gateway" not "ip default-network"

C:This static route is not valid, and does not correctly specify the default route.

E: "IP default-gateway" is a global command, not an interface command.

QUESTION NO: 7

An administrator would like to configure a switch over a virtual terminal connection from locations outside of the local LAN. Which of the following are required in order for the switch to be configured from a remote location? (Choose two)

A.The switch must be reachable through a port connected to its management VLAN.

B.The switch console port must be connected to the Ethernet LAN.

C.The switch must be fully configured as an SNMP agent.

D.The switch must be configured with an IP address, subnet mask, and default gateway.

E.The switch management VLAN must be created and have a membership of at least one switch port.

Leading the way in IT testing and certification tools, www.testking.com

- 133 -

F. The switch must be connected to a router over a VLAN trunk.

Answer: A, D

Explanation:

In order the telnet to any Cisco device, the device must be reachable from the remote location. For a Cisco switch to be reachable from remote locations, it must have an IP address, subnet mask, and default gateway assigned.

Communication with the switch management interfaces is through the switch IP address. The IP address is associated with the management VLAN, which by default is VLAN 1

QUESTION NO: 8

A TestKing LAN is shown in the diagram below:

Leading the way in IT testing and certification tools, www.testking.com

- 134 -

In this network, Host TestKing1 is consoled into Switch TestKingA. Telnet connections and pings run from the command prompt on Switch TestKingA fail. Which of the following could cause this problem? Select all that apply.

A.Switch TestKingA is not directly connected to router TestKingC.

B.Switch TestKingA does not have a default gateway assigned.

C.Switch TestKingA does not have a CDP entry for Switch TestKing B or Router TestKingC.

D.Switch TestKingA does not have an IP address.

E.Port 1 on Switch TestKingA should be an access port rather than a trunk port.

Answer: B, D

For ping and Telnet the switch should be configured with the IP address and the default gateway. IP is used for administrative purposes, and is needed so the end device will know which IP address to direct the ICMP and telnet reply traffic to.

Incorrect Answers:

A. This is not required, since switch LANs can span multiple VLANs and switches and hubs can be connected directly together.

C. CDP is not required in order for ping and telnet traffic to work.

E. The port type in this case will not cause any kind of connectivity problems, since Trunk ports pass information from all VLANs by default.

QUESTION NO: 9

The TestKing network administrator cannot connect to SwitchTK1 over a Telnet session, although the hosts attached to SwitchTK1 can ping the interface Fa0/0 of the router. Given the information shown below and assuming that the router and Switch2 are configured properly, which of the following commands should be issued on SwitchTK1 to correct this problem?

Exhibit:

Leading the way in IT testing and certification tools, www.testking.com

- 135 -

A.SwitchTK1(config)# ip default-gateway 192.168.24.1

B.SwitchTK1(config)# interface fa0/1

SwitchTK1(config-if)# ip address 192.168.24.3 255.255.255.0

C.SwitchTK1(config)# line con0 SwitchTK1(config-line)# password cisco SwitchTK1(config-line)#login

D.SwitchTK1(config)# interface fa0/1 SwitchTK1(config-if)# duplex full SwitchTK1(config-if)# speed 100

E.SwitchTK1(config)# interface fa0/1 SwitchTK1(config-if)# switchport mode trunk

F.None of the above

Answer: A Explanation:

To route traffic to other vlans, we need to enter the IP address of the next-hop router interface that is directly connected to the switch where a default gateway is being configured. The default gateway receives IP packets with unresolved destination IP addresses from the switch.

Once the default gateway is configured, the switch will have connectivity to the remote networks with which a host needs to communicate.

QUESTION NO: 10

Leading the way in IT testing and certification tools, www.testking.com

- 136 -

Exhibit:

In the TestKing network segment shown above, host TestKingA must be able to telnet to switch TestKing1 through router TestKing2 for management purposes. What must be configured or done for this connection to be successful?

A.VLAN 1 on TestKing1

B.A default gateway on TestKing1

C.A cross-over cable connecting TestKing1 and TestKing2

D.IP routing on TestKing1

E.None of the above

Answer: B Explanation:

In order for a switch to send traffic to a destination that is not located directly, as is the case in our example, a default gateway must be configured on the switch. This will enable it to send the traffic to router TestKing2 where it can be routed to host TestKingA.

Incorrect Answers:

A: This is the default VLAN used and does not need to be configured.

C:A cross over cable is used to connect two switches or two routers together back to back, but a straight through cable should be used when connecting a switch to a routers.

D:IP routing does not need to be enabled, just the default gateway.

Leading the way in IT testing and certification tools, www.testking.com

- 137 -

Section 6: Verify network status and switch operation using basic utilities (including: ping, traceroute, telnet, SSH, arp, ipconfig), SHOW & DEBUG commands (8 questions)

QUESTION NO: 1

Network topology exhibit:

Output exhibit:

You work as a network technician at TestKing and you issued the arp -a command from a host named TestKingA as shown above.

The user of host TestKingA wants to ping the DSL modem/router at 192.168.1.254. Based on the Host TestKingA ARP table that is shown in the exhibit, what will host TestKingA do?

Leading the way in IT testing and certification tools, www.testking.com

- 138 -

A.Send a unicast ARP packet to the DSL modem/router

B.Send a Layer 2 broadcast that is received by Host TestKingB, the switch and the DSL modem/router

C.Send unicast ICMP packets to the DSL modem/router

D.Send Layer 3 broadcast packets to which the DSL modem/router responds

E.None of the above

Answer: C

QUESTION NO: 2

While troubleshooting a connectivity problem, the TestKing network administrator notices that a port status LED on a Cisco Catalyst Series switch is alternating between green and amber. Which condition could this indicate?

A.The port is experiencing errors

B.The port has ac active link with normal traffic activity

C.The port blocked by spanning tree

D.The port is administratively disabled

E.None of the above

Answer: A

QUESTION NO: 3

Two TestKing hosts are connected as shown below:

Leading the way in IT testing and certification tools, www.testking.com

- 139 -

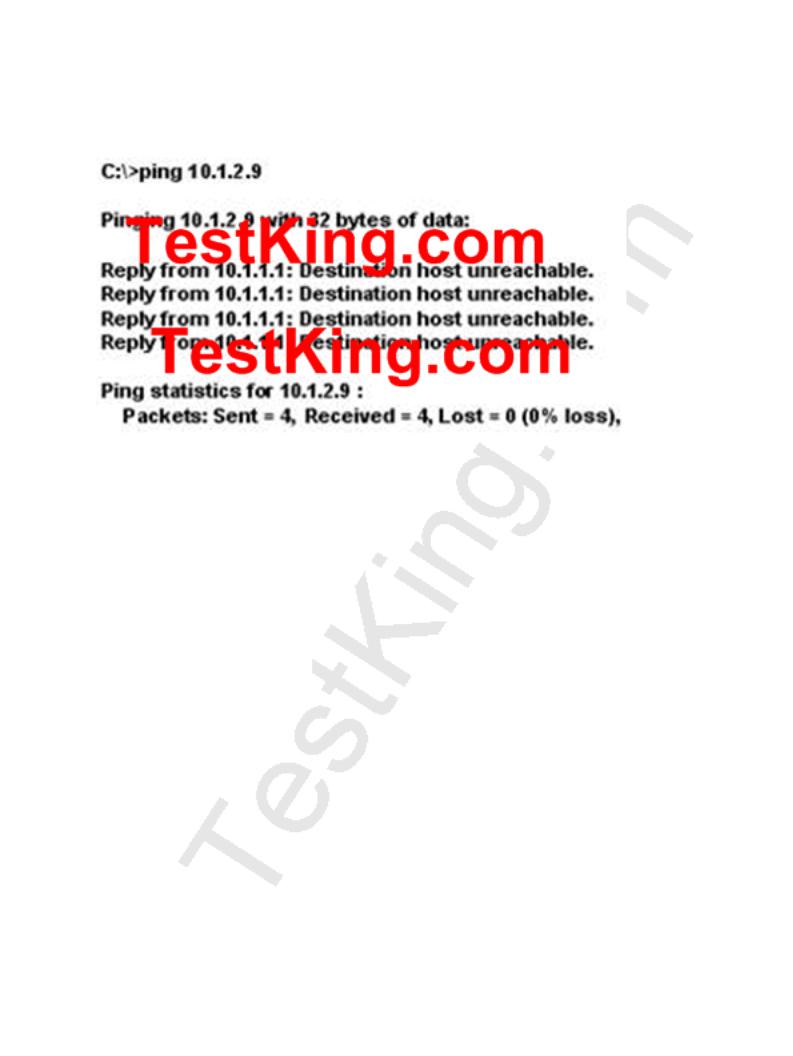

Ping Exhibit:

In the network shown above, a network administrator attempts to ping Host TestKingII from Host TestKingI and receives the results that are shown. What is a possible problem?

A.TCP/IP is not functioning on Host TestKingI

B.The default gateway on Host TestKingI is incorrect

C.The link between Router TestKing1 and Router TestKing2 is down

D.The link between Host TestKingI and Swtich TestKingA is down

E.Interface Fa0/0 on Router TestKing1 is down

F.The link between Switch TestKingA and Router TestKing1 is down

G.None of the above

Answer: C

QUESTION NO: 4

Two TestKing switches are connected together as shown below:

Leading the way in IT testing and certification tools, www.testking.com

- 140 -
