Федеральное агентство железнодорожного транспорта
_____________________
Московский государственный университет путей сообщения
(МИИТ)
____________________
Институт управления и информационных технологий
___________________
Кафедра " Вычислительные машины, комплексы, системы и сети "
О Т Ч Е Т
по курсовому проекту
по дисциплине " Сети ЭВМ и телекомуникации"
Выполнили студенты
группы УВМ-412
Волотов И.Ю.
Проверил: Желенков Б.В
Голдовский Я.М.
Москва - 2012 г.
Задание
№ отдела |
PC |
Выход в WAN |
DHCP |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
1 |
7 |
0 |
0 |
|
1 |
0 |
1 |
0 |
0 |
0 |
0 |
2 |
108 |
1 |
1 |
1 |
|
0 |
0 |
0 |
0 |
0 |
0 |
3 |
87 |
1 |
1 |
0 |
0 |
|
0 |
1 |
1 |
0 |
1 |
4 |
31 |
0 |
0 |
1 |
0 |
0 |
|
0 |
0 |
1 |
0 |
5 |
31 |
0 |
1 |
0 |
0 |
1 |
0 |
|
0 |
0 |
0 |
6 |
64 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
|
0 |
0 |
7 |
41 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
|
0 |
8 |
123 |
0 |
1 |
0 |
0 |
1 |
0 |
0 |
0 |
0 |
|

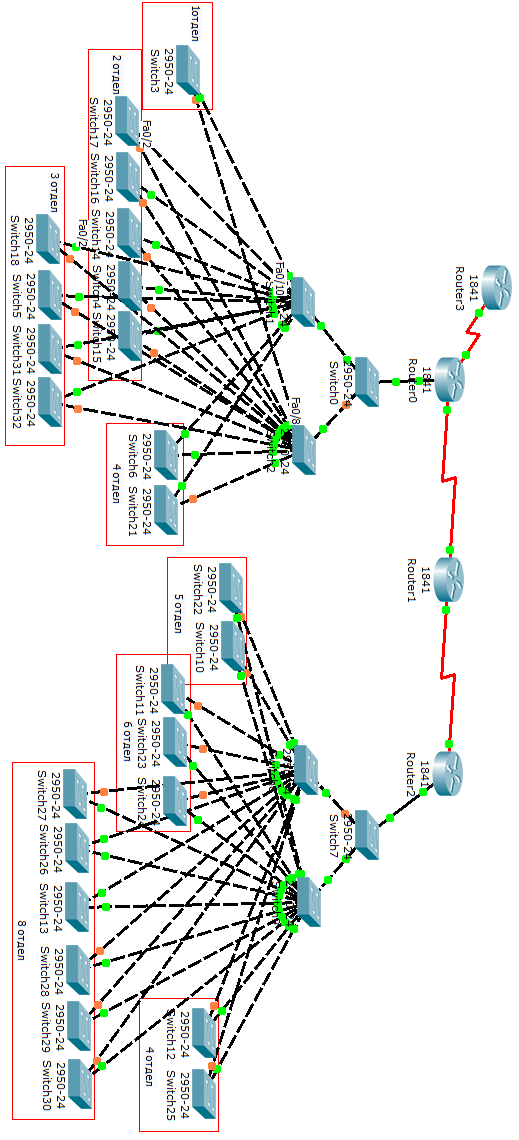

Редистрибьюция маршрутов BGP и EIGRP
Management VLAN 5
Расчет адресного плана
Адресное пространство: IP адрес 192.168.0.0/24
IP адрес |
Маска |
№ отдела |
192.168.0.128/25 |
255.255.255.128 |
3 |
192.168.0.0/25 |
255.255.255.128 |
2 |
192.168.1.128/25 |
255.255.255.128 |
6 |
192.168.1.0/25 |
255.255.255.128 |
8 |
192168.2.0/26 |
255.255.255.192 |
7 |
192168.2.64/26 |
255.255.255.192 |
4 |
192168.2.128/26 |
255.255.255.192 |
5 |
192.168.2.192/27 |
255.255.255.224 |
Management VLAN |
192.168.2.224/27 |
255.255.255.224 |
Management VLAN |
192.168.3.0/28 |
255.255.255.240 |
1 |
192.168.3.16/30 |
255.255.255.252 |
Serial |
192.168.3.20/30 |
255.255.255.252 |
Serial |
Конфигурационный файл
R1
Building configuration...
Current configuration : 2351 bytes
version 12.4
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
hostname Router
ip dhcp pool vlan20
network 192.168.0.0 255.255.255.128
default-router 192.168.0.1
ip dhcp pool vlan30
network 192.168.0.128 255.255.255.128
default-router 192.168.0.129
!
interface FastEthernet0/0
no ip address
duplex auto
speed auto
!
interface FastEthernet0/0.5
encapsulation dot1Q 5
ip address 192.168.2.222 255.255.255.224
!
interface FastEthernet0/0.10
encapsulation dot1Q 10
ip address 192.168.3.1 255.255.255.240
ip access-group 1 out
!
interface FastEthernet0/0.20
encapsulation dot1Q 20
ip address 192.168.0.1 255.255.255.128
ip access-group 3 out
ip nat inside
!
interface FastEthernet0/0.30
encapsulation dot1Q 30
ip address 192.168.0.129 255.255.255.128
ip access-group 5 out
ip nat inside
!
interface FastEthernet0/0.40
encapsulation dot1Q 40
ip address 192.168.2.65 255.255.255.192
ip access-group 4 out
!
interface FastEthernet0/1
no ip address
duplex auto
speed auto
shutdown
!
interface Serial0/0/0
ip address 192.168.3.22 255.255.255.252
!
interface Serial0/0/1
ip address 200.1.1.1 255.255.255.0
ip nat outside
clock rate 148000
!
interface Vlan1
no ip address
shutdown
!
router eigrp 1
redistribute static
network 192.168.3.0 0.0.0.15
network 192.168.0.0
network 192.168.2.64 0.0.0.63
network 192.168.3.20 0.0.0.3
network 192.168.2.192 0.0.0.31
no auto-summary
!
ip nat inside source list 2 interface Serial0/0/1 overload
ip classless
ip route 0.0.0.0 0.0.0.0 Serial0/0/1
!
access-list 2 permit 192.168.0.0 0.0.0.255
access-list 1 deny 192.168.1.0 0.0.0.255
access-list 1 deny 192.168.0.128 0.0.0.127
access-list 1 deny 192.168.2.0 0.0.0.63
access-list 1 deny 192.168.2.128 0.0.0.63
access-list 1 permit any
access-list 3 deny 192.168.0.128 0.0.0.127
access-list 3 deny 192.168.1.0 0.0.0.255
access-list 3 deny 192.168.2.0 0.0.0.63
access-list 3 deny 192.168.2.64 0.0.0.63
access-list 3 deny 192.168.2.128 0.0.0.63
access-list 3 permit any
access-list 4 deny 192.168.1.0 0.0.0.255
access-list 4 deny 192.168.2.128 0.0.0.63
access-list 4 permit any
access-list 5 deny 192.168.2.64 0.0.0.63
access-list 5 deny 192.168.2.0 0.0.0.63
access-list 5 permit any
!
line con 0
line vty 0 4
login
!
end
R2
Building configuration...
Current configuration : 860 bytes
!
version 12.4
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname Router
interface FastEthernet0/0
no ip address
duplex auto
speed auto
shutdown
!
interface FastEthernet0/1
no ip address
duplex auto
speed auto
shutdown
!
interface Serial0/0/0
ip address 192.168.3.21 255.255.255.252
clock rate 148000
!
interface Serial0/0/1
ip address 192.168.3.18 255.255.255.252
clock rate 125000
!
interface Vlan1
no ip address
shutdown
!
router eigrp 1
redistribute bgp 2 metric 123154 4545 1 1 1
network 192.168.3.20 0.0.0.3
no auto-summary
!
router bgp 2
bgp log-neighbor-changes
no synchronization
neighbor 192.168.3.17 remote-as 1
redistribute eigrp 1
!
ip classless
!
no cdp run
!
line con 0
line vty 0 4
login
!
end
R3
Building configuration...
Current configuration : 2583 bytes
!
version 12.4
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname Router
!
ip dhcp pool vlan50
network 192.168.2.128 255.255.255.192
default-router 192.168.2.129
ip dhcp pool vlan80
network 192.168.1.0 255.255.255.128
default-router 192.168.1.1
!
interface FastEthernet0/0
no ip address
duplex auto
speed auto
!
interface FastEthernet0/0.5
encapsulation dot1Q 5
ip address 192.168.2.254 255.255.255.224
!
interface FastEthernet0/0.50
encapsulation dot1Q 50
ip address 192.168.2.129 255.255.255.192
ip access-group 5 out
!
interface FastEthernet0/0.60
encapsulation dot1Q 60
ip address 192.168.1.129 255.255.255.128
ip access-group 6 out
!
interface FastEthernet0/0.70
encapsulation dot1Q 70
ip address 192.168.2.1 255.255.255.192
ip access-group 7 out
!
interface FastEthernet0/0.80
encapsulation dot1Q 80
ip address 192.168.1.1 255.255.255.128
ip access-group 1 out
!
interface FastEthernet0/1
no ip address
duplex auto
speed auto
shutdown
!
interface Serial0/0/0
ip address 192.168.3.17 255.255.255.252
!
interface Serial0/0/1
no ip address
shutdown
!
interface Vlan1
no ip address
shutdown
!
router bgp 1
bgp log-neighbor-changes
no synchronization
neighbor 192.168.3.18 remote-as 2
network 192.168.2.0 mask 255.255.255.192
network 192.168.2.128 mask 255.255.255.192
network 192.168.1.0 mask 255.255.255.128
network 192.168.1.128 mask 255.255.255.128
network 192.168.2.224 mask 255.255.255.224
!
ip classless
!
access-list 5 deny 192.168.3.0 0.0.0.15
access-list 5 deny 192.168.0.0 0.0.0.127
access-list 5 deny 192.168.2.64 0.0.0.63
access-list 5 deny 192.168.2.0 0.0.0.63
access-list 5 deny 192.168.1.0 0.0.0.255
access-list 5 permit any
access-list 6 deny 192.168.3.0 0.0.0.15
access-list 6 deny 192.168.0.0 0.0.0.127
access-list 6 deny 192.168.2.64 0.0.0.63
access-list 6 deny 192.168.2.128 0.0.0.63
access-list 6 deny 192.168.2.0 0.0.0.63
access-list 6 deny 192.168.1.0 0.0.0.127
access-list 6 permit any
access-list 7 deny 192.168.3.0 0.0.0.15
access-list 7 deny 192.168.0.0 0.0.0.255
access-list 7 deny 192.168.1.0 0.0.0.255
access-list 7 deny 192.168.2.128 0.0.0.63
access-list 7 permit any
access-list 8 deny 192.168.3.0 0.0.0.15
access-list 8 deny 192.168.0.0 0.0.0.127
access-list 8 deny 192.168.2.0 0.0.0.63
access-list 8 deny 192.168.2.64 0.0.0.63
access-list 8 deny 192.168.2.128 0.0.0.63
access-list 8 deny 192.168.1.128 0.0.0.127
access-list 8 permit any
!
no cdp run
!
line con 0
line vty 0 4
login
!
End
SW1-SW31
Building configuration...
Current configuration : 1111 bytes
!
version 12.1
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname Switch
!
interface FastEthernet0/1
switchport mode trunk
!
interface FastEthernet0/2
switchport mode trunk
!
interface FastEthernet0/3
switchport mode trunk
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface Vlan1
no ip address
shutdown
!
interface Vlan5
ip address 192.168.2.193 255.255.255.224
!
ip default-gateway 192.168.2.222
!
line con 0
!
line vty 0 4
login
line vty 5 15
login
!
end
