MFD PAGE GROUPS
The MFD displays GPS/Navigation flight information in four main page groups:
•Map (MAP): Navigation Map Page Traffic Map Page
Weather Datalink Page (optional)
Terrain Proximity Page (unless TAWS is configured)
TAWS (optional)
•Waypoint (WPT) : Airport Information Page
Intersection Information Page NDB Information Page VOR Information Page
User Waypoint Information Page
•Auxiliary (AUX): Trip Planning Page Utility Page
GPS Status Page System Setup Page System Status Page
•Nearest (NRST): Nearest Airports Page Nearest Intersections Page Nearest NDB Page Nearest VOR Page
Nearest User Waypoints Page Nearest Frequencies Page Neatest Airspaces Page
MULTI FUNCTION DISPLAY
To select a specific page group:
1.Turn the largeFMS knob until the desired page group is selected.
Active Page group is |
Currently |
selected page is |
|
highlighted |
highlighted |

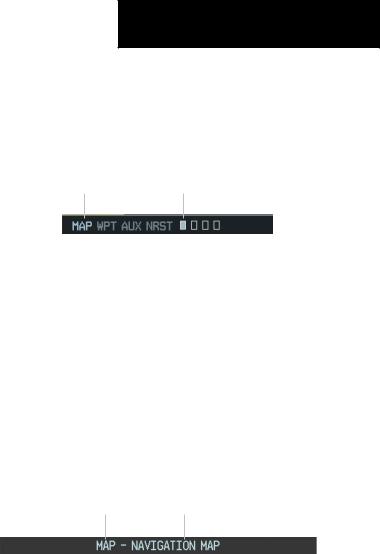

Figure 7-4 Page Group Window
To select a different page within the group:
1.Turn the small right FMS knob. As the knob is turned, the bottom right corner of each page indicates the page group that is currently being displayed (e.g.,MAP or NRST,etc.),the number of pages available within that group (indicated by rectangle icons) and the placement of the current page within that group (indicated by a solid cyan rectangle icon).The page group and active page title window are displayed below the status bar.
Page Group Active Page Title
Figure 7-5 Page Title Window
190-00498-00 Rev.A |
Garmin G1000 Pilot’s Guide for Cessna Nav III |
7-7 |
MULTI FUNCTION DISPLAY
WORKING WITH MENUS
Much of the operation of the G1000 MFD is accomplished using a menu interface. The G1000 has a bezel-mounted dedicated menu key (MENU) when pressed, displays a context-sensitive list of options. This options list allows the pilot to access additional features or make settings changes which specifically relate to the currently displayed page. Some menus provide access to additional submenus that are used to view, edit, select, and review options. Some menus display ‘NO OPTIONS’ when there are no options for the page selected.
The main keys which are used in association with all page group operations are listed below:
•CLR – erases information or cancels an entry. Press and hold CLR to immediately display the Navigation Map Page, regardless of the page currently displayed.
•ENT – accepts a menu selection or data entry. Approves an operation or completes data entry. Also confirms information.
•BACK – resets the MFD softkeys to their default settings (ENGINE, MAP, DCLTR, MODE, VIEW, etc).
•DCLTR – removes information from the moving map in a progressive manner with each key-press.
•MENU – displays a context-sensitive list of options that allows access to additional features or that allows the pilot to change the settings which relate to the currently displayed page.
NOTE: Data is entered using the large and small FMS knob. Practice with them to become efficient at entering data. This will greatly reduce the amount time spent operating the MFD in flight.
If there are more options than can be displayed turn the FMS knob to scroll through the list to identify them. In all cases, once the menu is displayed the FMS knob is turned to highlight an item and the ENT key is pressed to select that item or the CLR key removes the menu and cancels the operation. Pressing the softkeys does not display a menu or submenu.
Figure 7-6 Menu with Options
Figure 7-7 Menu with No Options
