Block diagram of tdmnm(пукзо) management sirens and loudspeakers

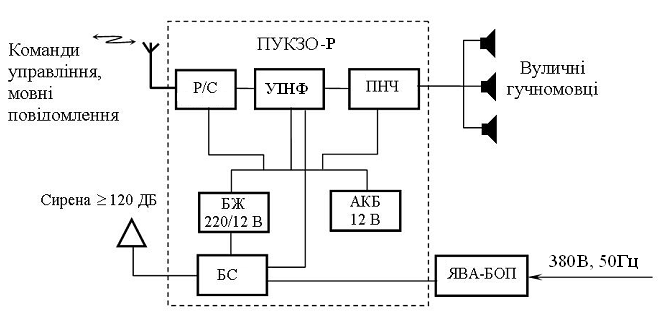

Figure 3.11.1 shown a block diagram of a basic radio-controlled PUKZO-R, designed to alert public using the sirens (electronic or electromechanical) and outdoor speakers.

Figure 3.11.1 Block diagram of the basic radio-controlled PUKZO-P

Block diagram of wire PUKZO-P differs from PUKZO-R absence radio instead set the appropriate modem, which connects directly to the wireline.

To protect TDMNM from pulse switching and lightning overvoltage and phase distortion in the power supply 220/380 V 50 Hz, using a switch box with automatic and power constraints lightning impulse and switching overvoltage (ЯВА-БОП).

At present, the notification system of CP consisting of national, regional and special systems of centralized notification, local and objective systems

Modern NS and informational support created to perform tasks CP based on automated centralized notification, communication networks, radio.

The lecture reviewed the main types of warning systems, both existing and modern automated.

At this stage in Ukraine there is a need to replace existing NS (sometimes equipment already installed exhausted resource, removed from manufacture, exhausted spare parts for repair, etc.) to modern automated which allow to fullfil requirements to NS in modern terms and demonstrates the relevance of study in this guide.

Despite the fact that a number of the problems of building warning systems today have been solved in the world, in Ukraine, the introduction of modern warning systems, for early detection of emergencies hampered by a number of economic and other components, as well as technical, practical and scholarly literature on the organization of warning systems and recovery relevant legislation.

In the lecture, examined the current the state and trends of development of warning systems in our country and abroad.
