2.8File inclusion model

The header of the common HAL driver file (stm32f4xx_hal.h) includes the common configurations for the whole HAL library. It is the only header file that is included in the user sources and the HAL C sources files to be able to use the HAL resources.

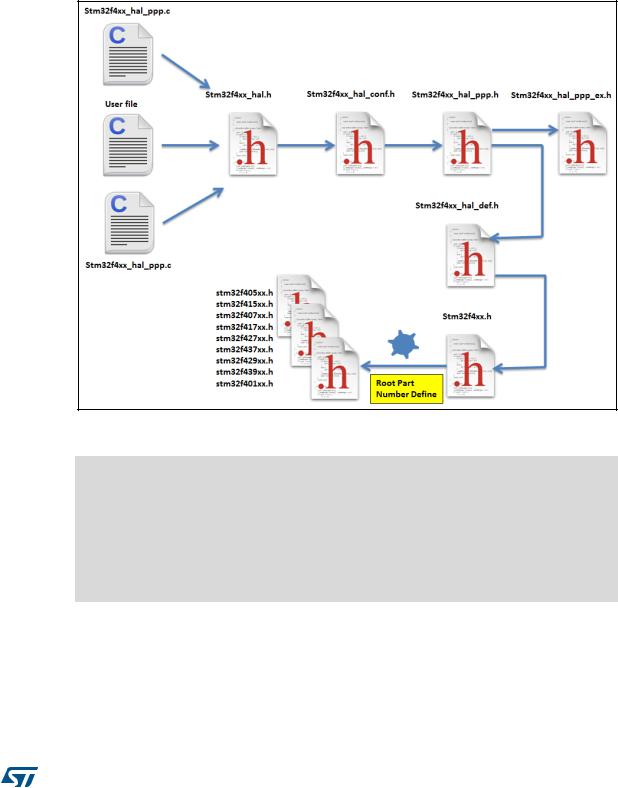

Figure 6: File inclusion model

A PPP driver is a standalone module which is used in a project. The user must enable the corresponding USE_HAL_PPP_MODULE define statement in the configuration file.

/*********************************************************************

*@file stm32f4xx_hal_conf.h

*@author MCD Application Team

*@version VX.Y.Z * @date dd-mm-yyyy

*@brief This file contains the modules to be used

**********************************************************************

(…)

#define USE_HAL_USART_MODULE #define USE_HAL_IRDA_MODULE #define USE_HAL_DMA_MODULE #define USE_HAL_RCC_MODULE

(…)

2.9HAL common resources

The common HAL resources, such as common define enumerations, structures and macros, are defined in stm32f4xx_hal_def.h.The main common define enumeration is

HAL_StatusTypeDef.

HAL Status The HAL status is used by almost all HAL APIs, except for boolean functions and IRQ handler. It returns the status of the current API operations. It has four possible values as described below:

Typedef enum

{

HAL_OK = 0x00, HAL_ERROR = 0x01, HAL_BUSY = 0x02, HAL_TIMEOUT = 0x03 } HAL_StatusTypeDef;

HAL Locked The HAL lock is used by all HAL APIs to prevent accessing by accident shared resources.

typedef enum

{

HAL_UNLOCKED = 0x00, /*!<Resources unlocked */ HAL_LOCKED = 0x01 /*!< Resources locked */

} HAL_LockTypeDef;

In addition to common resources, the stm32f4xx_hal_def.h file calls the stm32f4xx.h file in CMSIS library to get the data structures and the address mapping for all peripherals:

Declarations of peripheral registers and bits definition.

Macros to access peripheral registers hardware (Write register, Read register…etc.).

Common macros

Macro defining HAL_MAX_DELAY

#define HAL_MAX_DELAY 0xFFFFFFFF

Macro linking a PPP peripheral to a DMA structure pointer:

__HAL_LINKDMA();#define __HAL_LINKDMA(__HANDLE__, __PPP_DMA_FIELD_, __DMA_HANDLE_) \ do{ \

(__HANDLE__)->__PPP_DMA_FIELD_ = &(__DMA_HANDLE_); \ (__DMA_HANDLE_).Parent = (__HANDLE__); \

} while(0)

2.10HAL configuration

The configuration file, stm32f4xx_hal_conf.h, allows customizing the drivers for the user application. Modifying this configuration is not mandatory: the application can use the default configuration without any modification.

To configure these parameters, the user should enable, disable or modify some options by uncommenting, commenting or modifying the values of the related define statements as described in the table below:

The stm32f4xx_hal_conf_template.h file is located in the HAL drivers Inc folder. It should be copied to the user folder, renamed and modified as described above.

By default, the values defined in the stm32f4xx_hal_conf_template.h file are the same as the ones used for the examples and demonstrations. All HAL include files are enabled so that they can be used in the user code without modifications.
