Short Tutorial on Cadence

Version 1.0

UCSN-0300-ZBT-03

March 2000

Z. Tao and M. Keramat

Analog & Mixed-Signal Laboratory

Electrical & Computer Engineering Department

UNIVERSITY OF CONNECTICUT

Storrs, CT 06269-2157

E-mail: keramat@engr.uconn.edu URL: http://www.engr.uconn.edu/~keramat/

Phone: (860) 486-5047

Fax: (860) 486-2447

Cadence Software Fundamentals

1 Introduction

This short tutorial aims at learning how to run Cadence software on Sun workstation. First, a list of basic UNIX commands is given, and then followed by setting the UNIX environment for the Cadence design tools. Finally, a simple example of simulating a CMOS Inverter is presented.

2 Basic Unix Commands

Some basic UNIX commands that you need to know are listed in Table I.

Table I. Basic Unix commands

List the files in the current directory:

ls



Displays the name of the files in the



directory.

















ls -l



Displays additional information (eg.



permissions) about the files in the directory.

















ls -a



Displays all files in the directory, including



hidden files.





















ls -al

Combines the previous two options.

































Change (or move between) directories:





































cd <directory>

Moves to the directory specified by













directory



































cd ..

Moves up a directory - two periods













represent the parent directory.



































cd ~

Moves to your home directory - tilde













represents your home directory.































- 1 -

Make a new directory:

mkdir <directory>



Makes a new directory called directory













Display the (path of the) current directory you are in:

Displays the name of the current directory

pwd

you are in.

Copy a file or directory:

cp

<existing file>

<newfile>



Creates a new file identical to



existingfile but with the name newfile





























cp

-R <existing Dir>

<newDir>



Creates a new directory identical to



existingDir but with the name newDir





























Rename or move a file:

mv <oldfile> <newfile>

Renames oldfile to newfile within the same directory.



mv <oldfile> <directory/newfile>



Moves oldfile to a different directory





with the name of newfile

























Remove (delete) a file:

























rm <file>

Deletes file. The file cannot be recovered.

































Change password:





































yppasswd

Change current password.





























3 Setting up an Account to Run Cadence

You need to login a UNIX workstation and set up your UNIX environment to run the Cadence software. If you login for the first time, it would be better to change your password to a new one. To do that, you can use “yppasswd.”

Different Steps:

Step 1:In the home directory, download “.cshrc” and “cds.lib” from the website

http://www.engr.uconn.edu/~keramat/amslab/software.html

Note: if you want to go to your home directory use “cd ~” and type “pwd.”

- 2 -

Step 2:> mkdir cadence

Step 3:> cd cadence

Step 4:> mkdir models

Step 5:> download “models.scs” from the same website above into

~/cadence/models/ .

Step 6: In order to initialize the environment parameters, you have to log out and log in again.

4 Starting Cadence Software

Step 0: > cd ~/cadence (current directory must be cadence)

Step 1: > icms &

A Command Interface Window (CIW) window appears on the screen, shown in

Fig. 1.

Fig. 1. Main window of Cadence tools.

Step 2: In CIW window, go to File… New… Library

A New Library window appears. Filling out the pop-up form according to Fig. 2, and click OK.

- 3 -

Fig. 2. Creating a new library.

Step 3: In CIW window, go to File… New… Cellview

A Create New File window appears, in Fig. 3. Filling it out and click OK.

Fig. 3. Creating a new file.

Then a new Composer-Schematic window appears in Fig. 4.

- 4 -

Fig. 4. The Composer-Schematic window.

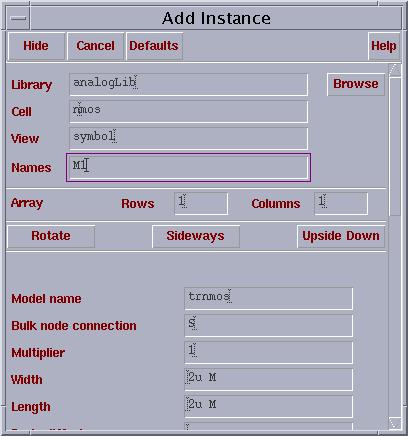

Step 5: In Composer-Schematic window, go to Add… Instance …

An Add Instance window appears like Fig. 5. Click Browse, a Library Browser – Add Instance window appears as Fig. 6.

- 5 -

Fig. 5. Add instance window.

- 6 -

Fig. 6. Instance window.

Step 6: Select AnalogLib in Library, pmos in Cell, and symbol in View. Then go back to Fig. 5 and fill it out, finally stamp pmos device symbol in the ComposerSchematic window, shown in Fig. 7.

- 7 -

Fig. 7. Stamping pmos device.

Step 7: Repeat step 5 – 6, but adding an nmos transistor with properties in Fig. 8.

- 8 -

Fig. 8. Properties of an nmos transistor.

Step 8: Repeat step 5 – 6, but adding a vpulse with properties in Fig. 9.

- 9 -
