LAMPS 8L - 13 |
|
(2) Remove two CHMSL attaching screws and separate the lamp from the parcel shelf.
INSTALLATION
Reverse the preceding operation.
Fig. 10 CHMSL
EXTERIOR LAMPSÐAG BODY
INDEX
|
page |
Back-Up Lamps . . . . . . . . . . . . . . . . . . . . . . . . . |
. 15 |
Center High-Mounted Stop Lamp Bulb . . . . . . . . |
. 14 |
Fog Lamp Bulb or Lamp . . . . . . . . . . . . . . . . . . . |
. 14 |
Headlamp Diagnosis . . . . . . . . . . . . . . . . . . . . . |
. 13 |
Headlamp Housing and Bulb . . . . . . . . . . . . . . . |
. 13 |
|
page |
License Plate Lamp or Bulb . . . . . . . . . . . . . . . . |
. 15 |
Park and Turn Signal Lamp or Bulb . . . . . . . . . . |
. 14 |
Tail, Stop, Turn Signal, Side Marker, |
|
Back-Up Lamp . . . . . . . . . . . . . . . . . . . . . . . . |
. 14 |
HEADLAMP DIAGNOSIS |
INSTALLATION |
For headlamp diagnosis, refer to the Headlamp Di- |
Reverse the preceding operation. |
agnosis chart at the beginning of this Group. Refer to |
|
Wiring Diagrams manual for circuit and component |
|
locations. |
|
HEADLAMP HOUSING AND BULB |
|
REMOVAL (FIG. 1)
(1)Raise hood.
(2)Disengage fasteners holding sight shield flaps to headlamp mounting panel. Refer to Group 23, Body for instructions.
(3)Remove nuts holding map housing to headlamp mounting panel.
(4)Separate lamp from mounting panel.
(5)Disconnect wire connectors from lamp sockets behind lamp.
(6)Separate lamp housing from vehicle.

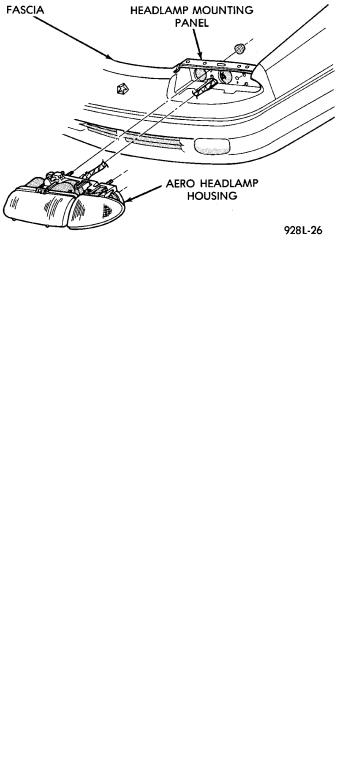

Fig. 1 Aero Headlamp
CAUTION: Do not touch the bulb blass with fingers or other oily surfaces, reduced bulb life will result.
(7) Rotate sockets counterclockwise and pull bulb unit from lamp.
