Fig. 3 Lamp Outage ModuleÐAC and AY-Body

HEADLAMP TIME DELAY SYSTEM

SYSTEM OPERATION

The Body Controller controls the Headlamp Time Delay system, if equipped.

OPERATION:

By turning off the ignition switch first then off the headlamp switch, the Body Controller will allow the headlamps to remain ON for 60 seconds before they automatically turn off and the headlamp doors close.

DIAGNOSIS

Refer to the Pre-diagnostic Test section of the appropriate Body Diagnostic Procedures service manual.

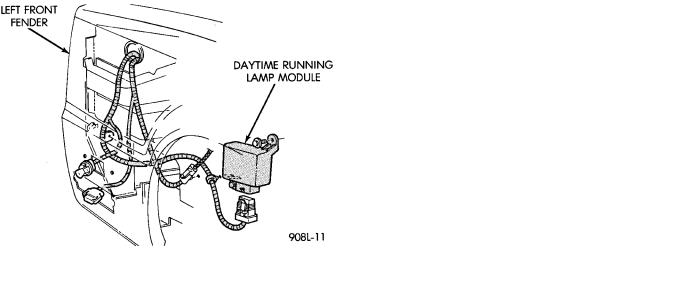

Fig. 4 Daytime Running Lamp ModuleÐCanada

Only
