390 Chapter 8 • Using XML in the .NET Framework

Sample Query Expression 4: Suppose that we want the Account information for those accounts whose names start with the letter “D.”

■Alternative 1: descendant::account[starts-with(child::Name, ‘D’)]

■Alternative 2: Bank/Account[starts-with(child::Name, ‘D’)]

Which of the alternative expressions would you use? That depends on your personal taste and on the structure of the XML document.The second alternative appears to be easier than the ﬁrst one. However, in the case of a highly nested document, the ﬁrst alternative will offer more compact expressions. Regardless of the syntax used, please be aware that each of the above queries will return a set of nodes. In our ASP code, we will have to extract the desired information from these sets using an XPathNodeIterator.

NOTE

We found the http://staff.develop.com/aarons/bits/xpath-builder/ site to be very good in learning XPath queries interactively.

Okay, now that we have traveled through the XPath waters, we are ready to venture into the usages of the XPathDocument. In this context, we will provide two examples.The ﬁrst example will extract the names of the customers from Ohio and load a list box.The second example will illustrate how to ﬁnd a speciﬁc piece of data from an XPathDocument.

Using XPathDocument and

XPathNavigator Objects

In this section we will use the XPathDocument and XPathNavigator objects to load a list box from our Bank2.xml ﬁle (as shown in Figure 8.34).We will load a list box with the names of customers who are from Ohio.The output of this application is shown in Figure 8.35.The complete code for this application is shown in Figure 8.36.The code is also available in the XPathDoc1.aspx ﬁle in the accompanying CD.

We loaded the Bank2.xml as an XPathDocument object as follows:

Dim Doc As New XPathDocument(Server.MapPath("Bank2.xml"))

www.syngress.com

Using XML in the .NET Framework • Chapter 8

391

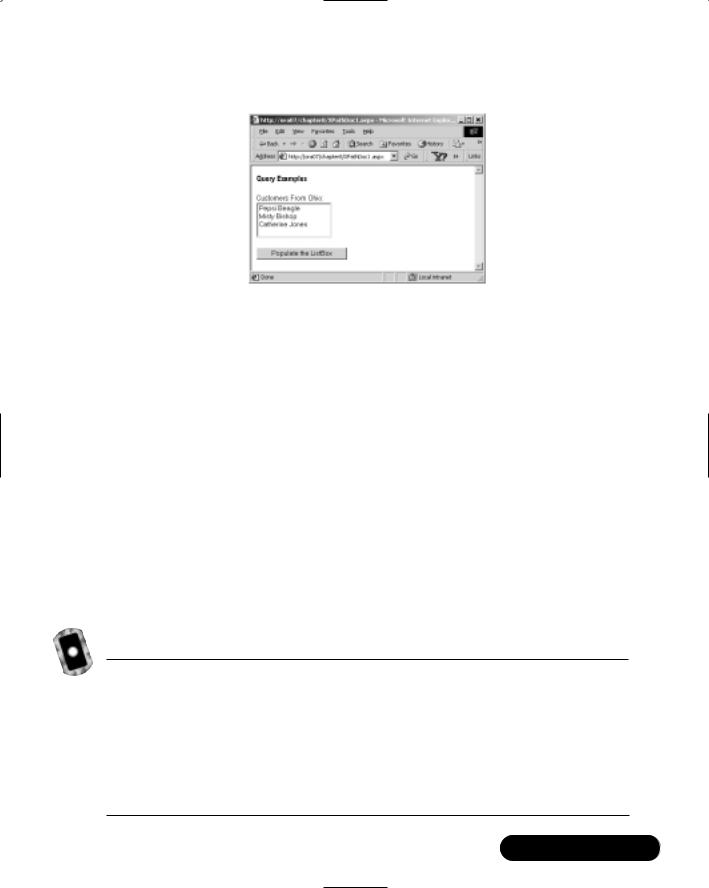

Figure 8.35 Using XPathDocument Object

At this stage, we need two more objects: an XPathNavigator for retrieving the desired node-set, and an XPathNodeIterator for iterating through the members of the node-set.These are deﬁned as follows:

Dim myNav As XPathNavigator

myNav= myDoc.CreateNavigator()

Dim myIter As XPathNodeIterator

myIter=myNav.Select("Bank/Account[child::State='OH']/Name")

The Bank/Account[child::State=’OH’]/Name search expression returns the Name nodes from the Account node-set whose state is “OH.”To get the value inside a particular name node, we need to use the Current.Value property of the Iterator object.Thus, the following code loads our list box:

While (myIter.MoveNext())

lstName.Items.Add(myIter.Current.Value)

End While

Figure 8.36 Complete Code XPathDoc1.aspx

<!— Chapter8/XPathDoc1.aspx —>

<%@ Page Language="VB" Debug="True"%>

<%@ Import Namespace="System.Xml"%>

<%@ Import Namespace="System.Xml.XPath"%>

<%@ Import Namespace="System.Xml.Xsl"%>

Continued

www.syngress.com

392 Chapter 8 • Using XML in the .NET Framework

Figure 8.36 Continued

Query Examples</h4>

Customers From Ohio:<br/>

<asp:ListBox id="lstName1" runat="server" width="150" rows="4"/>

<asp:Button id="cmdDetails" Text="Populate the ListBox" runat="server" onClick="showNames"/><br/>

</form></body></html>

Sub showNames(s As Object, e As EventArgs)

Dim Doc As New XPathDocument(Server.MapPath("Bank2.xml"))

Dim myNav As XPathNavigator myNav=Doc.CreateNavigator()

Dim myIter As XPathNodeIterator myIter=myNav.Select("Bank/Account[child::State='OH']/Name")

While (myIter.MoveNext())

lstName1.Items.Add(myIter.Current.Value)

End While

End Sub

</Script>

Using XPathDocument and XPathNavigator

Objects for Document Navigation

This section will illustrate how to search an XPathDocument using a value of an attribute, and using a value of an element.We will use the Bank3.xml to illustrate these. A partial listing of the Bank3.xml is shown in Figure 8.37.The complete code is available in the accompanying CD.

Figure 8.37 Bank3.xml

<Bank>

Continued

www.syngress.com

Using XML in the .NET Framework • Chapter 8

393

Figure 8.37 Continued

<Name>Pepsi Beagle</Name>

</Account>

------ ---

</Bank>

The Account element of the above XML document contains an attribute named AccountNo, and three other elements. In this example, we will ﬁrst load two combo boxes, one with the account numbers, and the other with the account holder’s names.The user will select an account number and/or a name. On the click event of the command buttons, we will display the balances in the appropriate text boxes.The output of the application is shown in Figure 8.38. The application has been developed in an .aspx ﬁle named XpathDoc2.aspx. Its complete listing is shown in Figure 8.39.The code is also available in the accompanying CD.

Figure 8.38 The Output of XPathDoc2.aspx

To search for a particular value of an attribute (e.g., of an account number) we have used the following expression:

Bank/Account[@AccountNo='"+accNo+"']/Balance

www.syngress.com

394 Chapter 8 • Using XML in the .NET Framework

To search for a particular value of an element (e.g., of an account holder’s name), we have used the following expression:

descendant::Account[child::Name='"+accName+"']/Balance

We needed to call the MoveNext method of the Iterator object in order to get to the balance node.The following expression illustrates the construct:

Bank/Account[@AccountNo='"+accNo+"']/Balance

Figure 8.39 Complete Code XPathDoc2.aspx

<!— Chapter8/XPathDoc2.aspx —>

<%@ Page Language="VB" Debug="True"%> <%@ Import Namespace="System.Xml"%>

<%@ Import Namespace="System.Xml.XPath"%> <%@ Import Namespace="System.Xml.Xsl"%> <html><head></head><body>

<form runat="server"><h4> Balance Inquiry Screen</h4> Select an Account Number:

<asp:DropdownList id="cboAcno" runat="server" width="100" /> <br/><br/>

Balance from Account Number Search:

<asp:Textbox id="txtBalance1" runat="server" width="80" /> <br/><br/><hr/>

Select an Customer Name:

<asp:DropdownList id="cboName" runat="server" width="110" /> <br/><br/>

Balance from Customer Name Search :

<asp:Textbox id="txtBalance2" runat="server" width="80" /> <br/><br/>

<asp:Button id="cmdDetails" Text="Show Balances" runat="server" onClick="showNames"/><br/>

</form></body></html>

Continued

www.syngress.com

Using XML in the .NET Framework • Chapter 8

395

Figure 8.39 Continued

Sub Page_Load(s As Object, e As EventArgs)

If Not Page.IsPostBack Then

Dim myDoc As New XPathDocument(Server.MapPath("Bank3.xml"))

Dim myNav As XPathNavigator

myNav=myDoc.CreateNavigator() Dim myIter As XPathNodeIterator

'Populate the DropDownList with Account Number values myIter=myNav.Select("//@*") ' Load all attributes While (myIter.MoveNext())

cboAcno.Items.Add(myIter.Current.Value) End While

'Populate the DropDown list with the name values myIter=myNav.Select("/Bank/Account/Name")

While (myIter.MoveNext()) cboName.Items.Add(myIter.Current.Value)

End While

End If

End Sub

Sub showNames(s As Object, e As EventArgs) 'Get the value of the selected Item

Dim accNo As String = cboAcno.SelectedItem.Text.Trim()

Dim accName As String = cboName.SelectedItem.Text.Trim()

Dim myDoc As New XPathDocument(Server.MapPath("Bank3.xml"))

Dim myNav As XPathNavigator

myNav=myDoc.CreateNavigator() Dim myIter As XpathNodeIterator

'Query to get the balance from AccountNo

myIter=myNav.Select("Bank/Account[@AccountNo='"+accNo+"']/Balance") myIter.MoveNext()

'Display the values of Balance

Continued

www.syngress.com

396 Chapter 8 • Using XML in the .NET Framework

Figure 8.39 Continued

txtBalance1.Text=FormatCurrency(myIter.Current.Value)

' Query to get the balance from Name

myIter = myNav.Select _

("descendant::Account[child::Name='"+accName+"']/Balance")

myIter.MoveNext()

'Display the values of Balance

txtBalance2.Text=FormatCurrency(myIter.Current.Value)

End Sub

</Script>

Transforming an XML

Document Using XSLT

Extensible Stylesheet Language Transformations (XSLT) is the transformation component of the XSL speciﬁcation by W3C (www.w3.org/Style/XSL). It is essentially a template-based declarative language, which can be used to transform an XML document to another XML document or to documents of other types (e.g., HTML and Text).We can develop and apply various XSLT templates to select, ﬁlter, and process various parts of an XML document. In .NET, we can use the Transform() method of the XSLTransform class to transform an XML document.

Internet Explorer (5.5 and above) has a built-in XSL transformer that automatically transforms an XML document to an HTML document.When we open an XML document in IE, it displays the data using a collapsible list view. However, the Internet Explorer cannot be used to transform an XML document to another XML document. Now, why would we need to transform an XML document to another XML document? Well, suppose that we have a very large document that contains our entire catalog’s data.We want to create another XML document from it, which will contain only the productId and productNames of those products that belong to the “Fishing” category.We would also like to sort the elements in the ascending order of the unit price. Further, we may want to add a new element in each product, such as “Expensive” or “Cheap” depending on the price of the product.To solve this particular problem, we may either develop relevant codes in a programming language like C#, or we may use XSLT to accomplish the job. XSLT is a much more convenient way to develop the application, because XSLT has been developed exclusively for these kind of scenarios.

www.syngress.com

Using XML in the .NET Framework • Chapter 8

397

Before we can transform a document, we need to provide the Transformer with the instructions for the desired transformation of the source XML document.These instructions can be coded in XSL.We have illustrated this process in Figure 8.40.

Figure 8.40 XSL Transformation Process

XSL Instructions

			Target File
XML Source File	Dot Net XSL	•	HTML
XML Source File	Transformer	•	HTML
	Transformer	•	XML
		•	XML
		•	Text

In this section, we will demonstrate certain selected features of XSLT through some examples.The ﬁrst example will apply XSLT to transform an XML document to an HTML document.We know that the IE can automatically transform an XML document to a HTML document and can display it on the screen in collapsible list view. However, in this particular example, we do not want to display all of our data in that fashion.We want to display the ﬁltered data in tabular fashion.Thus, we will transform the XML document to a HTML document to our choice (and not to IE’s choice).The transformation process will select and ﬁlter some XML data to form an HTML table.The second example will transform an XML document to another XML document and subsequently write the resulting document in a disk ﬁle, as well as display it in the browser.

Transforming an XML Document to an HTML Document

In this example, we will apply XSLT to extract the account’s information for Ohio customers from the Bank3.xml (as shown in Figure 8.37) document.The extracted data will be ﬁnally displayed in an HTML table.The output of the application is shown in Figure 8.41.

If we need to use XSLT, we must at ﬁrst develop the XSLT style sheet (e.g., XSLT instructions).We have saved our style sheet in a ﬁle named XSLT1.xsl. In this style sheet, we have deﬁned a template as <xsl:template match=“/”> … </xsl:template>. The match=“/” will result in the selection of nodes at the root

www.syngress.com

398 Chapter 8 • Using XML in the .NET Framework

of the XML document. Inside the body of this template, we have ﬁrst included the necessary HTML elements for the desired output.

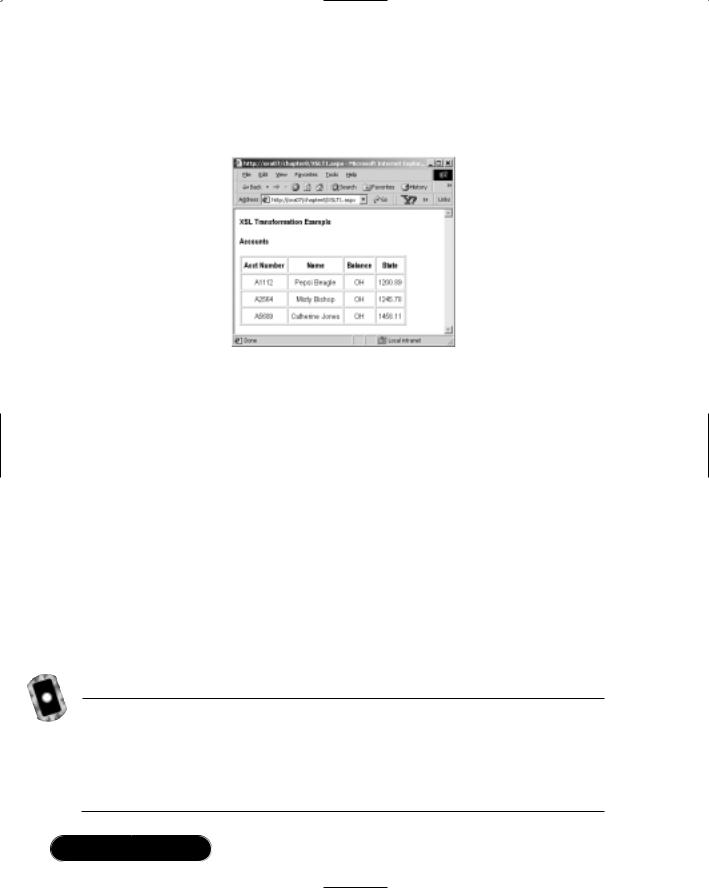

Figure 8.41 Transforming an XML Document to an HTML Document

The “<xsl:for-each select=“Bank/Account[State=‘OH’]” >” tag is used to select all Account nodes for those customers who are from “OH.”The value of a node can be shown using a <xsl:value-of select=attribute or element name>. In case of an attribute, its name must be preﬁxed with an @ symbol. For example, we are displaying the value of the State node as <xsl:value-of select=“State”/>. The complete listing of the XSLT1.xsl ﬁle is shown in Figure 8.42.The code is also available in the accompanying CD. In the .aspx ﬁle, we have included the following asp:xml control.

<asp:xml id="ourXSLTransform" runat="server"

DocumentSource="Bank3.xml" TransformSource="XSLT1.xsl"/>

While deﬁning this control, we have set its DocumentSource attribute to “Bank3.xml”, and its TransformSource attribute to XSLT1.xsl.The complete code for the .aspx ﬁle, named XSLT1.aspx, is shown in Figure 8.43. It is also available in the accompanying CD.

Figure 8.42 Complete Code for XSLT1.xsl

<?xml version="1.0" ?>

<!— Chapter 8\XSLT1.xsl —>

<xsl:stylesheet version="1.0"

xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

<xsl:template match="/">

Continued

www.syngress.com

Using XML in the .NET Framework • Chapter 8

399

Figure 8.42 Continued

<h4>Accounts</h4>

<thead><th>Acct Number</th><th>Name</th>

<th>Balance</th><th>State</th></thead>

<xsl:for-each select="Bank/Account[State='OH']" >

<td><xsl:value-of	select="@AccountNo"/></td>
<td><xsl:value-of	select="Name"/></td>
<td><xsl:value-of	select="State"/></td>
<td><xsl:value-of	select="Balance"/></td>
</tr>
</xsl:for-each>
</table>
</xsl:template>
</xsl:stylesheet>

Figure 8.43 XSLT1.aspx

<!— Chapter8\XSLT1.aspx —>

<%@ Page Language="VB" Debug="True"%> <%@ Import Namespace="System.Xml"%> <%@ Import Namespace="System.Xml.Xsl"%>

<html><head></head><body><form runat="server"> <b>XSL Transformation Example </b><br/>

<asp:Xml id="ourXSLTransform" runat="server"

DocumentSource="Bank3.xml" TransformSource="XSLT1.xsl"/>

</form></body></html>

www.syngress.com
