Virtuoso Schematic Composer User Guide

Traversing the Design Hierarchy and Creating a Design Configuration View

Displaying the Current Hierarchical Scope

When you display the hierarchical scope of your design, you can

■View all the instance names and corresponding cell names of the current window

■View a list of the instance names you have descended into and in which cell name and view name they are located

To display the current hierarchical scope, do the following:

1.Choose Design – Hierarchy – Show Scope.

A dialog box appears that lists the instance names and the corresponding cell names of the current window.

2. Click Close to close the dialog box.

Creating a New Configuration View for the Design Hierarchy

To create a new configuration view of a design and open the hierarchy editor, do the following:

Virtuoso Schematic Composer User Guide

Traversing the Design Hierarchy and Creating a Design Configuration View

1.From the Command Interpreter Window (CIW), choose File – New – Cellview.

The Create New File form appears.

2. Change View Name to config and Tool to Hierarchy-Editor and click OK.

For details on creating a configuration view, refer to theHierarchy Editor User Guide.

Opening an Existing Design Configuration View

To open an existing design configuration view, do the following:

1. In the CIW, choose File – Open.

Virtuoso Schematic Composer User Guide

Traversing the Design Hierarchy and Creating a Design Configuration View

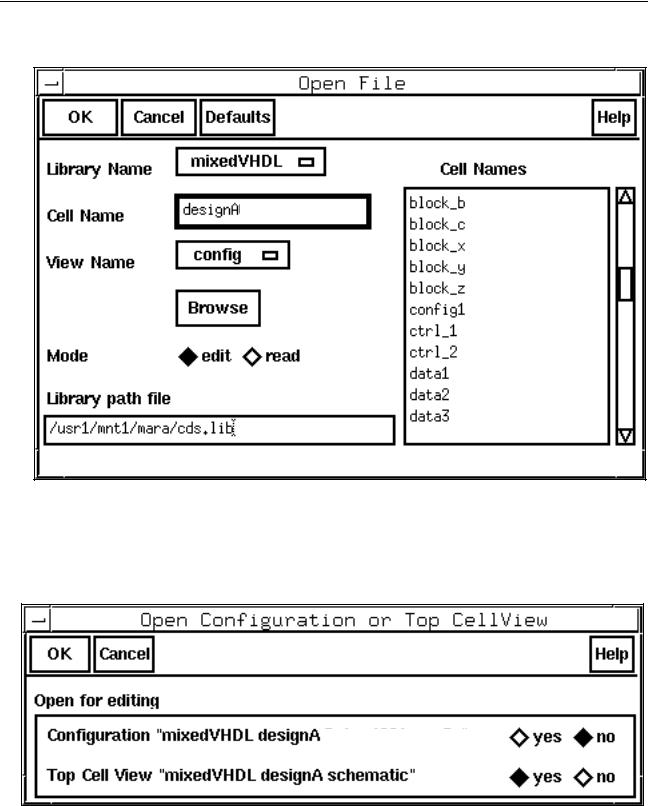

The Open File form appears.

2.Set View Name to config for the schematic design you want to open.

3.Click OK.

The Open Configuration or Top CellView form appears.

config”

Virtuoso Schematic Composer User Guide

Traversing the Design Hierarchy and Creating a Design Configuration View

When you set the configuration toyes, you can open the hierarchy editor.

When you set the top cell view to yes, you can open the top schematic for this configuration.

4. Click OK.

Notice the window banner changes to indicate you opened the schematic view in the context of this configuration:

Virtuoso Schematic Editing: mixedVHDL designA schematic Config: mixedVHDL designA config

For details on opening a configuration view, refer to theHierarchy Editor User Guide.

About the Hierarchy Editor within the Schematic Composer

The hierarchy editor integration with the Virtuoso® schematic composer provides a convenient way to synchronize the configuration database with the Cadence design framework II (DFII) database. From the Hierarchy-Editor menu on the schematic composer window, you can open the hierarchy editor, synchronize the database, set instance binding, and view the current set of view binding information.

The following products use the hierarchy editor within the schematic composer: mixed-signal circuit design environment, analog circuit design environment, Verilog® -XL simulator, and VHDL integration.

The Hierarchy-Editor menu provides four commands:

■Edit Configuration

■Update

■Set Instance Binding

■Show Views Found

Working with a Design Configuration within the Schematic Composer

This section covers the commands available from the Hierarchy-Editor menu within the schematic composer.
