6.3.5 Network Effects

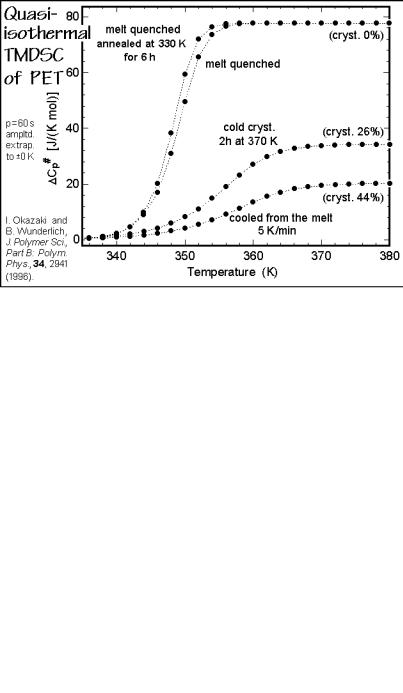

Cross-linking of linear macromolecules as described in Sect. 3.4.3 and 3.4.5 hinders the large-amplitude motion similar to the presence of crystals, discussed in Sect. 6.3.4. In addition, the chemically different nature of the cross-link may lead to a solution of the two components, and for more extensive changes in the chemical nature, there may even be a phase separation with the effects described in Chap. 7. Because of the lesser mobility, one expects an increase in the glass transition temperature. A broadening of the transition may occur if the cross-links are nonuniform, or the influence of the cross-link component on the phase-structure becomes significant. At least initially, the liquid and glassy heat capacities are not affected significantly by the cross-links, but the higher glass transition temperature must ultimately lead to a lower increase in heat capacity, Cp, at Tg.

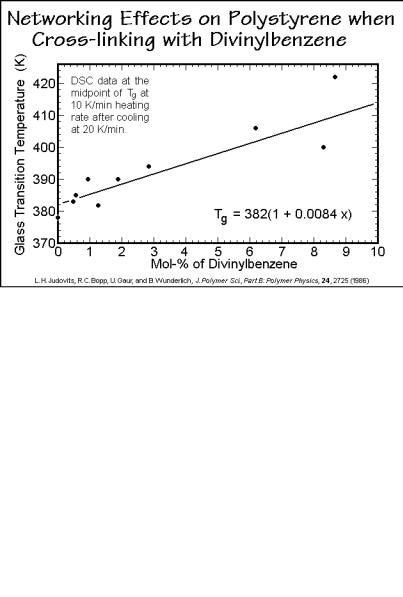

Figure 6.135 illustrates the increase of Tg of polystyrene when copolymerized with divinyl benzene for cross-linking (CH2=CH2 C6H4 CH2=CH2). All samples were gels (see Sect. 3.4.3), practically without extractable polystyrene. The decrease in the change of the heat capacity at Tg on cross-linking is shown in Fig. 6.136. The curve drawn in Fig. 6.136 is calculated from the heat capacities of the liquid and glassy polymers at the measured glass transition temperature of Fig. 6.135. Considerable deviations are observed, but one may still extrapolate the data to a point where Cp becomes zero ( 50% divinyl benzene, Tg 500 550 K). Indeed, highly cross-linked polystyrenes with practically no Cp at Tg have been reported.

Cross-linking during curing of an epoxy resin, as observed with quasi-isothermal TMDSC, is described in Fig. 4.141. As the curing proceeds, the glass transition increases until it reaches the reaction temperature. At this point the reaction changes

___________________________________________________________________

Fig. 6.135

Fig. 6.136

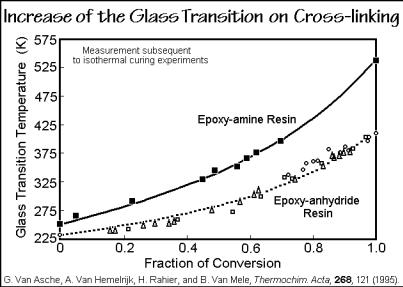

to a diffusion-controlled, slow process. Figure 6.137 represents the change of the glass transition with the degree of curing for two epoxy systems. The glass transition is in this case a measure of the reaction history of the sample. Complete time- temperature-transformation (TTT) plots can be drawn using the quantitative changes in the glass transition temperature and following the heats of reaction by DSC and TMDSC as shown in Fig. 4.142.

700 6 Single Component Materials

___________________________________________________________________

Fig. 6.137

To summarize the observations of Sect. 6.3, one must remember that the history of a metastable sample is stored in its internal variables, i.e., for description, one must use the irreversible thermodynamics of Sect. 2.4, instead of the equilibrium thermodynamics. The internal variables that characterize the metastable state must be uniquely coupled to the history to be discovered. The evaluation of the thermal history of a glass is simple if the initial cooling of the sample is the only contributing factor to the history. In this case, a simple hysteresis determination, matched empirically to a reference, may be sufficient for the task (see Sect. 6.3.1, Fig. 6.6).

The quantitative prediction of the hysteresis can be attempted, as shown in Sect. 6.2 with Figs. 6.10 and 6.11, but is, at best, approximate. Problems in the theory of the glass transition which are not fully resolved are:

(1)The asymmetry of the approach to equilibrium—self-retardation and autocatalysis, see Eq. (1) of Sect. 6.3.1, causing an N-dependent relaxation time in Eq. (2) of Sect. 6.3.2 (see Fig. 4.126).

(2)A cooperative kinetics with a temperature-dependent activation energy (see Fig. 6.117 and Sects. 6.3.1 and 6.3.2).

(3)The need to handle more than one internal variable (see Fig. 6.123, Sect. 6.3.3).

(4)The quasi-isothermal TMDSC analyses result in the reversing Cp, not the actual, apparent, reversible Cp (see Fig. 6.118, Sect. 6.3.2 and Sect. 4.4.3).

(5)The standard TMDSC causes interactions between the rate of change of the underlying temperature and the modulation which result in differences in the reversing heat capacity with underlying temperature change and changes in the frequency of the response (see Figs. 4.133 and 6.7, and Sect. 6.3.2).

(6)The strain, crystallinity, and cross-linking effects lead to additional internal variables that can set the history of a sample.

___________________________________________________________________

References

General References

Sect. 6.1–3. The basis for the phase scheme of equilibrium melting is based on the thermodynamic description developed by Ehrenfest [2] and later expanded to copolymers by Flory PJ (1953) Principles of Polymer Chemistry. Cornell University Press, Ithaca.

The discussion of metastable, semicrystalline phases of polymers and their irreversible melting is based on the two early papers: Wunderlich B (1964) A Thermodynamic Description of the Defect Solid State of Linear High Polymers. Polymer 5: 125–134; and: The Melting of Defect Polymer Crystals. Polymer 5: 611–624. A later review and expansion is given in: Wunderlich B (1997) Metastable Mesophases. Macromol Symp 113: 51–65.

More details about the main first-order phase transition, the melting, can be found in: Ubbelohde AR (1965) Melting and Crystal Structure. Oxford University Press, London. See also the sequel (1978) The Molten State of Matter. Melting and Crystal Structure. Wiley, New York.

The following book deals specifically with crystallization and melting of macromolecules: Wunderlich B (1976,1980) Macromolecular Physics, Vol 2, Crystal Nucleation, Growth, Annealing. Vol 3, Crystal Melting. Academic Press, New York.

A general discussion of the glass transition is given in: Seyler RJ, ed (1994) ASTM Symposium on the Assignment of Glass Transition Temperatures Using Thermomechanical Analysis. Atlanta GA, March 4 5, 1993, ASTM STP 1249, Am Soc Testing and Materials, Philadelphia; and by: Tant MR, Hill AJ, eds (1998) Structure and Properties of Glassy Polymers. ACS Symposium Series, 710, Am Chem Soc, Washington; see also: Matsuoka S (1992) Relaxation Phenomena in Polymers. Hanser, Munich. Finally see also the references to Chap 7.

Specific References

1.Wunderlich B (2003) Reversible Crystallization and the Rigid Amorphous Phase in Semicrystalline Macromolecules. Progr Polymer Sci 28: 383–450.

2.Ehrenfest P (1933) Phase Changes in the Ordinary and Extended Sense Classified According to the Corresponding Singularities of the Thermodynamic Potential. Proc Acad Sci, Amsterdam 36: 153–157, Suppl 75b, Mitt Kammerlingh Onnes Inst, Leiden.

3.Wunderlich B, Grebowicz J (1984) Thermotropic Mesophases and Mesophase Transitions of Linear, Flexible Macromolecules. Adv Polymer Sci 60/61: 1–59.

4.Wunderlich B (1964) A Thermodynamic Description of the Defect Solid State of Linear High Polymers; and: The Melting of Defect Polymer Crystals. Polymer 5: 125–134 and 611–624.

5.Fu Y, Chen W, Pyda M, Londono D, Annis B, Boller A, Habenschuss A, Cheng J, Wunderlich B (1996) Structure-property Analysis for Gel-spun Ultra-high Molecularmass Polyethylene Fibers. J Macromol Sci, Phys B35: 37–87.

6.Jones JB, Barenberg, S, Geil PH (1977) Amorphous Linear Polyethylene: Electron Diffraction, Morphology, and Thermal Analysis. J Macromol Sci, Phys B15: 329–335.

7.Chen W, Wunderlich B (1999) Nanophase Separation of Small And Large Molecules. Macromol Chem Phys 200: 283–311.

702 6 Single Component Materials

___________________________________________________________________

8.Eyring H (1936) Viscosity, Plasticity, and Diffusion as Examples of Absolute Reaction Rates. J Chem Phys 4: 283–291.

9.Frenkel J (1946) Kinetic Theory of Liquids. Clarendon, Oxford.

10.Hirai N, Eyring H (1958) Bulk Viscosity of Liquids. J Appl Phys 29:810–816.

11.Hirai N, Eyring H (1959) Bulk Viscosity of Polymerix Systems. J Polymer Sci 37: 51–70.

12.Wunderlich B, Bodily DM, Kaplan MH (1964) Theory and Measurement of the Glasstransformation Interval of Polystyrene. J Appl Phys 35: 95–102.

13.Thomas LC, Boller A, Okazaki I, Wunderlich B (1997) Modulated Differential Scanning Calorimetry in the Glass Transition Region, IV. Pseudo-isothermal Analysis of the Polystyrene Glass Transition, Thermochim Acta 291: 85–94.

14.Wunderlich B, Boller A, Okazaki I, Kreitmeier S (1996) Modulated Differential Scanning Calorimetry in the Glass Transition Region II. The Mathematical Treatment of the Kinetics of the Glass Transition. J Thermal Anal 47: 1013–1026.

15.Boller A, Okazaki I, Wunderlich B (1996) Modulated Differential Scanning Calorimetry in the Glass Transition Region, III. Evaluation of Polystyrene and Poly(ethylene terephthalate). Thermochim Acta 284: 1–19.

16.Kovacs AJ (1964) Glass Transitions in Amorphous Polymers. Phenomenological Study. Adv Polymer Sci 3: 394–508.

17.Boller A, Schick C, Wunderlich B (1995) Modulated Differential Scanning Calorimetry in the Glass Transition Region. Thermochim Acta 266: 97–111.

18.Matsuoka S (1992) Relaxation Phenomena in Polymers. Hanser, Munich.

19.Gaur U, Wunderlich B (1980) Study of Microphase Separation in Block Copolymers of Styrene and -Methylstyrene in the Glass Transition Region using Quantitative Thermal Analysis. Macromolecules 13: 1618–1625.

20.Suzuki H, Grebowicz J, Wunderlich B (1985) The Glass Transition of Polyoxymethylene. Brit. Polymer J 17: 1–3.

21.Schick C, Wurm A, Mohammed A (2001) Vitrification and Devitrification of the Rigid Amorphous Fraction of Semicrystalline Polymers Revealed from Frequency-dependent Heat Capacity. Colloid Polymer Sci 279: 800–806.

22.Hellmuth, E, Wunderlich B (1965) Superheating of Linear High-Polymer Polyethylene Crystals. J Appl Phys 36: 3039–3044.

23.First published: Wunderlich B (1965) Zeitabhängige Vorgänge des Kristallisierens und Erstarrens bei linearen Hochpolymeren. Kunststoffe 55: 333–334.

24.Wunderlich B, Melillo L, Cormier CM, Davidson T, Snyder G (1967) Surface Melting and Crystallization of Polyethylene. J Macromol Sci B1: 485–516.

25.Okazaki I, Wunderlich, B (1997) Reversible Melting in Polymer Crystals Detected by Temperature Modulated Differential Scanning Calorimetry. Macromolecules 30: 1758–1764.

26.Pak J, Wunderlich B (2000) Thermal Analysis of Paraffins as Model Compounds for Polyethylene. J Polymer Sci, Part B: Polymer Phys 38: 2810–2822.

27.Pak J, Wunderlich B (2001) Melting and Crystallization of Polyethylene of Different Molar Mass by Calorimetry. Macromolecules 34: 4492–4503.

28.Saruyama Y (1999) Quasi-isothermal Measurement of Frequency Dependent Heat Capacity of Semicrystalline Polyethylene at the Melting Temperature using Light Heating Modulated Temperature DSC. Thermochim Acta 330: 101–107.

29.Goderis B, Reynaers H, Scherrenberg R, Mathot VBF, Koch MHJ (2001) Temperature Reversible Transitions in Linear Polyethylene Studied by TMDSC and Time-resolved, Temperature-modulated WAXD/SAXS. Macromolecules 34: 1779–1787.

___________________________________________________________________

30.Nukuchina Y, Itoh Y, Fischer EW (1965) Nachweis des partiellen Schmelzens von Polyäthylen Einkristallen mit Hilfe der Röntgenkleinwinkelstreuung. J Polymer Sci B3: 383–387.

31.Fischer EW (1972) Effect of Annealing and Temperature on the Morphological Structure of Polymers. Pure Appl Chem 31: 113–131.

32.Schultz JM, Fischer EW, Schaumburg O, Zachmann HA (1980) Small-angle X-ray Scattering Studies of Melting. J Polymer Sci, Polymer Phys Ed 18: 239–240.

33.Androsch R, Wunderlich, B (2003) Specific Reversible Melting of Polyethylene J Polymer Sci, Part B: Polymer Phys 41: 2157–2173.

34.Smith CW, Dole M (1956) Specific Heat of Synthetic High Polymers. VII. Poly(ethylene Terephthalate). J Polymer Sci 20: 37–56.

35.English AD (1984) Macromolecular Dynamics in Solid Poly(ethylene Terephthalate): 1H and 13C Solid State NMR. Macromolecules 17: 2182–2192.

36.Pyda M, Wunderlich B (2000) Reversible and Irreversible Heat Capacity of Poly(trimethylene Terephthalate) Analyzed by Temperature-modulated Differential Scanning Calorimetry. J Polymer Sci, Part B: Polymer Phys 38: 622–631.

37.Sichina WJ (1995) Examination of the Use of Dynamic DSC in the Melting Region, Proc. 24th NATAS Conf in San Francisco, Sept. 10 13, Mikhail SA, ed 24: 123–129.

38.Cheng SZD, Pan R, Wunderlich B (1988) Thermal Analysis of Poly(butylene Terephthalate), its Heat Capacity, Rigid Amorphous Fraction and Transition Behavior. Makromoleculare Chemie 189: 2443–2458.

39.Cheng SZD, Wunderlich B. (1985) Glass Transition and Melting Behavior of Poly(ethylene-2,6-naphthalene Dicarboxylate). Macromolecules 21: 789–797.

40.Blundell DJ, Buckingham KA (1985) The -Loss Process in Liquid Crystal Polyesters Containing 2,6-Naphthyl Groups. Polymer 26: 1623–1627.

41.Sauer BB, Kampert WG, Neal-Blanchard E, Threefoot S, Hsiao BS (2000) Temperature Modulated DSC Studies of Melting and Recrystallization in Polymers Exhibiting Multiple Endotherms. Polymer 41: 1099–1108.

42.Wurm A, Merzlyakov M, Schick C (2000) Reversible Melting During Crystallization of Polymers Studied by Temperature Modulated Techniques (TMDSC, TMDMA). J Thermal Anal Cal 60: 807–820.

43.Alazideh A, Sohn S, Quinn J, Marand H (2001) Influence of Structural and Topological Constraints on the Crystallization and Melting Behavior of Polymers: 3. Bisphenol A Polycarbonate. Macromolecules 34: 4066–4078.

44.Schick C, Wurm A, Merzlyakov M, Minakov A, Marand H (2001) Crystallization and Melting of Polycarbonate Studied by Temperature-modulated DSC (TMDSC). J Thermal Anal Cal 64: 549–555.

45.Cheng SZD, Wunderlich B (1987) Glass Transition and Melting Behavior of Poly(oxy- 2,6-dimethyl-1,4-phenylene). Macromolecules 20: 1630–1637.

46.Wurm A, Merzlyakov M, Schick C (1999) Crystallization of Polymers Studied by Temperature-modulated Techniques (TMDSC, TMDMA). J Macromolecular Sci, Physics

38:693–708.

47.Wurm A, Merzlyakov M, Schick C (1999) Isothermal Crystallisation of PCL Studied by Temperature Modulated Dynamic Mechanical and TMDSC Analysis. J Thermal Anal Cal

56:1155–1161.

48.Schick C, Merzlyakov M, Minakov AA, Wurm A (2000) Crystallization of Polymers Studied by Temperature-modulated Calorimetric Measurements at Different Frequencies. J. Thermal Anal Cal 59: 279–288.

49.Androsch R, Wunderlich B (2001) Reversible Crystallization and Melting at the Lateral Surface of Isotactic Polypropylene Crystals. Macromolecules 34: 5950–5960.

704 6 Single Component Materials

___________________________________________________________________

50.Grebowicz J, Lau S-F, Wunderlich B (1984) The Thermal Properties of Polypropylene. J Polymer Sci Symp 71: 19–37.

51.Wang ZG, Hsiao BS, Srinivas S, Brown GM, Tsou AH, Cheng SZD, Stein RS (2001) Isothermal Crystallization and Melting of Isotactic Polypropylene Analyzed by Timeand

Temperature-dependent Small-angle X-ray Scattering Experiments Polymer 42: 7561–7566.

52.Hu WB, Albrecht T, Strobl G (1999) Reversible Surface Melting of PE and PEO Crystallites Indicated by TMDSC. Macromolecules 32: 7548–7554.

53.Androsch R, Wunderlich B (2001) The Heat of Reversible Crystallization and Melting of Isotactic Polypropylene. Macromolecules 34: 8384–8387.

54.Schick C, Mohammed A, Wurm A (2001) Vitrification and Devitrification of the Rigid Amorphous Fraction in Semicrystalline Polymers Revealed from Frequency Dependent Heat Capacity. Proc 29th NATAS Conf in St. Louis, eds Kociba KJ, Kociba BJ, 29: 639–644.

54.Wang ZG, Hsiao BS, Sauer BB, Kampert WG (1999) The Nature of Secondary Crystallization in Poly(ethylene Terephthalate). Polymer 40: 4615–4627.

55.Adamovsky SA, Minakov AA, Schick C (2003) Scanning Microcalorimetry at High Cooling Rate. Thermochim Acta 403: 55–63.

56.Jaffe M, Wunderlich B (1967) Melting of Polyoxymethylene. Kolloid Z Z Polym 216–217: 203.

57.Cheng SZD, Cao M-Y, Wunderlich B (1986) Glass Transition and Melting of PEEK. Macromolecules 19: 1868–1876.

58.Marand H, Alizadeh A, Farmer R, Desai R, Velikov V (2000) Influence of Structural and Topological Constraints on the Crystallization and Melting Behavior of Polymers. 2. Poly(arylene Ether Ether Ketone). Macromolecules 33: 3392–3403.

59.Wurm A, Merzlyakov M, Schick C (1998) Reversible Melting Probed by Temperaturemodulated Dynamic Mechanical and Calorimetric Measurements. J Colloid Polymer Sci 276: 289–296.

60.Höhne GWH, Kurelec L (2001) Temperature-modulated Differential Scanning Calorimetric Measurements on Nascent Ultra-high Molecular Mass Polyethylene. Thermochim Acta 377: 141–150.

61.Cheng J, Fone M, Fu Y, Chen W (1996) Variable-temperature Study of a Gel-spun Ultra- high-molecular-mass Polyethylene Fiber by Solid State NMR. J Thermal Analysis 47: 673–683.

62.Pak J, Wunderlich B (2004) Reversible Melting of Gel-spun Fibers of Polyethylene. Thermochim Acta 421: 203–209.

63.Kwon YK, Boller A, Pyda M, Wunderlich B (2000) Melting and Heat Capacity of Gelspun, Ultra-high-molar-mass Polyethylene Fibers. Polymer 41: 6237–6249.

64.Todoki M, Kawaguchi Y (1977) Origin of Double Melting Peaks in Drawn Nylon 6 Yarns. J Polymer Sci, Polymer Phys Ed 15: 1067–1075.

65.Todoki M, Kawaguchi Y (1977) Melting of Constrained Drawn Nylon 6 Yarns. J Polymer Sci, Polymer Phys Ed 15: 1507–1520.

66.Okazaki I, Wunderlich B (1996) Modulated Differential Scanning Calorimetry in the Glass Transition Region, V. Activation Energies and Relaxation Times of Poly(ethylene terephthalate)s. J Polymer Sci Part B: Polymer Phys 34: 2941–2952.

67.Okazaki I, Wunderlich B (1997) Modulated Differential Scanning Calorimetry in the Glass Transition Region, VI. Model Calculations Based on Poly(ethylene Terephthalate). J Thermal Anal. 49: 57–70.

CHAPTER 7

___________________________________________________________________

Multiple Component Materials

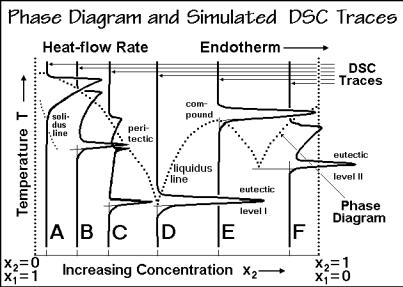

In this last Chapter of Thermal Analysis of Polymeric Materials, the link between microscopic and macroscopic descriptions of multi-component macromolecules is discussed, based on the thermal analysis techniques which are described in the prior chapters. The key issue in polymeric multi-component systems is the evaluation of the active components in the system. The classical description of the term component was based on small-molecule thermodynamics and refers to the number of different molecules in the different phases of the system (see Sect. 2.2.5). If chemical reactions are possible within the system, the number of components may be less than the different types of molecules. It then represents the species of molecules that can be varied independently. For example, the three independent species CaO, CO2, and CaCO3 represent only two components because of the equation that links their concentrations:

CaO + CO2 = CaCO3 .

More complicated is the mixture of the eight independent species in the four chemical equations:

NaCl + KBr = NaBr + KCl

NaCl + H2O = NaCl H2O

KBr + H2O = KBr H2O

NaBr + H2O = NaBr H2O .

Together with the material-balance equation, this system is described by only three components in the phase rule given in Sect. 2.5.7.

For macromolecules, the meaning of the term component was already relaxed to account for the fact that small changes in their length do not affect their properties, as discussed in Chap. 6. Similarly, decoupled segments of a polymer chain at a phase boundary may change the accounting for components, as is shown in Fig. 6.69. The main issues in Chap. 7 are the additional problems arising from the size of the macromolecule when one treats it as a single component in phase diagrams with components of smaller size (Sect. 7.1). Additionally, the flexibility of the macromolecules after copolymerization allows a decoupling of different repeating-unit sequences, leading to phase separation into domains of micrometer and nanometer dimensions without changing of the molecular structure. This may, for example, allow the treatment of copolymers as a multiple-component system (Sect. 7.2), even if the reactions that lead to the copolymer are fully arrested. Finally, Sect. 7.3 deals with the effect of multiple components in polymers on the glass transition.
