Iob Flip Flops: 1
Number of GCLKs: 1 out of 8 12%
---------------------------
Partition Resource Summary:
---------------------------
No Partitions were found in this design.
---------------------------
=========================================================================
TIMING REPORT
NOTE: THESE TIMING NUMBERS ARE ONLY A SYNTHESIS ESTIMATE.
FOR ACCURATE TIMING INFORMATION PLEASE REFER TO THE TRACE REPORT
GENERATED AFTER PLACE-and-ROUTE.
Clock Information:
------------------
-----------------------------------+------------------------+-------+
Clock Signal | Clock buffer(FF name) | Load |
-----------------------------------+------------------------+-------+
clk | BUFGP | 1 |
-----------------------------------+------------------------+-------+
Asynchronous Control Signals Information:
----------------------------------------
No asynchronous control signals found in this design
Timing Summary:
---------------
Speed Grade: -5
Minimum period: No path found
Minimum input arrival time before clock: 1.572ns
Maximum output required time after clock: 6.216ns
Maximum combinational path delay: No path found
Timing Detail:
--------------
All values displayed in nanoseconds (ns)
=========================================================================
Timing constraint: Default OFFSET IN BEFORE for Clock 'clk'
Total number of paths / destination ports: 1 / 1
-------------------------------------------------------------------------
Offset: 1.572ns (Levels of Logic = 1)
Source: d (PAD)
Destination: q (FF)
Destination Clock: clk rising
Data Path: d to q
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
IBUF:I->O 1 0.715 0.681 d_IBUF (d_IBUF)
FD:D 0.176 q
----------------------------------------
Total 1.572ns (0.891ns logic, 0.681ns route)
(56.7% logic, 43.3% route)
=========================================================================
Timing constraint: Default OFFSET OUT AFTER for Clock 'clk'
Total number of paths / destination ports: 1 / 1
-------------------------------------------------------------------------
Offset: 6.216ns (Levels of Logic = 1)
Source: q (FF)
Destination: q (PAD)
Source Clock: clk rising
Data Path: q to q
Gate Net
Cell:in->out fanout Delay Delay Logical Name (Net Name)
---------------------------------------- ------------
FD:C->Q 1 0.626 0.681 q (q_OBUF)
OBUF:I->O 4.909 q_OBUF (q)
----------------------------------------
Total 6.216ns (5.535ns logic, 0.681ns route)
(89.0% logic, 11.0% route)
=========================================================================
Total REAL time to Xst completion: 4.00 secs
Total CPU time to Xst completion: 3.79 secs
-->
Total memory usage is 255560 kilobytes
Number of errors : 0 ( 0 filtered)
Number of warnings : 0 ( 0 filtered)
Number of infos : 0 ( 0 filtered)
PlanAhead
NET "clk" LOC = T9;
NET "d" LOC = L14;
NET "q" LOC = P11;
Technology схема:

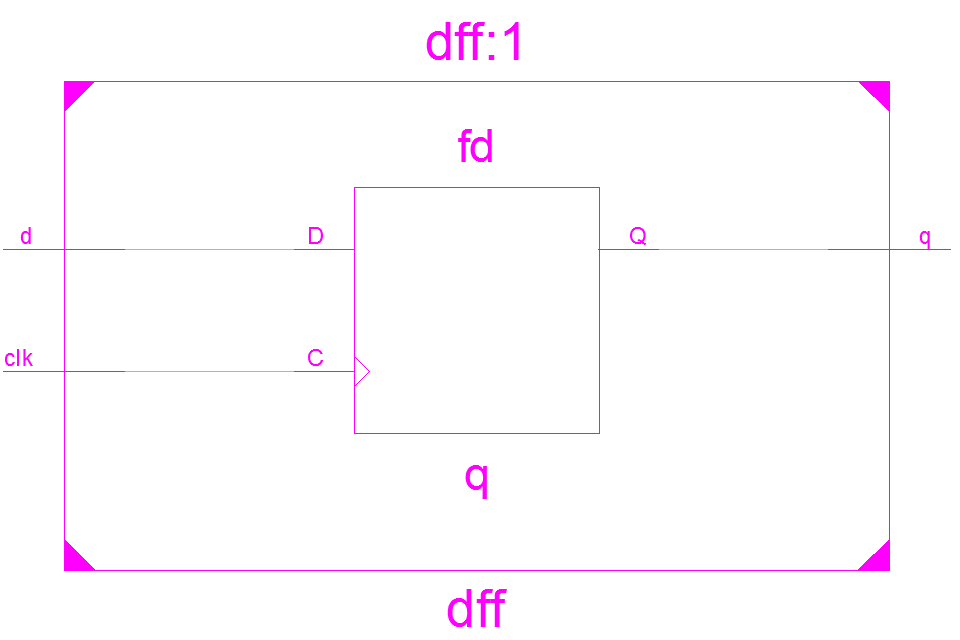

RTL схема:

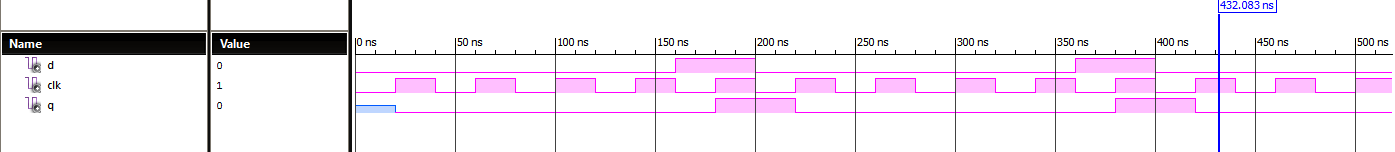

Временная диаграмма:
Временная диаграмма Post-Route:
