12•12 Wiring diagrams

Typical check control, electric mirrors, stop and parking light (3 of 4)

Wiring diagrams 12•13

Typical instrument cluster and cigar lighter (4 of 4)

12•14 Wiring diagrams

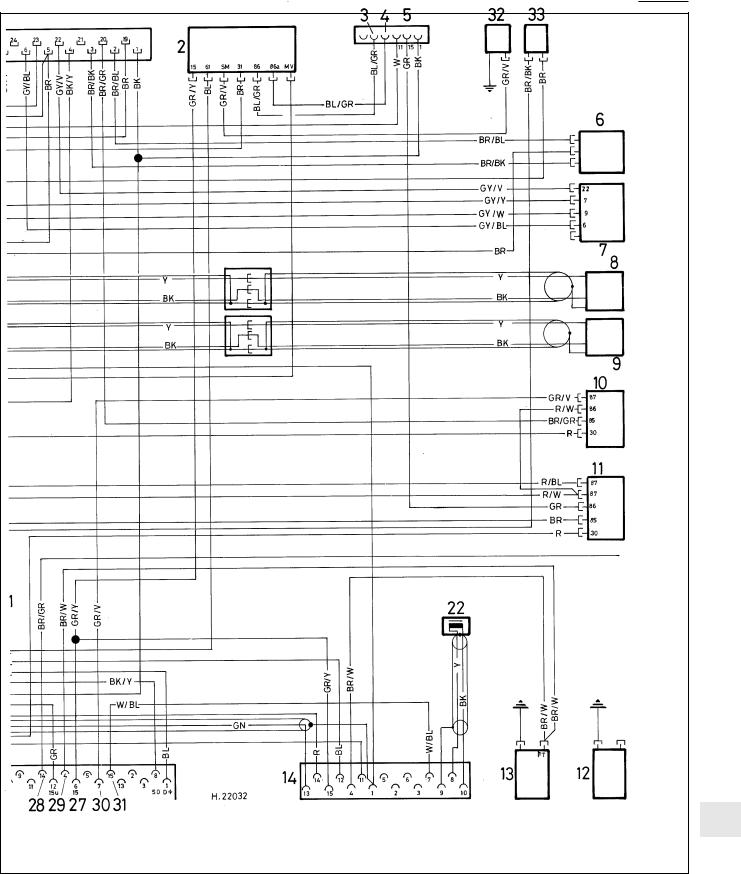

Typical Motronic system wiring diagram (1 of 2)

Wiring diagrams 12•15

Typical Motronic system wiring diagram (2 of 2)

12•16 Wiring diagrams

Key to Motronic engine control system wiring diagram

Key to cruise control system wiring diagram

Wiring diagrams 12•17

Typical cruise control system wiring diagram

12•18 Wiring diagrams

Typical wiring diagram for the central locking, burglar alarm, on-board computer, additional heater and digital clock (1 of 2)

Wiring diagrams 12•19

Typical wiring diagram for the central locking, burglar alarm, on-board computer, additional heater and digital clock (2 of 2)

12•20 Wiring diagrams

Key to wiring diagram for the central locking, burglar alarm, on-board computer, additional heater and digital clock

Wiring diagrams 12•21

Typical headlight washer system wiring diagram
