petri_output(&net, p1, t1, 1); petri_output(&net, p3, t1, 1); petri_output(&net, p2, t2, 1); petri_output(&net, p4, t3, 1); petri_output(&net, p5, t3, 1); petri_output(&net, p6, t4, 1);

petri_add_tokens(&net, p1, 1); petri_add_tokens(&net, p2, 1); petri_add_tokens(&net, p5, 1); petri_add_tokens(&net, p6, 1);

petri_print(&net);

petri_event(&net, t1); petri_print(&net); petri_event(&net, t3); petri_print(&net); petri_event(&net, t4); petri_print(&net); petri_event(&net, t2); petri_print(&net); petri_event(&net, t4); petri_print(&net);

return error;

}

20.4.3 An Exclusive OR Transition:

The inhibitory inputs are complimentary to the exclusive or function. Thus another research proposed an Exclusive or transition which will fire when one (and only one) input is from a place with tokens. An example of a problem using this, a ring shift register was modelled. This net is modelled as shown below.

page 553



























p7





















t1













t2







t3





























































































p1













p3











p5



















t4













t5











t6



















































p2



















p4













p6



p8

p9

















p10













































EOR transition



















t7





























































































































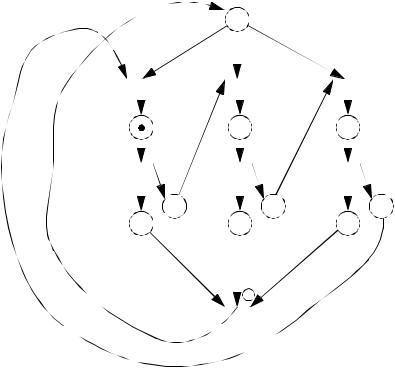

In this example the EOR transition is marked with a plus in a circle (at ‘t7’). When run, a token will appear in p1, p3, and p5 in a repeating cycle. The program to set this up is seen below.

int test3() /*

*EOR TEST NET (Peterson book, 1981, discussed pg. 190)

*This is for a single bit shifter

*/

{

static int error;

static struct petri_net net;

static int p1, p2, p3, p4, p5, p6, p7, p8, p9, p10; static int t1, t2, t3, t4, t5, t6, t7;

error = petri_init(&net);

p1 = petri_place(&net, “p1”);

p2 = petri_place(&net, “p2”);

p3 = petri_place(&net, “p3”);

p4 = petri_place(&net, “p4”);

p5 = petri_place(&net, “p5”);

p6 = petri_place(&net, “p6”);

p7 = petri_place(&net, “p7”);

p8 = petri_place(&net, “p8”);

p9 = petri_place(&net, “p9”);

page 554

p10 = petri_place(&net, “p10”);

t1 = petri_transition(&net, “t1”);

t2 = petri_transition(&net, “t2”);

t3 = petri_transition(&net, “t3”);

t4 = petri_transition(&net, “t4”);

t5 = petri_transition(&net, “t5”);

t6 = petri_transition(&net, “t6”);

t7 = petri_transition(&net, “t7”);

petri_input(&net, p6, t1, 1); petri_input(&net, p7, t1, 1); petri_input(&net, p2, t2, 1); petri_input(&net, p7, t2, 1); petri_input(&net, p4, t3, 1); petri_input(&net, p7, t3, 1); petri_input(&net, p1, t4, 1); petri_input(&net, p3, t5, 1); petri_input(&net, p5, t6, 1); petri_input(&net, p8, t7, 1); petri_input(&net, p9, t7, 1); petri_input(&net, p10, t7, 1);

petri_output(&net, p1, t1, 1); petri_output(&net, p3, t2, 1); petri_output(&net, p5, t3, 1); petri_output(&net, p2, t4, 1); petri_output(&net, p8, t4, 1); petri_output(&net, p4, t5, 1); petri_output(&net, p9, t5, 1); petri_output(&net, p6, t6, 1); petri_output(&net, p10, t6, 1); petri_output(&net, p7, t7, 1);

petri_type_transition(&net, t7, EOR);

petri_add_tokens(&net, p1, 1);

petri_print(&net);

petri_event(&net, t4); petri_print(&net); petri_event(&net, t7); petri_print(&net); petri_event(&net, t2); petri_print(&net); petri_event(&net, t5); petri_print(&net); petri_event(&net, t7); petri_print(&net); petri_event(&net, t3); petri_print(&net); petri_event(&net, t6); petri_print(&net); petri_event(&net, t7); petri_print(&net);

return error;

}

page 555

20.4.4 Colored Tokens

This section should be considered incorrect. The theory has not been found, although the approach should adhere to the concept. The concept is that each token may now have a color, and a second bit of private information. If a transition is specified to be colored, it will only fire if tokens of the specified color are available at the inputs. The subroutines will then require that the user supply a new set of instance information so that new tokens may be issued.

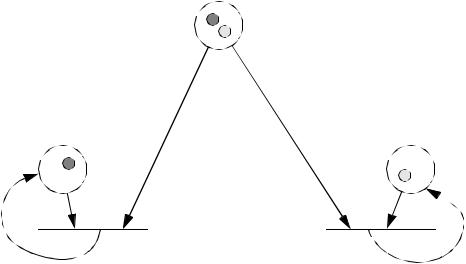

The net used has tokens of mixed colors in it, an is seen below.

p3

p1

p2

t1

t2

The code is shown below. The reader should note that a second subroutine is used. This is done because there is a bit of code which would be repeated for each update of tokens at the transition.

int test4()

/*

*COLOR TEST NET (Assumed for now)

*Two consumers of different colors and one input. The instances of tokens

*are kept track of.

*/

page 556

{

static int error, i;

static struct petri_net net; static int p1, p2, p3; static int t1, t2;

static int color1 = 1, color2 = 2; static int instance[20], instance_pnt;

error = petri_init(&net);

p1 = petri_place(&net, “p1”);

p2 = petri_place(&net, “p2”);

p3 = petri_place(&net, “p3”);

t1 = petri_transition(&net, “t1”);

t2 = petri_transition(&net, “t2”);

petri_input(&net, p1, t1, 1); petri_input(&net, p3, t1, 1); petri_input(&net, p2, t2, 1); petri_input(&net, p3, t2, 1);

petri_output(&net, p1, t1, 1); petri_output(&net, p2, t2, 1);

petri_type_transition(&net, t1, COLORED); petri_type_transition(&net, t2, COLORED);

for(i = 0; i < 20; i++) instance[i] = i; instance_pnt = 0;

petri_add_color_token(&net, p1, color1, instance[instance_pnt]); instance_pnt++;

petri_add_color_token(&net, p2, color2, instance[instance_pnt]); instance_pnt++;

petri_add_color_token(&net, p3, color1, instance[instance_pnt]); instance_pnt++;

petri_add_color_token(&net, p3, color2, instance[instance_pnt]); instance_pnt++;

petri_print(&net);

sub4(&net, t2, color1, instance, &instance_pnt); petri_print(&net);

sub4(&net, t1, color1, instance, &instance_pnt); petri_print(&net);

sub4(&net, t1, color1, instance, &instance_pnt); petri_print(&net);

sub4(&net, t2, color2, instance, &instance_pnt);

petri_print(&net);

return error;

}

int sub4(net, transition, color, instance, instance_pnt) struct petri_net *net;

int transition, color, *instance, *instance_pnt;
