Process Technology:

Silterra 0.18 m

Features

Precise Optimization for Silterra’s Six-Layer Metal 0.18 m CMOS Process

High Density (area is 0.025mm2 )

Fast Access Time (1.09ns at typical process, 1.80V, 25˚C)

Fast Cycle Time (1.04ns at typical process, 1.80V, 25˚C)

One Read/Write Port

Completely Static Operation

Near-Zero Hold Time (Data, Address, and Control Inputs)

High-Speed Single-Port Synchronous

SRAM

RAM64x8

64X8, Mux 4, Drive 12

Memory Description

The 64X8 SRAM is a high-performance, synchronous single-port, 64-word by 8-bit memory designed to

take full advantage of Silterra’s six-layer metal, 0.18 m CMOS process.

The SRAM’s storage array is composed of six-transistor cells with fully static memory circuitry. The SRAM operates at a voltage of 1.8V ± 10% and a junction temperature range of 0˚C to +125˚C.

Pin Description



Pin







Description





















A[5:0]





Addresses (A[0] = LSB)



















D[7:0]





Data Inputs (D[0] = LSB)





















CLK







Clock Input























CEN







Chip Enable























WEN







Write Enable





















OEN







Output Enable

















Q[7:0]



Data Outputs (Q[0] = LSB)





















Area































Area Type



Width (mm)



Height (mm)



Area (mm2)



Core



0.141



0.177



0.025



















Footprint



0.183



0.220



0.040



















The footprint area includes the core area and userdefined power ring and pin spacing areas.

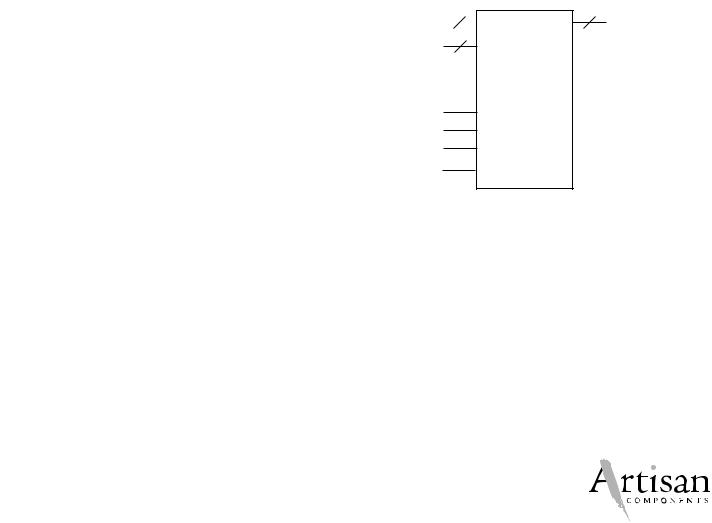

Symbol

A[5:0]

6

8

Q[7:0]





8

D[7:0]

CLK

CEN

WEN

OEN

Silterra Malaysia 0.18um Process SRAM-SP-HS Datasheet, Version 2003Q3V1

Copyright 1997-2003 Artisan Components, Inc.

RAM64x8

SRAM Block Diagram

Model Row

Core

PreCharge

Write Drivers

Sense Amplifier

Input/Output Buffers

Wordline Drivers

Model

Column

























Address Decode

Clock/Control

Model Row

Core

PreCharge

Write Drivers

Sense Amplifier

Input/Output Buffers

D[3:0]

Q[3:0]

A[5:0]

CLK

CEN

OEN

WEN

D[7:4]

Q[7:4]

Mission Mode

Figure 1. Synchronous Single-Port SRAM Output-Enable Timing

OEN

tlz



thz

Q[i]

Rising delays are measured at 50% of VDD and falling delays are measured at 50% of VDD.

Rising and falling slews are measured from 10% VDD to 90% VDD.

Figure 2. Synchronous Single-Port SRAM Read-Cycle Timing

CLK

CEN

WEN

A[j]

Q[i]



tcyc





tcyc





tckh

tckl

tckh

tckl



tcs

tch

tcs

tch

tcs

tch

tws

twh





tws

twh

tas

tah





tas

tah

ADD1





ADD2



ta







ta



Q1







Q2

Rising delays are measured at 50% of VDD and falling delays are measured at 50% of VDD. Rising and falling slews are measured from 10% VDD to 90% VDD.

Silterra Malaysia 0.18um Process SRAM-SP-HS Datasheet, Version 2003Q3V1

Copyright 1997-2003 Artisan Components, Inc.

2

RAM64x8

Synchronous Single-Port SRAM Write-Cycle Timing

CLK

CEN

WEN

A[j]

D[i]

Q[i]



tcyc





tcyc





tckh

tckl

tckh

tckl



tcs

tch

tcs

tch

tcs

tch

tws

twh





tws

twh

tas

tah





tas

tah

ADD1





ADD2

tds

tdh





tds

tdh

DATA1





DATA2



ta







ta



Q1







Q2

Rising signals are measured at 50% of VDD and falling signals are measured at 50% of VDD.

Rising and falling slews are measured from 10% VDD to 90% VDD.

SRAM Logic Table

CEN

WEN

OEN

Data Out

Mode

Function























Address inputs are disabled; data stored in the memory is

H

X

L

Last Data

Standby

retained, but the memory cannot be accessed for new reads or











writes. Data outputs remain stable.























Data on the data input bus D[n-1:0] is written to the memory

L

L

L

Data In

Write

location specified on the address bus A[m-1:0], and driven through











to the data output bus Q[n-1:0].













L

H

L

SRAM Data

Read

Data on the data output bus Q[n-1:0] is read from the memory

location specified on the address bus A[m-1:0].























X

X

H

Z

High-Z

The data output bus Q[n-1:0] is placed in a high impedance state.

Other memory operations are unaffected.























Silterra Malaysia 0.18um Process SRAM-SP-HS Datasheet, Version 2003Q3V1

Copyright 1997-2003 Artisan Components, Inc.

3

RAM64x8

SRAM Timing: Mission Mode





Fast Process



Typical Process



Slow Process

Parameter

Symbol

1.98V, 0˚C



1.80V, 25˚C



1.62V, 125˚C





Min (ns)

Max (ns)



Min (ns)

Max (ns)



Min (ns)

Max (ns)





















Cycle time

tcyc

0.72





1.04





1.83



Access time1,2

ta

0.67







1.09





1.88

Address setup

tas

0.19





0.32





0.60



Address hold

tah

0.06





0.08





0.12



Chip enable setup

tcs

0.25





0.35





0.59



Chip enable hold

tch

0.00





0.00





0.00



Write enable setup

tws

0.23





0.34





0.57



Write enable hold

twh

0.00





0.00





0.00



Data setup

tds

0.11





0.18





0.38



Data hold

tdh

0.00





0.00





0.00



Output enable to hi-Z

thz



0.42





0.61





0.99

Output enable active1

tlz



0.37





0.53





0.87

Clock high

tckh

0.08





0.11





0.20



Clock low

tckl

0.11





0.18





0.31



Clock rise slew

tckr



4.00





4.00





4.00

Output load factor (ns/pF)

Kload



0.29





0.40





0.61

1 Parameters have a load dependence (Kload), which is used to calculate: TotalDelay = FixedDelay + (Kload × Cload ) .

2Access time is defined as the slowest possible output transition for the typical and slow corners, and the fastest possible output transition for the fast corner.

Silterra Malaysia 0.18um Process SRAM-SP-HS Datasheet, Version 2003Q3V1

Copyright 1997-2003 Artisan Components, Inc.

4

RAM64x8

Pin Capacitance



Fast Process



Typical Process



Slow Process

Pin

1.98V, 0˚C



1.80V, 25˚C



1.62V, 125˚C



Value (pF)



Value (pF)



Value (pF)













A[j]

0.052



0.052



0.052













D[i]

0.005



0.005



0.005













CLK

0.178



0.164



0.144













CEN

0.016



0.016



0.015













WEN

0.015



0.015



0.015













OEN

0.011



0.011



0.011













Q[i]

0.024



0.024



0.023













Power

300.00MHz Operation



Fast Process



Typical Process



Slow Process

Condition

1.98V, 0˚C



1.80V, 25˚C



1.62V, 125˚C



Value (mA)



Value (mA)



Value (mA)













AC Current1

13.299



11.592



10.303

Read AC Current

13.121



11.405



10.121













Write AC Current

13.477



11.778



10.486













Peak Current

120.899



73.719



39.640













Deselected Current2

4.956



4.209



3.701

Standby Current3

0.002



0.002



0.003

1Value assumes 50% read and write operations, where all addresses and 50% of input and output pins switch.

2Value assumes SRAM is deselected, all addresses switch, and 50% of input pins switch. The logic-switching component of deselected power becomes negligibly small if the input pins are held stable by externally controlling these signals with chip select.

3Value is independent of frequency and assumes all inputs and outputs are stable.

Clock Noise Limit



Fast Process



Typical Process



Slow Process

Signal

1.98V, 0˚C



1.80V, 25˚C



1.62V, 125˚C

















Pulse

Voltage (V)



Pulse

Voltage (V)



Pulse

Voltage (V)









Width (ns)



Width (ns)



Width (ns)



















CLK

10.000

0.853



10.000

0.861



10.000

0.822



















The clock noise limit is the maximum CLK voltage allowable for the indicated pulse width without causing a spurious memory cycle or other memory failure.

Power and Ground Noise Limit



Fast Process



Typical Process



Slow Process

Signal

1.98V, 0˚C



1.80V, 25˚C



1.62V, 125˚C



Voltage (V)



Voltage (V)



Voltage (V)













Power

0.198



0.180



0.162













Ground

0.198



0.180



0.162













The power/ground noise limit is the maximum supply voltage transition allowable without causing a memory failure.

Silterra Malaysia 0.18um Process SRAM-SP-HS Datasheet, Version 2003Q3V1

Copyright 1997-2003 Artisan Components, Inc.

5
