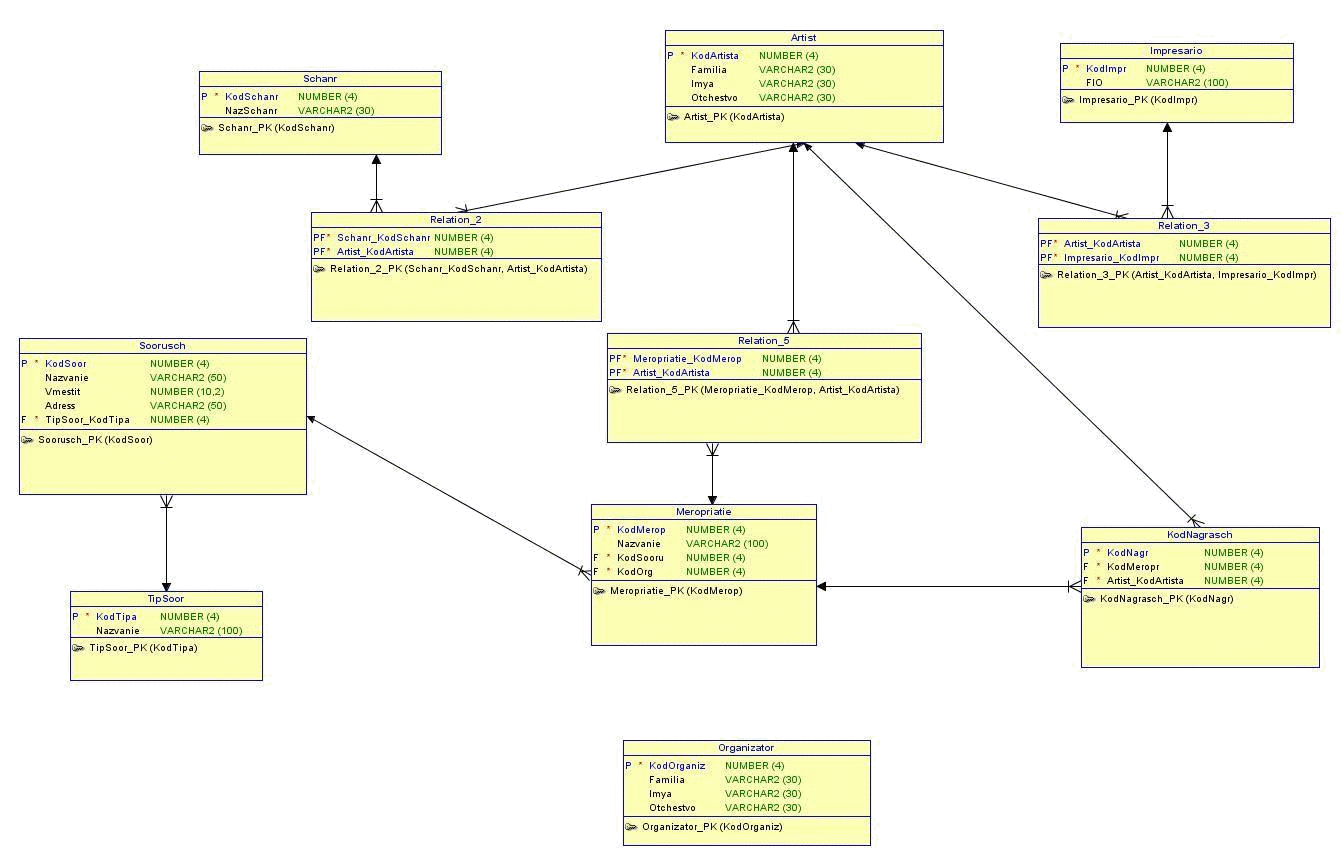

4.12 Диаграмма реляционной модели

4.13 Генерация ddl

1 -- Generated by Oracle SQL Developer Data Modeler 4.0.3.853

						Лист
					38.03.05 ПЗ
						10
Изм.	Лист	№ докум.	Подпись	Дата

2	--	at:	2016-05-10 11:27:34 KRAT
3	--	site:	Oracle Database 11g
4	--	type:	Oracle Database 11g
5
6
7
8
9	CREATE TABLE Artist

10. (

10. KodArtista NUMBER (4) NOT NULL ,

10. Familia VARCHAR2 (30) ,

13 Imya VARCHAR2 (30) ,

14. Otchestvo VARCHAR2 (30)

14. ) ;

14. ALTER TABLE Artist ADD CONSTRAINT Artist_PK PRIMARY KEY ( KodArtista ) ;

14. CREATE TABLE Impresario

14. ( KodImpr NUMBER (4) NOT NULL , FIO VARCHAR2 (100)

14. ) ;

14. ALTER TABLE Impresario ADD CONSTRAINT Impresario_PK PRIMARY KEY ( KodImpr ) ;

14. CREATE TABLE KodNagrasch

14. (

25	KodNagr	NUMBER (4) NOT NULL ,
26	KodMeropr	NUMBER (4) NOT NULL ,

27. Artist_KodArtista NUMBER (4) NOT NULL

27. ) ;

						Лист
					38.03.05 ПЗ
						11
Изм.	Лист	№ докум.	Подпись	Дата

29 ALTER TABLE KodNagrasch ADD CONSTRAINT KodNagrasch_PK

PRIMARY KEY ( KodNagr ) ;

30

31 CREATE TABLE Meropriatie

32. (

32. KodMerop NUMBER (4) NOT NULL ,

32. Nazvanie VARCHAR2 (100) ,

32. KodSooru NUMBER (4) NOT NULL ,

32. KodOrg NUMBER (4) NOT NULL

32. ) ;

32. ALTER TABLE Meropriatie ADD CONSTRAINT Meropriatie_PK PRIMARY KEY ( KodMerop ) ;

32. CREATE TABLE Organizator

32. (

32. KodOrganiz NUMBER (4) NOT NULL ,

43	Familia	VARCHAR2 (30) ,
44	Imya	VARCHAR2 (30) ,

45. Otchestvo VARCHAR2 (30)

45. ) ;

45. ALTER TABLE Organizator ADD CONSTRAINT Organizator_PK PRIMARY KEY ( KodOrganiz ) ;

45. CREATE TABLE Relation_2

45. (

45. Schanr_KodSchanr NUMBER (4) NOT NULL ,

45. Artist_KodArtista NUMBER (4) NOT NULL

45. ) ;

						Лист
					38.03.05 ПЗ
						12
Изм.	Лист	№ докум.	Подпись	Дата

54 ALTER TABLE Relation_2 ADD CONSTRAINT Relation_2_PK

PRIMARY KEY ( Schanr_KodSchanr, Artist_KodArtista ) ;

55

56 CREATE TABLE Relation_3

57. (

57. Artist_KodArtista NUMBER (4) NOT NULL ,

57. Impresario_KodImpr NUMBER (4) NOT NULL

57. ) ;

57. ALTER TABLE Relation_3 ADD CONSTRAINT Relation_3_PK PRIMARY KEY ( Artist_KodArtista, Impresario_KodImpr ) ;

57. CREATE TABLE Relation_5

57. (

57. Meropriatie_KodMerop NUMBER (4) NOT NULL ,

66 Artist_KodArtista NUMBER (4) NOT NULL

67. ) ;

67. ALTER TABLE Relation_5 ADD CONSTRAINT Relation_5_PK PRIMARY KEY ( Meropriatie_KodMerop, Artist_KodArtista ) ;

67. CREATE TABLE Schanr

67. (

67. KodSchanr NUMBER (4) NOT NULL ,

67. NazSchanr VARCHAR2 (30)

67. ) ;

67. ALTER TABLE Schanr ADD CONSTRAINT Schanr_PK PRIMARY KEY ( KodSchanr ) ;

67. CREATE TABLE Soorusch

67. (

						Лист
					38.03.05 ПЗ
						13
Изм.	Лист	№ докум.	Подпись	Дата

79	KodSoor	NUMBER (4) NOT NULL ,
80	Nazvanie	VARCHAR2 (50)	,
81	Vmestit	NUMBER (10,2) ,
82	Adress	VARCHAR2 (50) ,

83. TipSoor_KodTipa NUMBER (4) NOT NULL

83. ) ;

83. ALTER TABLE Soorusch ADD CONSTRAINT Soorusch_PK PRI-MARY KEY ( KodSoor ) ;

83. CREATE TABLE TipSoor

83. (

83. KodTipa NUMBER (4) NOT NULL ,

83. Nazvanie VARCHAR2 (100)

83. ) ;

83. ALTER TABLE TipSoor ADD CONSTRAINT TipSoor_PK PRIMA-RY KEY ( KodTipa ) ;

83. ALTER TABLE Relation_2 ADD CONSTRAINT FK_ASS_3 FOR-EIGN KEY ( Schanr_KodSchanr ) REFERENCES Schanr ( KodSchanr ) ;

83. ALTER TABLE Relation_2 ADD CONSTRAINT FK_ASS_4 FOR-EIGN KEY ( Artist_KodArtista ) REFERENCES Artist ( KodArtista ) ;

83. ALTER TABLE Relation_3 ADD CONSTRAINT FK_ASS_5 FOR-EIGN KEY ( Artist_KodArtista ) REFERENCES Artist ( KodArtista ) ;

83. ALTER TABLE Relation_3 ADD CONSTRAINT FK_ASS_6 FOR-EIGN KEY ( Impresario_KodImpr ) REFERENCES Impresario ( KodImpr ) ;

						Лист
					38.03.05 ПЗ
						14
Изм.	Лист	№ докум.	Подпись	Дата

102 ALTER TABLE Relation_5 ADD CONSTRAINT FK_ASS_8 FOR-EIGN KEY ( Meropriatie_KodMerop ) REFERENCES Meropriatie ( KodMerop )

;

103

104 ALTER TABLE Relation_5 ADD CONSTRAINT FK_ASS_9 FOR-EIGN KEY ( Artist_KodArtista ) REFERENCES Artist ( KodArtista ) ;

105

106 ALTER TABLE KodNagrasch ADD CONSTRAINT

KodNagrasch_Artist_FK FOREIGN KEY ( Artist_KodArtista ) REFERENCES

Artist ( KodArtista ) ;

107

108 ALTER TABLE KodNagrasch ADD CONSTRAINT

KodNagrasch_Meropriatie_FK FOREIGN KEY ( KodMeropr ) REFERENCES

Meropriatie ( KodMerop ) ;

109

110 ALTER TABLE Meropriatie ADD CONSTRAINT Meropri-atie_Organizator_FK FOREIGN KEY ( KodOrg ) REFERENCES Organizator ( KodOrganiz ) ;

111

112 ALTER TABLE Meropriatie ADD CONSTRAINT Meropri-atie_Soorusch_FK FOREIGN KEY ( KodSooru ) REFERENCES Soorusch ( KodSoor ) ;

113

114 ALTER TABLE Soorusch ADD CONSTRAINT Sooru-sch_TipSoor_FK FOREIGN KEY ( TipSoor_KodTipa ) REFERENCES TipSoor ( KodTipa ) ;

115

116

117 -- Oracle SQL Developer Data Modeler Summary Report:

						Лист
					38.03.05 ПЗ
						15
Изм.	Лист	№ докум.	Подпись	Дата

118	--
119	-- CREATE TABLE	11
120	-- CREATE INDEX	0
121	-- ALTER TABLE	22
122	-- CREATE VIEW	0
123	-- CREATE PACKAGE	0
124	-- CREATE PACKAGE BODY		0
125	-- CREATE PROCEDURE	0
126	-- CREATE FUNCTION	0
127	-- CREATE TRIGGER	0
128	-- ALTER TRIGGER	0
129	-- CREATE COLLECTION TYPE		0
130	-- CREATE STRUCTURED TYPE		0
131	-- CREATE STRUCTURED TYPE BODY		0
132	-- CREATE CLUSTER	0
133	-- CREATE CONTEXT	0
134	-- CREATE DATABASE	0
135	-- CREATE DIMENSION	0
136	-- CREATE DIRECTORY	0
137	-- CREATE DISK GROUP	0
138	-- CREATE ROLE	0
139	-- CREATE ROLLBACK SEGMENT		0
140	-- CREATE SEQUENCE	0
141	-- CREATE MATERIALIZED VIEW		0
142	-- CREATE SYNONYM	0
143	-- CREATE TABLESPACE	0
144	-- CREATE USER	0
145	--
146	-- DROP TABLESPACE	0

						Лист
					38.03.05 ПЗ
						16
Изм.	Лист	№ докум.	Подпись	Дата

147	-- DROP DATABASE		0
148	--
149	-- REDACTION POLICY		0
150	--
151	-- ERRORS		0
-- WARNINGS		0
