Plate
Page 1 (2)
High Temperature Fresh Water Pump |
51610-01H |
|
|
L23/30H
720/750 RPM
08028-0D/H5250/94.08.12
01.36 - ES0S
51610-01H |
High Temperature Fresh Water Pump |
Plate |
Page 2 (2) |
||
|
|
|
|
|
|
L23/30H
720/750 RPM
Item |
|
|
|
|
Item |
|
|
|
No. |
Qty. |
Designation |
Benævnelse |
|
No. |
Qty. |
Designation |
Benævnelse |
|
|
|
|
|
|
|
|
|
010 |
1/P |
Pump housing |
Pumpehus |
|
|
|
|
|
022 |
1/P |
Bearing housing |
Lejehus |
|
|
|
|
|
034 |
1/P |
Shaft |
Aksel |
|
|
|
|
|
046 |
1/P |
Impeller |
Løbehjul |
|
|
|
|
|
058 |
1/P |
Gear wheel |
Tandhjul |
|
|
|
|
|
071 |
1/P |
Self locking nut |
Selvlåsende møtrik |
|
|
|
|
|
083 |
1/P |
Rotating sealing |
Roterende pakdåse |
|
|
|
|
|
095 |
1/P |
Sealing ring |
Tætningsring |
|
|
|
|
|
105 |
2/P |
Ball bearing |
Kugleleje |
|
|
|
|
|
117 |
1/P |
Retaining ring |
Sikringsring |
|
|
|
|
|
129 |
2/P |
Key |
Feder |
|
|
|
|
|
130 |
1/P |
Locking washer |
Låseskive |
|
|
|
|
|
142 |
1/P |
Self locking nut |
Selvlåsende møtrik |
|
|
|
|
|
154 |
2/P |
Plug screw |
Propskrue |
|
|
|
|
|
166 |
2/P |
Gasket |
Pakning |
|
|
|
|
|
178 |
1/P |
Ball valve |
Kugleventil |
|
|
|
|
|
191 |
8/P |
Screw |
Skrue |
|
|
|
|
|
201 |
1/E |
Fresh water pump, |
Ferskvandspumpe, |
|
|
|
|
|
|
|
complete |
komplet |
|
|
|
|
|
213 |
1/E |
Gasket |
Pakning |
|
|
|
|
|
225 |
4/E |
Screw |
Skrue |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When ordering spare parts, see also page 500.50. |
Ved bestilling af reservedele, se også side 500.50. |
||||
* |
= Only available as part of a spare parts kit. |
* |
= |
Kun tilgængelig som en del af et reservedelssæt. |
|
Qty./E |
= |
Qty./Engine |
Antal/E = |
Antal/Motor |
|
Qty./P |
= |
Qty./Pump |
Antal/P = |
Antal/Pumpe |
|
08028-0D/H5250/94.08.12
01.36 - ES0S
Plate
Page 1 (2)

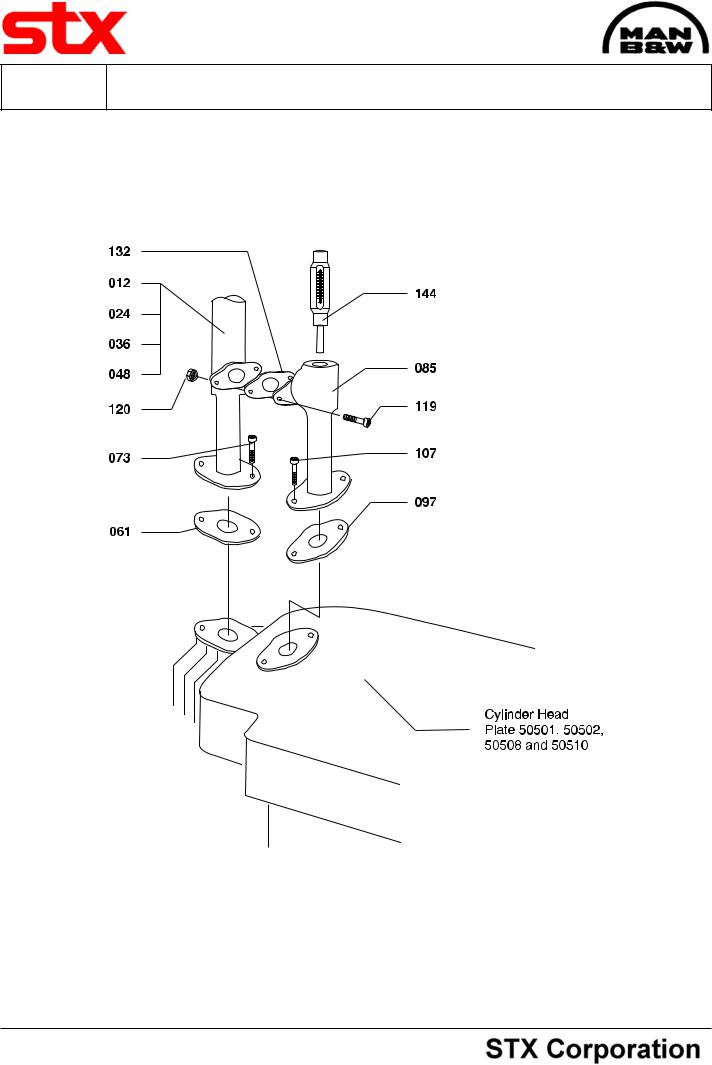

Pipes on Cylinder Head |
51625-01H |
|
|
L23/30H
08028-0D/H5250/94.08.12
94.25 - ES0S
51625-01H |
|
|
Pipes on Cylinder Head |
|
Plate |
|||||||||
|
|
|
Page 2 (2) |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
L23/30H |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Item |
|
|
|
|
|
Item |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
No. |
Qty. |
|
Designation |
Benævnelse |
|
No. |
|
Qty. |
|
Designation |
Benævnelse |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
012 |
1/E |
|
H.T. collecting pipe, |
H.T. samlerør, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 cyl. |
5 cyl. |
|
|
|
|
|
|
|
|
|
024 |
1/E |
|
H.T. collecting pipe, |
H.T. samlerør, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 cyl. |
6 cyl. |
|
|
|
|
|
|
|
|
|
036 |
1/E |
|
H.T. collecting pipe, |
H.T. samlerør, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 cyl. |
7 cyl. |
|
|
|
|
|
|
|
|
|
048 |
1/E |
|
H.T. collecting pipe, |
H.T. samlerør, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 cyl. |
8 cyl. |
|
|
|
|
|
|
|
|
|
061 |
1/C |
|
Packing, oval |
Pakning, oval |
|
|
|
|
|
|
|
|
|
|
073 |
2/C |
|
Screw |
Skrue |
|
|
|
|
|
|
|
|
|
|
085 |
1/C |
|
Thermometer piece |
Termometerstykke |
|
|
|
|
|
|
|
|
|
|
097 |
1/C |
|
Packing, oval |
Pakning, oval |
|
|
|
|
|
|
|
|
|
|
107 |
2/C |
|
Screw |
Skrue |
|
|
|
|
|
|
|
|
|
|
119 |
2/C |
|
Screw |
Skrue |
|
|
|
|
|
|
|
|
|
|
120 |
2/C |
|
Nut |
Møtrik |
|
|
|
|
|
|
|
|
|
|
132 |
1/C |
|
Packing, oval |
Pakning, oval |
|
|
|
|
|
|
|
|
|
|
144 |
1/C |
|
Thermometer |
Termometer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When ordering spare parts, see also page 500.50. |
Ved bestilling af reservedele, se også side 500.50. |
||||
* |
= Only available as part of a spare parts kit. |
* |
= Kun tilgængelig som en del af et reservedelssæt. |
||
Qty./E |
= |
Qty./Engine |
Qty./E |
= |
Qty./Motor |
Qty./E |
= |
Qty./Cylinder |
Qty./C |
= |
Qty./Cylinder |
08028-0D/H5250/94.08.12
94.25 - ES0S
