Components Guide

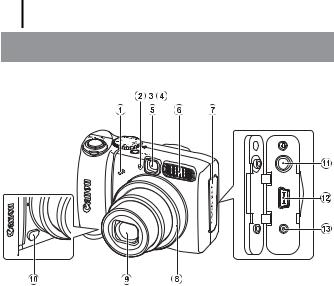

Front View

aMicrophone (pp. 24, 129)

bAF-assist Beam (p. 50)

cRed-Eye Reduction Lamp (p. 86)

dSelf-Timer Lamp (p. 62)

eViewfinder Window (p. 41)

fFlash (p. 60)

gTerminal Cover

hRing (p. 179)

iLens

jRing Release Button (p. 179)

kA/V OUT (Audio/Video output) Terminal (p. 148)

lDIGITAL Terminal (p. 29)

mDC IN (Power Input) Terminal (p. 177)

41

Back View

Guide Components

aLCD Monitor (p. 54)

bViewfinder

cSpeaker

dWrist Strap Mount (p. 12)

eMemory Card Slot / Battery Cover Lock (p. 10)

fMemory Card Slot / Battery Cover (p. 10)

gTripod Socket

Using the Viewfinder

The viewfinder can be used to conserve power by turning the LCD monitor off (p. 54) while shooting.

The LCD monitor may be covered with a thin plastic film for protection against scratches during shipment. If so, remove the film before using the camera.

42

Controls

aIndicators (p. 43)

bON/OFF button (p. 15)

cMode Dial (pp. 15, 69)

dZoom Lever (pp. 56, 110)

Shooting: (Wide Angle)/ (Telephoto) Playback: (Index)/ (Magnify)

eShutter Button (p. 15)

fMode Switch (p. 18)

g (Exposure)/ (Single Image Erase) Button (pp. 19, 99)

h (Print/Share) Button (pp. 20, 31, 108)

iFUNC./SET (Function/Set) Button (p. 44)

jMENU Button (p. 45)

kDISP. (Display) Button (p. 54)

l Button

m (Jump)/ (Flash)/ Button (pp. 60, 114)

n Button

o (Macro)/ (Manual Focus)/ Button (pp. 61, 96)
