38
Components Guide

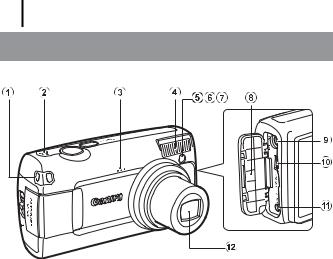

Front View
a Wrist Strap Mount
bSpeaker
cMicrophone
dFlash (p. 59)
eAF-assist Beam (p. 47)
fRed-Eye Reduction Lamp (pp. 59, 70)
gSelf-Timer Lamp (p. 62)
hTerminal Cover
iA/V OUT (Audio/Video output) Terminal (p. 129)
jDIGITAL Terminal (p. 27)
kDC IN (Power input) Terminal (p. 156)
lLens
39
Back View
Guide Components
a LCD Monitor (pp. 44, 51)
b Memory Card Slot / Battery Cover Lock (p. 9)
c Memory Card Slot / Battery Cover (p. 9)
d Tripod Socket
The LCD monitor may be covered with a thin plastic film for protection against scratches during shipment. If so, remove the film before using the camera.
40
Controls
a ON/OFF Button (pp. 12, 14)
b Shutter Button (p. 14)
c Mode Dial (pp. 13, 14)
d FUNC./SET Button (p. 42)
e MENU Button (p. 43)
f
(Print/Share) Button (pp. 18, 29, 93)
gIndicator (p. 41)
h
(Macro)/
(Infinity)/
Button (p. 60)
i
(Telephoto while shooting)/
(Magnify in Playback mode)/
Button (pp. 54, 96)
j
(Flash)/
Button (p. 59)
k
(Wide Angle while shooting)/
(Single Image Erase in Playback mode)/
Button (pp. 17, 54)
41
Indicator
The camera indicator on the back of the camera will light or blink under the following conditions.
Green: Ready to shoot (camera beeps twice)*/
when connected to a computer/display turned off
Blinking Green: Camera starting up/image recording/reading/erasing/ transferring (when connected to a computer)
Orange: Ready to shoot (flash on)
Blinking Orange: Ready to shoot (camera shake warning)/flash charging
* Camera beeps once if difficult to focus.
Never do the following while the indicator blinks green. These actions may corrupt image data.
-Shake or jolt the camera
-Shut off the power, or open the memory card slot/battery cover
Guide Components
