- •Contents
- •Foreword to the First Edition
- •Preface to the Third Edition
- •Preface to the Second Edition
- •Preface to the First Edition
- •1 SIP and the Internet
- •1.1 Signaling Protocols
- •1.2 Internet Multimedia Protocol Stack
- •1.2.1 Physical Layer
- •1.2.2 Data/Link Layer
- •1.2.3 Network Layer
- •1.2.4 Transport Layer
- •1.2.5 Application Layer
- •1.2.6 Utility Applications
- •1.2.7 Multicast
- •1.3 Internet Names
- •1.4 URLs, URIs, and URNs
- •1.5 Domain Name Service
- •1.5.1 DNS Resource Records
- •1.5.2 Address Resource Records (A or AAAA)
- •1.5.3 Service Resource Records (SRV)
- •1.5.4 Naming Authority Pointer Resource Records (NAPTR)
- •1.5.5 DNS Resolvers
- •1.6 Global Open Standards
- •1.7 Internet Standards Process
- •1.8 A Brief History of SIP
- •1.9 Conclusion
- •References
- •2 Introduction to SIP
- •2.1 A Simple Session Establishment Example
- •2.2 SIP Call with a Proxy Server
- •2.3 SIP Registration Example
- •2.4 SIP Presence and Instant Message Example
- •2.5 Message Transport
- •2.5.1 UDP Transport
- •2.5.2 TCP Transport
- •2.5.3 TLS Transport
- •2.5.4 SCTP Transport
- •2.6 Transport Protocol Selection
- •2.7 Conclusion
- •2.8 Questions
- •References
- •3 SIP Clients and Servers
- •3.1 SIP User Agents
- •3.2 Presence Agents
- •3.3 Back-to-Back User Agents
- •3.4 SIP Gateways
- •3.5 SIP Servers
- •3.5.1 Proxy Servers
- •3.5.2 Redirect Servers
- •3.5.3 Registrar Servers
- •3.6 Uniform Resource Indicators
- •3.7 Acknowledgment of Messages
- •3.8 Reliability
- •3.9 Multicast Support
- •3.10 Conclusion
- •3.11 Questions
- •References
- •4 SIP Request Messages
- •4.1 Methods
- •4.1.1 INVITE
- •4.1.2 REGISTER
- •4.1.5 CANCEL
- •4.1.6 OPTIONS
- •4.1.7 SUBSCRIBE
- •4.1.8 NOTIFY
- •4.1.9 PUBLISH
- •4.1.10 REFER
- •4.1.11 MESSAGE
- •4.1.12 INFO
- •4.1.13 PRACK
- •4.1.14 UPDATE
- •4.2 URI and URL Schemes Used by SIP
- •4.2.1 SIP and SIPS URIs
- •4.2.2 Telephone URLs
- •4.2.3 Presence and Instant Messaging URLs
- •4.3 Tags
- •4.4 Message Bodies
- •4.5 Conclusion
- •4.6 Questions
- •References
- •5 SIP Response Messages
- •5.1 Informational
- •5.1.1 100 Trying
- •5.1.2 180 Ringing
- •5.1.3 181 Call is Being Forwarded
- •5.1.4 182 Call Queued
- •5.1.5 183 Session Progress
- •5.2 Success
- •5.2.2 202 Accepted
- •5.3 Redirection
- •5.3.1 300 Multiple Choices
- •5.3.2 301 Moved Permanently
- •5.3.3 302 Moved Temporarily
- •5.3.4 305 Use Proxy
- •5.3.5 380 Alternative Service
- •5.4 Client Error
- •5.4.1 400 Bad Request
- •5.4.2 401 Unauthorized
- •5.4.3 402 Payment Required
- •5.4.4 403 Forbidden
- •5.4.5 404 Not Found
- •5.4.6 405 Method Not Allowed
- •5.4.7 406 Not Acceptable
- •5.4.8 407 Proxy Authentication Required
- •5.4.9 408 Request Timeout
- •5.4.11 410 Gone
- •5.4.12 411 Length Required
- •5.4.13 412 Conditional Request Failed
- •5.4.14 413 Request Entity Too Large
- •5.4.15 414 Request-URI Too Long
- •5.4.16 415 Unsupported Media Type
- •5.4.17 416 Unsupported URI Scheme
- •5.4.18 417 Unknown Resource Priority
- •5.4.19 420 Bad Extension
- •5.4.20 421 Extension Required
- •5.4.21 422 Session Timer Interval Too Small
- •5.4.22 423 Interval Too Brief
- •5.4.23 428 Use Identity Header
- •5.4.24 429 Provide Referror Identity
- •5.4.25 430 Flow Failed
- •5.4.26 433 Anonymity Disallowed
- •5.4.27 436 Bad Identity-Info Header
- •5.4.29 438 Invalid Identity Header
- •5.4.30 439 First Hop Lacks Outbound Support
- •5.4.31 440 Max-Breadth Exceeded
- •5.4.32 470 Consent Needed
- •5.4.33 480 Temporarily Unavailable
- •5.4.34 481 Dialog/Transaction Does Not Exist
- •5.4.35 482 Loop Detected
- •5.4.36 483 Too Many Hops
- •5.4.37 484 Address Incomplete
- •5.4.38 485 Ambiguous
- •5.4.39 486 Busy Here
- •5.4.40 487 Request Terminated
- •5.4.41 488 Not Acceptable Here
- •5.4.42 489 Bad Event
- •5.4.43 491 Request Pending
- •5.4.44 493 Request Undecipherable
- •5.4.45 494 Security Agreement Required
- •5.5 Server Error
- •5.5.1 500 Server Internal Error
- •5.5.2 501 Not Implemented
- •5.5.3 502 Bad Gateway
- •5.5.4 503 Service Unavailable
- •5.5.5 504 Gateway Timeout
- •5.5.6 505 Version Not Supported
- •5.5.7 513 Message Too Large
- •5.5.8 580 Preconditions Failure
- •5.6 Global Error
- •5.6.1 600 Busy Everywhere
- •5.6.2 603 Decline
- •5.6.3 604 Does Not Exist Anywhere
- •5.6.4 606 Not Acceptable
- •5.7 Questions
- •References
- •6 SIP Header Fields
- •6.1 Request and Response Header Fields
- •6.1.1 Accept
- •6.1.2 Accept-Encoding
- •6.1.3 Accept-Language
- •6.1.4 Alert-Info
- •6.1.5 Allow
- •6.1.6 Allow-Events
- •6.1.7 Answer-Mode
- •6.1.8 Call-ID
- •6.1.9 Contact
- •6.1.10 CSeq
- •6.1.11 Date
- •6.1.12 Encryption
- •6.1.13 Expires
- •6.1.14 From
- •6.1.15 History Info
- •6.1.16 Organization
- •6.1.17 Path
- •6.1.19 Record-Route
- •6.1.20 Recv-Info
- •6.1.21 Refer-Sub
- •6.1.22 Retry-After
- •6.1.23 Subject
- •6.1.24 Supported
- •6.1.25 Timestamp
- •6.1.27 User-Agent
- •6.2 Request Header Fields
- •6.2.1 Accept-Contact
- •6.2.2 Authorization
- •6.2.3 Call-Info
- •6.2.4 Event
- •6.2.5 Hide
- •6.2.6 Identity
- •6.2.7 Identity-Info
- •6.2.8 In-Reply-To
- •6.2.9 Info-Package
- •6.2.10 Join
- •6.2.11 Priority
- •6.2.12 Privacy
- •6.2.13 Proxy-Authorization
- •6.2.14 Proxy-Require
- •6.2.15 P-OSP-Auth-Token
- •6.2.16 P-Asserted-Identity
- •6.2.17 P-Preferred-Identity
- •6.2.18 Max-Breadth
- •6.2.19 Max-Forwards
- •6.2.20 Reason
- •6.2.21 Refer-To
- •6.2.22 Referred-By
- •6.2.23 Reply-To
- •6.2.24 Replaces
- •6.2.25 Reject-Contact
- •6.2.26 Request-Disposition
- •6.2.27 Require
- •6.2.28 Resource-Priority
- •6.2.29 Response-Key
- •6.2.30 Route
- •6.2.31 RAck
- •6.2.32 Security-Client
- •6.2.33 Security-Verify
- •6.2.34 Session-Expires
- •6.2.35 SIP-If-Match
- •6.2.36 Subscription-State
- •6.2.37 Suppress-If-Match
- •6.2.38 Target-Dialog
- •6.2.39 Trigger-Consent
- •6.3 Response Header Fields
- •6.3.1 Accept-Resource-Priority
- •6.3.2 Authentication-Info
- •6.3.3 Error-Info
- •6.3.4 Flow-Timer
- •6.3.5 Min-Expires
- •6.3.7 Permission-Missing
- •6.3.8 Proxy-Authenticate
- •6.3.9 Security-Server
- •6.3.10 Server
- •6.3.11 Service-Route
- •6.3.12 SIP-ETag
- •6.3.13 Unsupported
- •6.3.14 Warning
- •6.3.15 WWW-Authenticate
- •6.3.16 RSeq
- •6.4 Message Body Header Fields
- •6.4.1 Content-Encoding
- •6.4.2 Content-Disposition
- •6.4.3 Content-Language
- •6.4.4 Content-Length
- •6.4.5 Content-Type
- •6.4.6 MIME-Version
- •6.5 Questions
- •References
- •7 Wireless, Mobility, and IMS
- •7.1 IP Mobility
- •7.2 SIP Mobility
- •7.4 IMS Header Fields
- •7.5 Conclusion
- •7.6 Questions
- •References
- •8 Presence and Instant Messaging
- •8.1 Introduction
- •8.2 History of IM and Presence
- •8.3 SIMPLE
- •8.4 Presence with SIMPLE
- •8.4.1 SIP Events Framework
- •8.4.2 Presence Bodies
- •8.4.3 Resource Lists
- •8.4.4 Filtering
- •8.4.6 Partial Publication
- •8.4.7 Presence Documents Summary
- •8.5 Instant Messaging with SIMPLE
- •8.5.1 Page Mode Instant Messaging
- •8.5.4 Message Composition Indication
- •8.5.5 Multiple Recipient Messages
- •8.5.6 Session Mode Instant Messaging
- •8.6 Jabber
- •8.6.1 Standardization as Extensible Messaging and Presence Protocol
- •8.6.2 Interworking with SIMPLE
- •8.6.3 Jingle
- •8.6.4 Future Standardization of XMPP
- •8.7 Conclusion
- •8.8 Questions
- •References
- •9 Services in SIP
- •9.1 Gateway Services
- •9.2 SIP Trunking
- •9.3 SIP Service Examples
- •9.4 Voicemail
- •9.5 SIP Video
- •9.6 Facsimile
- •9.7 Conferencing
- •9.7.1 Focus
- •9.7.2 Mixer
- •9.8 Application Sequencing
- •9.9 Other SIP Service Architectures
- •9.9.1 Service Oriented Architecture
- •9.9.2 Servlets
- •9.9.3 Service Delivery Platform
- •9.10 Conclusion
- •9.11 Questions
- •References
- •10 Network Address Translation
- •10.1 Introduction to NAT
- •10.2 Advantages of NAT
- •10.3 Disadvantages of NAT
- •10.4 How NAT Works
- •10.5 Types of NAT
- •10.5.1 Endpoint Independent Mapping NAT
- •10.5.2 Address Dependent Mapping NAT
- •10.5.3 Address and Port Dependent Mapping NAT
- •10.5.4 Hairpinning Support
- •10.5.5 IP Address Pooling Options
- •10.5.6 Port Assignment Options
- •10.5.7 Mapping Refresh
- •10.5.8 Filtering Modes
- •10.6 NAT Mapping Examples
- •10.7 NATs and SIP
- •10.8 Properties of a Friendly NAT or How a NAT Should BEHAVE
- •10.9 STUN Protocol
- •10.10 UNSAF Requirements
- •10.11 SIP Problems with NAT
- •10.11.1 Symmetric SIP
- •10.11.2 Connection Reuse
- •10.11.3 SIP Outbound
- •10.12 Media NAT Traversal Solutions
- •10.12.1 Symmetric RTP
- •10.12.2 RTCP Attribute
- •10.12.3 Self-Fixing Approach
- •10.13 Hole Punching
- •10.14 TURN: Traversal Using Relays Around NAT
- •10.15 ICE: Interactive Connectivity Establishment
- •10.16 Conclusion
- •10.17 Questions
- •References
- •11 Related Protocols
- •11.1 PSTN Protocols
- •11.1.1 Circuit Associated Signaling
- •11.1.2 ISDN Signaling
- •11.1.3 ISUP Signaling
- •11.2 SIP for Telephones
- •11.3 Media Gateway Control Protocols
- •11.4.1 Introduction to H.323
- •11.4.2 Example of H.323
- •11.4.3 Versions
- •References
- •12 Media Transport
- •12.1 Real-Time Transport Protocol (RTP)
- •12.2 RTP Control Protocol (RTCP)
- •12.2.1 RTCP Reports
- •12.2.2 RTCP Extended Reports
- •12.3 Compression
- •12.4.1 Audio Codecs
- •12.4.2 Video Codecs
- •12.5 Conferencing
- •12.6 ToIP—Conversational Text
- •12.7 DTMF Transport
- •12.8 Questions
- •References
- •13 Negotiating Media Sessions
- •13.1 Session Description Protocol (SDP)
- •13.1.1 Protocol Version
- •13.1.2 Origin
- •13.1.3 Session Name and Information
- •13.1.5 E-Mail Address and Phone Number
- •13.1.6 Connection Data
- •13.1.7 Bandwidth
- •13.1.8 Time, Repeat Times, and Time Zones
- •13.1.9 Encryption Keys
- •13.1.10 Media Announcements
- •13.1.11 Attributes
- •13.2 SDP Extensions
- •13.3 The Offer Answer Model
- •13.3.1 Rules for Generating an Offer
- •13.3.2 Rules for Generating an Answer
- •13.3.3 Rules for Modifying a Session
- •13.3.4 Special Case—Call Hold
- •13.4 Static and Dynamic Payloads
- •13.5 SIP Offer Answer Exchanges
- •13.6 Conclusion
- •13.7 Questions
- •References
- •14 SIP Security
- •14.1 Basic Security Concepts
- •14.1.1 Encryption
- •14.1.2 Public Key Cryptography
- •14.1.4 Message Authentication
- •14.2 Threats
- •14.3 Security Protocols
- •14.3.1 IPSec
- •14.3.3 DNSSec
- •14.3.4 Secure MIME
- •14.4 SIP Security Model
- •14.4.1 SIP Digest Authentication
- •14.4.2 SIP Authentication Using TLS
- •14.4.3 Secure SIP
- •14.4.4 Identity
- •14.4.5 Enhanced SIP Identity
- •14.6 Media Security
- •14.6.1 Non-RTP Media
- •14.6.2 Secure RTP
- •14.6.3 Keying SRTP
- •14.6.4 Best Effort Encryption
- •14.6.5 ZRTP
- •14.7 Questions
- •References
- •15 Peer-to-Peer SIP
- •15.1 P2P Properties
- •15.2 P2P Properties of SIP
- •15.3 P2P Overlays
- •15.4 RELOAD
- •15.5 Host Identity Protocol
- •15.6 Conclusion
- •15.7 Questions
- •References
- •16 Call Flow Examples
- •16.1 SIP Call with Authentication, Proxies, and Record-Route
- •16.2 SIP Call with Stateless and Stateful Proxies with Called Party Busy
- •16.3 SIP to PSTN Call Through Gateways
- •16.4 PSTN to SIP Call Through a Gateway
- •16.5 Parallel Search
- •16.6 Call Setup with Two Proxies
- •16.7 SIP Presence and Instant Message Example
- •References
- •17 Future Directions
- •17.2 More Extensions
- •17.3 Better Identity
- •17.4 Interdomain SIP
- •17.5 Making Features Work Better
- •17.6 Emergency Calling
- •17.7 More SIP Trunking
- •17.9 Improved NAT Traversal
- •17.10 Security Deployment
- •17.11 Better Interoperability
- •References
- •A.1 ABNF Rules
- •A.2 Introduction to XML
- •References
- •About the Author
SIP Header Fields |
157 |
Replaces: sdjfdjfskdf@there.com;to-tag=5f35a3;from-tag=8675309
header field. Note that the characters “;” and “=” are replaced by their hex equivalents %3B and %3D. In the next example, the header field containing a method
Refer-To: <sip:UserC@client.anywhere.com?method=SUBSCRIBE>
would cause a SUBSCRIBE request to be sent instead of an INVITE, which is the default method if none is present. An example of the Refer-To header field in compact form with an HTTP URL is:
r:<http://www.artech-house.com>
6.2.22Referred-By
The Referred-By header field [42] is an optional header field in a REFER request and a request triggered by a REFER. It provides the recipient of a triggered request with information that the request was generated as a result of a REFER and the originator of the REFER. This information can be presented to the user or have policy applied in deciding how the UA should handle the request.
As this header field could be modified or fabricated, a more secure usage involves the addition of a Referred-By security token. The token is carried as a message body whose content id (cid) is indicated in the Referred-By header field. The token is an S/MIME signature over a message/sipfrag, which con-
tains, at a minimum, the From, Date, Call-ID, Refer-To, and Referred-By
header fields from the REFER request. An unsigned Referred-By header field may be rejected with a request that the Referred-By security token be included using the 429 Provide Referror Identity response code (see Section 5.4.24). The compact form is b:
Referred-By: <sip:user@host.com>
b:<sips:friend@neighbor.org>
6.2.23Reply-To
The Reply-To header field is used to indicate a sip or sips URI, which should be used in replying to this request. Normally, this URI is present in the From header field (the Contact is not used as it is only assumed valid for the duration of the dialog). However, in some cases, the From cannot be populated with this information, so the URI in this header field should be used instead of the From URI.
An example is:
158 |
SIP: Understanding the Session Initiation Protocol |
|
|
|
Reply-To: <sip:l.tolstoy@stpetersburg.ru> |
6.2.24 |
Replaces |
The Replaces header field [29] is used in SIP call control applications. A UA in an established dialog receiving another INVITE with a Replaces header field that matches the existing dialog must accept the INVITE, terminate the existing dialog with a BYE, and transfer all resources and state from the existing dialog to the newly established dialog.
If the Replaces header field matches no dialog, the INVITE must be rejected
with a 481 Dialog Does Not Exist response.
In addition, Replaces has one application in pending dialogs. A UAC that has sent an INVITE but has not yet received a final response may receive an INVITE containing a Replaces header field that matches the pending INVITE. The UAC must terminate the pending dialog with a CANCEL (and be prepared to send an ACK and BYE if a 200 OK eventually arrives) and accept the new INVITE.
For an INVITE containing both a Require: replaces and Replaces header
field, this results in the return of one of the following set of responses:
• 200 (if a match is found);
• 481 (if no match is found);
• 420 (if Replaces is not supported).
Figure 6.3 shows a call flow using Replaces to implement a feature called “call pickup.” The early parameter means that the replacement should only be done if the dialog is in an early state; if the dialog has transitioned to a confirmed state, the INVITE should be rejected. Figure 4.9 shows the use of Replaces in an “attended transfer example.”
This example Replaces header field:
Replaces: 3232904875945;to-tag=34314;from-tag=2343
would match the dialog identified by:
To: <sip:moe@example.org>;tag=34314
From: <sip:larry@server.org>;tag=2343
Call-ID: 3232904875945
6.2.25 Reject-Contact
The Reject-Contact [23] header field specifies the URIs to which the request may not be proxied. Some additional parameters are also defined for Contact header fields such as media, duplex, and language. This header field, along with

|
|
|
|
|
|
SIP Header Fields |
159 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

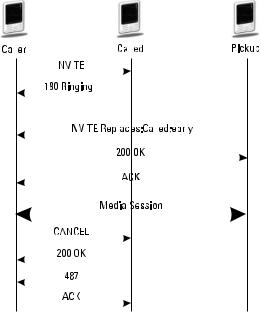

Figure 6.3 Call flow showing call pickup using Replaces.
Accept-Contact and Request-Disposition are part of the SIP caller preferences extensions. The compact form is j. Examples include:
Reject-Contact: sip:admin@boss.com
j:*;media=video
6.2.26Request-Disposition
The Request-Disposition [23] header field can be used to request servers to either proxy, redirect, or initiate serial or parallel (forking) searches. An example is:
Request-Disposition: redirect
6.2.27 Require
The Require header field is used to list features and extensions that a UAC requires a UAS to support in order to process the request. A 420 Bad Extension response is returned by the UAS listing any unsupported features in an Unsupported header field. If support or use of a feature is desirable but not
160 |
SIP: Understanding the Session Initiation Protocol |
required, the Supported header field is used instead. See Table 6.10 for a list of feature tags.
An example is:
Require: rel100
6.2.28 Resource-Priority
The Resource-Priority header field [30] is used to convey resource priority in a SIP request. It has been used to interwork with PSTN pre-emption and priority queuing protocols. The header field contains namespace and a resource priority value, separated by a dot. Multiple values can be included separated by commas. Defined namespaces for Resource-Priority are included in Table 6.16. Resource-Priority namespaces supported can be listed in an Accept-Resource- Priority header field. The resource-priority option tag is used to indicate support for this mechanism.
An example is:
Resource-Priority: dsn.flash
6.2.29 Response-Key
The Response-Key header field was defined in RFC 2543 but was deprecated in RFC 3261 along with all PGP-based encryption in favor of S/MIME encryption.
6.2.30 Route
The Route header field is used to provide routing information for requests. RFC 3261 introduces two types of routing: strict and loose routing, which have similar meaning as the IP routing modes of the same name. In strict routing, a proxy must use the first URI in the Route header field to rewrite the Request-URI,
|
Table 6.16 |
|
|
Resource-Priority Namespaces |
|
Value |
Name |
|
|
|
|
dsn |
Defense switched network |
|
dsrn |
Defense RED switched network |
|
q735 |
Commercial implementation of DSN multilevel |
|
precedence and preemption (MLPP) |
||
|
||
ets |
Emergency telecommunications service |
|
wps |
Wireless priority service |
