- •Contents
- •Foreword to the First Edition
- •Preface to the Third Edition
- •Preface to the Second Edition
- •Preface to the First Edition
- •1 SIP and the Internet
- •1.1 Signaling Protocols
- •1.2 Internet Multimedia Protocol Stack
- •1.2.1 Physical Layer
- •1.2.2 Data/Link Layer
- •1.2.3 Network Layer
- •1.2.4 Transport Layer
- •1.2.5 Application Layer
- •1.2.6 Utility Applications
- •1.2.7 Multicast
- •1.3 Internet Names
- •1.4 URLs, URIs, and URNs
- •1.5 Domain Name Service
- •1.5.1 DNS Resource Records
- •1.5.2 Address Resource Records (A or AAAA)
- •1.5.3 Service Resource Records (SRV)
- •1.5.4 Naming Authority Pointer Resource Records (NAPTR)
- •1.5.5 DNS Resolvers
- •1.6 Global Open Standards
- •1.7 Internet Standards Process
- •1.8 A Brief History of SIP
- •1.9 Conclusion
- •References
- •2 Introduction to SIP
- •2.1 A Simple Session Establishment Example
- •2.2 SIP Call with a Proxy Server
- •2.3 SIP Registration Example
- •2.4 SIP Presence and Instant Message Example
- •2.5 Message Transport
- •2.5.1 UDP Transport
- •2.5.2 TCP Transport
- •2.5.3 TLS Transport
- •2.5.4 SCTP Transport
- •2.6 Transport Protocol Selection
- •2.7 Conclusion
- •2.8 Questions
- •References
- •3 SIP Clients and Servers
- •3.1 SIP User Agents
- •3.2 Presence Agents
- •3.3 Back-to-Back User Agents
- •3.4 SIP Gateways
- •3.5 SIP Servers
- •3.5.1 Proxy Servers
- •3.5.2 Redirect Servers
- •3.5.3 Registrar Servers
- •3.6 Uniform Resource Indicators
- •3.7 Acknowledgment of Messages
- •3.8 Reliability
- •3.9 Multicast Support
- •3.10 Conclusion
- •3.11 Questions
- •References
- •4 SIP Request Messages
- •4.1 Methods
- •4.1.1 INVITE
- •4.1.2 REGISTER
- •4.1.5 CANCEL
- •4.1.6 OPTIONS
- •4.1.7 SUBSCRIBE
- •4.1.8 NOTIFY
- •4.1.9 PUBLISH
- •4.1.10 REFER
- •4.1.11 MESSAGE
- •4.1.12 INFO
- •4.1.13 PRACK
- •4.1.14 UPDATE
- •4.2 URI and URL Schemes Used by SIP
- •4.2.1 SIP and SIPS URIs
- •4.2.2 Telephone URLs
- •4.2.3 Presence and Instant Messaging URLs
- •4.3 Tags
- •4.4 Message Bodies
- •4.5 Conclusion
- •4.6 Questions
- •References
- •5 SIP Response Messages
- •5.1 Informational
- •5.1.1 100 Trying
- •5.1.2 180 Ringing
- •5.1.3 181 Call is Being Forwarded
- •5.1.4 182 Call Queued
- •5.1.5 183 Session Progress
- •5.2 Success
- •5.2.2 202 Accepted
- •5.3 Redirection
- •5.3.1 300 Multiple Choices
- •5.3.2 301 Moved Permanently
- •5.3.3 302 Moved Temporarily
- •5.3.4 305 Use Proxy
- •5.3.5 380 Alternative Service
- •5.4 Client Error
- •5.4.1 400 Bad Request
- •5.4.2 401 Unauthorized
- •5.4.3 402 Payment Required
- •5.4.4 403 Forbidden
- •5.4.5 404 Not Found
- •5.4.6 405 Method Not Allowed
- •5.4.7 406 Not Acceptable
- •5.4.8 407 Proxy Authentication Required
- •5.4.9 408 Request Timeout
- •5.4.11 410 Gone
- •5.4.12 411 Length Required
- •5.4.13 412 Conditional Request Failed
- •5.4.14 413 Request Entity Too Large
- •5.4.15 414 Request-URI Too Long
- •5.4.16 415 Unsupported Media Type
- •5.4.17 416 Unsupported URI Scheme
- •5.4.18 417 Unknown Resource Priority
- •5.4.19 420 Bad Extension
- •5.4.20 421 Extension Required
- •5.4.21 422 Session Timer Interval Too Small
- •5.4.22 423 Interval Too Brief
- •5.4.23 428 Use Identity Header
- •5.4.24 429 Provide Referror Identity
- •5.4.25 430 Flow Failed
- •5.4.26 433 Anonymity Disallowed
- •5.4.27 436 Bad Identity-Info Header
- •5.4.29 438 Invalid Identity Header
- •5.4.30 439 First Hop Lacks Outbound Support
- •5.4.31 440 Max-Breadth Exceeded
- •5.4.32 470 Consent Needed
- •5.4.33 480 Temporarily Unavailable
- •5.4.34 481 Dialog/Transaction Does Not Exist
- •5.4.35 482 Loop Detected
- •5.4.36 483 Too Many Hops
- •5.4.37 484 Address Incomplete
- •5.4.38 485 Ambiguous
- •5.4.39 486 Busy Here
- •5.4.40 487 Request Terminated
- •5.4.41 488 Not Acceptable Here
- •5.4.42 489 Bad Event
- •5.4.43 491 Request Pending
- •5.4.44 493 Request Undecipherable
- •5.4.45 494 Security Agreement Required
- •5.5 Server Error
- •5.5.1 500 Server Internal Error
- •5.5.2 501 Not Implemented
- •5.5.3 502 Bad Gateway
- •5.5.4 503 Service Unavailable
- •5.5.5 504 Gateway Timeout
- •5.5.6 505 Version Not Supported
- •5.5.7 513 Message Too Large
- •5.5.8 580 Preconditions Failure
- •5.6 Global Error
- •5.6.1 600 Busy Everywhere
- •5.6.2 603 Decline
- •5.6.3 604 Does Not Exist Anywhere
- •5.6.4 606 Not Acceptable
- •5.7 Questions
- •References
- •6 SIP Header Fields
- •6.1 Request and Response Header Fields
- •6.1.1 Accept
- •6.1.2 Accept-Encoding
- •6.1.3 Accept-Language
- •6.1.4 Alert-Info
- •6.1.5 Allow
- •6.1.6 Allow-Events
- •6.1.7 Answer-Mode
- •6.1.8 Call-ID
- •6.1.9 Contact
- •6.1.10 CSeq
- •6.1.11 Date
- •6.1.12 Encryption
- •6.1.13 Expires
- •6.1.14 From
- •6.1.15 History Info
- •6.1.16 Organization
- •6.1.17 Path
- •6.1.19 Record-Route
- •6.1.20 Recv-Info
- •6.1.21 Refer-Sub
- •6.1.22 Retry-After
- •6.1.23 Subject
- •6.1.24 Supported
- •6.1.25 Timestamp
- •6.1.27 User-Agent
- •6.2 Request Header Fields
- •6.2.1 Accept-Contact
- •6.2.2 Authorization
- •6.2.3 Call-Info
- •6.2.4 Event
- •6.2.5 Hide
- •6.2.6 Identity
- •6.2.7 Identity-Info
- •6.2.8 In-Reply-To
- •6.2.9 Info-Package
- •6.2.10 Join
- •6.2.11 Priority
- •6.2.12 Privacy
- •6.2.13 Proxy-Authorization
- •6.2.14 Proxy-Require
- •6.2.15 P-OSP-Auth-Token
- •6.2.16 P-Asserted-Identity
- •6.2.17 P-Preferred-Identity
- •6.2.18 Max-Breadth
- •6.2.19 Max-Forwards
- •6.2.20 Reason
- •6.2.21 Refer-To
- •6.2.22 Referred-By
- •6.2.23 Reply-To
- •6.2.24 Replaces
- •6.2.25 Reject-Contact
- •6.2.26 Request-Disposition
- •6.2.27 Require
- •6.2.28 Resource-Priority
- •6.2.29 Response-Key
- •6.2.30 Route
- •6.2.31 RAck
- •6.2.32 Security-Client
- •6.2.33 Security-Verify
- •6.2.34 Session-Expires
- •6.2.35 SIP-If-Match
- •6.2.36 Subscription-State
- •6.2.37 Suppress-If-Match
- •6.2.38 Target-Dialog
- •6.2.39 Trigger-Consent
- •6.3 Response Header Fields
- •6.3.1 Accept-Resource-Priority
- •6.3.2 Authentication-Info
- •6.3.3 Error-Info
- •6.3.4 Flow-Timer
- •6.3.5 Min-Expires
- •6.3.7 Permission-Missing
- •6.3.8 Proxy-Authenticate
- •6.3.9 Security-Server
- •6.3.10 Server
- •6.3.11 Service-Route
- •6.3.12 SIP-ETag
- •6.3.13 Unsupported
- •6.3.14 Warning
- •6.3.15 WWW-Authenticate
- •6.3.16 RSeq
- •6.4 Message Body Header Fields
- •6.4.1 Content-Encoding
- •6.4.2 Content-Disposition
- •6.4.3 Content-Language
- •6.4.4 Content-Length
- •6.4.5 Content-Type
- •6.4.6 MIME-Version
- •6.5 Questions
- •References
- •7 Wireless, Mobility, and IMS
- •7.1 IP Mobility
- •7.2 SIP Mobility
- •7.4 IMS Header Fields
- •7.5 Conclusion
- •7.6 Questions
- •References
- •8 Presence and Instant Messaging
- •8.1 Introduction
- •8.2 History of IM and Presence
- •8.3 SIMPLE
- •8.4 Presence with SIMPLE
- •8.4.1 SIP Events Framework
- •8.4.2 Presence Bodies
- •8.4.3 Resource Lists
- •8.4.4 Filtering
- •8.4.6 Partial Publication
- •8.4.7 Presence Documents Summary
- •8.5 Instant Messaging with SIMPLE
- •8.5.1 Page Mode Instant Messaging
- •8.5.4 Message Composition Indication
- •8.5.5 Multiple Recipient Messages
- •8.5.6 Session Mode Instant Messaging
- •8.6 Jabber
- •8.6.1 Standardization as Extensible Messaging and Presence Protocol
- •8.6.2 Interworking with SIMPLE
- •8.6.3 Jingle
- •8.6.4 Future Standardization of XMPP
- •8.7 Conclusion
- •8.8 Questions
- •References
- •9 Services in SIP
- •9.1 Gateway Services
- •9.2 SIP Trunking
- •9.3 SIP Service Examples
- •9.4 Voicemail
- •9.5 SIP Video
- •9.6 Facsimile
- •9.7 Conferencing
- •9.7.1 Focus
- •9.7.2 Mixer
- •9.8 Application Sequencing
- •9.9 Other SIP Service Architectures
- •9.9.1 Service Oriented Architecture
- •9.9.2 Servlets
- •9.9.3 Service Delivery Platform
- •9.10 Conclusion
- •9.11 Questions
- •References
- •10 Network Address Translation
- •10.1 Introduction to NAT
- •10.2 Advantages of NAT
- •10.3 Disadvantages of NAT
- •10.4 How NAT Works
- •10.5 Types of NAT
- •10.5.1 Endpoint Independent Mapping NAT
- •10.5.2 Address Dependent Mapping NAT
- •10.5.3 Address and Port Dependent Mapping NAT
- •10.5.4 Hairpinning Support
- •10.5.5 IP Address Pooling Options
- •10.5.6 Port Assignment Options
- •10.5.7 Mapping Refresh
- •10.5.8 Filtering Modes
- •10.6 NAT Mapping Examples
- •10.7 NATs and SIP
- •10.8 Properties of a Friendly NAT or How a NAT Should BEHAVE
- •10.9 STUN Protocol
- •10.10 UNSAF Requirements
- •10.11 SIP Problems with NAT
- •10.11.1 Symmetric SIP
- •10.11.2 Connection Reuse
- •10.11.3 SIP Outbound
- •10.12 Media NAT Traversal Solutions
- •10.12.1 Symmetric RTP
- •10.12.2 RTCP Attribute
- •10.12.3 Self-Fixing Approach
- •10.13 Hole Punching
- •10.14 TURN: Traversal Using Relays Around NAT
- •10.15 ICE: Interactive Connectivity Establishment
- •10.16 Conclusion
- •10.17 Questions
- •References
- •11 Related Protocols
- •11.1 PSTN Protocols
- •11.1.1 Circuit Associated Signaling
- •11.1.2 ISDN Signaling
- •11.1.3 ISUP Signaling
- •11.2 SIP for Telephones
- •11.3 Media Gateway Control Protocols
- •11.4.1 Introduction to H.323
- •11.4.2 Example of H.323
- •11.4.3 Versions
- •References
- •12 Media Transport
- •12.1 Real-Time Transport Protocol (RTP)
- •12.2 RTP Control Protocol (RTCP)
- •12.2.1 RTCP Reports
- •12.2.2 RTCP Extended Reports
- •12.3 Compression
- •12.4.1 Audio Codecs
- •12.4.2 Video Codecs
- •12.5 Conferencing
- •12.6 ToIP—Conversational Text
- •12.7 DTMF Transport
- •12.8 Questions
- •References
- •13 Negotiating Media Sessions
- •13.1 Session Description Protocol (SDP)
- •13.1.1 Protocol Version
- •13.1.2 Origin
- •13.1.3 Session Name and Information
- •13.1.5 E-Mail Address and Phone Number
- •13.1.6 Connection Data
- •13.1.7 Bandwidth
- •13.1.8 Time, Repeat Times, and Time Zones
- •13.1.9 Encryption Keys
- •13.1.10 Media Announcements
- •13.1.11 Attributes
- •13.2 SDP Extensions
- •13.3 The Offer Answer Model
- •13.3.1 Rules for Generating an Offer
- •13.3.2 Rules for Generating an Answer
- •13.3.3 Rules for Modifying a Session
- •13.3.4 Special Case—Call Hold
- •13.4 Static and Dynamic Payloads
- •13.5 SIP Offer Answer Exchanges
- •13.6 Conclusion
- •13.7 Questions
- •References
- •14 SIP Security
- •14.1 Basic Security Concepts
- •14.1.1 Encryption
- •14.1.2 Public Key Cryptography
- •14.1.4 Message Authentication
- •14.2 Threats
- •14.3 Security Protocols
- •14.3.1 IPSec
- •14.3.3 DNSSec
- •14.3.4 Secure MIME
- •14.4 SIP Security Model
- •14.4.1 SIP Digest Authentication
- •14.4.2 SIP Authentication Using TLS
- •14.4.3 Secure SIP
- •14.4.4 Identity
- •14.4.5 Enhanced SIP Identity
- •14.6 Media Security
- •14.6.1 Non-RTP Media
- •14.6.2 Secure RTP
- •14.6.3 Keying SRTP
- •14.6.4 Best Effort Encryption
- •14.6.5 ZRTP
- •14.7 Questions
- •References
- •15 Peer-to-Peer SIP
- •15.1 P2P Properties
- •15.2 P2P Properties of SIP
- •15.3 P2P Overlays
- •15.4 RELOAD
- •15.5 Host Identity Protocol
- •15.6 Conclusion
- •15.7 Questions
- •References
- •16 Call Flow Examples
- •16.1 SIP Call with Authentication, Proxies, and Record-Route
- •16.2 SIP Call with Stateless and Stateful Proxies with Called Party Busy
- •16.3 SIP to PSTN Call Through Gateways
- •16.4 PSTN to SIP Call Through a Gateway
- •16.5 Parallel Search
- •16.6 Call Setup with Two Proxies
- •16.7 SIP Presence and Instant Message Example
- •References
- •17 Future Directions
- •17.2 More Extensions
- •17.3 Better Identity
- •17.4 Interdomain SIP
- •17.5 Making Features Work Better
- •17.6 Emergency Calling
- •17.7 More SIP Trunking
- •17.9 Improved NAT Traversal
- •17.10 Security Deployment
- •17.11 Better Interoperability
- •References
- •A.1 ABNF Rules
- •A.2 Introduction to XML
- •References
- •About the Author

SIP Clients and Servers |
61 |
SIP. This solves the problem of how long to store state information in cases where a BYE request is lost or misdirected, or in other security cases described in later sections. The details of this implementation are described in Section 6.2.34.
3.5.2Redirect Servers
A redirect server was introduced in Figure 2.6 as a type of SIP server that responds to, but does not forward, requests. Like a proxy server, a redirect server uses a database or location service to lookup a user. The location information, however, is sent back to the caller in a redirection class response (3xx), which, after the ACK, concludes the transaction. Figure 3.5 shows a call flow that is very similar to the example in Figure 3.2, except the server uses redirection instead of proxying to assist Schroedinger in locating Heisenberg.
The INVITE from Figure 3.5 contains:
INVITE sip:werner.heisenberg@munich.de SIP/2.0
Via: SIP/2.0/UDP 100.101.102.103:5060 ;branch=z9hG4bK54532 Max-Forwards: 70
To: Heisenberg <sip:werner.heisenberg@munich.de>
From: E. Schroedinger <sip:schroed5244@wave.org>;tag=4313413 Call-ID: 734224912341371927319032
CSeq: 1 INVITE

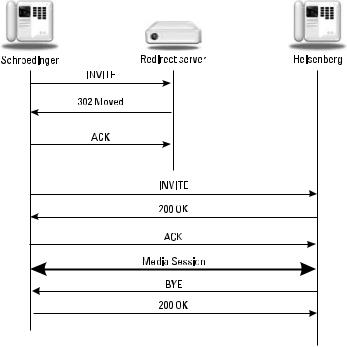

Figure 3.5 Example with redirect server.

62 SIP: Understanding the Session Initiation Protocol
Subject: Where are you exactly?
Contact: <sip:schroed5244@pc33.wave.org>
Content-Type: application/sdp
Content-Length: 150
v=0
o=schroed5244 2890844526 2890844526 IN IP4 100.101.102.103 s=-
t=0 0
c=IN IP4 100.101.102.103 m=audio 49172 RTP/AVP 0 a=rtpmap:0 PCMU/8000
The redirection response to the INVITE is sent by the redirect server:
SIP/2.0 302 Moved Temporarily
Via: SIP/2.0/UDP 100.101.102.103:5060;branch=z9hG4bK54532
To: Heisenberg <sip:werner.heisenberg@munich.de>;tag=052500 From: E. Schroedinger <sip:schroed5244@wave.org>;tag=4313413 Call-ID: 734224912341371927319032
CSeq: 1 INVITE
Contact: sip:werner.heisenberg@200.201.202.203 Content-Length: 0
Schroedinger acknowledges the response:
ACK sip:werner.heisenberg@munich.de SIP/2.0
Via: SIP/2.0/UDP 100.101.102.103:5060;branch=z9hG4bK54532 Max-Forwards: 70
To: Heisenberg <sip:werner.heisenberg@munich.de>;tag=052500 From: E. Schroedinger <sip:schroed5244@wave.org>;tag=4313413 Call-ID: 734224912341371927319032
CSeq: 1 ACK Content-Length: 0
Notice that the ACK request reuses the same branch ID as the INVITE and the 302 response. This is because an ACK to a non-2xx final response is considered to be part of the same transaction as the INVITE. Only an ACK sent in response to a 200 OK is considered a separate transaction with a unique branch ID. Also, an ACK to a non-2xx final response is a hop-by-hop response, not an end-to-end response as discussed in Section 3.6.
This exchange completes this call attempt, so a new INVITE is generated with a new Call-ID and sent directly to the location obtained from the Contact header field in the 302 response from the redirect server.
INVITE sip:werner.heisenberg@200.201.202.203 SIP/2.0 Via: SIP/2.0/UDP 100.101.102.103:5060;branch=z9hG4bK92313 Max-Forwards: 70
To: Heisenberg <sip:werner.heisenberg@munich.de>
From: E. Schroedinger <sip:schroed5244@wave.org>;tag=13473 Call-ID: 54-67-45-23-13
CSeq: 1 INVITE
Subject: Where are you exactly?
SIP Clients and Servers |
63 |
Contact: <sip:schroed5244@pc33.wave.org>
Content-Type: application/sdp
Content-Length: 150
v=0
o=schroed5244 2890844526 2890844526 IN IP4 00.101.102.103
s=- t=0 0
c=IN IP4 100.101.102.103 m=audio 49172 RTP/AVP 0 a=rtpmap:0 PCMU/8000
The call then proceeds in the same way as Figure 3.2, with the messages being identical. Note that in Figure 3.5, a 180 Ringing response is not sent; instead, the 200 OK response is sent right away. Since 1xx informational responses are optional, this is a perfectly valid response by the UAS if Heisenberg responded to the alerting immediately and accepted the call. In the PSTN, this scenario is called fast answer.
3.5.3Registrar Servers
A SIP registrar server was introduced in the example of Figure 3.3. A registrar server, also known as a registration server, accepts SIP REGISTER requests; all other requests receive a 501 Not Implemented response. The contact information from the request is then made available to other SIP servers within the same administrative domain, such as proxies and redirect servers. In a registration request, the To header field contains the name of the resource being registered, and the Contact header fields contain the contact or device URIs. The registration server creates a temporary binding between the address of record (AOR) URI in the To and the device URI in the Contact header field.
Registration servers usually require the registering user agent to be authenticated, using the means described in Chapter 14, so that incoming calls cannot be hijacked by an unauthorized user. This could be accomplished by an unauthorized user registering someone else’s SIP URI to point to their own UA. Incoming calls to that URI would then ring the wrong UA. Depending on the header fields present, a REGISTER request can be used by a user agent to retrieve a list of current registrations, clear all registrations, or add a registration URI to the list. These types of requests are described in Section 4.1.2.
There are a number of ways in which a proxy may know to fork a request to a set of UAs. One way is through manual configuration, such as entering the information in a Web page or database. Another way is to have multiple registrations for the same AOR. If multiple UAs register against the same AOR, the proxy can fork an incoming request to all of them. The priority of multiple registrations is governed by the q-value included in the Contact header field. For contacts of the same priority, a proxy can fork the request to all of them at the
