OnCE™ Module

ARCHIVED BY FREESCALE SEMICONDUCTOR, INC. 2005

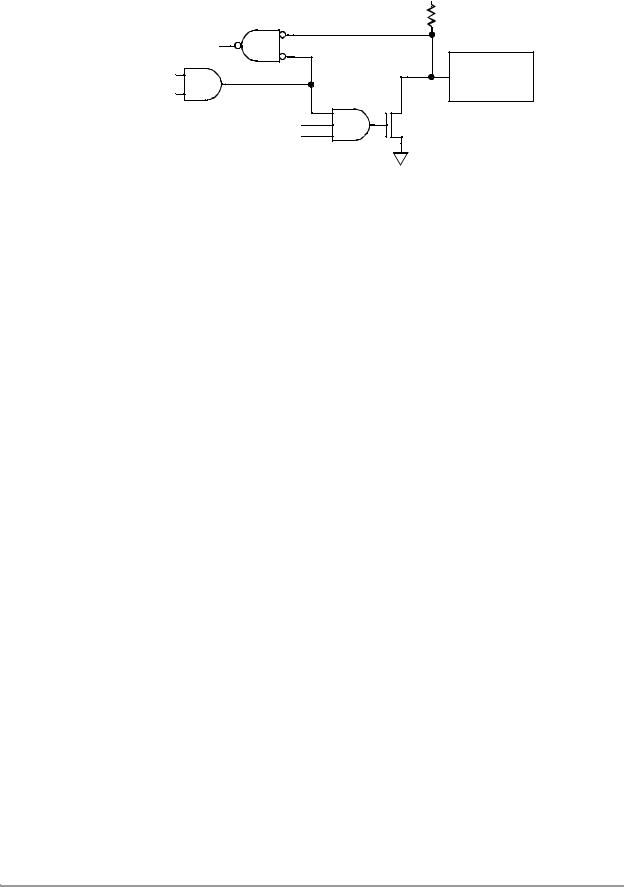

Figure 12-8. Debug Event Pin

12.4.4.5 FIFO Halt (FH)—Bit 7

The FIFO halt (FH) bit allows the user to halt address capture in the OnCE change-of-flow FIFO (OPFIFO) register, the OnCE PAB fetch register (OPABFR), the OnCE PAB decode register (OPABDR), and the OnCE PAB execute register (OPABER) when the bit is set. The FH bit is set only by writes to the OCR, never automatically by on-chip circuitry (that is, it is a control bit, never a status bit). This gives the user a simple method to halt the PAB history capture without setting up event conditions using the EM bits and breakpoint circuitry.

NOTE:

The FIFO is halted immediately after the FH bit is set. This means that the FIFO can be halted in the middle of instruction execution, leading to incoherent OPFIFO register contents.

12.4.4.6 Event Modifier (EM[1:0])—Bits 6–5

The event modifier (EM[1:0]) bits allow different actions to take place when a OnCE event occurs. OnCE events are defined to be occurrences of hardware breakpoints, software breakpoints, and traces. Each event occurrence sets the respective occurrence bit (HBO, SBO, or TO) in the OnCE status register (OSR), regardless of EM encoding. In addition, when the DE pin is enabled, each event occurrence drives DE low until the event is rearmed, again regardless of EM encoding.

The first trigger condition of a breakpoint sequence does not set a bit in the OSR. Only completion of the final trigger condition sets the respective bit in the OSR (hardware breakpoint occurrence, HBO, for all but one BK encoding).

When EM[1:0] = 00, a OnCE event halts the core and the chip enters debug mode. The core is halted on instruction boundaries only. When the core is halted, the user has access to core registers as well as data and program memory locations, including peripheral memory-mapped registers. The user also has the ability to execute core instructions forced into the instruction pipeline via OnCE module transfers.

If EM[1:0] = 01, the core does not halt when an event occurs (that is, debug mode is not entered), but the OPFIFO, OPABFR, OPABDR, and OPABER registers stop capturing. This allows the user to access the PAB history information while the application continues to execute.

If EM[1:0] = 10, the core does not halt when an event occurs, but a level 1 interrupt occurs with a vector at location P:$000C. This allows the user to execute diagnostic subroutines upon event occurrences or even to patch program memory by setting a breakpoint at the beginning of the code to be patched. Note that trace occurrences do not trigger vectored interrupts. Only hardware and software breakpoints are allowed OnCE events for this EM encoding.
