590 Part III Working with Data
Figure 19-4: The current drawing is blank but displays an xref of a house plan that has a nested xref of a title block.
Editing an Xref within Your Drawing
While you’re working in a drawing with an external reference, you may decide that the external reference needs some modification. The same may apply if you inserted a file as a block. You can make changes to the xref or block and save those changes back to the original drawing. You can even transfer objects from your drawing to the xref or block, and vice versa. This feature is called in-place editing.
AutoCAD LT doesn’t include the in-place editing feature. Instead, you need to explode the block and redefine it (for blocks) or open the original file and modify it (for xrefs).
The steps to edit an xref or block are as follows:
1.Choose the xref or block in your drawing.
2.Choose from any nested xrefs.
3.Select the objects that you want to edit to add them to the working set of objects being edited.
4.Edit the objects.
5.If desired, add or remove objects from the working set to transfer them to or from the xref or block.
6.Save the changes back to the xref or block.
Choosing the xref or block to edit
To start the process of in-place editing, double-click the xref that you want to edit. The Reference Edit dialog box opens, as shown in Figure 19-5. You can also choose Tools Xref and Block In-place Editing Edit Reference In-Place, and then select the xref that you want to edit.

Chapter 19 Referencing Other Drawings 591
Figure 19-5: The Reference Edit dialog box enables you to choose which reference you want to edit, including nested references.
As you click each of the available references, its preview appears at the right. If the xref has nested objects, choose one of the following options (if it does not, then ignore this section of the dialog box):
Automatically select all nested objects: Includes all nested objects in the editing process.
Prompt to select nested objects: Prompts you to select the nested objects that you want to edit.
For more control, click the Settings tab to set the following options:
Create unique layer, style, and block names: Displays layer, style, and block names with a prefix of $#$, to help distinguish them from these named items in your main drawing.
Display attribute definitions for editing: Enables you to edit attribute definitions of blocks with attributes. (See Chapter 18 for details on attributes.)
Lock objects not in working set: Locks objects in the host drawing so that you can’t accidentally modify them.
Click OK to close the Reference Edit dialog box.
Note If the reference comes from an earlier release, you see a warning that if you save your changes back to the xref, that xref will be updated to AutoCAD 2006.
If you checked the Prompt to select nested objects option, you see a prompt to select nested objects. Complete object selection to define the working set, that is, the objects that you can edit. Other objects are faded by 50 percent (this is the default, determined by the XFADECTL system variable).
The Refedit toolbar opens, shown in Figure 19-6, and you see the message Use REFCLOSE or the Refedit toolbar to end reference editing session on the command line. You’re now ready to edit the xref or block.

592 Part III Working with Data
|
Save Reference Edits |
Edit Reference |
Remove from |
In-Place |
Working Set |
Add to Working Set
Close Reference

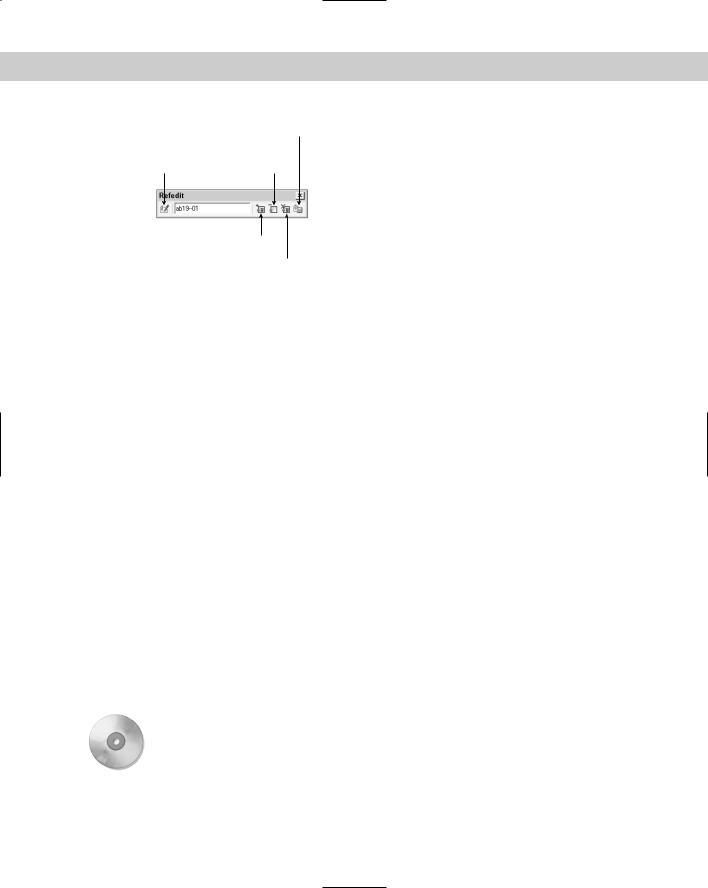

Figure 19-6: The Refedit toolbar.
Editing the xref
There are several types of edits that you can make on the working set of objects from the xref or block:
If you change an object’s properties, such as its layer, the object will have the new object property.
If you erase an object, the object is deleted from the xref or block.
If you draw a new object, the object is added to the xref or block. An exception occurs if you create a new object by editing objects outside the working set. For example, if you break a line (not in the working set) into two lines, then nothing is added to the working set.
You can transfer an object from the main drawing to the xref or block. Select an object and choose Add to Working Set. Remember that the working set consists of objects from the xref or block, so if you add objects to the working set, they become part of the xref or block.
You can transfer an object from the xref or block to the main drawing. Select an object and choose Remove from Working Set. The working set consists of objects from the xref or block, so if you remove objects from the working set, they’re no longer part of the xref or block; instead, they become part of your main drawing.
After you finish editing the working set, if you like what you did, choose Save Reference Edits from the Refedit toolbar. Otherwise, choose Close Reference.
When you save changes to a block, block definitions are redefined and all instances of the block are regenerated according to the new definition. If you gave an xref object properties that don’t exist in the xref, such as a layer, the new property is copied to the xref so that the object can keep that property.
On the |
The drawings used in the following exercise on editing an xref in place, ab19-a.dwg and |
CD-ROM |
ab19-b.dwg, are in the Drawings folder on the CD-ROM. |
STEPS: Editing an Xref in Place
1.Open ab19-a.dwg from the CD-ROM. Save it as ab19-03.dwg in your AutoCAD Bible folder.

Chapter 19 Referencing Other Drawings 593
2.Open ab19-b.dwg from the CD-ROM. Save it as ab19-04.dwg in your AutoCAD Bible folder. Click the Close box of ab19-04.dwg to close the drawing (but not the program), leaving ab19-03.dwg on your screen.
3.Choose Insert External Reference and choose ab19-04.dwg from the AutoCAD Bible folder. Click Open. From the External Reference dialog box, uncheck all of the Specify On-Screen check boxes and click OK to insert the xref.
4.Double-click the title block. The Reference Edit dialog box opens. Choose ab19-04.dwg. It is displayed in the preview box. Click OK. The Refedit toolbar opens, and you can now edit the xref. Your screen should look like Figure 19-7.
2 1

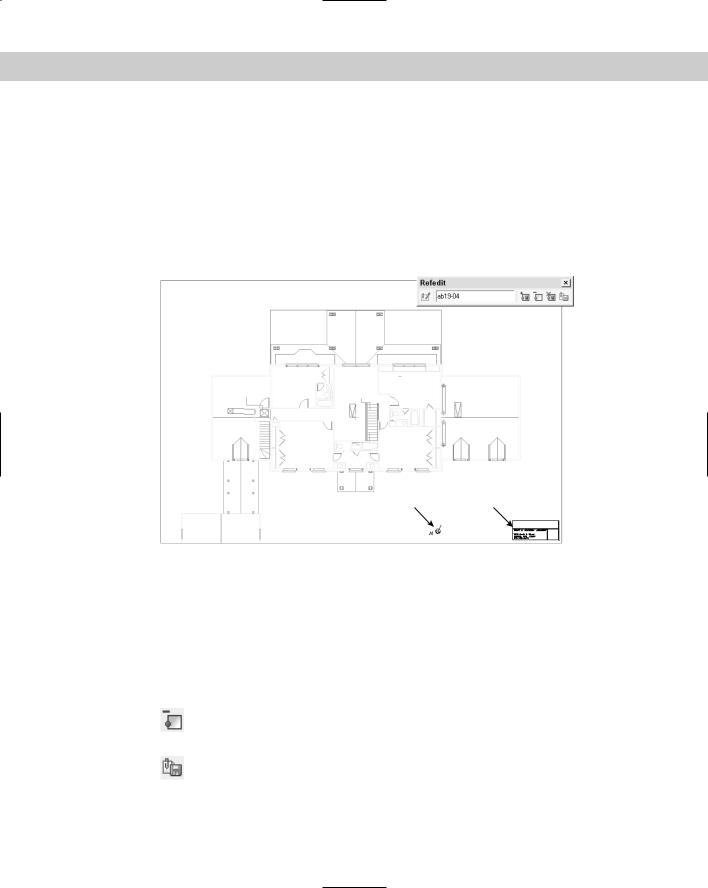

Figure 19-7: The title block is an xref in the drawing of the floor plan.
5.Select the title block again and choose Explode.
6.Choose Draw Text Single Line Text. At the Specify start point of text or
[Justify/Style]: prompt, pick 1 in Figure 19-7. At the Specify height <0'-0 3/16">: prompt, type 10 . Press Enter again for the rotation angle.
7.Type Davis Floor Plan and press Enter twice to end the command.
8.Choose the text (the name and address of the architect) at the bottom of the title block and change its color to red to make it stand out.
9.Select the letter N and arrow symbol at 2 in Figure 19-7. To transfer these objects from the xref to the floor plan drawing, choose Remove from Working Set from the
Refedit toolbar.
10.To save the changes, choose Save Reference Edits. Click OK again at the dialog
box that informs you that all reference edits will be saved. You see the following information on the command line:
The following symbols will be permanently bound to the current drawing:
Layers: $0$TITLEBLK
