Understanding Connected-Component Labeling

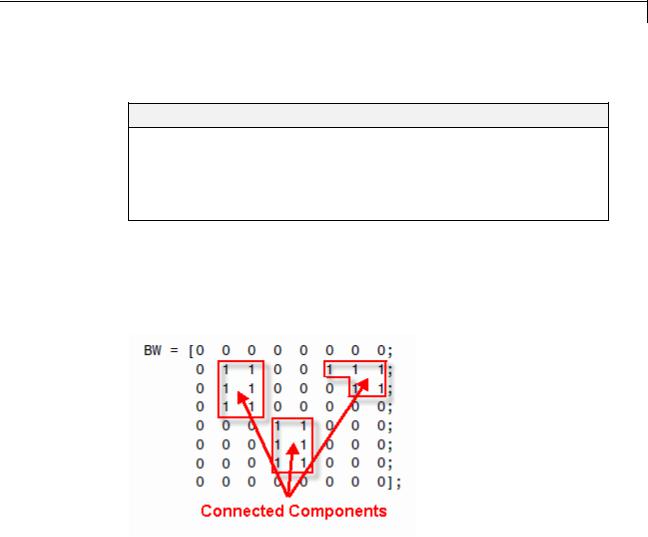

A connected component in a binary image is a set of pixels that form a connected group. For example, the binary image below has three connected components.

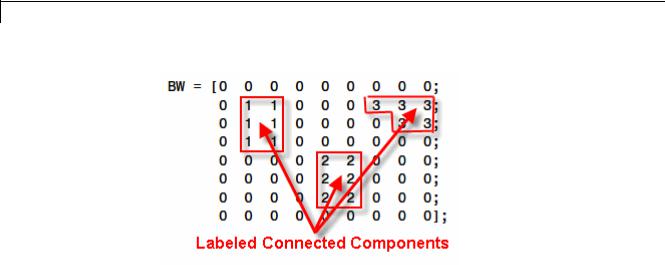

Connected component labeling is the process of identifying the connected components in an image and assigning each one a unique label, like this:

10-39

10 Morphological Operations

The matrix above is called a label matrix.

bwconncomp computes connected components, as shown in the example:

cc = bwconncomp(BW) cc =

Connectivity: 8 ImageSize: [8 9]

NumObjects: 3

PixelIdxList: {[6x1 double] [6x1 double] [5x1 double]}

The PixelIdxList identifies the list of pixels belonging to each connected component.

For visualizing connected components, it is useful to construct a label matrix. Use the labelmatrix function. To inspect the results, display the label matrix as a pseudo-color image using label2rgb.

Construct a label matrix:

labeled = labelmatrix(cc);

Create a pseudo-color image, where the label identifying each object in the label matrix maps to a different color in the associated colormap matrix. Use label2rgb to choose the colormap, the background color, and how objects in the label matrix map to colors in the colormap:
