5.2.7BLE and ZigBee support (STM32WB series only)

The Power Consumption tool allows the user to take into account the consumption related to the RF peripheral and corresponding BLE functional mode, combined with the usage of the SMPS feature.

Figure 261. RF related consumption (STM32WB series only)

The BLE mode can be selected from the left panel and configured to reflect the user’s application relevant settings. For each new step enabling BLE, the peripheral consumption part is updated accordingly (see Figure 262). A similar approach is used for ZigBee (see

Figure 263).

Figure 263. ZigBee configuration (STM32WB series only)

5.2.8Sub-Ghz support (STM32WL series only)

Sub-GHz usage can be enabled from the left panel and configured to reflect the user’s application relevant settings. For each new step enabling ZigBee, the peripheral consumption part is updated accordingly (see Figure 264).

Figure 264. RF sub-GHz configuration

5.2.9Example feature (STM32MP1 and STM32H7 dual-core only)

Under the section “Sequence Examples”, the PCC tool allows to access examples: each example come with an explanatory slide-set and a ready-made sequence to be loaded in PCC (see Figure 265).

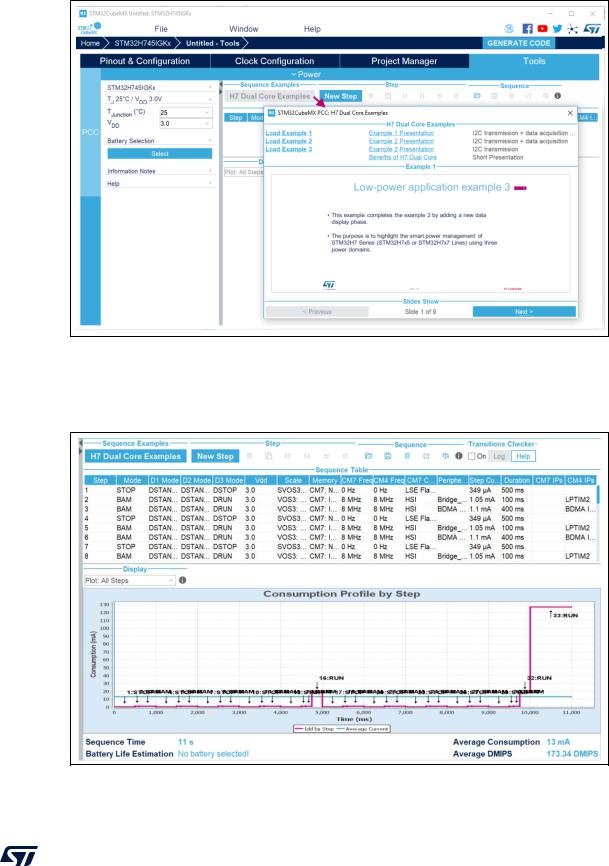

Figure 265. Power Consumption Calculator – Example set

Clicking “Load Example N” loads the sequence corresponding to the example N (see

Figure 266).

Figure 266. Power Consumption Calculator – Example sequence loading

Clicking “Example N Presentation” displays the explanations for that example.
