моделирование / lab4

Цуканов ИВТ-43

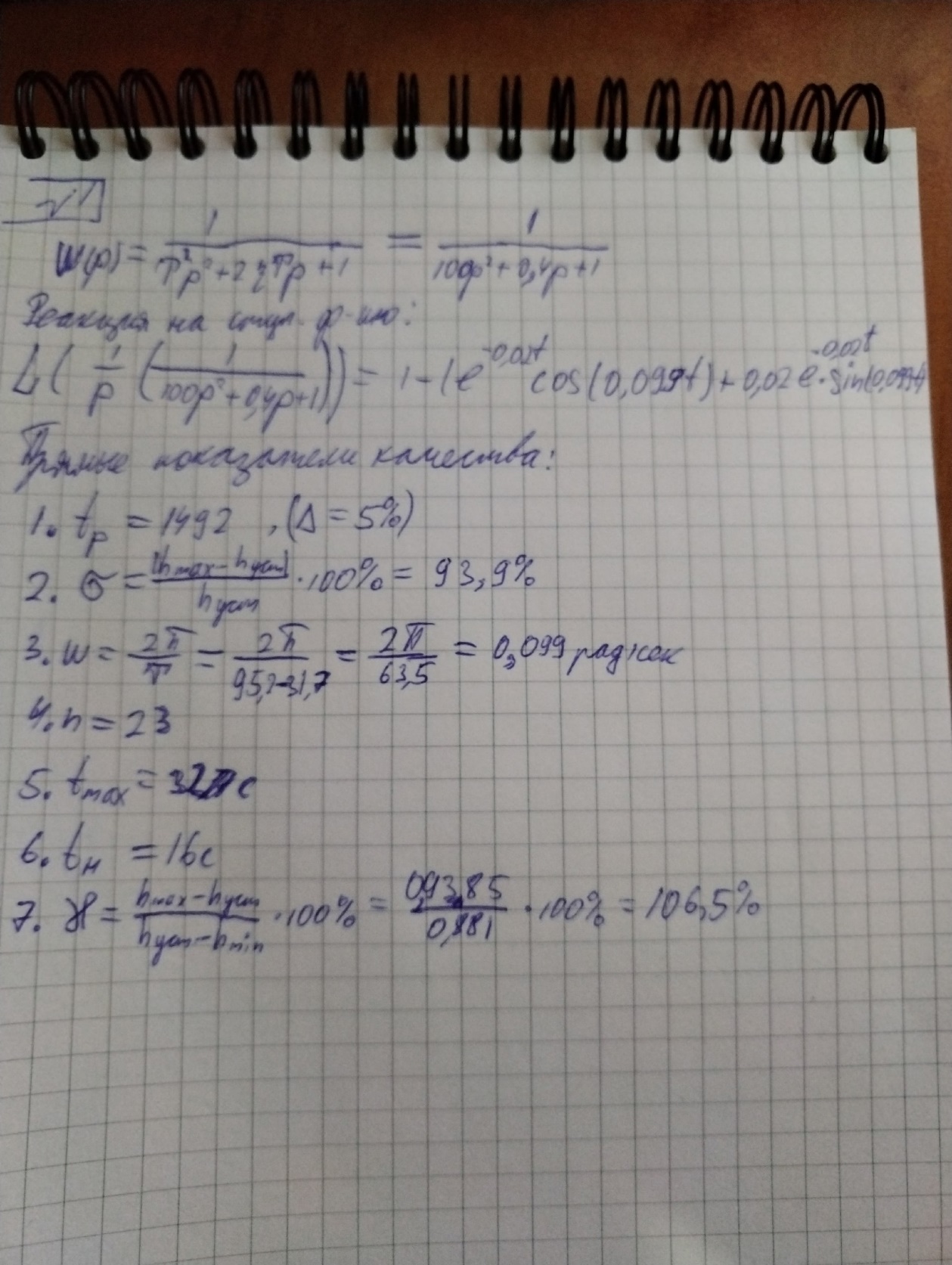

Задание 1

syms x

eq = 1 - (exp(-0.002*x)*cos(0.099*x) + 0.02*exp(-0.002*x)*sin(0.099*x));

n = 0:0.1:2000;

S1 = subs(eq, x, n);

figure(1)

hold on

plot(n, S1)

line([0 2000],[1 1]);

line([0 2000],[0.95 0.95],'Color','red','LineStyle','--');

line([0 2000],[1.05 1.05],'Color','green','LineStyle','--');

xlabel('t');

ylabel('h(t)');

Задание 2

clc, clear

Wp = @(p) 10 ./ (p.^2 + 0.4 .* p + 11);

syms j

Wij = Wp(1i .* j)

U = real(Wij)

V = imag(Wij)

figure(1)

hold on, grid on

xlabel('w'), ylabel('A')

A = sqrt(U^2 + V^2)

w = 0:0.01:10;

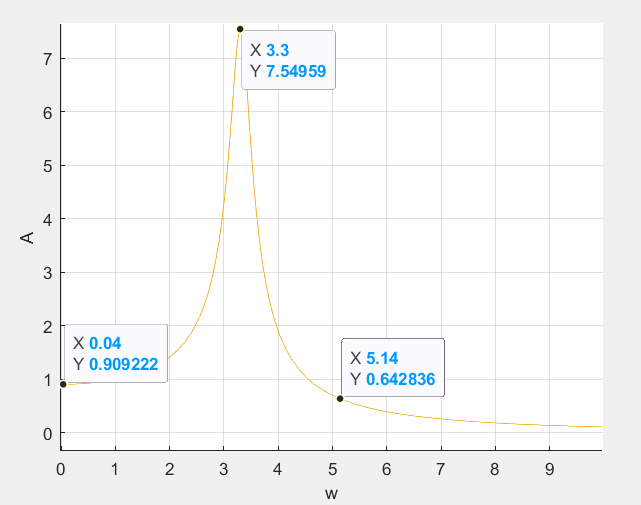

plot(w, subs(A, w))

figure(2)

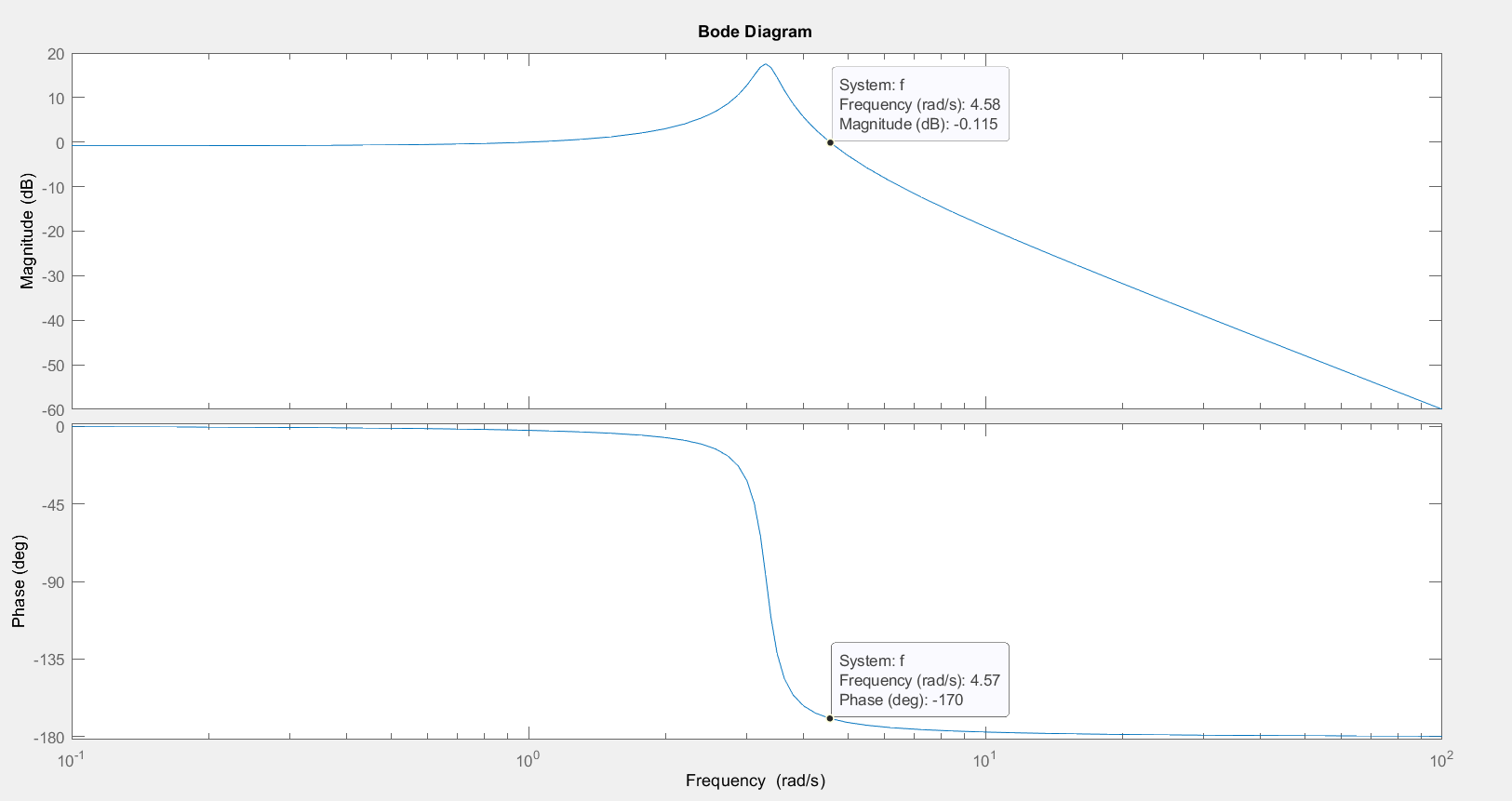

f=tf([10],[1 0.4 11])

bode(f)

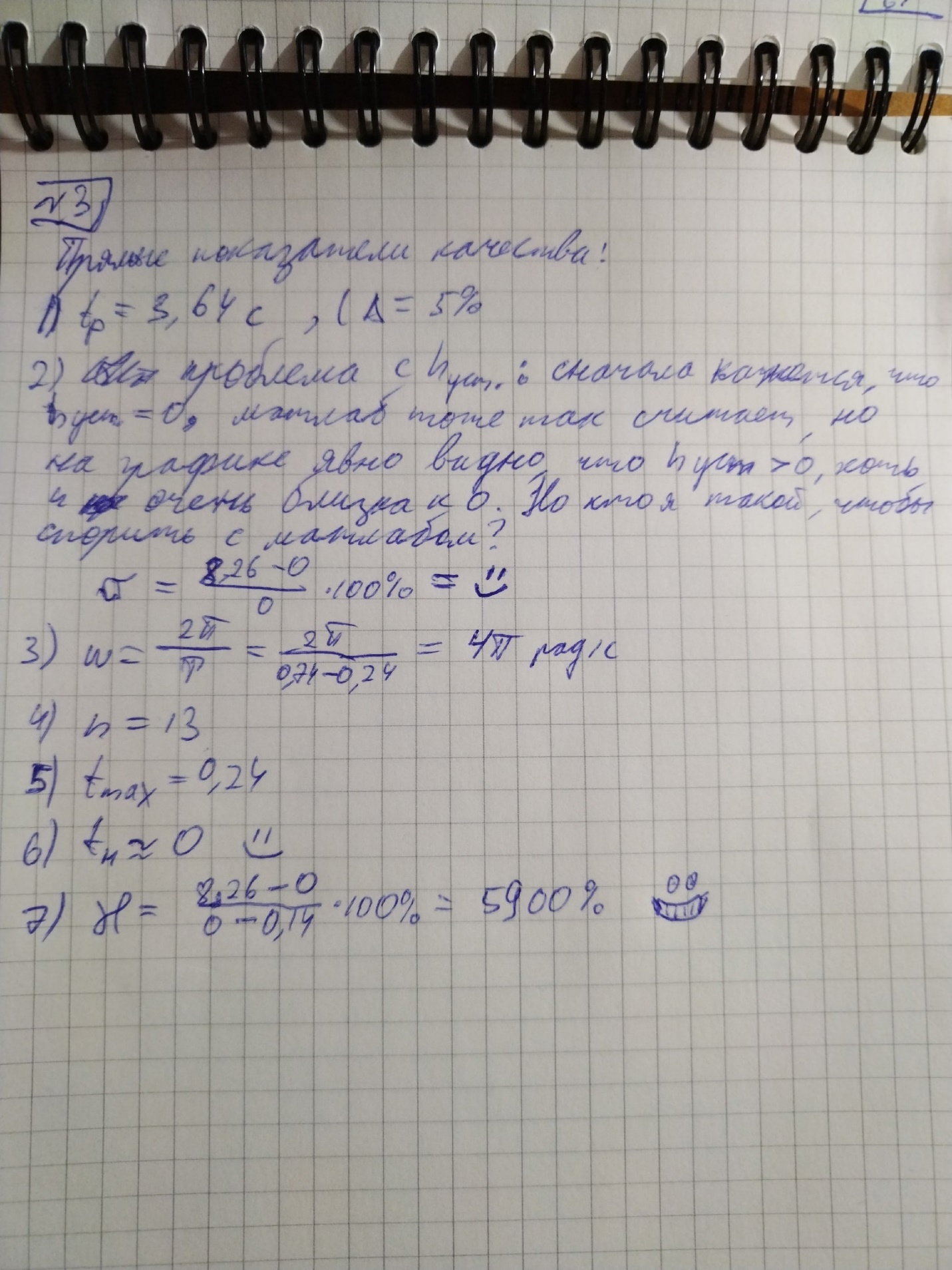

Задание 3

clc, clear

syms s t

k = 6;

T = 1.2;

T1 = 1.2;

T2 = 0.08;

ks = 0.06;

Wp = k*s / ((T1*s+1) * (T2^2*s^2 + 2*T2*ks*s + 1))

ht = ilaplace(Wp/s)

limit(ht)

n = 0:0.01:10;

S1 = subs(ht, t, n);

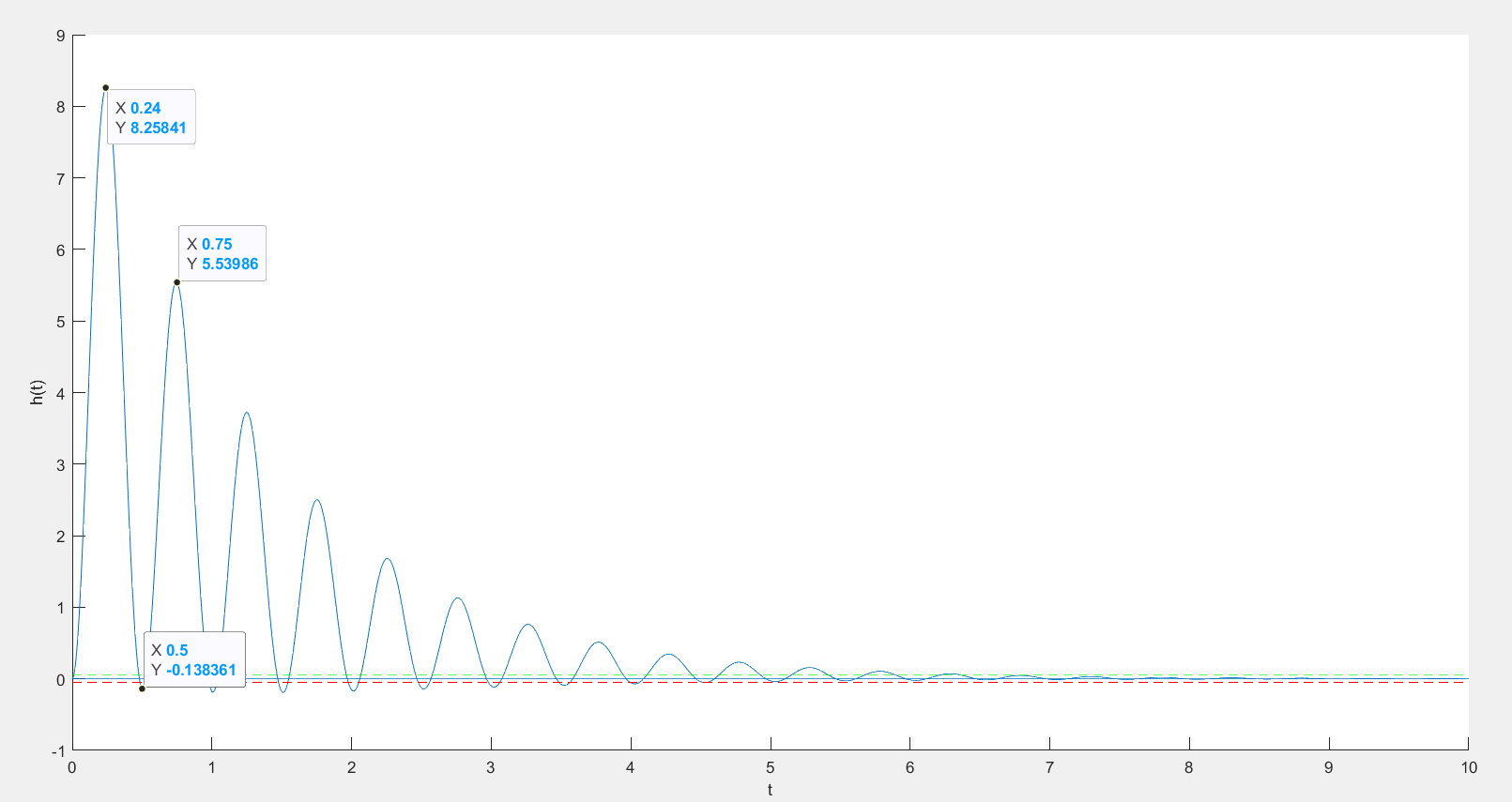

figure(1)

hold on

plot(n, S1)

line([0 10],[0 0]);

line([0 10],[-0.05 -0.05],'Color','red','LineStyle','--');

line([0 10],[0.05 0.05],'Color','green','LineStyle','--');

xlabel('t');

ylabel('h(t)');
