• r: radius of each conductor, cm |
|
|
|
||||
• Dtb: mean geometric distance between phases |
|
|
|
||||
• rtd: equivalent radius, at below formula: |
a |
||||||
|
|
|
|
|
|||
|
|
|
|
|
2sin |
180 |
|
|
n |
n.r |
|||||
rtđ = R |
|
|
|
[cm] , where R = |
|
n [cm] |
|
|
R |
|
For the voltage of110kV, minimum cross section to limit corona generation is 70mm2, and for the voltage of 220kV, the said cross section is 240mm2.
For the voltage of 220kV and above, split in 2 or 4 smaller conductors can be applied to limit corona. Wireless communication interference by corona must be checked too.
Article 74. The Selection of Lightning Conductor
As stipulated in Technical Regulation.
In selection of lightning conductor, thermal stability conditions when short circuit of one phase occurs must be checked according to guidelines given in Annex II.2.3 (I.3C).
Chapter 2-2-2 The Selection of Electrical Equipment by Short Circuit Conditions
Article 75. General provisions
As stipulated in Technical Regulation.
Article 76. Short Circuit Currents calculation scheme
It must calculate short circuit currents for power generation and transmission development diagram at least for the period 10 years after putting equipment into operation (approximate calculation).
The following short circuit cases shall be considered:
1.Three phase short circuit for checking electrodynamic stability of equipment, busbars, conductors and support structures.
2.Three phase short circuit for checking thermal stability of equipment, busbars and conductors. At
generator voltage, selecting whichever causing higher heating from 3 phase or 2 phase short circuit currents for checking.
3.Three phase or one phase earth fault short circuit current, whichever bigger will be chosen for checking short circuit current breaking capacity of equipment. If circuit breaker has both -3phase
and one -phase current breaking values, both short circuit currents must be chosen.
46

Article 77. Calculate the Time for Thermal Stability
When checking thermal stability, the calculation time is assumed to be equal to the total time required for the trip of the main protective relay and circuit breaker nearest to short circuit point and breaking time of circuit breaker itself including arcing time.
If the main protector has dead zone (by current, voltage, resistance etc.) the thermal stability shall be checked according to protector’s trip time when short circuit happens in the dead zone plus total trip time of the circuit breaker.
Article 78. Increasing Temperature in Fast Self-Reclosing Devices
When checking the thermal stability of equipment and power lineconductors with fast self-reclosing devices, the increase in temperature due to the increase in total short circuit time must be taken into account. When checking heating according to short circuit conditions, the conductors of one phase will be considered as one conductor with cross sectional area equal to total cross sectional area of all conductors in this phase.
Article 79. Short Circuit Currents
Equipment and conductor of circuitshall be selected according to maximum short-circuit current passing through.
They shall withstand the maximum short-circuit current for 2 seconds.
The short-circuit current is maximized when the maximum number of generators are connected with the power network and three-phase short-circuit fault happens
Article 80. Checking Items for Short Circuits
As stipulated in Technical Regulation.
Article 81. Electromotive Forces
Busbar, conductor, insulator and rigid support structure must withstand the electromotive force which generates in the maximum short-circuit current.
Electromotive force acting on soft conductors, insulators, terminals and conductor harness is calculated according to average square value of short circuit currents of two adjacent phases. For conductors in one phase and soft conductor harness, the acting force of-circuishort current in conductors in one phase is determined with respect to effective value of -threephase short-circuit
current.
Mechanical force of short-circuit current acts on busbar to support insulator and wall rancet insulator must not exceed 60% of minimum destructive force of insulator if insulator is single, and not exceed 100% of destructive force if insulator is double.
If conductors consist of several flat or -Ushaped bars, the mechanical stress is equal total stress generated by reciprocal forces between phases and elements of each bar.
47

The maximum mechanical stress of materials of rigid conducting bars must not exceed 70% of instantaneous destructive force.
The detail of calculation example is as follows.
The |
supporting insulators which support busbars and connected |
conductors, and |
these conductors |
shall bear the short-circuit electromagnetic force. |
|
|
|
The |
strength calculation sample of aluminum pipe bus |
in consideration |
of -circuittheshort |
electromagnetic force is shown below. |
|
|
48

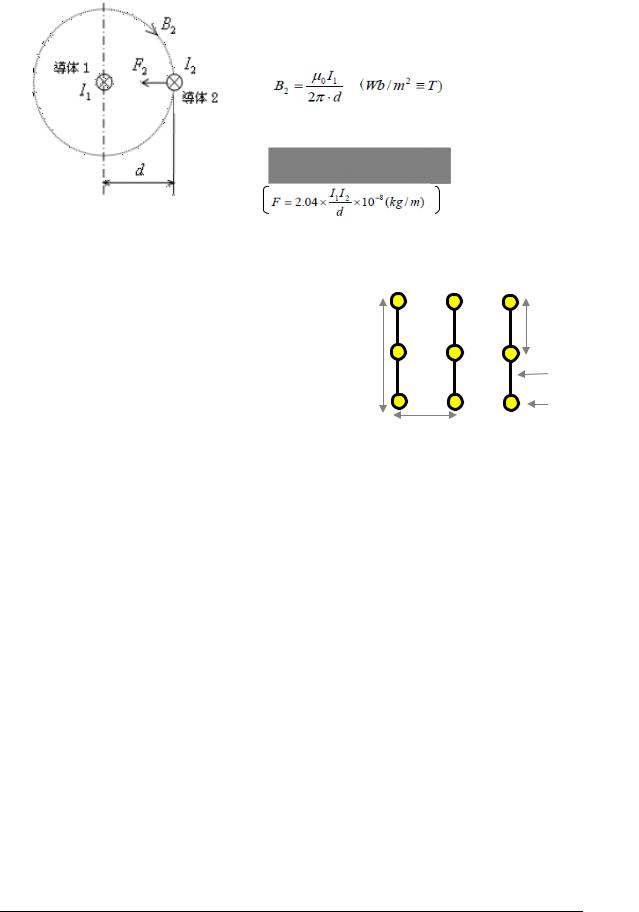

(1) The short-circuit electromagnetic force between two conductors
|
|
|
|
The calculation formula of magnetic flux density (B2) of the #2 |
|
|
|
|
conductor that arise from the current 1(I) of the #1 conductor is |
|
|
|
|
shown below. |
#1 Conductor |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
#2 Conductor |
The calculation formula of the electromagnetic force of eth#2 |
|
|
|
|
|
|
|
|
|
|
conductor is shown below. |
|
|
|
|
Where |
|
|
|
|
- μ0: Magnetic permeability (4π* 10-7 H/m) |
|
|
|
|
- I1, I2: Current (A) |
|
|
|
|
- d: Clearance between two conductors (m) |
|
Figure 81-1 |
Electromagnetic force between conductors |
(2) The strength calculation sample of aluminum pipe bus
[Calculation condition] |
4m |
|
- Short-circuit current: 20kA |
||
8m |
||
|
-Clearance between poles: 1.6m
-Clearance between supported point: 4m
- Bus length: 8m
1.6m
Bus
Supporting
insulator
Figure 81-2 Bus arrangement |
|
|
|
||
- Calculation formula of electromagnetic force |
F = |
√3 |
* |
2.04 * Is2 |
* K |
|
|
|
|||
2 |
d * 108 |
|
|||
|
|
|
|
Where
- √3/ 2 : Coefficient of horizontal bus arrangement - Is : Short-circuit current (A)
- K : Stress factor (3 to 4)
- d : Clearance between two conductors (m)
The strength calculation under the above condition is shown below.
- The short-circuit electromagnetic force of bus F1 |
= |
0.866 * 2.04 * 200002 |
* 4 |
|
||
1.6 * 108 |
|
|
|
|||
|
|
|
|
|
||
|
= 17.6kg/m |
|
|
|
|
|
- The short-circuit electromagnetic force of a supporting insulator F2 |
= |
17.6kg/m * 8m |
||||
3 |
|
|
||||
|
|
|
|
|
|
|
|
|
|
= 46.9kg |
|
|
49

Article 82. Permissible Values for Heated Conductors
The temperature of a heated conductor when a short circuit occurs must not exceed permissible values given in the following table.
Table 82 |
Highest permissible temperature |
|
|
|
|
|
|
Electricity conductor types and materials |
|
Highest permissible |
|
|
temperature [°C] |
||
|
|
|
|
Conducting bars: |
|
|
|
- Copper |
|
|
300 |
- Aluminum |
|
|
200 |
Copper or aluminum core cables, oil impregnated paper insulat |
|
200 |
|
voltage up to 10kV |
|
|
|
Copper or aluminum core cables, oil impregnated paper insulat |
|
125 |
|
voltage up to 22-220kV |
|
|
|
Cable with PVC sheath: |
|
|
|
- Cross sectional area up to 300mm2 |
|
|
160 |
- Cross sectional area > 300mm2 |
|
|
140 |
Copper or aluminum core cables with rubber insulation |
|
150 |
|
Copper or aluminum core cables with XLPE or EPR insulation |
|
250 |
|
Bare copper conductor with pulling force up to 20 N/mm2 |
|
250 |
|
Bare copper conductor with pulling force of 20 N/mm2 and above |
|
200 |
|
Bare aluminum conductor with pulling force up to 10 N/mm2 |
|
200 |
|
Bare aluminum conductor with pulling force of 10 N/mm2 and above |
|
160 |
|
Aluminum part of steel cored aluminum conductor |
|
200 |
Article 83. The Selection of Circuit Breakers
To select circuit breaker, it is necessary following requirements:
1.By breaking capacity: calculated breaking current is overall active short-circuit current (including acyclic elements) which is determined with tripping contact time of circuit breaker equals to total individual breaking time of the circuit breaker (from sending command onbreaking to releasing the contact for arc elimination) plus the time for extinguishment of the arc.
2.By closing capacity: at that time, the circuit breaker of the transformer installing at the side of
transformer voltage needs to be checked in case of asynchronous energization in phase opposition state.
Apart from being selected according to breaking capacity, circuit breaker shall alsobe selected based on transient recovery voltage (TRV) after short circuiting. The TRV capacity of a circuit breaker must exceed the calculated capacity in each location of circuit breaker inthe network. This criterion needs to be specially paid attention for500kV and 220kV circuit breakers at the terminals of long power lines, generator circuit breakers and circuit breakers placed near to reactor coils.
50

Article 84. The Selection of Fuses
In selection of fuses, thermal stability for the maximum short-circuit current passing through shall be considered.
In a large current range, current limiting fuses can break immediately and prevent to flow large shortcircuit current. In selection of fuses, the characteristics in the following table shall be considered. Not
to break with inrush current of transformer or condenser and starting current of motor, appropriate fuse shall be chosen.
NOTE: With regard to fuses, there are some types such as for transformer, for condenser, for motor, etc.
|
Table 84 |
Breaking characteristics of fuses |
|
|
||||
|
|
|
|
|
||||
Types of fuse |
|
|
Over-current characteristic in repeated condition |
|
||||
|
|
|
|
|
|
|
|
|
For transformer |
Not |
to |
break by flowing |
10 |
timesf |
orated current for |
0.1 |
secon |
repeated 10 times |
|
|
|
|
|
|||
|
|
|
|
|
|
|||
For condenser |
Not to break by flowing 70 times of rated current for 0.002 sec |
|||||||
repeated 100 times |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
For motor |
Not |
to |
break by flowing |
5 |
times |
of rated current |
for |
10 s |
repeated 10,000 times |
|
|
|
|
|
|||
|
|
|
|
|
|
Operating time
In: Rated Current
Fuse's Slow-Breaking Range
Figure 84
Fuse's Operating Characteristics Curve
Minimum Breaking Current
Maximum Breaking
Current
Current →
Fuse's Breaking Possible Range
Breaking performance of fuses
51
