Лабы 16 вариант / 4

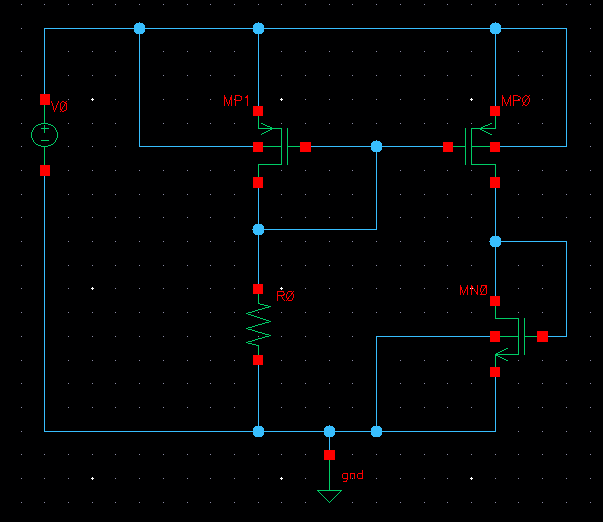

1.

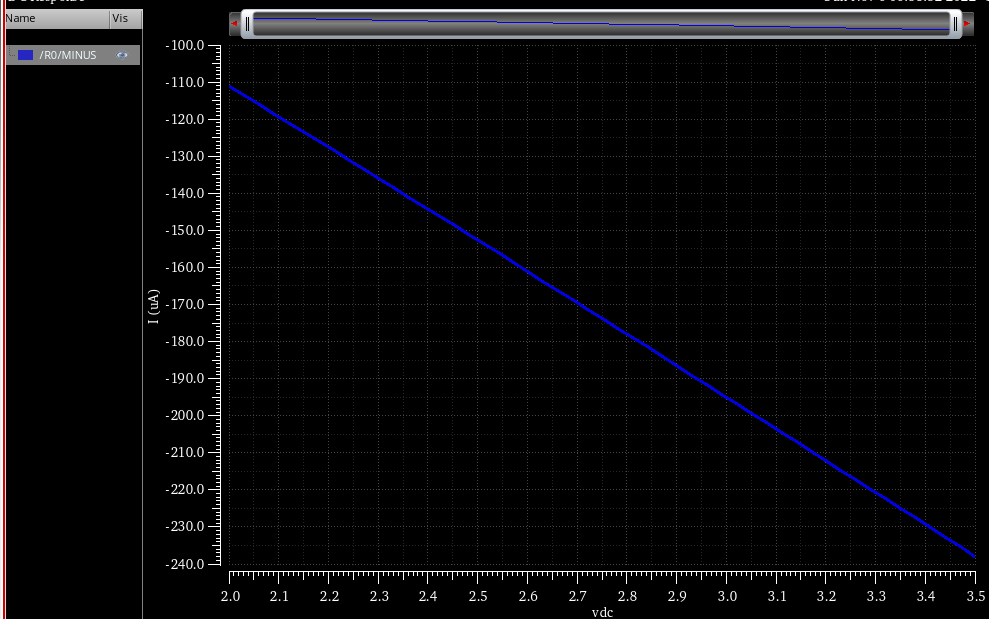

3.

CBDp = 3.5508e-014

CBSp = 3.5508e-014

CBDn = 2.0890e-014

CBSn = 2.0890e-014

Wn=19*10^(-6); Ln=0.45*10^(-6);

Wp=19*10^(-6); Lp=0.45*10^(-6);

Mp=3;Mn=1;

kp=1;np=1;

kn=0;nn=1;

A1=0.3*10^(-6); A2=0.4*10^(-6); A3=0.15*10^(-6); A4=0.4*10^(-6);

R1p=7.2; R1n=6.8;

VBZ=0;

TOXn=7.5*10^(-9); TOXp=7.7*10^(-9);

LDn=4*10^(-8); LDp=2.8*10^(-8);

CJn=7.9*10^(-4); CJp=8.1*10^(-4);

CJSWn=2.8*10^(-10); CJSWp=3.1*10^(-10);

MJn=0.34; MJp=0.41;

MJSWn=0.18; MJSWp=0.22;

PBn=0.75; PBp=0.81;

Weffp=Wp*Mp;

Leffp=Lp*Mp;

ADp=kp*((A1+A2+A3)*((Weffp)/Mp))+np*((2*Weffp)/Mp)*(A1+(A2/2));

ASp=ADp;

PDp=kp*2*(A1+A2+A3)+(Weffp/Mp)+np*2*(2*A1+A2);

PSp=PDp;

NRDp=Weffp/(A1+(A2/2));

NRSp=NRDp;

RDp=NRDp*R1p;

RSp=NRSp*R1p;

CBDp=((CJp*ADp)/((1-(VBZ/PBp))^MJp))+((CJSWp*PDp)/((1-(VBZ/PBp))^MJSWp))

CBSp=((CJp*ASp)/((1-(VBZ/PBp))^MJp))+((CJSWp*PSp)/((1-(VBZ/PBp))^MJSWp))

Weffn=Wn*Mn;

Leffn=Ln*Mn;

ADn=kn*((A1+A2+A3)*((Weffn)/Mn))+nn*((2*Weffn)/Mn)*(A1+(A2/2));

ASn=ADn;

PDn=kn*2*(A1+A2+A3)+(Weffn/Mn)+nn*2*(2*A1+A2);

PSn=PDn;

NRDn=Weffn/(A1+(A2/2));

NRSn=NRDn;

RDn=NRDn*R1n;

RSn=NRSn*R1n;

CBDn=((CJn*ADn)/((1-(VBZ/PBn))^MJn))+((CJSWn*PDn)/((1-(VBZ/PBn))^MJSWn))

CBSn=((CJn*ASn)/((1-(VBZ/PBn))^MJn))+((CJSWn*PSn)/((1-(VBZ/PBn))^MJSWn))
